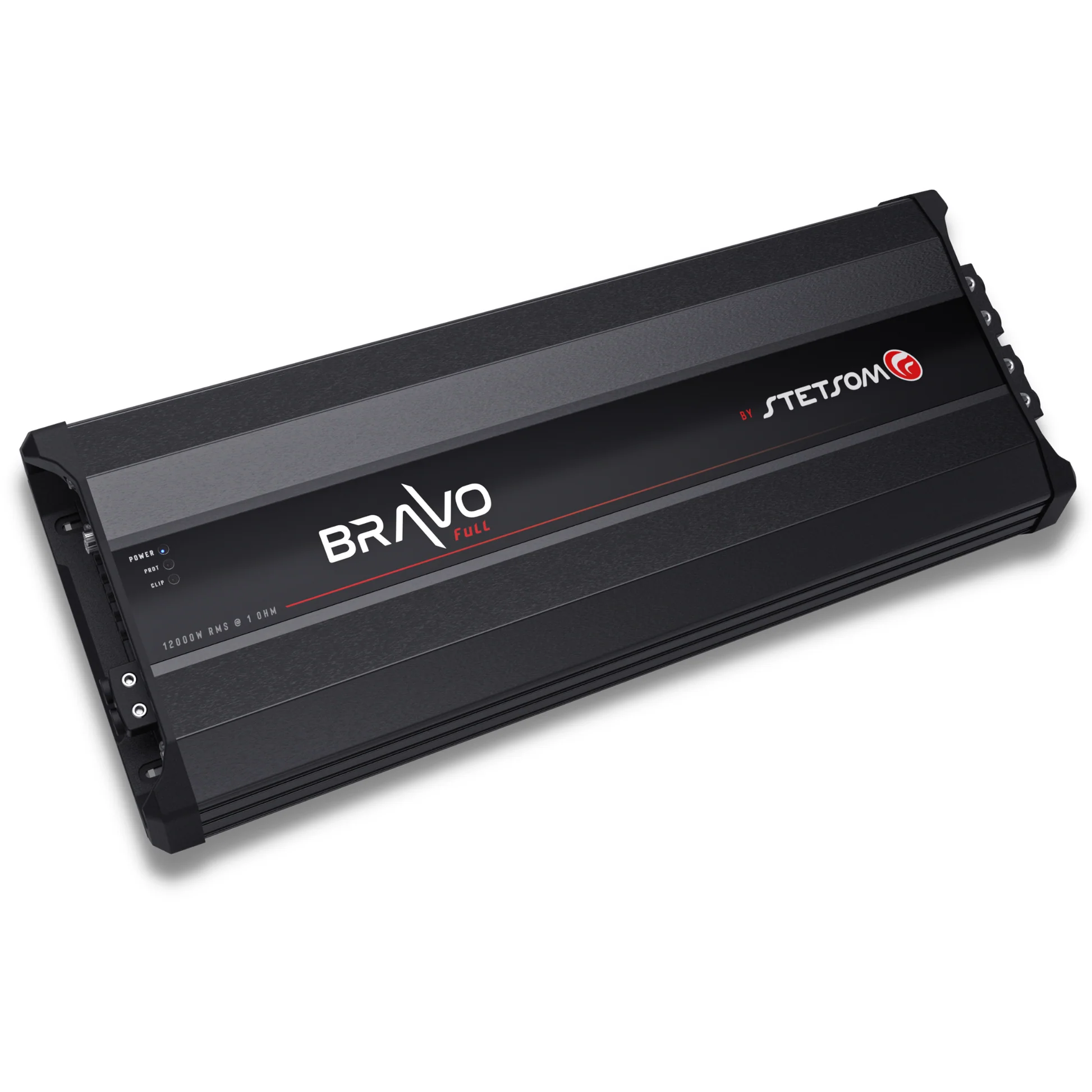

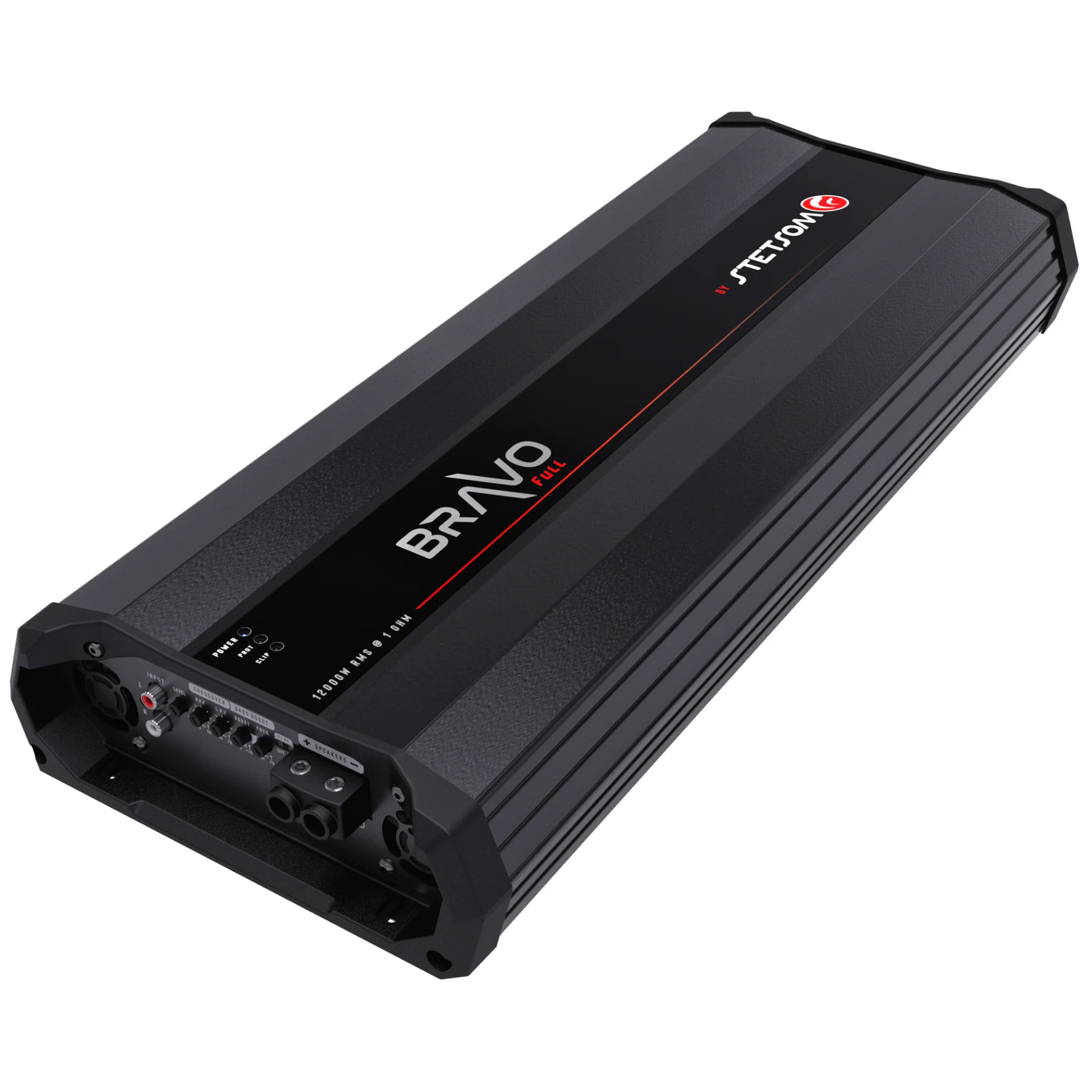

Stetsom BRAVO FULL 12K Digital Full-Range Amplifier Mono 1 Channel Class D 12000 Watts RMS
TECHNICAL SPECIFICATIONS
Tuning TipTECHNICAL SPECIFICATIONS CHARACTERISTICS BRAVO FULL 12000 Number of channels 1 Power Output at 14.4v 12800W RMS at 1 Ohm Power Output at 12.6v 12000W RMS at 1 Ohm Signal to noise ratio >90dB LPF 90Hz ~ 7KHz HPF 5Hz ~ 90Hz Supply Voltage 9v ~ 16v DC Power connectors 00 AWG ( up to 3 meters ) Ground connectors 000 AWG (greater than 3 meters) Remote conector 18 AWG Speakers 5 AWG Fuse 700 A Dimensions ( H x W x L ) 3.1″ x 22.5″ x 9.1″ Weight 18.9 lb
02 Tech specs
By the numbers
RMS Power 01
12,000W
Continuous rating
Weight 02
18.9lb
Per unit
- Channels
- 1 Channel (Monoblock)
- Amplifier Class
- Class D
- RMS Power
- 12000 Watts RMS
- Number of channels
- 1
- Power Output at 14.4v
- 12800W RMS at 1 Ohm
- Power Output at 12.6v
- 12000W RMS at 1 Ohm
- Supply Voltage
- 9v ~ 16v DC

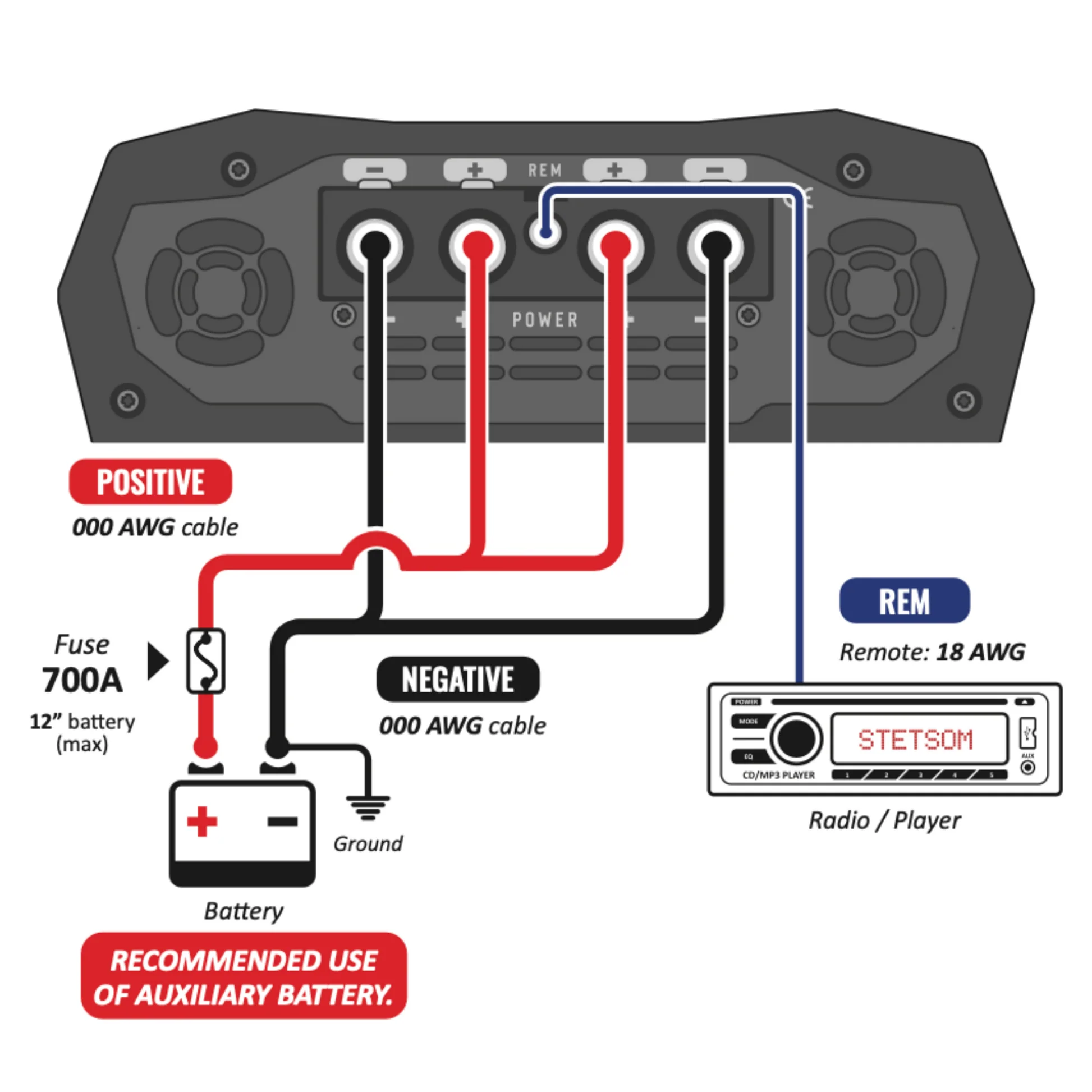

- Power connectors
- 00 AWG ( up to 3 meters )

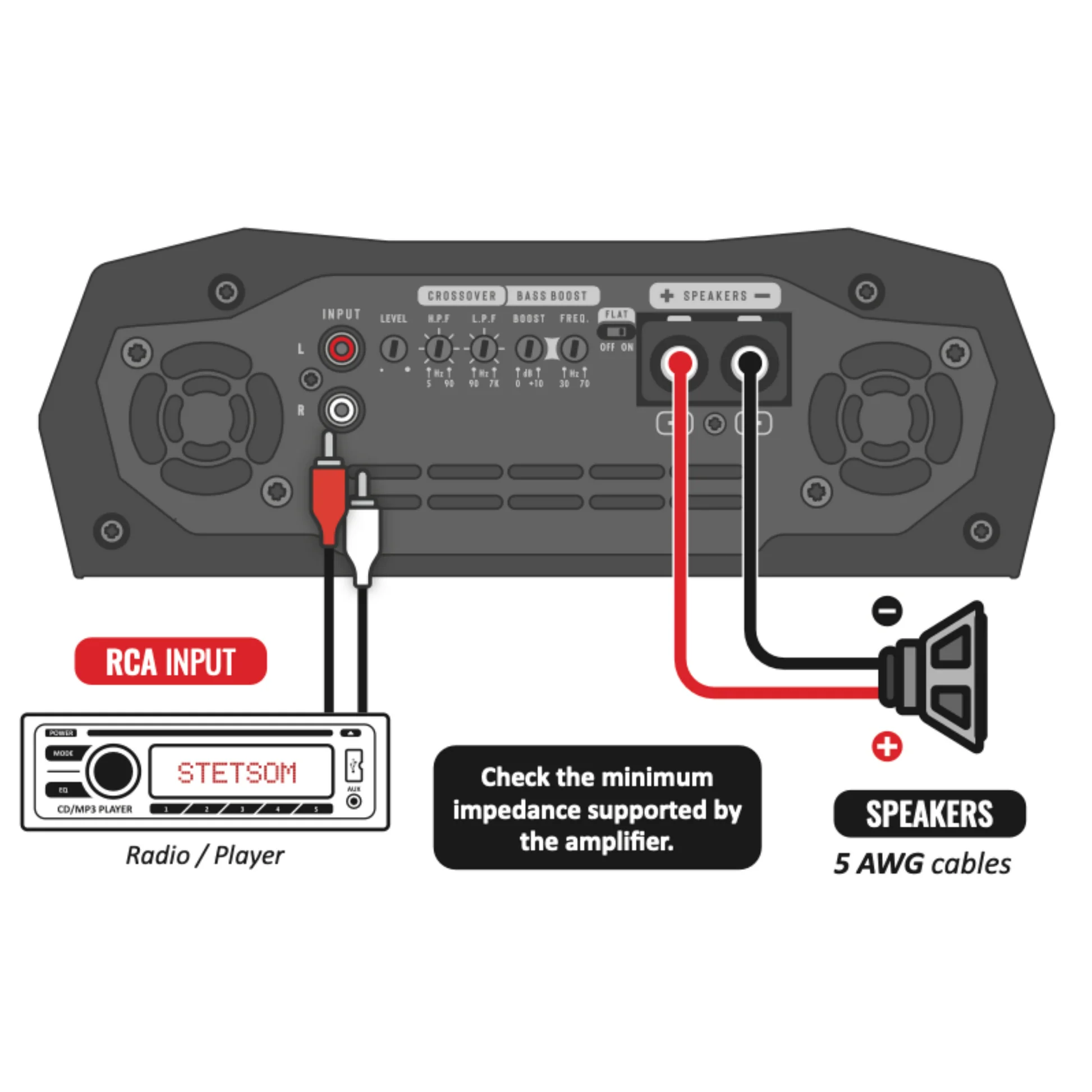

- Speakers
- 5 AWG
- Fuse
- 700 A
- Amp Ohm 1 or 2
- 1 Ohm, 2 Ohm
- Remote conector
- 18 AWG
- Dimensions ( H x W x L )
- 3.1″ x 22.5″ x 9.1″
- Weight
- 18.9 lb
- Dimensions
- 12 × 9 × 4 in
- CHARACTERISTICS
- BRAVO FULL 12000
- Signal to noise ratio
- >90dB

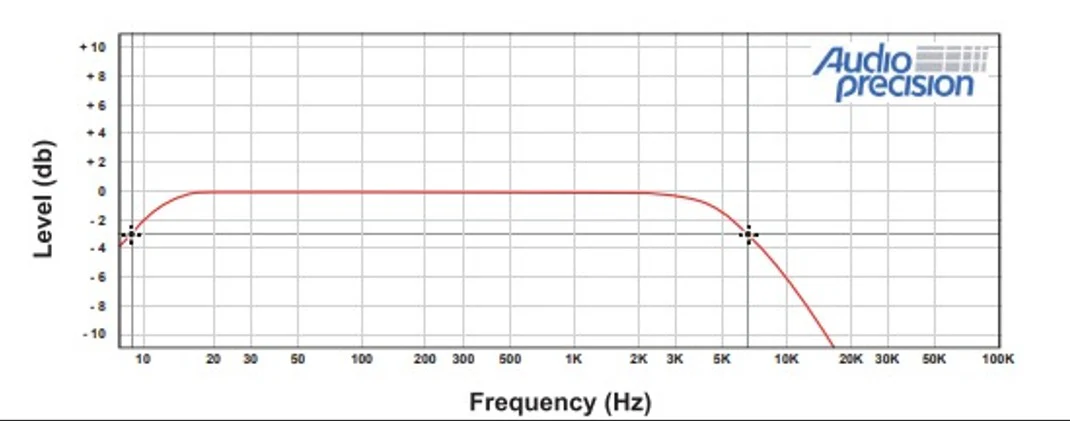

- LPF
- 90Hz ~ 7KHz
- HPF
- 5Hz ~ 90Hz
- Ground connectors
- 000 AWG (greater than 3 meters)
