01 Overview
The details
Product Overview

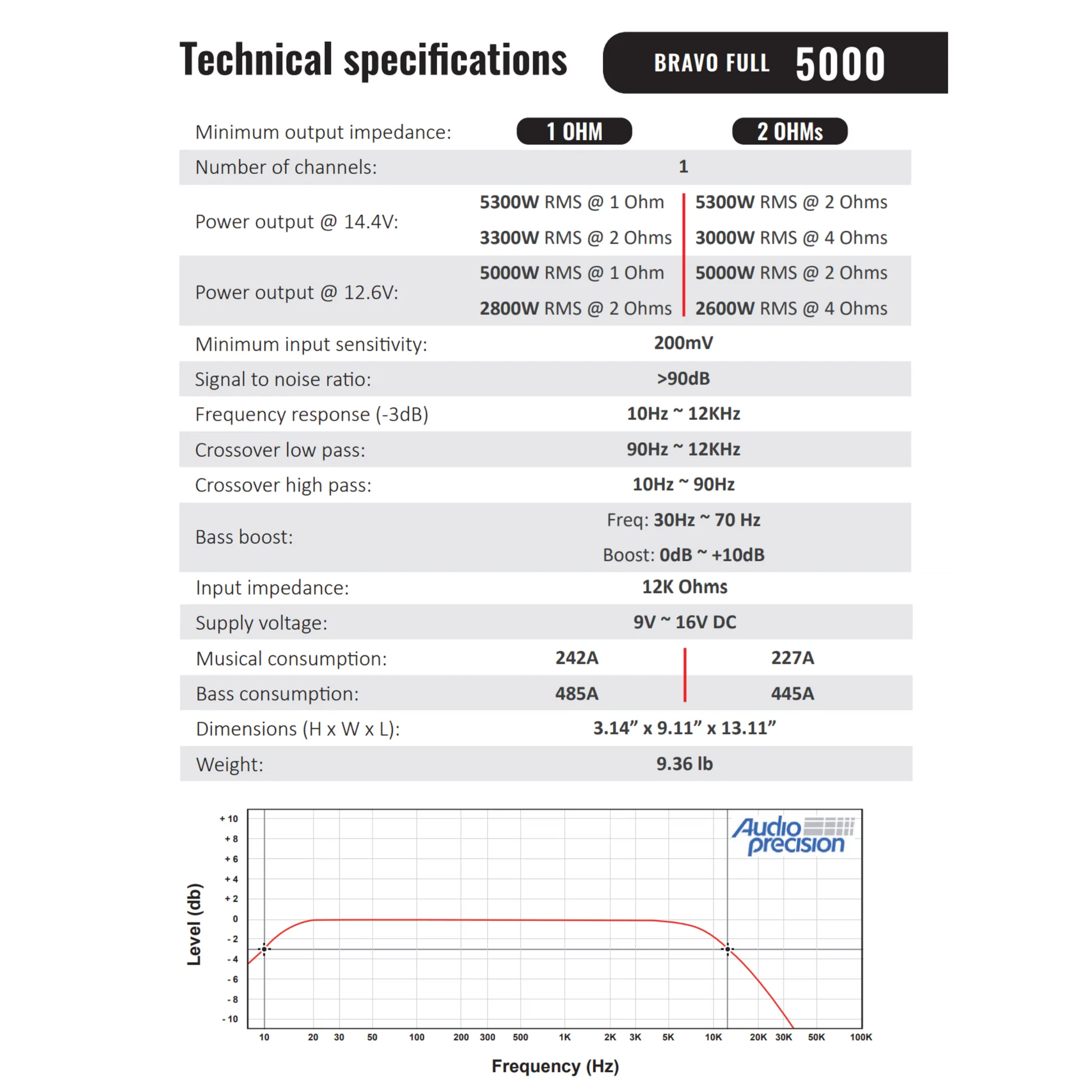

Technical Specifications (1 Ohm)
—
Technical Specifications (2 Ohms)
02 Tech specs
By the numbers
RMS Power 01
5,300W
Continuous rating
Weight 02
9.36lb
Per unit
- Channels
- 1 Channel (Monoblock)
- Impedance
- 1 Ohms
- Number of Channels
- 1
- RMS Power at 1 Ohm @ 14.4V
- 5300W
- RMS Power at 2 Ohms @ 14.4V
- 3300W
- RMS Power at 1 Ohm @ 12.6V
- 5000W
- RMS Power at 2 Ohms @ 12.6V
- 2800W
- Crossover low pass
- 90Hz ~ 12KHz
- Crossover high pass
- 10Hz ~ 90Hz
- Bass boost
- Freq: 30Hz ~ 70Hz / Boost: 0dB ~ +10dB
- Input impedance
- 12K Ohms
- Supply voltage
- 9V ~ 16V DC
- Amp Ohm 1 or 2
- 1 Ohm, 2 Ohm
- Minimum input sensitivity
- 200mV
- Frequency response (-3dB)
- 10Hz ~ 12KHz
- Dimensions (H x W x L)
- 3.14″ x 9.11″ x 13.11″
- Weight
- 9.36 lb
- Dimensions
- 12 × 9 × 4 in
- Signal to noise ratio
- >90dB
- Musical/Bass consumption
- 242A/485A
