01 Overview
The details
Product Overview

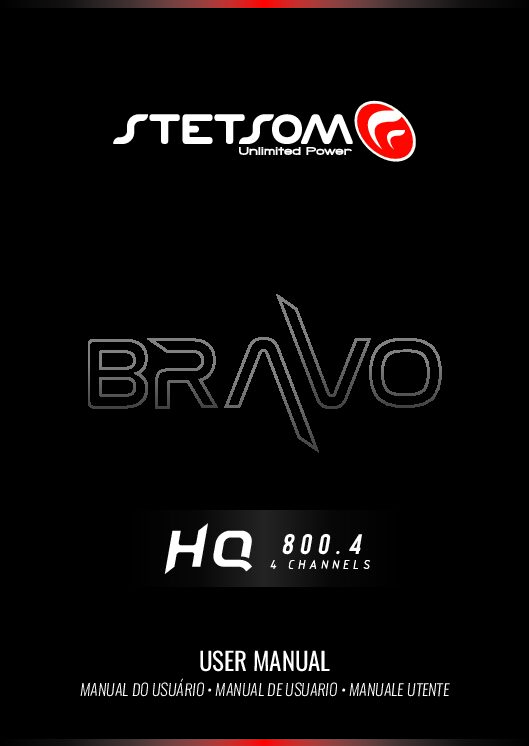

Download Manual: manual_bravo_hq800.4
The BRAVO FULL line was developed for car audio enthusiasts seeking maximum performance and quality in amplifiers.
Its frequency response of 10Hz to 15kHz offers audio quality and definition, allowing it to be used with subwoofers, woofers, drivers, and tweeters.
TECHNICAL SPECIFICATIONS
02 Tech specs
By the numbers
RMS Power 01
800W
Continuous rating
Weight 02
1
Per unit
- RMS Power
- 800W
- Impedance
- 2 Ohms
- Number of Channels
- 4
- RMS Power at 2 Ohm 12.6V
- 4 x 200W
- RMS Power at 4 Ohm 12.6V
- 4 x 130W
- RMS Power at 2 Ohm 14.4V
- 4 x 250W
- RMS Power at 4 Ohm 14.4V
- 4 x 170W
- Power @ 12.6V Bridge 4 Ohms
- 2 x 400W
- Supply Voltage
- 9V ~17V DC
- Crossover Low Pass
- 50Hz ~2,3K (Variable)
- Crossover High Pass
- 50Hz ~2,3K (Variable)
- Input Impedance
- RCA: 18K Ohms / HIGH: 1K Ohms
- Frequency Response
- 5Hz ~22Khz
- Input Sensitivity
- RCA: 250mV / HIGH: 1,5V
- Dimensions (H x W x D) mm
- 58,5 x 167 x 235,5 mm
- Weight Kg
- 1,5 Kg
- Weight
- 20 lbs
- Dimensions
- 12 × 9 × 4 in
- CHARACTERISTICS
- BRAVO HQ800.4 – 2 OHMS
- Signal to Noise
- >80dB
- Consumption with Signal Musical
- 43A
- Consumption with Signal Bass
- 86A
