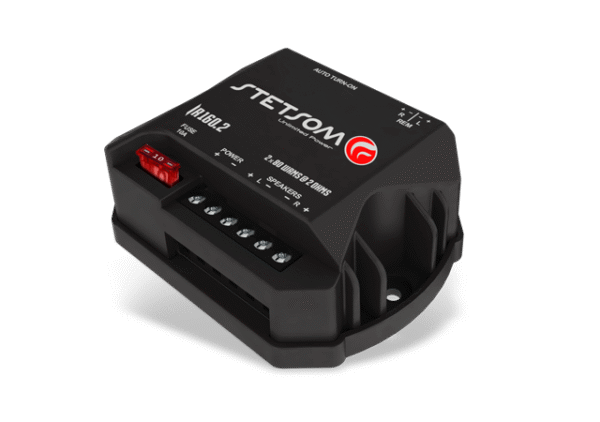

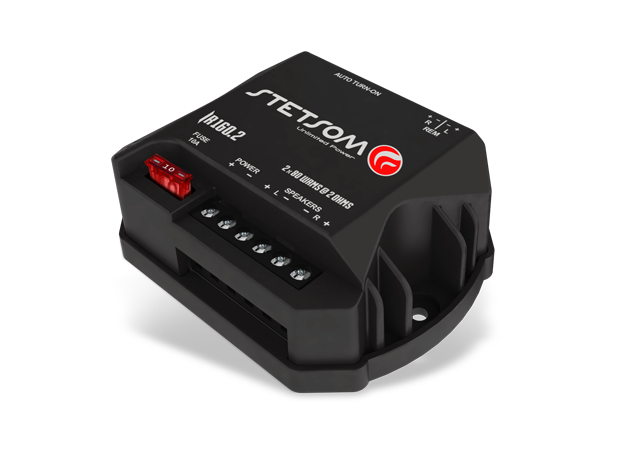

Stetsom Iron Line IR 160.2 Car Audio Amplifier SM-IR1602

$62.99

RMS Power80W
Sensitivity2V
Weight115kg
SKU: SM-IR1602 Categories: , , Tags: , , Brand:
01 Overview

The details

Product Overview

The IR160.2 is a Digital Amplifier with 2 channel of 80W RMS each in 2 Ohms.

Features Auto-turn On: Provides Automatic Remote Start via the audio connector.

With bass, mid and treble well defined with incomparable sound this amplifier is ideal for internal sound.

Amazing design. Robustness is unmatched since it is developed in high performance aluminum.

High fidelity sound in the bass, midand treble.

Safety Energy Technology: providing extremely high efficiency and low power consumption.

Does not interfere with FM: We suggest distributing the speaker cables as far as possible from the radio antenna cable if you use an internal antenna, It must be grounded to the chassis of the vehicle.

TECHNICAL SPECIFICATIONS

02 Tech specs

By the numbers

SM-IR1602 · Manufacturer rated
RMS Power 01
80W
Continuous rating
Sensitivity 02
2V
Efficiency
Weight 03
115kg
Per unit

Channels
2 Channel
RMS Power
80 Watts RMS
Impedance
2 Ohms
Number of Channels
2
RMS Power at 2 Ohm 13.8V
2 x 80W RMS (Stereo)
RMS Power at 4 Ohm 13.8V
2 x 45W RMS (Stereo)
Supply Voltage
9 ~ 15V
Input Impedance
2,4K Ohms
Impedance Output
2 Ohms

Frequency Response
50Hz ~ 23 KHz
Input Sensitivity
2 V

Dimensions (H x W x D) mm
29 x 58 x 77
Weight Kg
0,115 Kg
Weight
5 lbs
Dimensions
12 × 9 × 4 in

CHARACTERISTICS
IR 160.2
Signal to Noise
> 90 dB
Harmonic Distortion
> 0,03 % THD
Consumption with Signal Musical
6,4 A
Consumption with Signal Bass
12,8 A
