The details
Product Overview
TECHNICAL SPECIFICATIONS
By the numbers
- RMS Power
- 800W
- Number of Channels
- 4
- RMS Power at 4 Ohm
- BRIDGE: 2 x 530W @ 14,4V
- RMS Power at 2 Ohm 12.6V
- 4 x 200W
- RMS Power at 4 Ohm 12.6V
- 4 x 135W
- RMS Power at 2 Ohm 14.4V
- 4 x 265W
- RMS Power at 4 Ohm 14.4V
- 4 x 175W
- Power @ 12.6V Bridge 4 Ohms
- 2 x 400W
- Supply Voltage
- 9V ~15,5V DC
- Crossover Low Pass
- 90 Hz
- Crossover High Pass
- 90 Hz
- Input Impedance
- RCA: 30K Ohms / FIO: 1K Ohms
- Impedance Output
- STEREO: 2 OHMS / BRIDGE: 4 OHMS
- Frequency Response
- 5Hz ~ 22KHz
- Input Sensitivity
- RCA: 0,2V / FIO: 1,5V
- Dimensions (H x W x D) mm
- 55 x 162 x 235,5 mm
- Weight Kg
- 1,5 Kg
- Weight
- 5 lbs
- Dimensions
- 12 × 9 × 4 in
- CHARACTERISTICS

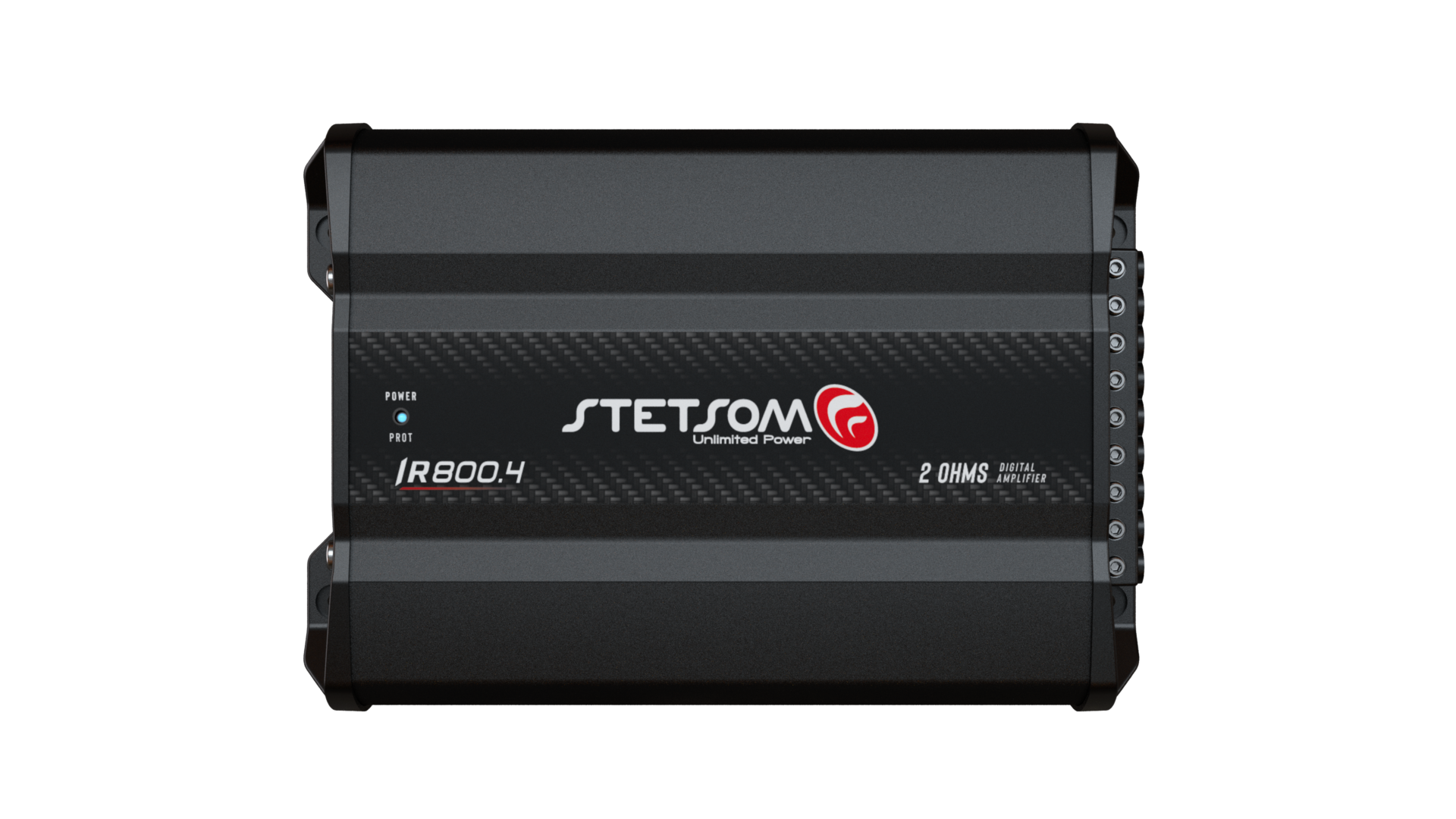

- IR800.4 – 2 OHMS
- Signal to Noise
- >80 dB
- Consumption with Signal Musical
- 44A
- Consumption with Signal Bass
- 88A
