SoundQubed C Series C1-5300 Class D Monoblock Amplifier 5300W RMS SQ-C1-5300
$699.95
The C1-5300 is for builds where 3,000 watts just isn’t enough anymore.
- RMS Power @ 4 ohm: 1500W
- RMS Power @ 2 ohm: 2900W
- RMS Power @ 1 ohm: 5300W
- Frequency Response: 20Hz-20KHz
- Minimum Impedance: 1 ohm
Out of stock
The details
Product Overview

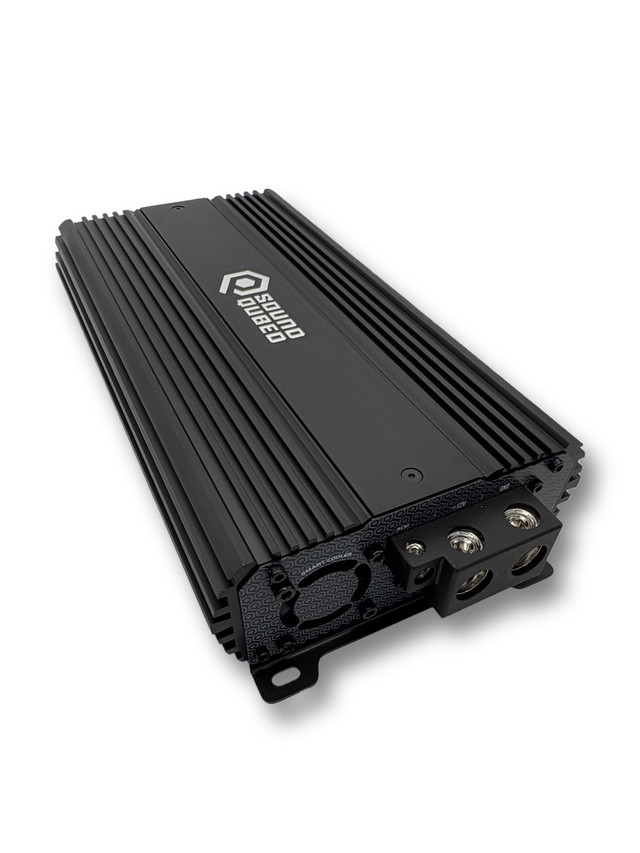

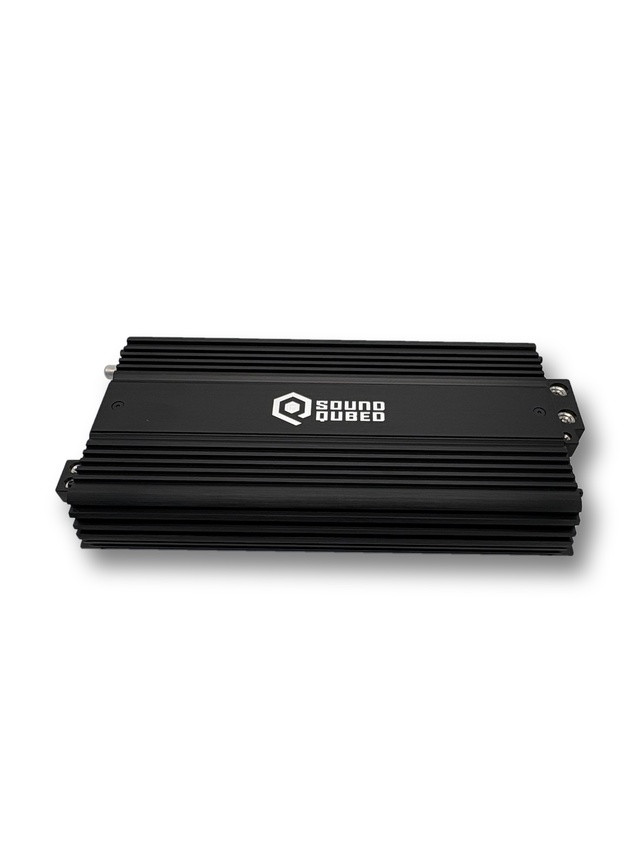

SoundQubed C Series C1-5300 Class D Monoblock Amplifier 5300W RMS – The C1-5300 is for builds where 3,000 watts just isn’t enough anymore. It puts out 5,300 watts RMS at 1 ohm (2,900 at 2 ohms) and still comes in at under 12 inches long. DV8 Shop is an authorized SoundQubed dealer.

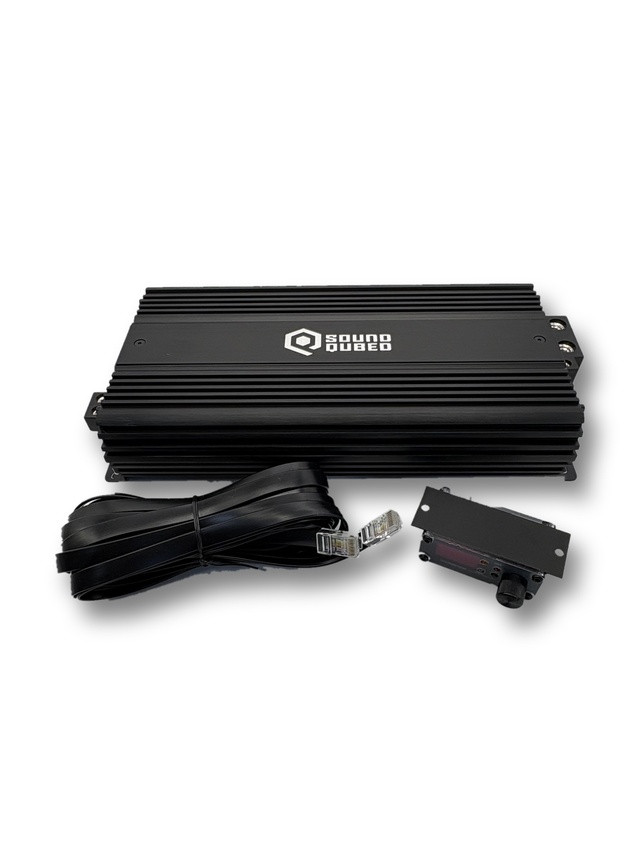

Plan your electrical before you install it: it wants 0-gauge wire and a 500A fuse, and a big-three upgrade won’t hurt. Do that and it’ll push a wall of subs all day. It has a built-in fan, thermal and short-circuit protection, and a remote level control.
Every C Series amp is checked on Audio Precision test gear before it leaves SoundQubed, and each one carries thermal, overload, DC output, short-circuit and voltage protection.
By the numbers
- RMS Power @ 4 ohm
- 1500W
- RMS Power @ 2 ohm
- 2900W
- RMS Power @ 1 ohm
- 5300W
- Damping Factor
- 92
- Input Impedance
- 22K ohms
- Low Level Input Range
- 400mV-6V
- X-Over Filter Range (CH 1/2)
- HPF: 10Hz-2KHz / LPF: 50Hz-20KHz
- Bass Boost Range
- 0~12dB
- Amplifier Class
- Digital
- Number of Channels
- 1
- Minimum Impedance
- 1 ohm
- Power Input Terminal Size
- 0GA
- Recommended Fuse
- 500A
- DC Output Protection
- Yes
- Short Circuit Output Protection
- Yes
- Voltage Input Protection
- Yes
- Tiffany-Style RCA Inputs
- Yes
- Frequency Response
- 20Hz-20KHz
- Efficiency @ 4 ohm
- 85%
- Total Harmonic Distortion (THD)
- 0.20%
- Bass Boost Frequency
- 30Hz-80Hz
- Body Color
- Black
- Overall Length
- 11.85" / 301mm
- Overall Width
- 5.91" / 150mm
- Overall Height
- 2.36" / 60mm
- Heatsink Length
- 10.67" / 271mm
- Weight
- 8 lbs
- Dimensions
- 15 × 8 × 5 in
- Brand
- SoundQubed
- Series
- C Series
- Model
- C1-5300
- Signal to Noise Ratio
- 90dB
- Selectable X-Over (CH 1/2)
- Band-Pass Fixed
- Amplifier Type
- Monoblock Full-Range
- LED Indicator
- Power / Protect / Clip
- Remote Level Control
- Yes
- Cooling Fan
- Yes
- Thermal Protection
- Yes
- Over-Load Protection
- Yes
- Optional Remote with Voltmeter & Temp Display
- Yes
