SoundQubed

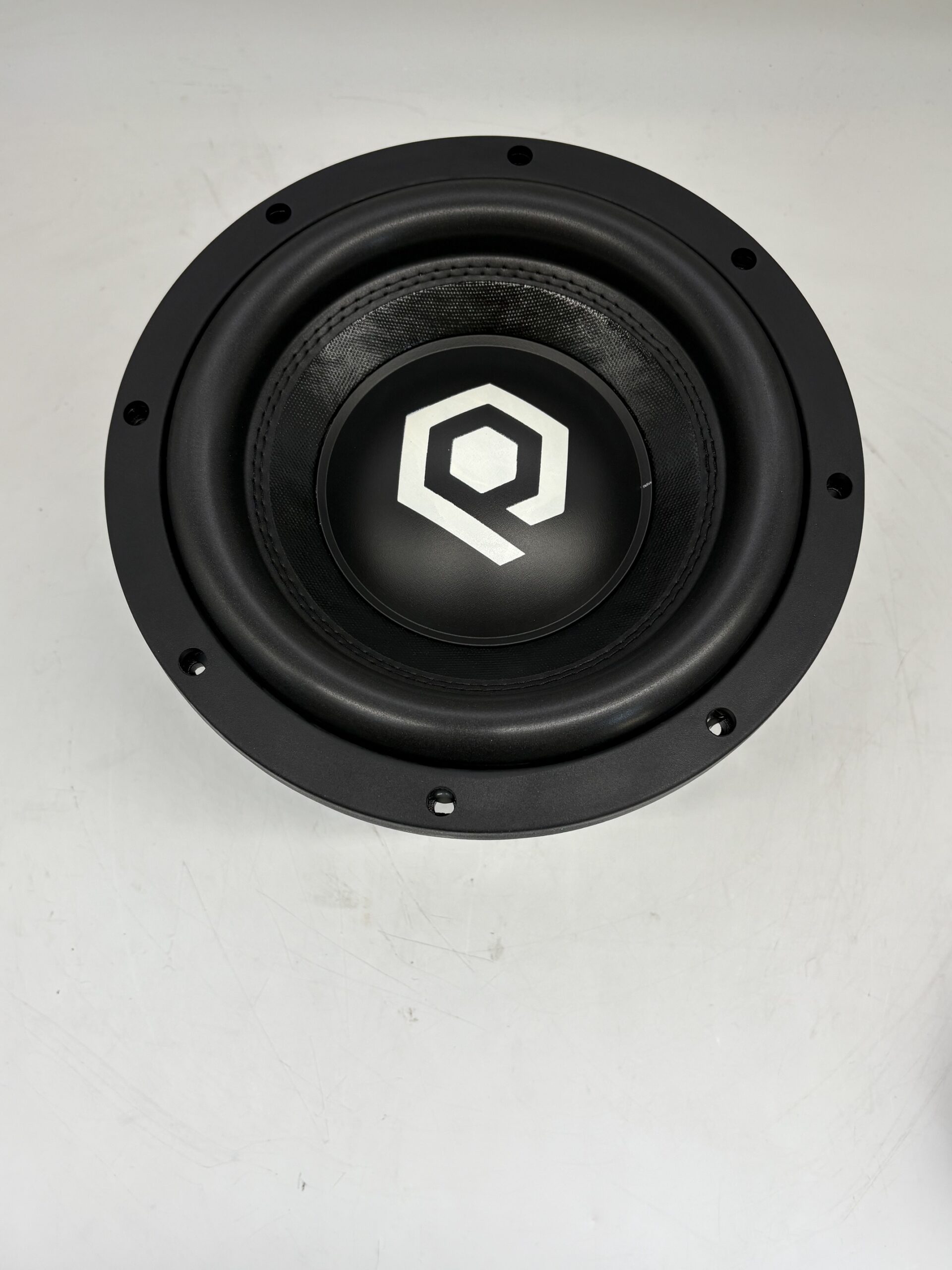

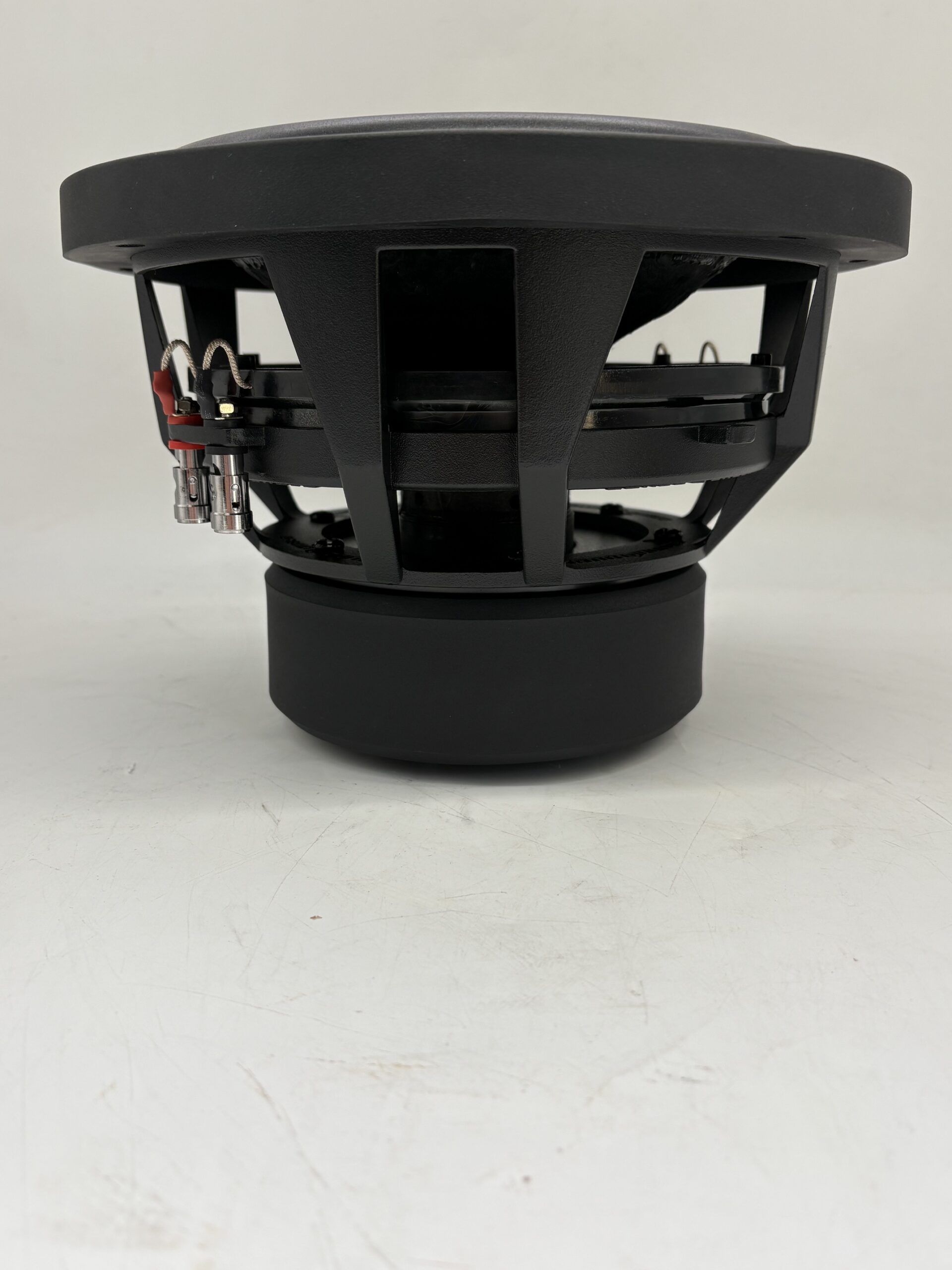

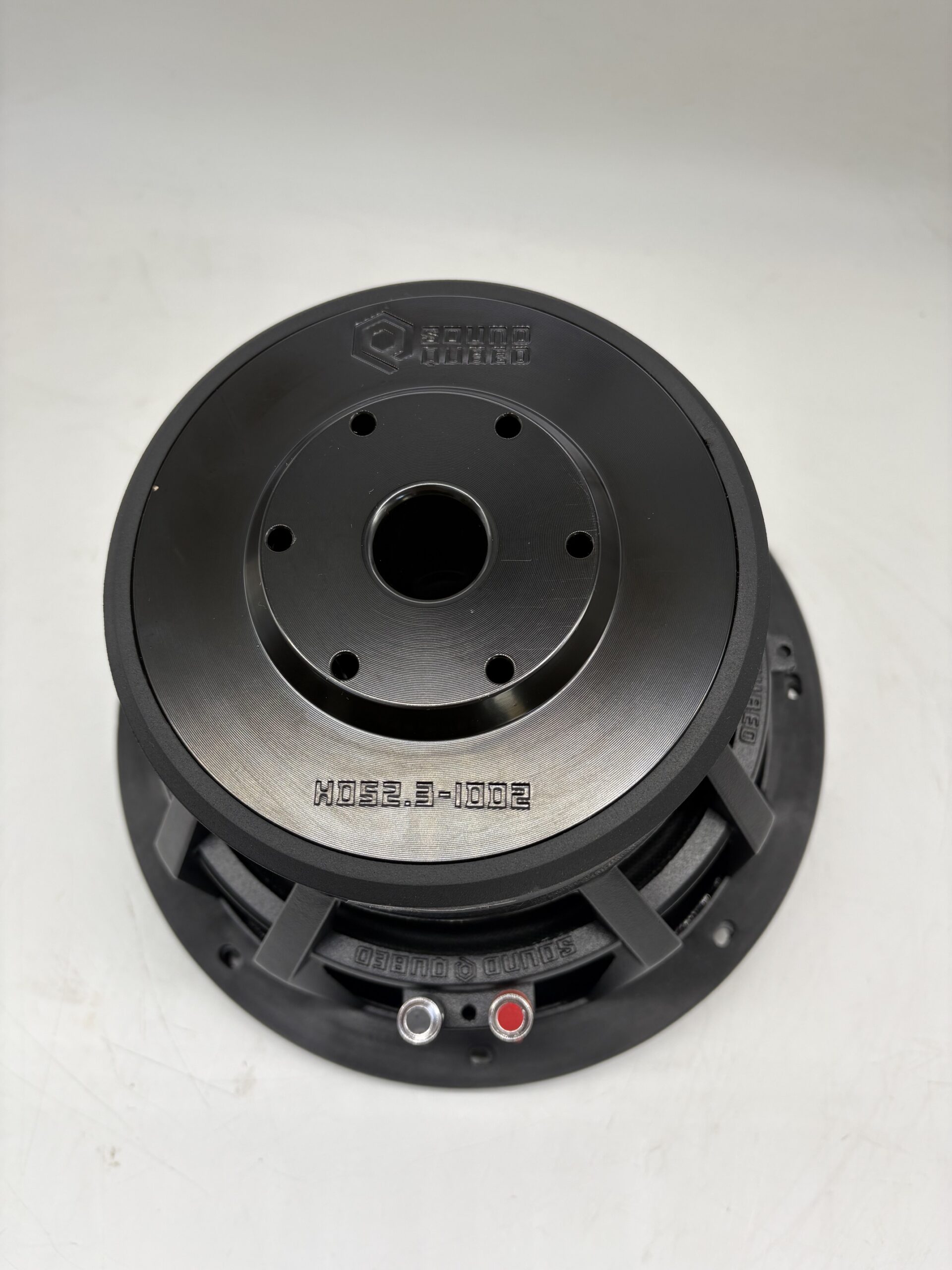

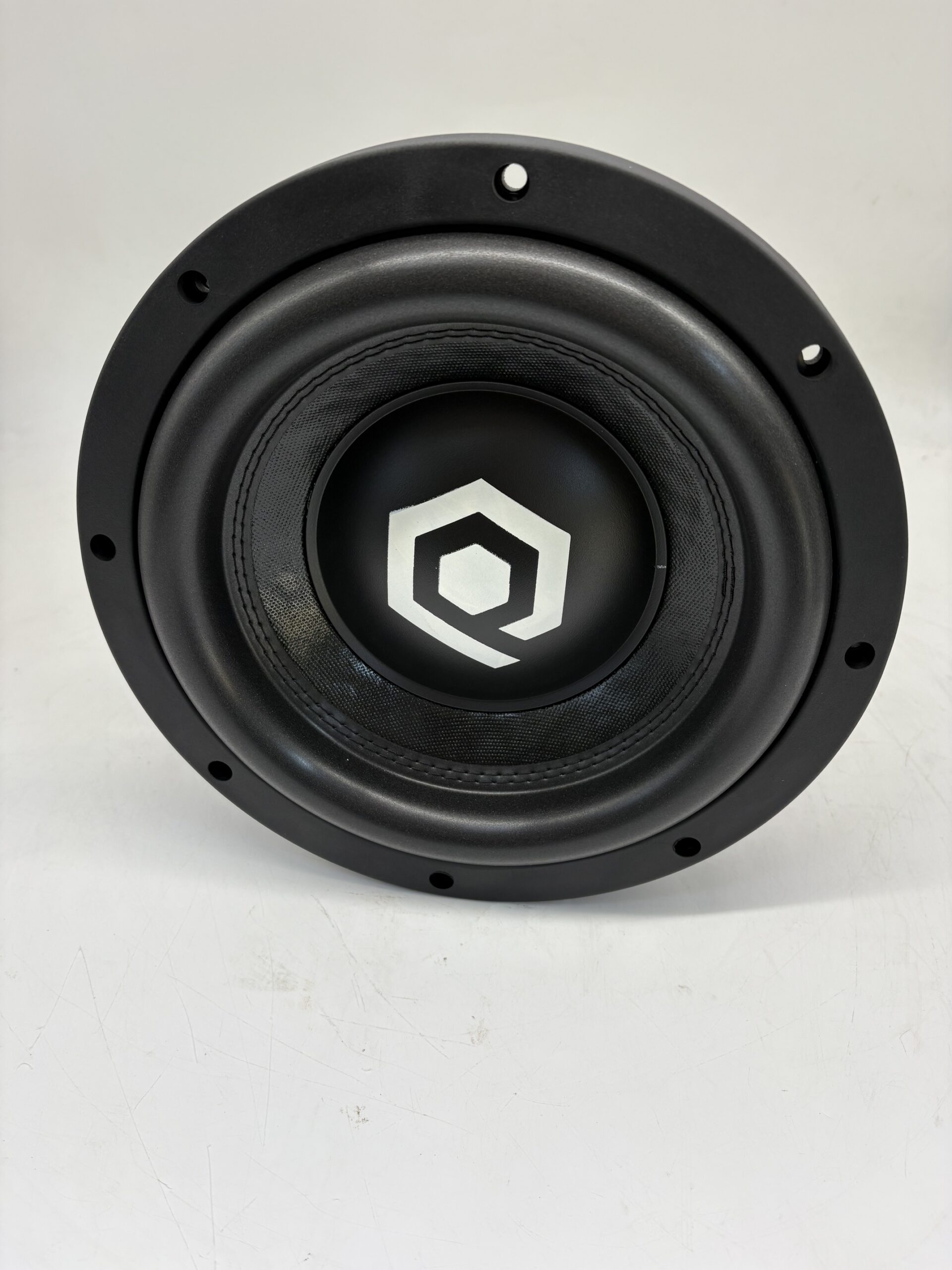

SoundQubed HDS2.3 Series 10 inch Subwoofer 2.5 inch DVC 800W/1600W SQ-HDS2.3-10
$239.95
Lease for as low as $10.84/week. Apply Now
The HDS2.3 10-inch is rated at 800 watts RMS.
- Impedance Options: Dual 2 Ohm / Dual 4 Ohm
- RMS Power: 800W
- Peak Power: 1,600W
- Mounting Depth: 168mm / 6.61"
- Sealed Enclosure: 0.5 – 1.0 ft³
RMS Power800W
Peak Power1,600W
Xmax14mm
01 Overview
The details
Product Overview
SoundQubed HDS2.3 Series 10 inch Subwoofer 2.5 inch DVC 800W/1600W – The HDS2.3 10-inch is rated at 800 watts RMS. It sits in the middle of SoundQubed’s lineup, with more excursion and power handling than an entry-level sub, and it is a great daily-driver upgrade that does not need a huge electrical system. DV8 Shop is an authorized SoundQubed dealer.
Choose dual 2-ohm voice coils (wires to 1 or 4 ohms) or dual 4-ohm voice coils (wires to 2 or 8 ohms) to match your amplifier and the number of subs in your build.
- 800W RMS / 1,600W peak power handling
- 2.5" dual voice coil, Dual 2 Ohm or Dual 4 Ohm
- Recommended sealed box: 0.5 – 1.0 ft³; ported: 1.0 – 1.5 ft³
- Mounting depth 168mm / 6.61"
02 Tech specs
By the numbers
RMS Power 01
800W
Continuous rating
Peak Power 02
1,600W
Short-burst rating
Xmax 03
14mm
One-way excursion
Sensitivity 04
81.5dB
Efficiency
Excursion
Scale 0 to 32mmXMAX 14MM
XMECH 26MM
- Impedance Options
- Dual 2 Ohm / Dual 4 Ohm
- RMS Power
- 800W
- Peak Power
- 1,600W
- Dual 2 or 4 Ohms
- D2 Ohms, D4 Ohms
- Xmax (±)
- 14mm
- Xmech (±)
- 26mm
- Sd
- 330 cm²
- Fs
- 34 Hz (D2) / 34.4 Hz (D4)
- Qms
- 4.26 (D2) / 3.79 (D4)
- Qes
- 0.67 (D2) / 0.72 (D4)
- Qts
- 0.58 (D2) / 0.61 (D4)
- Vas
- 10 L (D2) / 11.4 L (D4)
- Le
- 2.30 mH (D2) / 3.29 mH (D4)
- Sensitivity (1W/1m)
- 81.5 dB (D2) / 82.6 dB (D4)
- BL
- 16.9 N/A (D2) / 18.1 N/A (D4)
- Voice Coil
- 2.5" dual voice coil
- Coil Length
- 40mm
- Magnet Weight
- 100 oz
- Motor Diameter
- 162mm / 6.38"
- Size
- 10"
- Overall Diameter
- 280mm / 11.02"
- Cutout Diameter
- 235mm / 9.25"
- Mounting Depth
- 168mm / 6.61"
- Sealed Enclosure
- 0.5 – 1.0 ft³
- Ported Enclosure
- 1.0 – 1.5 ft³
- Weight
- 22 lbs
- Dimensions
- 14 × 14 × 12 in
- Brand
- SoundQubed
- Model
- HDS2.3 10 inch
