Description
Product Overview

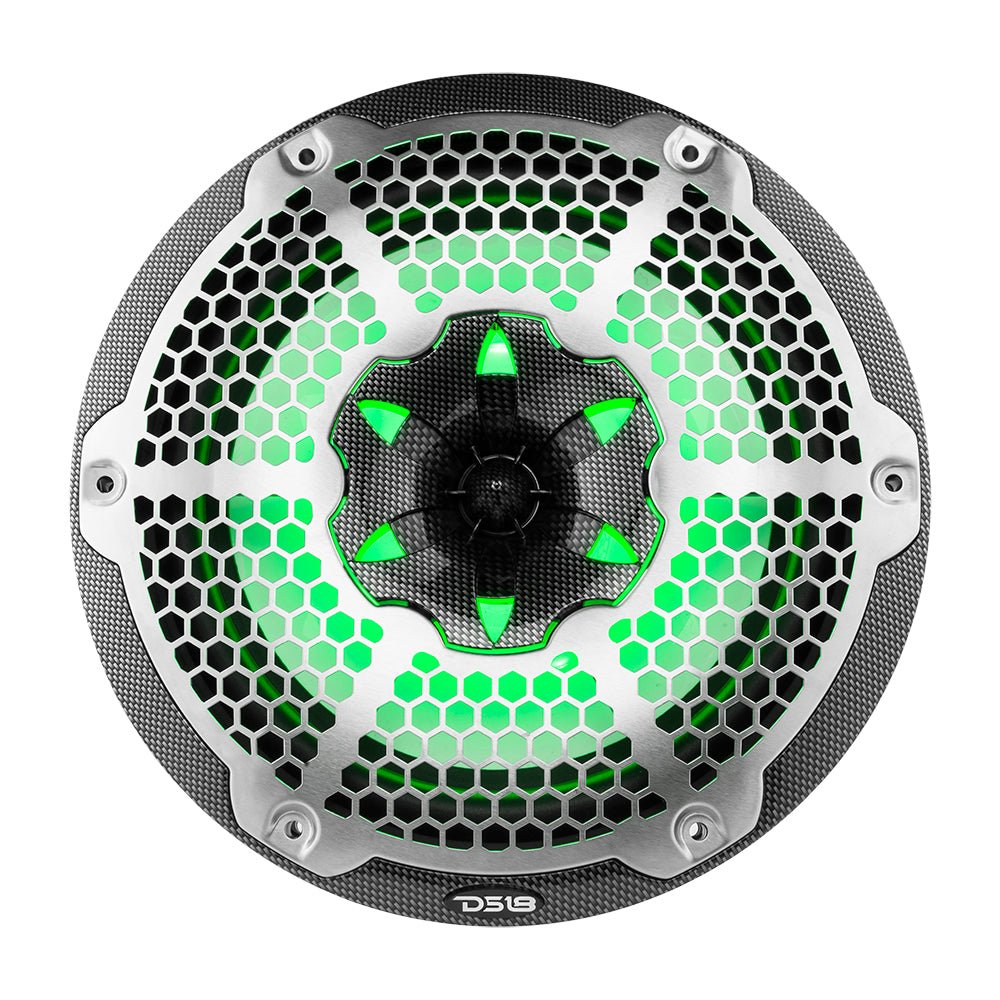

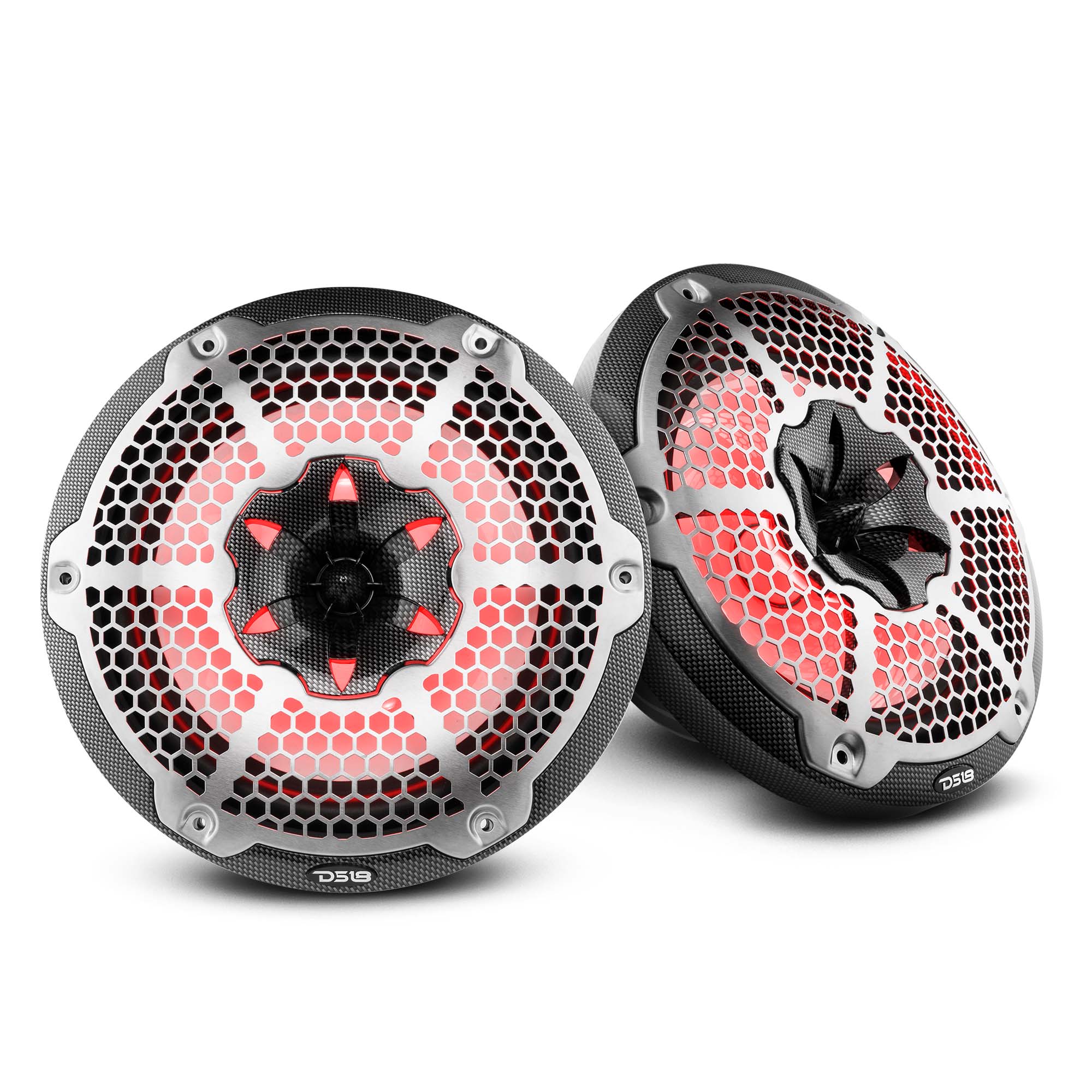

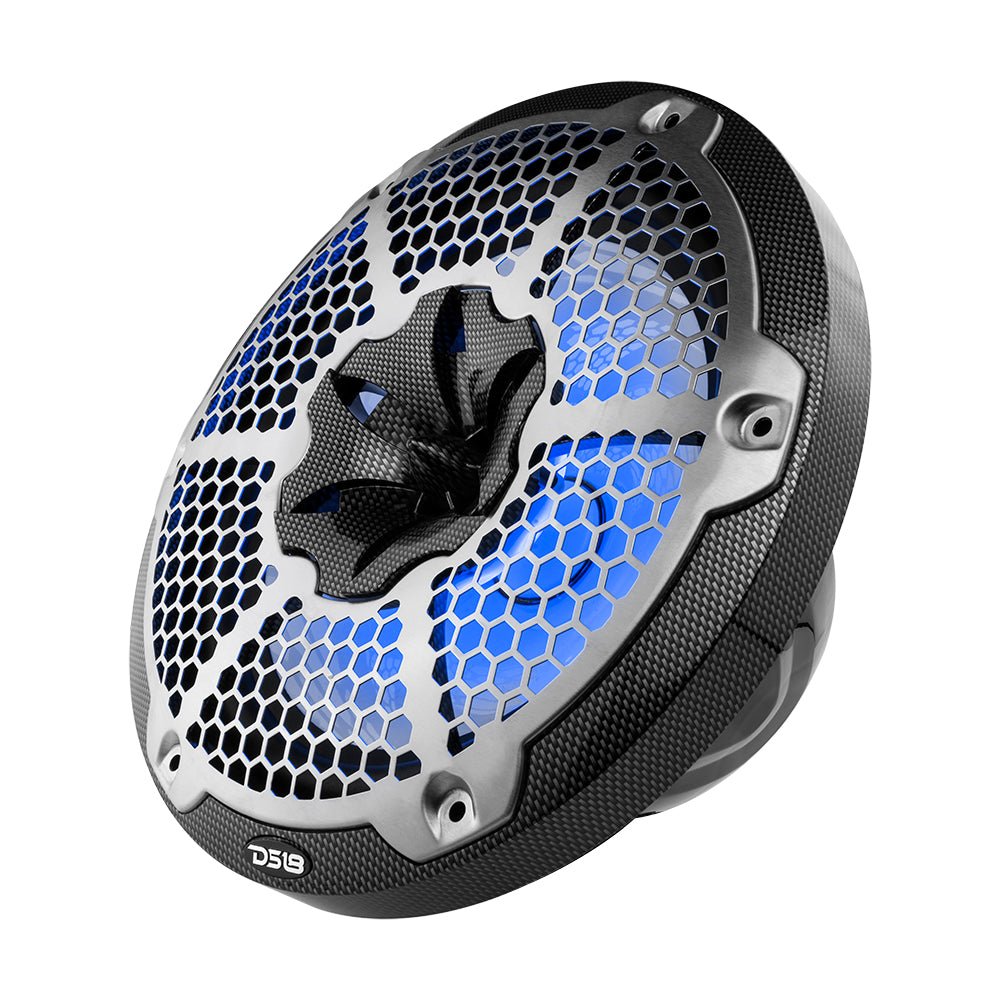

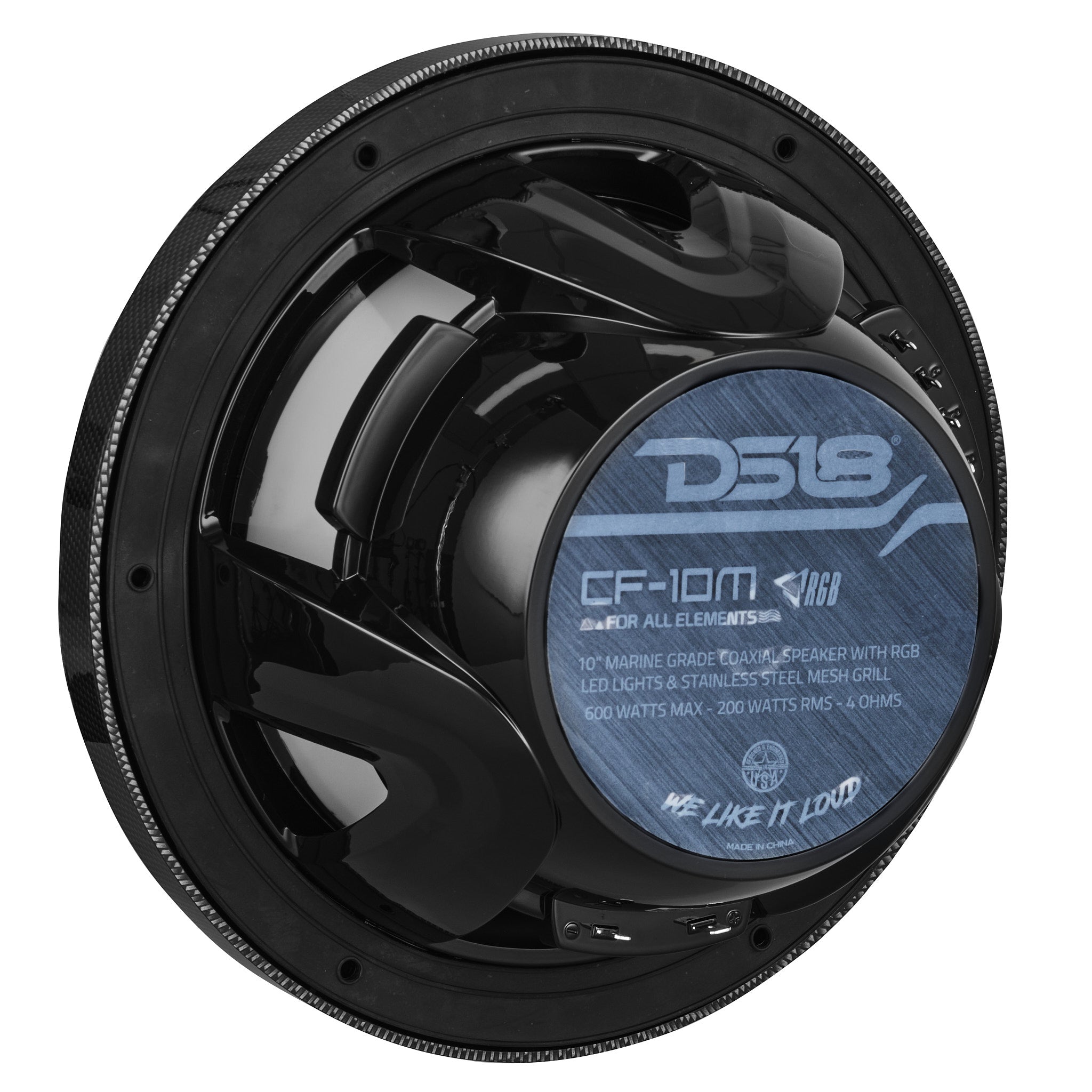

DS18 continues to dominate the marine scene with our innovative brand of marine speaker, the CF-10M.
This line of marine speakers is a true sight to see! They come in 2-way configurations and carry an IP65 waterproof rating, so you know they are durable for the elements. Each speaker comes with carbon fiber laminate with protective layers coating it.

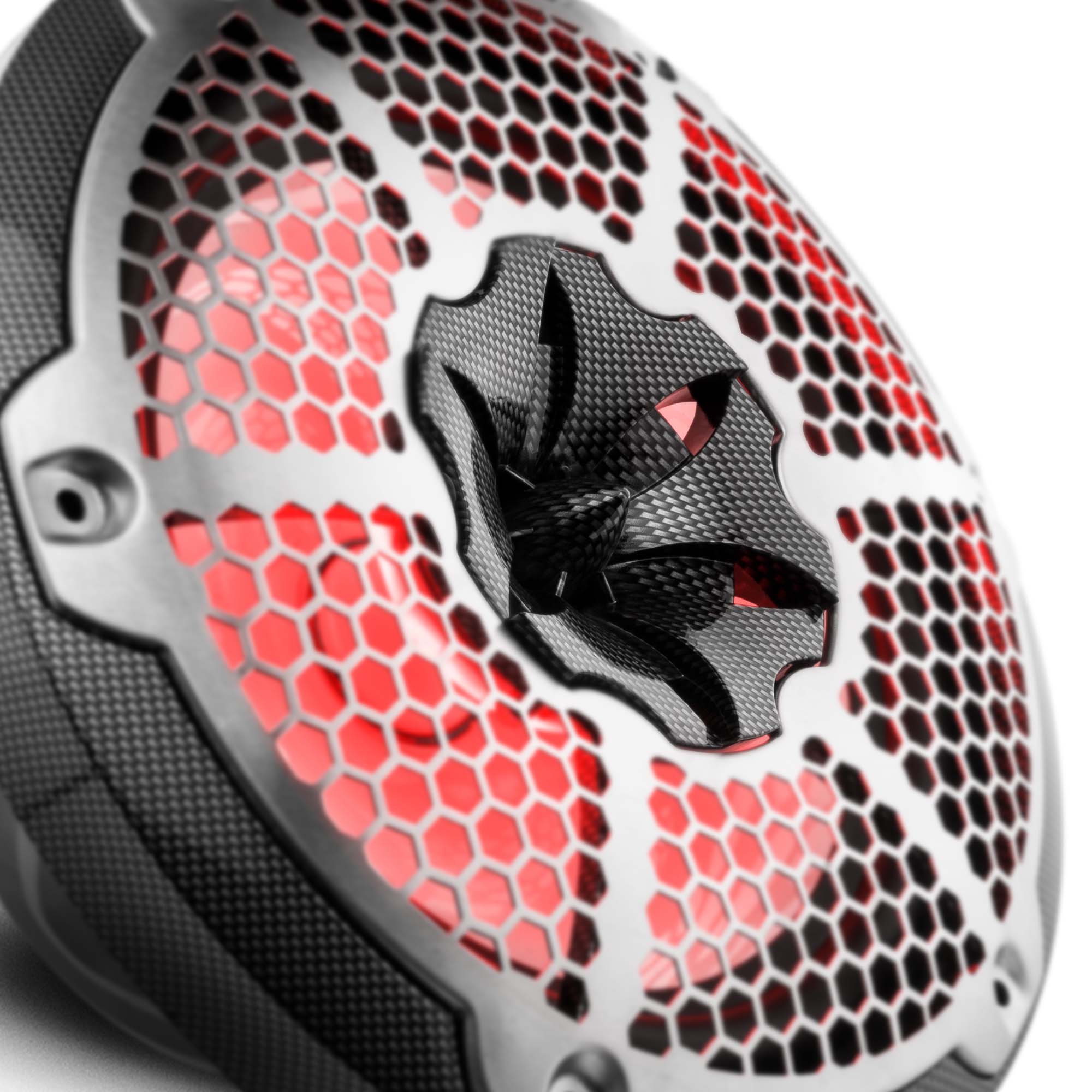

They come with their own integrated RGB lighting on the metal mesh grill that shines down on the waterproof cones to complete your color scheme perfectly. These speakers produce a very full and rich sound that is very hard to replicate in open air environments like out on the water, but DS18 does it flawlessly.
With these 10 inch speakers, you can make sure you get the complete sound you crave and have perfect acoustical music on your command.
Highlights
Technical Details CF-10M Product Manual
Wiring Wizard
test info
Technical Data
| Specification | Details |
|---|---|
| Size | 10 inch |
| RMS Power | 200 Watts RMS |
| Impedance | 4 Ohms |
| Frequency Response | 35Hz-20Khz |
| Mounting Depth | 4.2″ / 106.6mm |
| Nominal Diameter | 10″ / 254mm |
| Nominal Impedance | 4 ohms |
| RMS Power Handling | 200W |
| MAX Power Handling | 600W |
| Sensitivity (1w/1m) | 94.3dB |
| Recommended HI Pass Crossover | 50Hz |
| UV Compliant | Yes, 100% Stable |
| Marine Grade Type | IP65 |
| RGB LED | Yes, RGB integrated |
| Grill Type | Injection Molded Composite with 316 Stainless Steel mesh |
| Sold in Pair | Yes |
| Color / Finish | Carbon Fiber Texture / Gloss |
| Voice Coil Diameter | 1″ / 25.4mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Injection Molded Polypropylene + UV Compliant |
| Surround Material | Butyl (Rubber) |
| Basket Material | High Temp Injection Molded Composite with UV Protection coating |
| Magnet Material | Neodymium (N38H) |
| Magnet Weight | 0.51oz |
| Diaphragm Material | PEN |
| Overall Diameter | 10.7” / 274mm |
| Overall Depth | 5.7” / 144.7mm |
| Front Mount Baffle Cutout | 8.75″ / 222mm |
| Motor Diameter | 5.3” / 135mm |
Reviews
There are no reviews yet.
