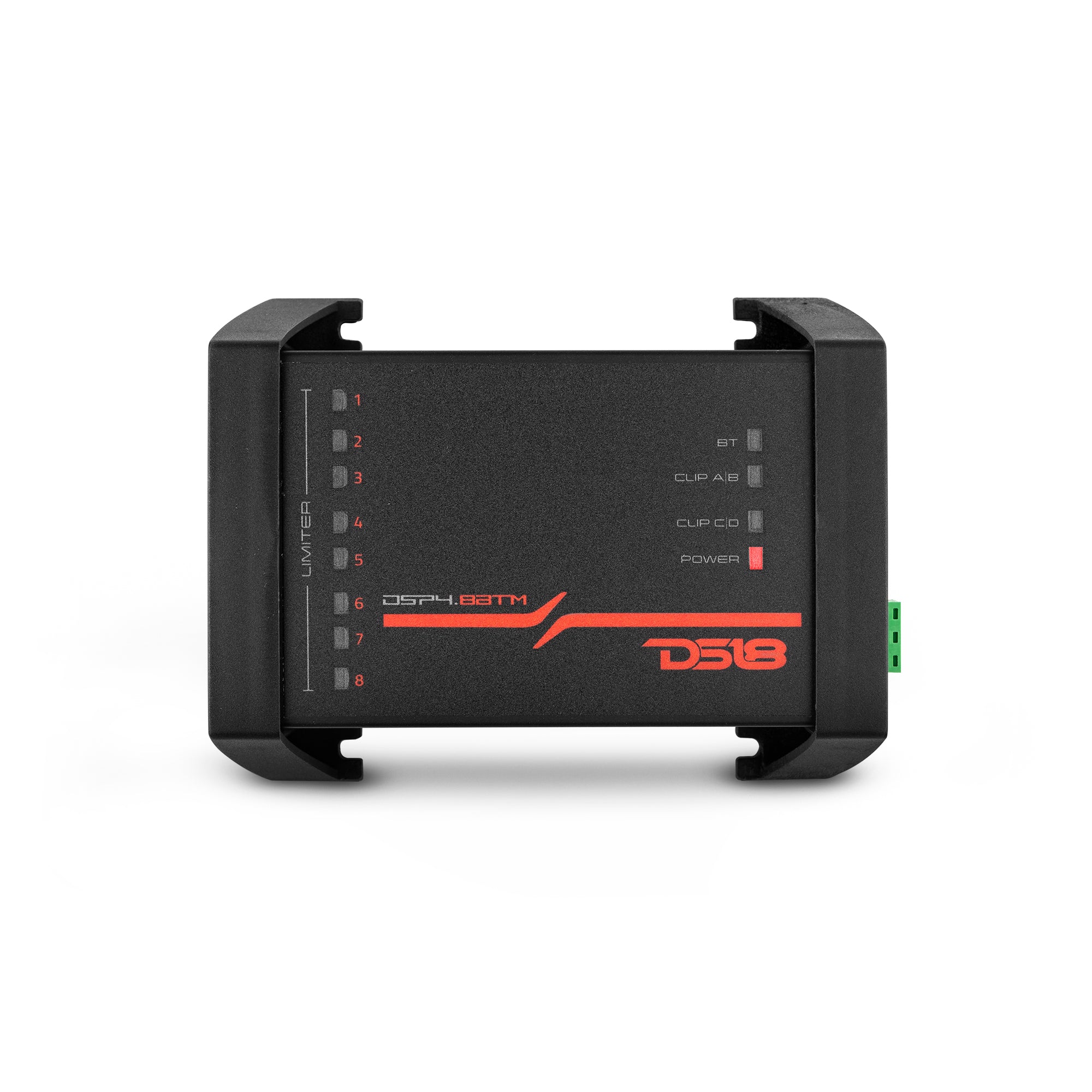

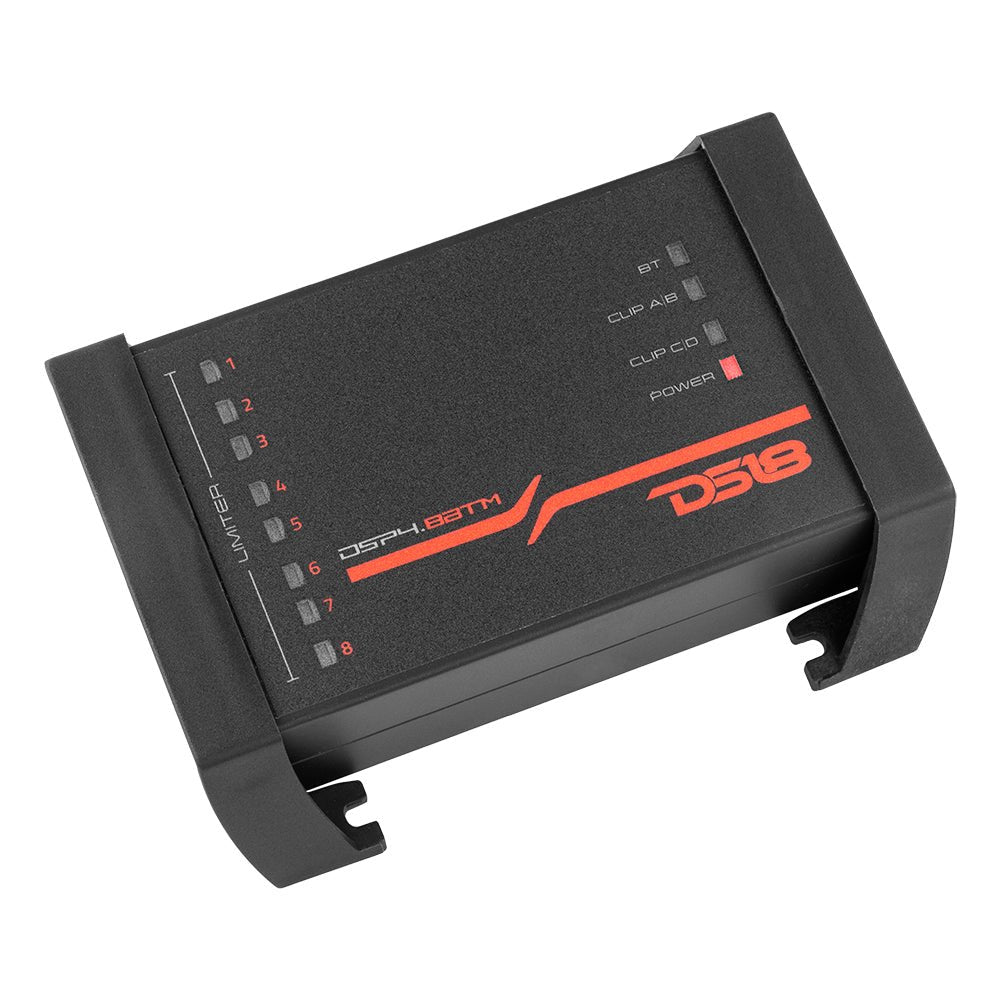

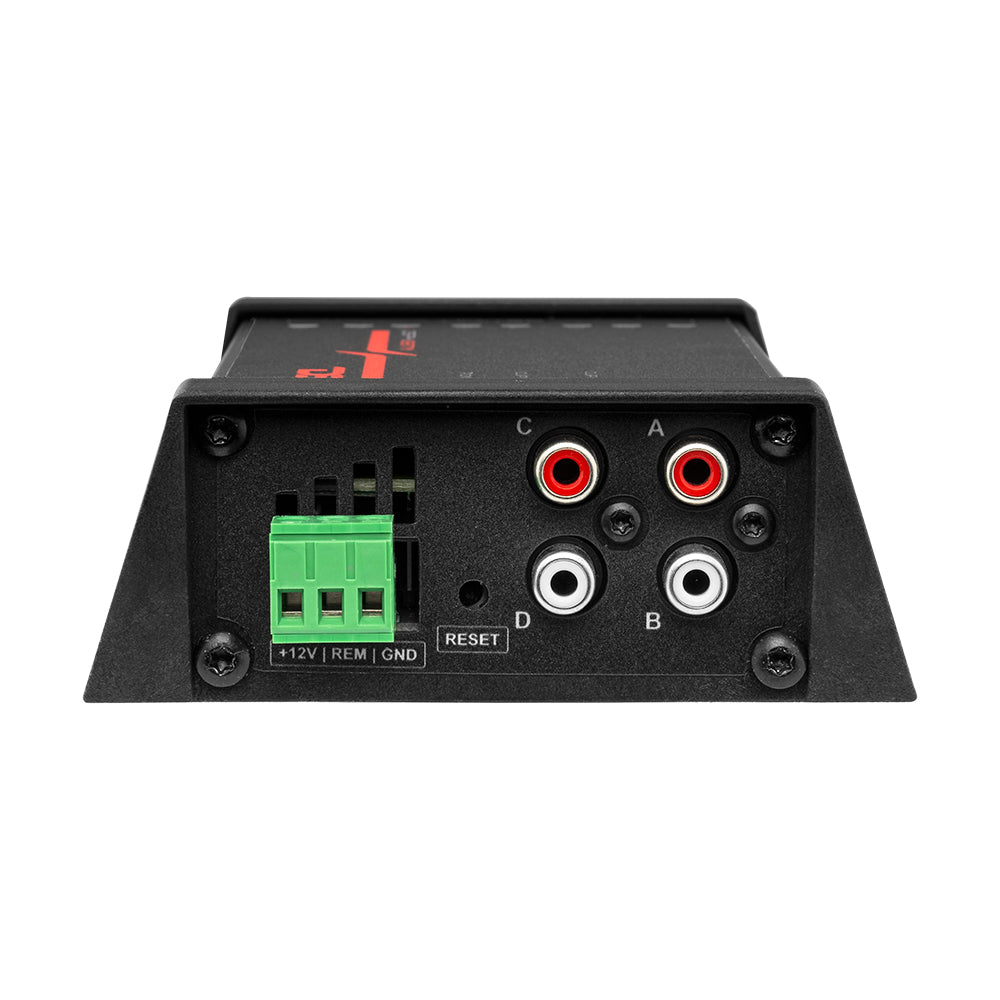

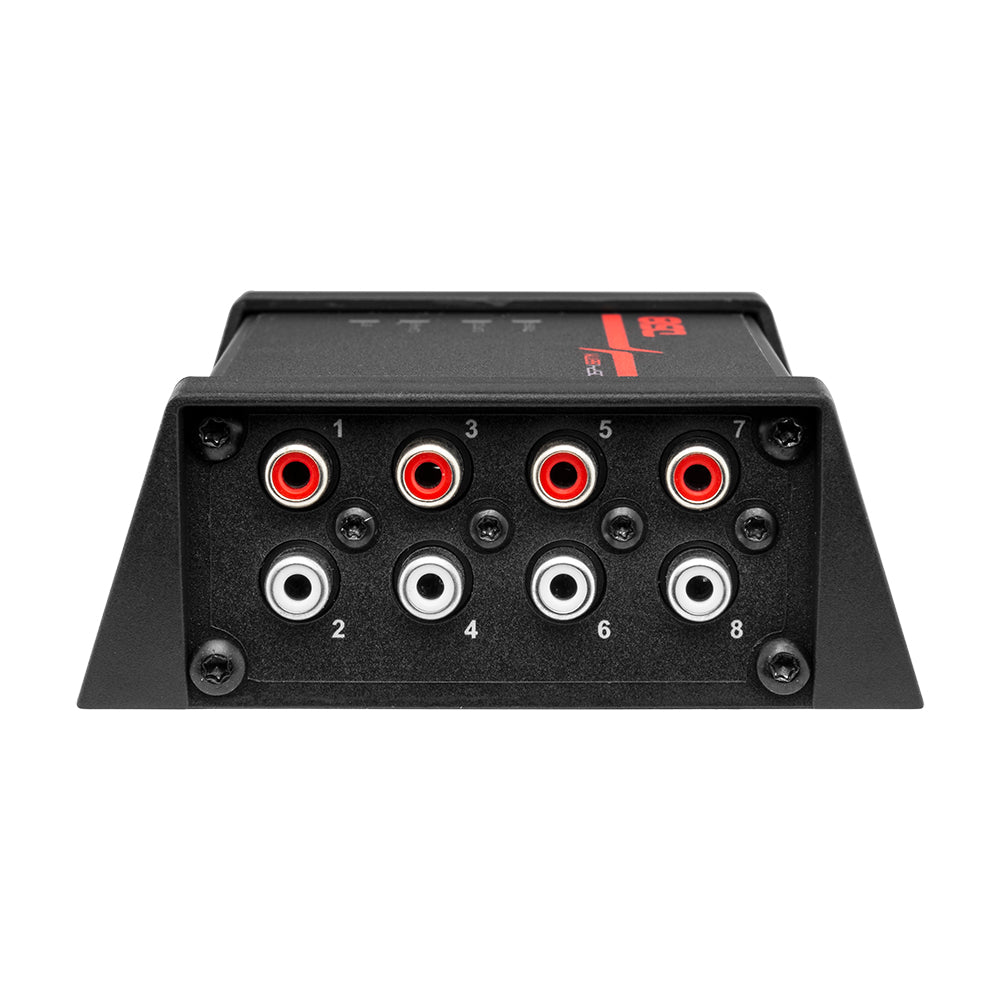

DS18 DSP4.8BTM 4-Channel In and 8-Channel Out Digital Sound Processor (DSP) with Bluetooth

$275.95

At DS18, our team of engineers is always working to give users unrestrained control over the unmatched power our products deliver.

Out of stock

01 Overview

The details

Product Overview

At DS18, our team of engineers is always working to give users unrestrained control over the unmatched power our products deliver. The DSP4.8BTM , our newest digital sound processor, gives users access to every bit of power in your vehicle’s audio system, allowing you to gain the control needed to handle and achieve the quality of sound you desire.

Creating a flawless audio system has never been easier. The DSP4.8BTM gives users access to a list of filtrations settings directly from our BT Interface. This interface also gives users option to save presets for certain songs or genres allowing for the perfect listening experience one hundred percent of the time.

The DSP4.8BTM gives you access to a great number of tuning options that can be adjusted using the DSP4.8BTM Application on the App Store or Google Play.

Manual

02 Tech specs

By the numbers

DSP4.8BTM · Manufacturer rated

GAIN
GAIN / GANANCIA
General Gain
-53 to 0dB
Channel Gain
-33 to +9dB
Input Channels
4
Max Input Level
4,00Vrms (+14dBu)
Input Impedance
100KΩ
Output Channels
8
Output Impedance
100Ω
Voltage DC
10~15VDC

Cutoff Frequency
20Hz to 20KHz
Frequency Response
10Hz to 24KHz (-1dB)
Sampling Frequency
96KHz

Height x Length x Depth
1.6" x 5.6" x 4.25" / 41mm x 142mm x 108mm
Weight
277g / 9.7Oz

Routing Options
A / B / C / D / A+B / A+C / B+C
Types of Cuts
Linkwitz-Riley / Butter worth / Bessel
Attenuations
6 / 12 / 18 / 24 / 36 / 48dB/OCT
Equalization Bands
15 Bands
Q Factor
0.6 to 9.9
Time
0 to 18,95ms
Distance
0 to 6500mm
Threshold
-54 to +6dB
Attack
1 to 200ms
Release
1 to 988ms
Phase
0 or 180º
Memories
3 – 100% Configurable
Type
Electronically Symmetrical
Connectors
RCA
Bit Rate
32Bits
Maximum Consumption
300mA
