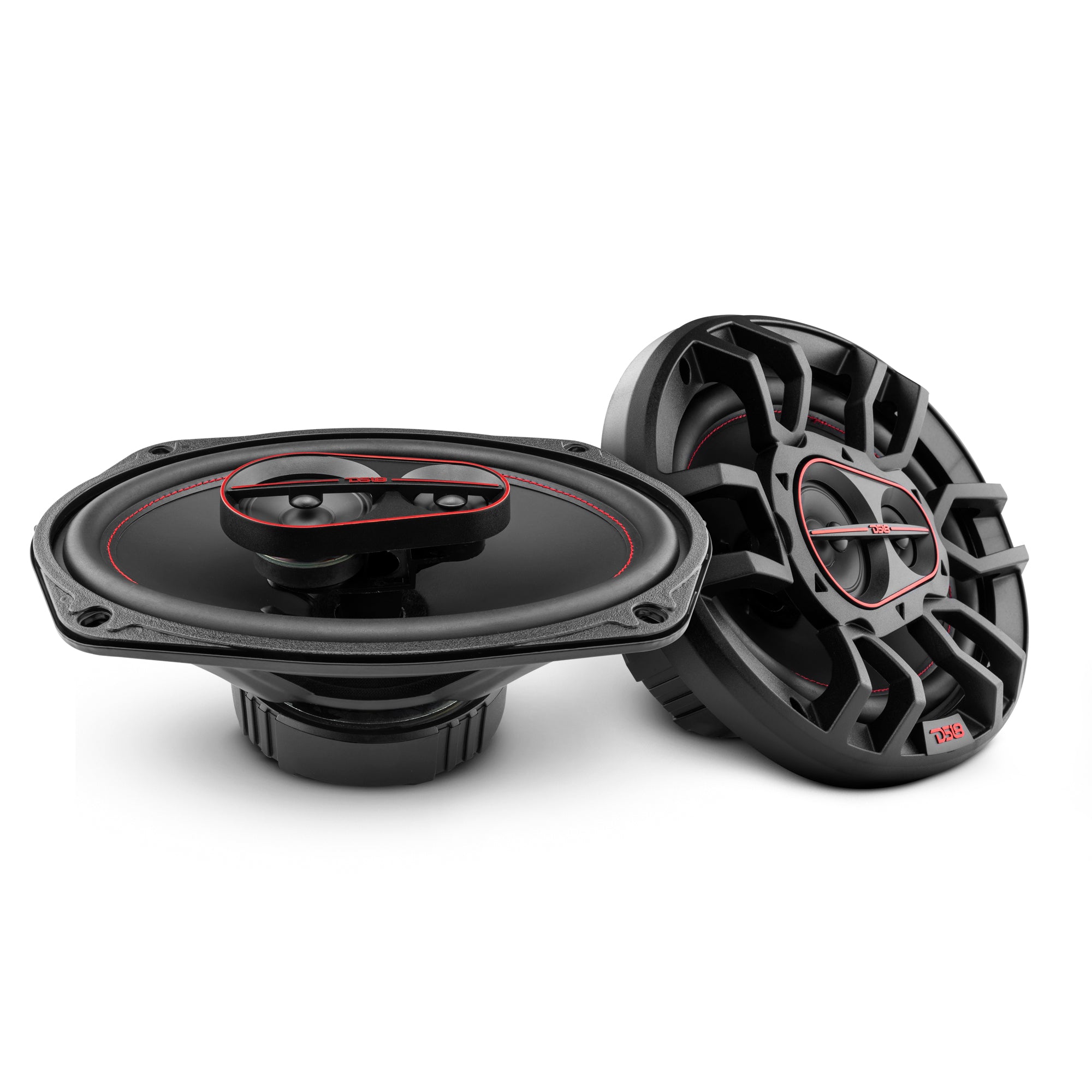

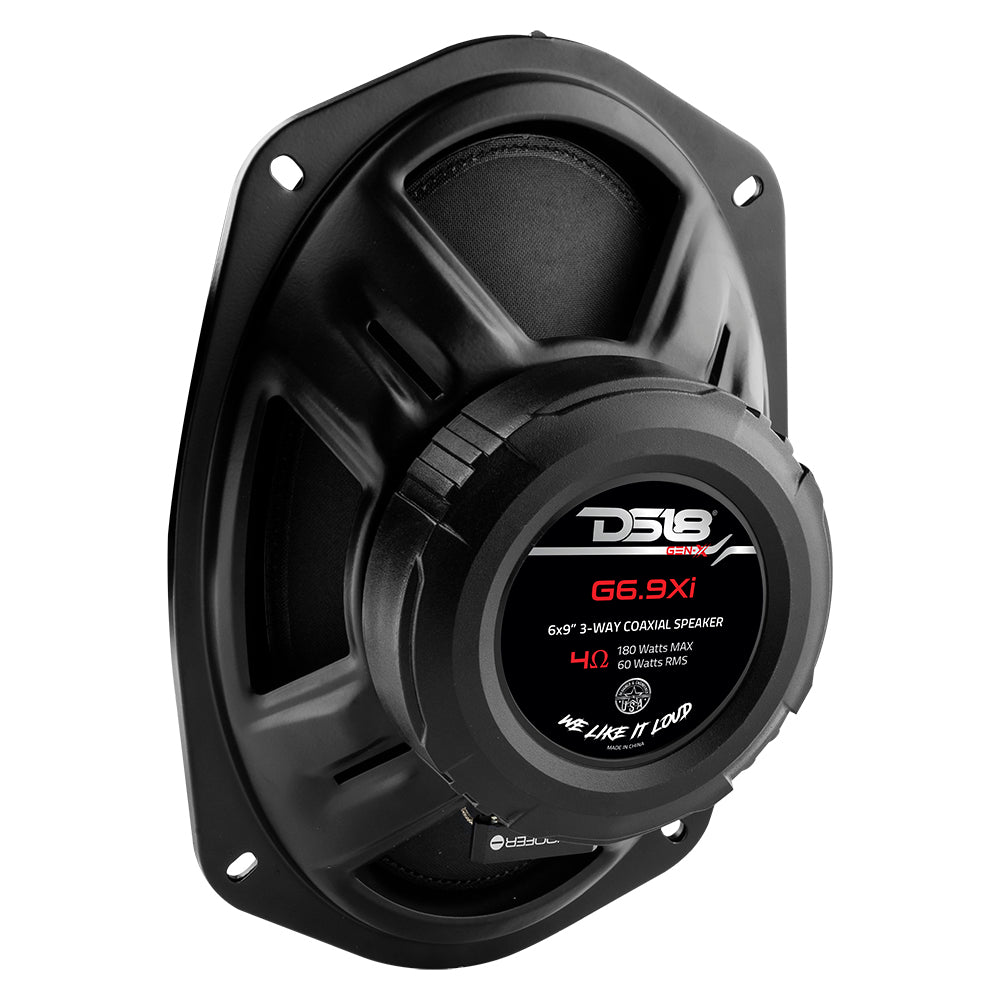

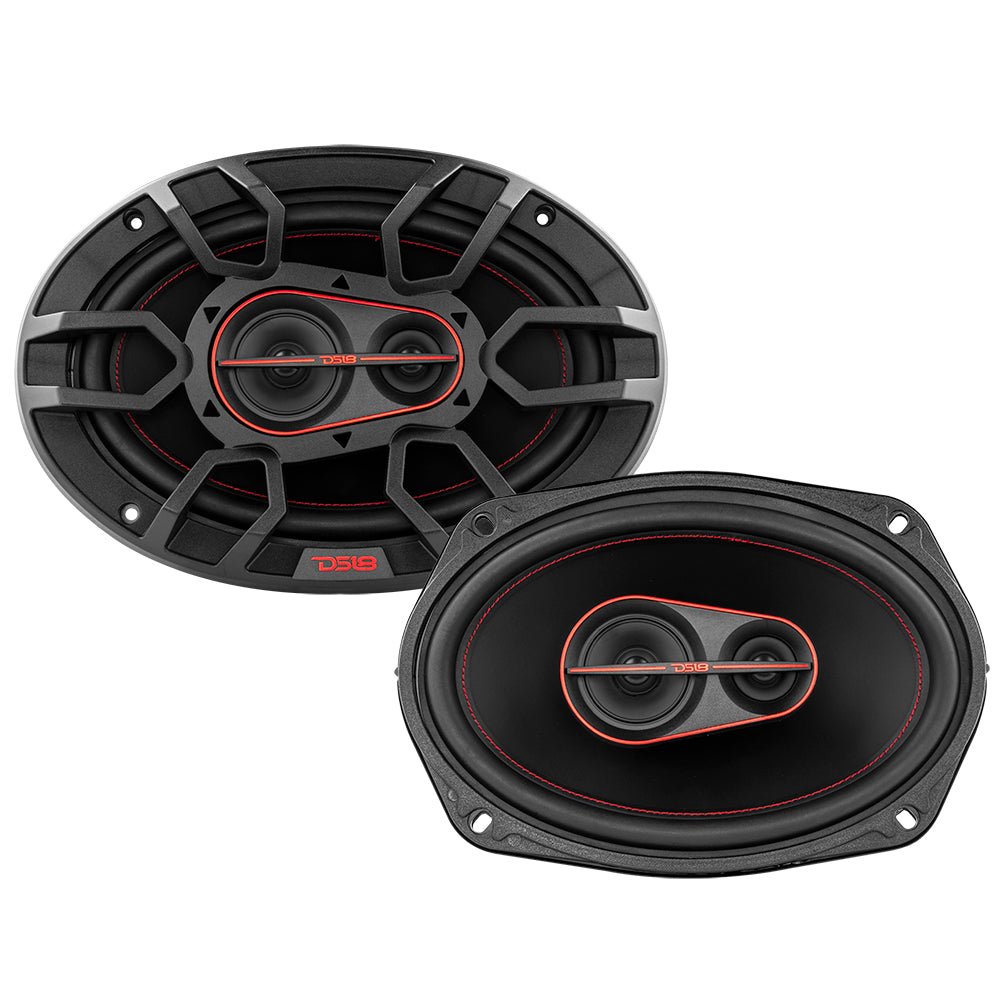

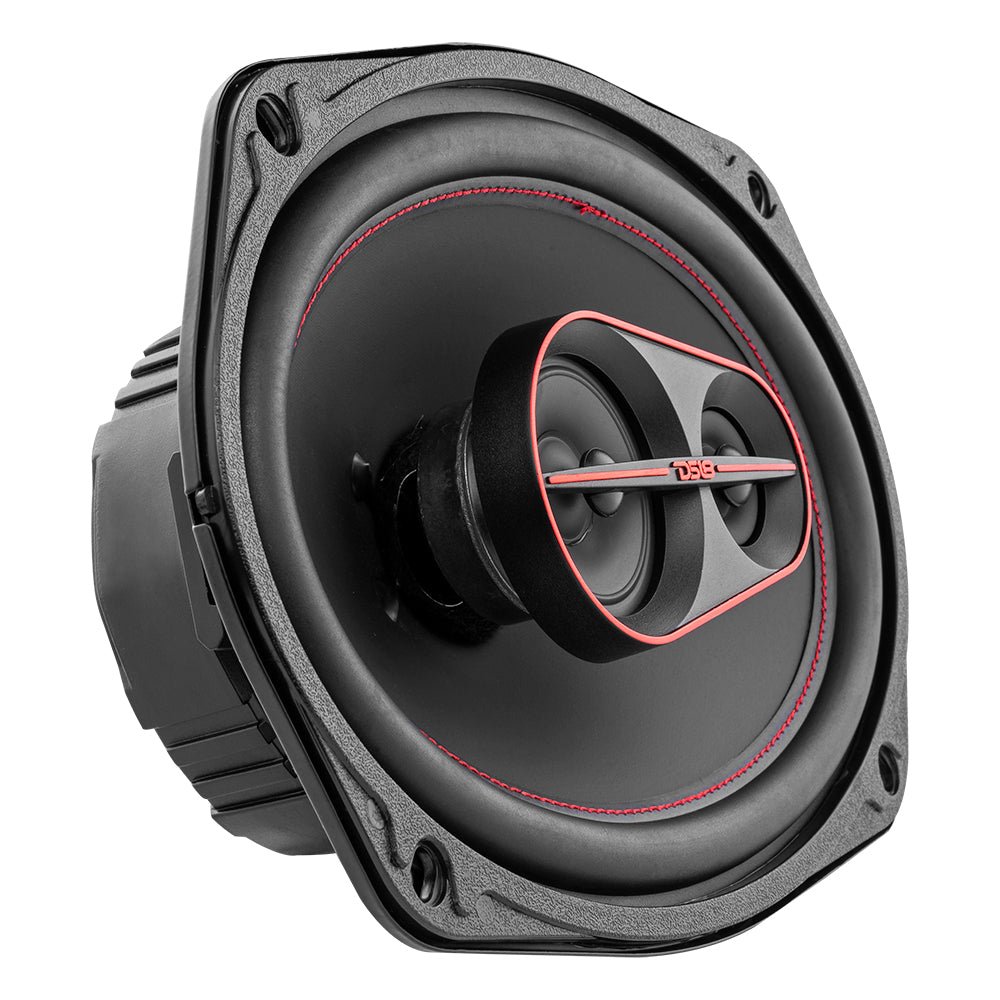

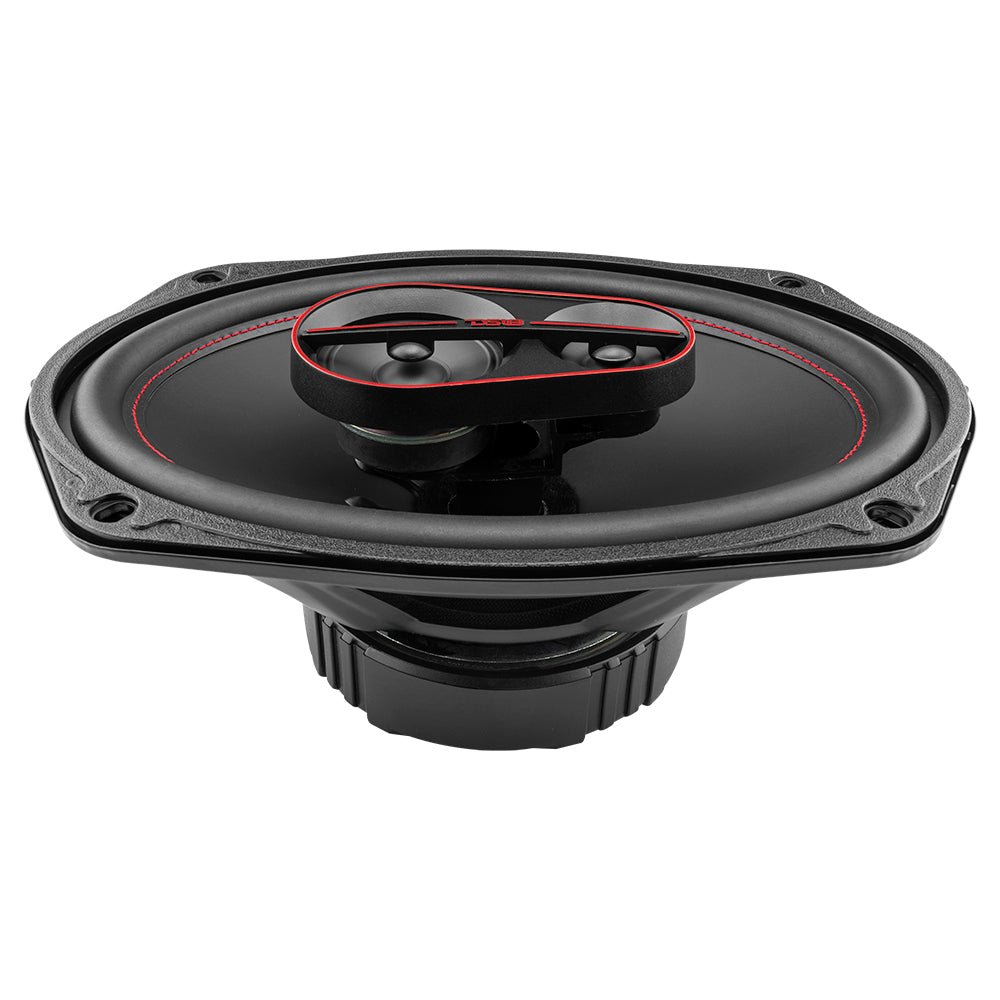

DS18 G6.9XI GEN-X 6×9″ 3-Way Coaxial Speakers | 60W RMS 4-Ohm

$74.95

RMS Power60W
Peak Power180W
Sensitivity86dB
01 Overview

The details

Product Overview

Why we stock the DS18 G6.9XI

The DS18 G6.9XI is a pair of 6×9″ 3-way coaxials from DS18’s GEN-X line, built on a tough steel basket. They’re rated at 60 watts RMS (180 max) at 4 ohms with 86 dB sensitivity, play from 35Hz to 20kHz, and need just 2.95″ of mounting depth.

They run fine on factory power but really open up on an amp. It’s an easy budget upgrade for rear decks and factory 6×9 spots, and the OEMADAPT6X9 fits many vehicles. Want more power handling? Step up to the ZXI-694.

The GEN-X Coaxial Series is back!

The power, clarity, and range everyone who likes it LOUD loves about the GEN-X series returns in a speaker equipped with an extremely durable steel basket to outlast any vehicle it’s installed in.

The G6.9Xi was made for amplifiers, but can be used in factory settings with 4-ohm factory amplifiers in most cases for great sound and clarity over factory OEM speakers.

The Mylar Balanced Dome Tweeters included in this coaxial help it achieve the highest range of frequencies possible, while the speaker itself reaches frequencies as low as 35Hz. The 3-way design on these speakers bring a full range of frequencies with great response without the need for a large power requirement.

These speakers get loud extremely easily with a MAX Power Handling of 180W and RMS Power Handling of 60W.

Order the G6.9Xi for your system to expand your soundstage today!

Highlights

Great For

Technical Details Download G6.9XI Product Manual

02 Tech specs

By the numbers

G6.9XI · Manufacturer rated
RMS Power 01
60W
Continuous rating
Peak Power 02
180W
Short-burst rating
Sensitivity 03
86dB
Efficiency
Size 04
6.4in
Nominal

RMS Power
60 Watts RMS
Impedance
4 Ohms
Nominal Impedance
4 Ohms
RMS Power Handling
60W
MAX Power Handling
180W
Recommended HI Pass Crossover
50Hz

Frequency Response
35Hz-20KHz
Sensitivity (1w/1m)
86dB

Voice Coil Diameter
Tw1: 0.6″ / 17mm Tw2: Peizo
Voice Coil Former Material
Tw1: PESV Tw2: N/A
Winding Material
Tw1: EISVM Tw2: N/A
Cone Material
Paper
Surround Material
Rubber
Basket Material
Steel
Basket Color/Finish
Black Matte
Magnet Material
Tw1: Barium Ferrite Tw2: N/A
Magnet Weight
Tw1: 34g Tw2: N/A
Diaphragm Material
Tw1: Mylar Tw2: Mylar
Motor Diameter
4.17″ / 106mm

Mounting Depth
2.95″ / 75mm
Nominal Diameter
Tw1: 2.3″ / 59mm Tw2: 1.1″ / 29mm
Overall Diameter
6.4″x9.2″ / 163x234mm
Overall Depth
3.85″ / 97.8mm
Overall Diameter (With Grill)
7.24″x10.4″ / 184x264mm
Overall Depth (With Grill)
4.15″ / 105.5mm
Front Mount Baffle Cutout
5.9×8.66″ / 150x220mm

Number of ways
3
Pair or Single
Pair
Grill Included
Yes
Tweeter Protrusion
0.9″ / 22.8mm
