Description
Product Overview

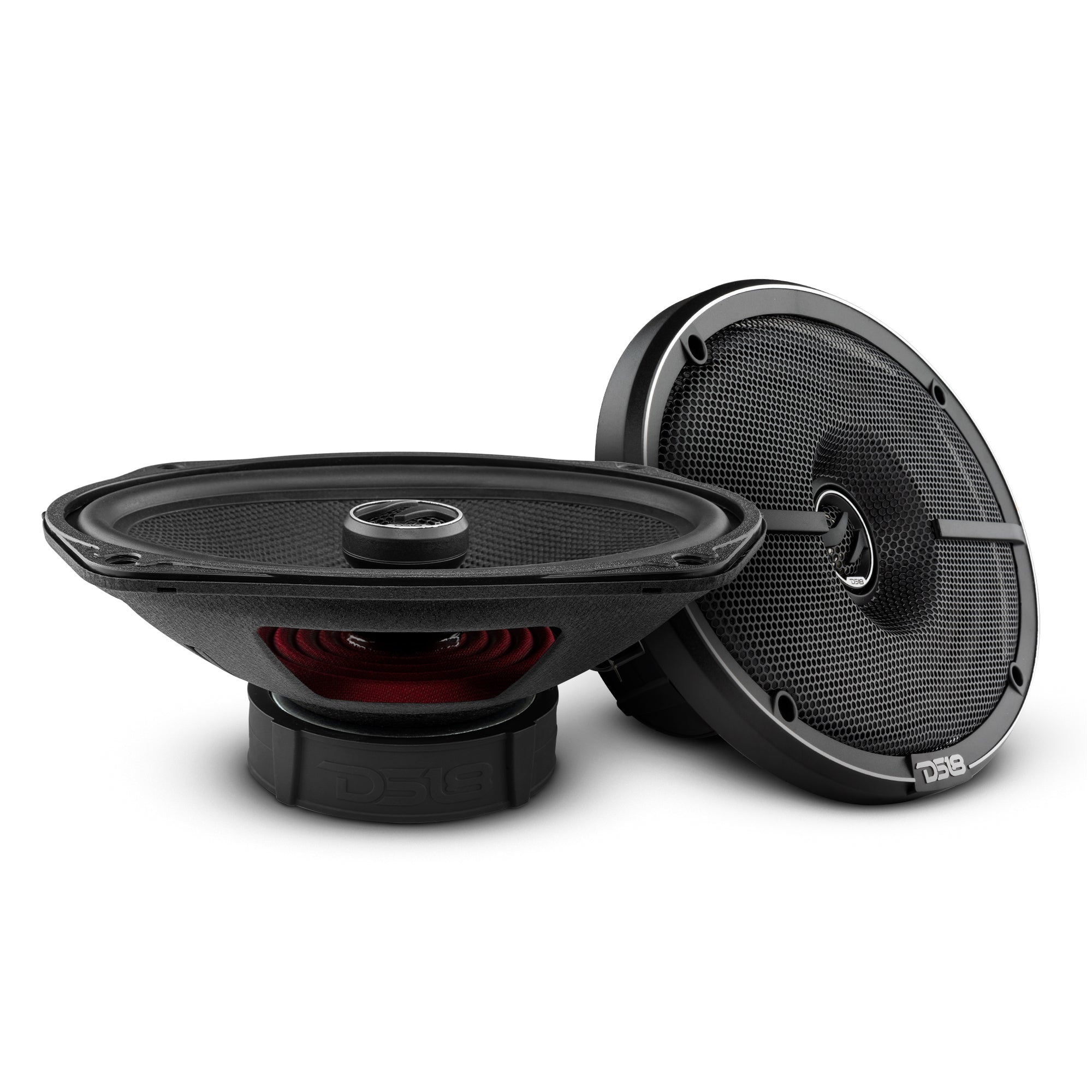

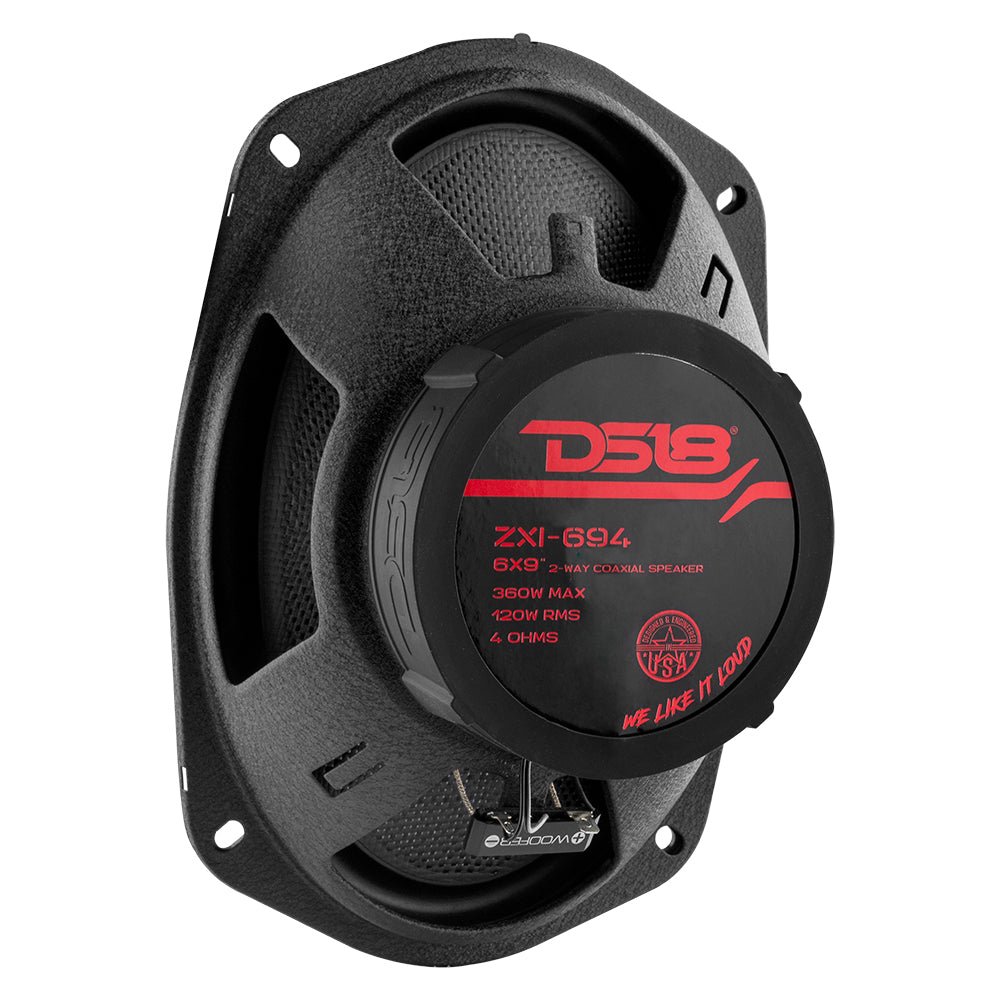

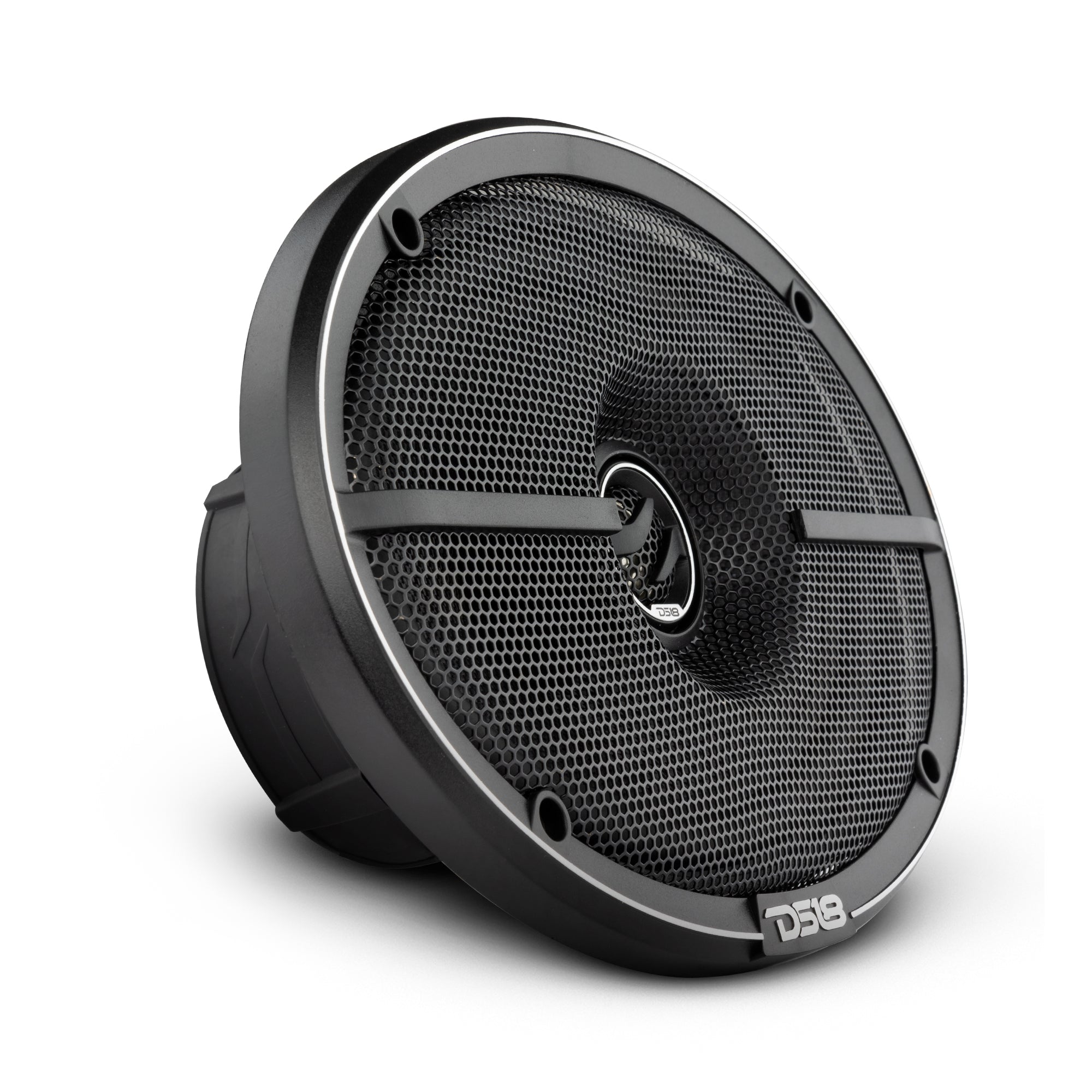

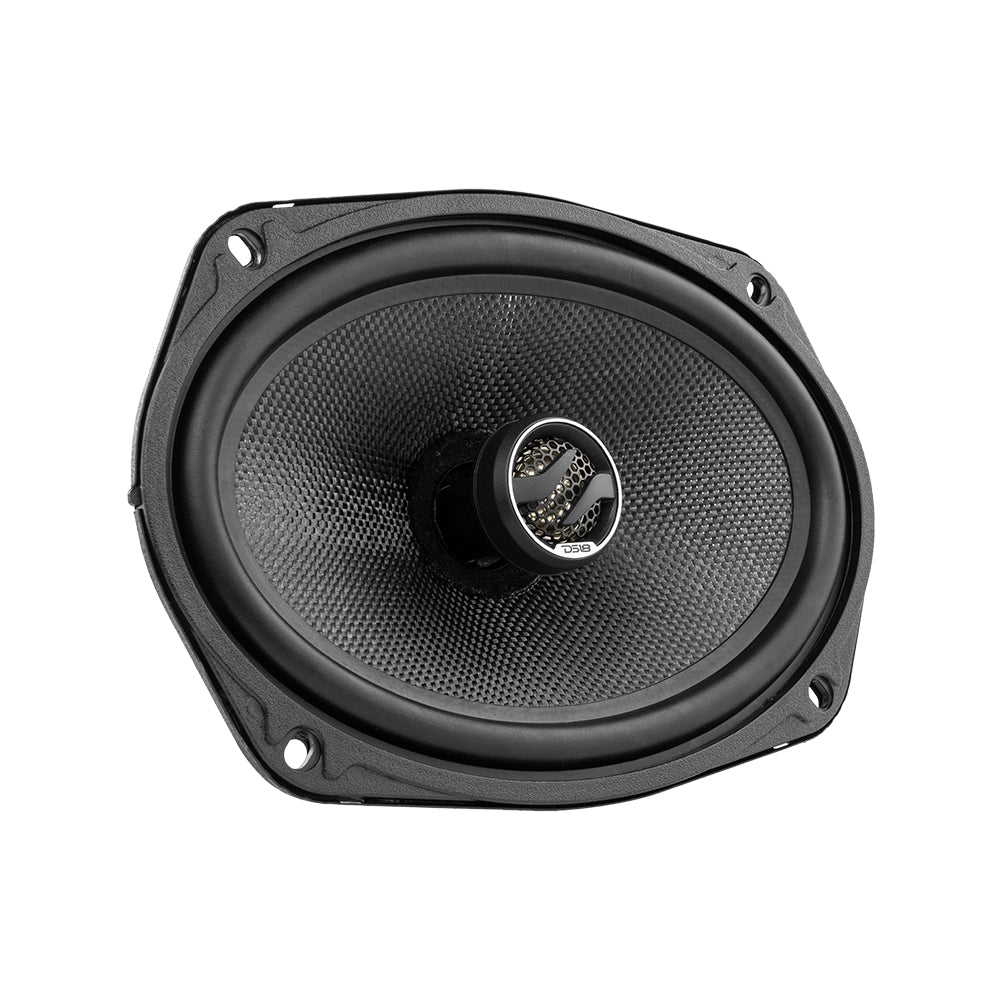

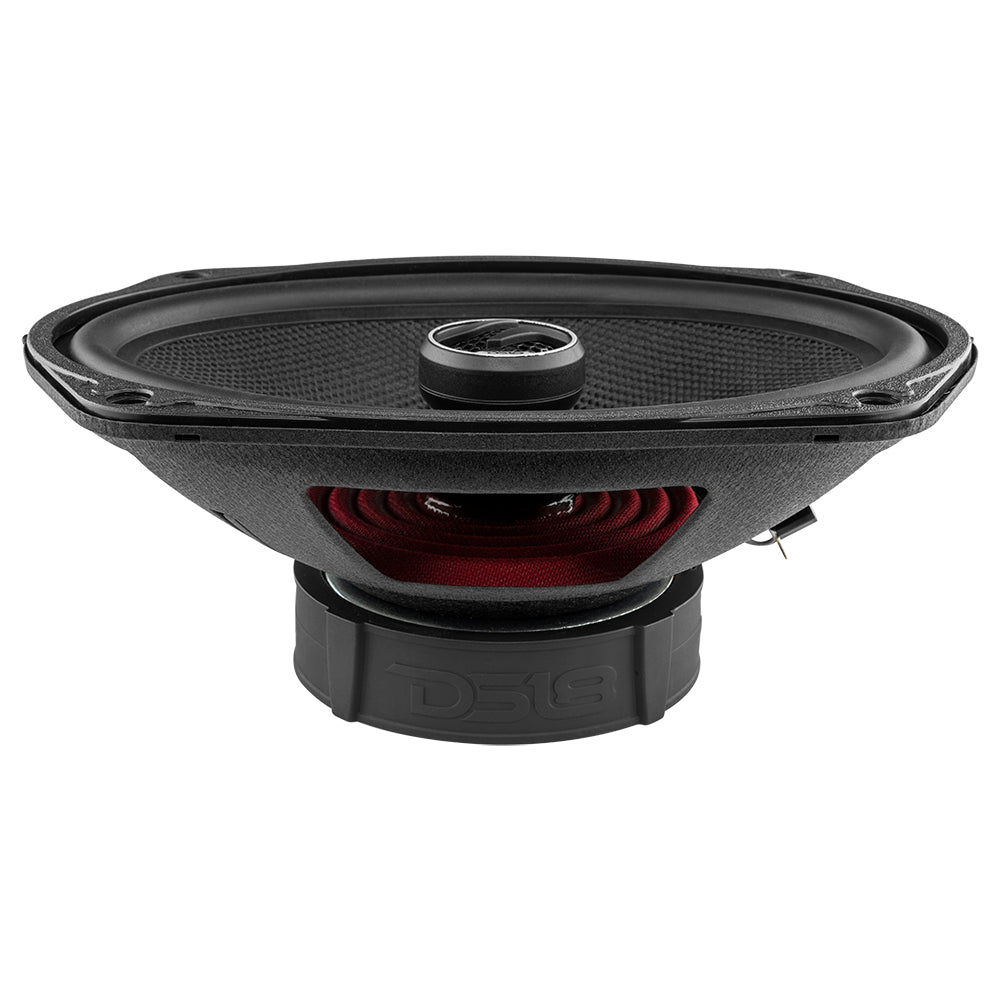

The ZXI series is the go to DS18 line for great sounding audio that not only has very high volume, but also amazing sound quality for an amazing price. The ZXI-694 is a 6×9″, 4 ohm coaxial speaker designed for mid tier audio enthusiasts to the extreme as they have an amazing range of frequencies and loudness. The 2-way design will ensure that you receive a full range of frequencies for an audio experience that you will truly remember.
Highlights
Technical Details ZXI-694 Product Manual
Technical Data
| Specification | Details |
|---|---|
| RMS Power | 120 Watts RMS |
| Impedance | 4 Ohms |
| Frequency Response | 31.5Hz-20KHz |
| Nominal Diameter | 1″ (25.4mm) |
| Nominal Impedance | 4 ohm |
| RMS Power Handing | 120W |
| MAX Power Handing | 360W |
| Sensitivity (1w/1m) | 92dB |
| Recommended HI Pass Crossover | 50Hz |
| Number of ways | 2-Way |
| Voice Coil Diameter | 0.8″(ø20.4mm) |
| Voice Coil Former Material | KSV |
| Winding Material | EISVM |
| Cone Material | Glass fiber |
| Surround Material | Rubber |
| Basket Material | Steel |
| Magnet Material | Neodymium |
| Magnet Weight | 8.5g |
| Diaphragm Material | PEI |
| Overall Diameter | 6.37×9.25” /162*235mm |
| Overall Depth | 3.66” / 93mm |
| Front Mount Baffle Cutout | 5.94×8.70” / 151*221mm |
| Mouting Depth | 3.22” / 82mm |
| Motor Diameter | 4.09” / 104mm |
