The details
Product Overview
Why we stock the DS18 GEN-X212LD

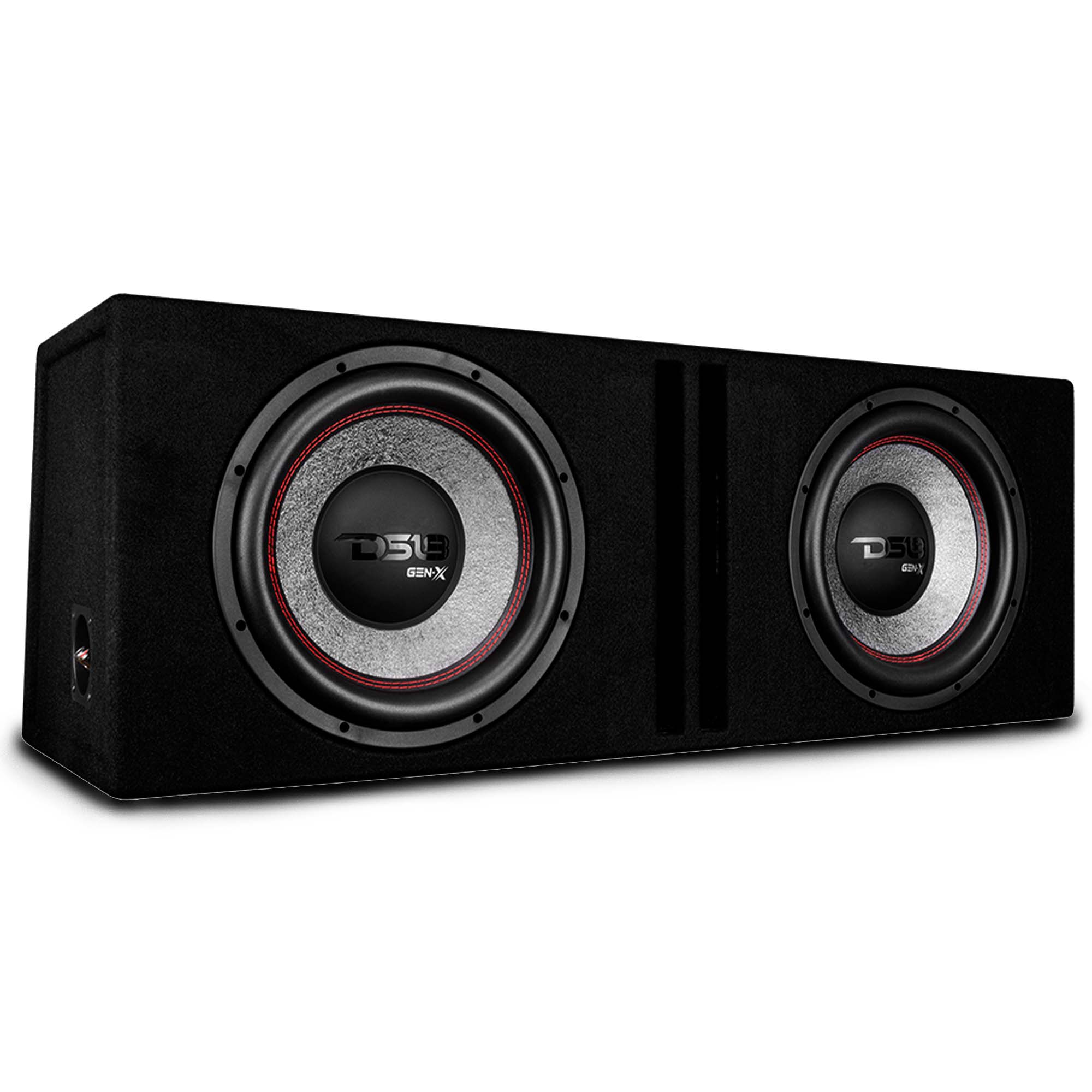

The DS18 GEN-X212LD is a ported enclosure loaded with two GEN-X124D 12″ subwoofers, each with its own 2 ohm connection. It handles 900 watts RMS (1,800 max) and plays from 29Hz to 250Hz.
It’s a big-output dual 12 package that’s ready to wire. Want a single 12? See the GEN-X112LD. Want more power per sub? Look at the ZR212LD.
If you are looking for a lot of thumping bass and a very clean prefab box, we here at DS18 have developed a very strong loaded enclosure combo to fit one of our bestselling speakers that we have to offer in a complete box! Now you don have to worry about building a box by yourself to spec for your new subwoofer purchase because you can buy them together with 1 easy click™ of the mouse.
This beautiful ported box is tuned to 35Hz and has an internal volume of 3.2 cubic feet for the. The ½ inch thick treated MDF ensures the box will be tough enough to withstand very strong vibrations along with giving very accurate acoustical resonances for the perfect bass response.
Inside the box are some of our best-selling subs, the GEN-X12.4D subwoofer. This high excursion sub has a 67 oz ferrite magnet and can take up to 450 watts RMS each and 900w maximum power! With a 4+4 configuration on the 2 inch 4-layer voice coil, you will have no problem making power out of your amplifier because in parallel the final load will be optimal and with a sensitivity of 87.5dB. With this you won miss out on any of the wide range of frequencies this sub and box combo can produce! The only thing you will need is the amplifier to drive them and you are ready to go!
Highlights
Technical Details Download GEN-X212LD Product Manual
By the numbers
- RMS Power
- 900 Watts RMS
- Total Impedance
- 2 + 2 Ohms (Individual Subwoofer Connector)
- Total RMS Power Handling
- 900W
- Total MAX Power Handling
- 1800W
- Recommended Lo Pass Crossover
- 120Hz
- Sensitivity
- 87.5 dB
- Frequency Response
- 29 – 250Hz
- Sensitivity (1w/1m)
- 94dB
- Voice Coil Diameter
- 2″
- Voice Coil Former Material
- Black Aluminum
- Winding Material
- SV
- Cone Material
- Paper & Fiber Glass
- Dust Cap Material
- PPI
- Surround Material
- Foam
- Basket Material
- Steel
- Magnet Material
- Ferrite
- Magnet Weight
- 70 Oz
- Box Material
- 1/2″ MDF
- Finish Material
- Vinyl
- Size
- 12 inch
- Internal Volume
- 90.6L
- Port Tune
- 35Hz
- Box Type
- Front Ported
- Height
- 13.78” / 350mm
- Width
- 38.58” / 980mm
- Depth 1
- 11” / 280mm
- Depth 2
- 14” / 356mm
- Load Configuration
- Parallel
- -3dB Dropping Point
- 29Hz
