Product Overview

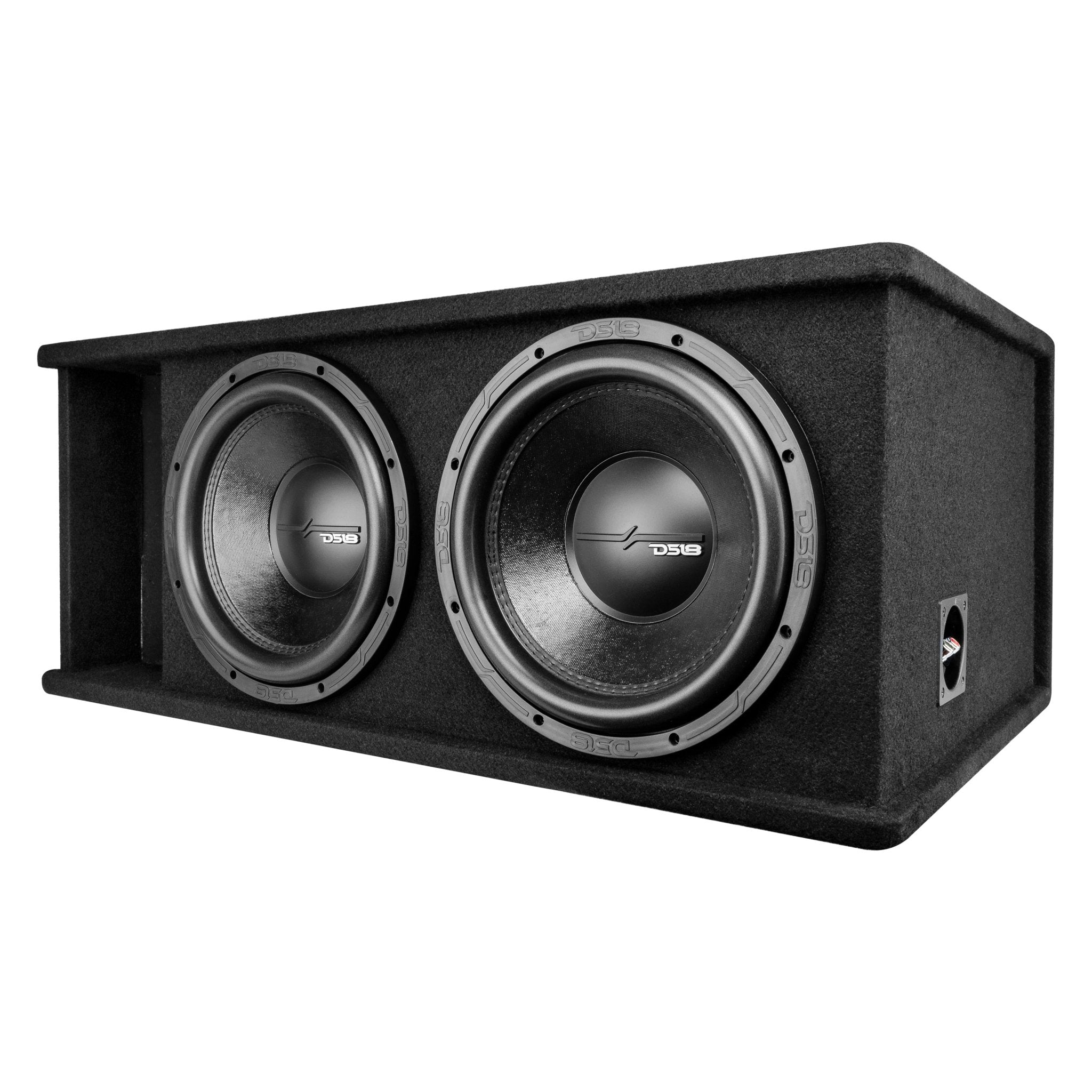

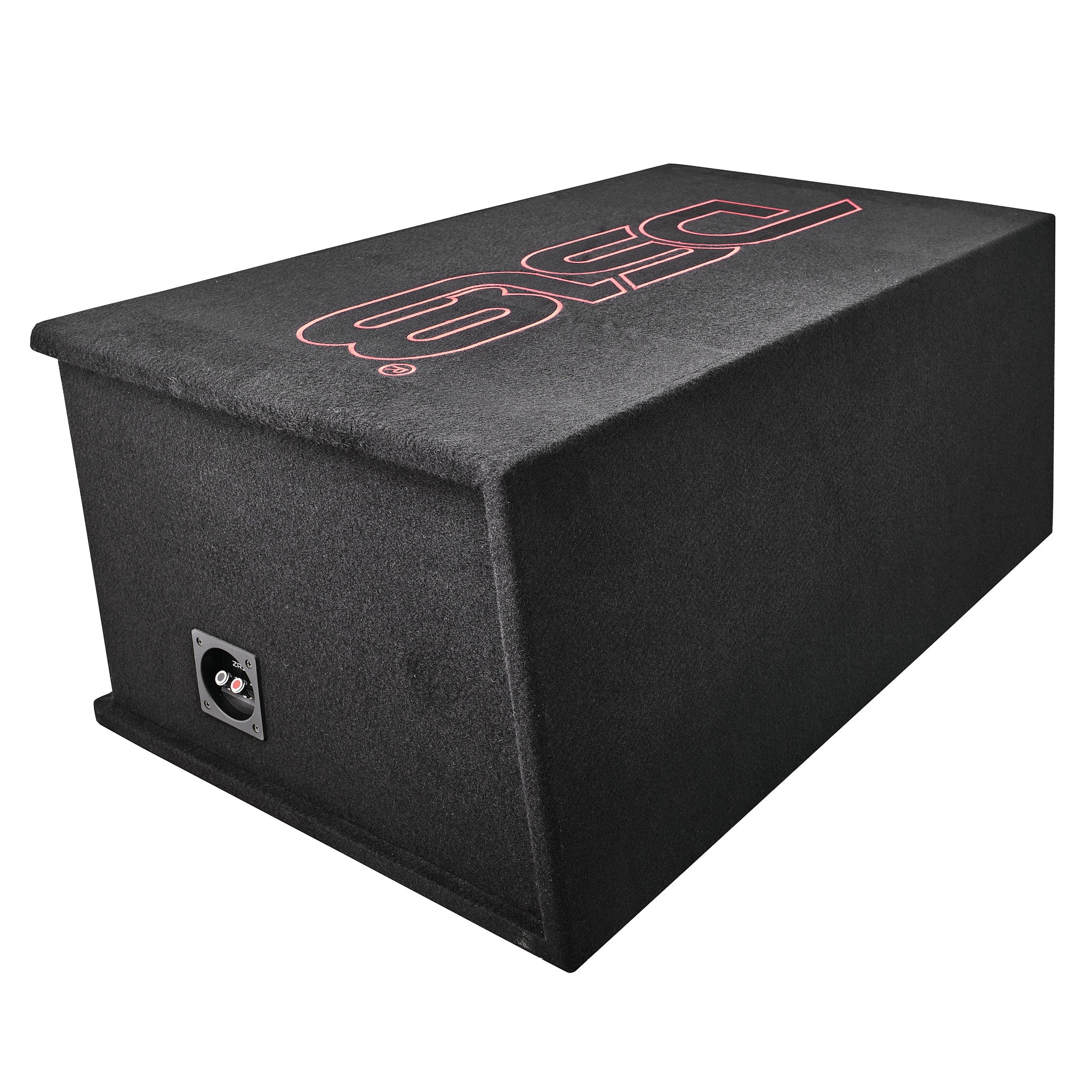

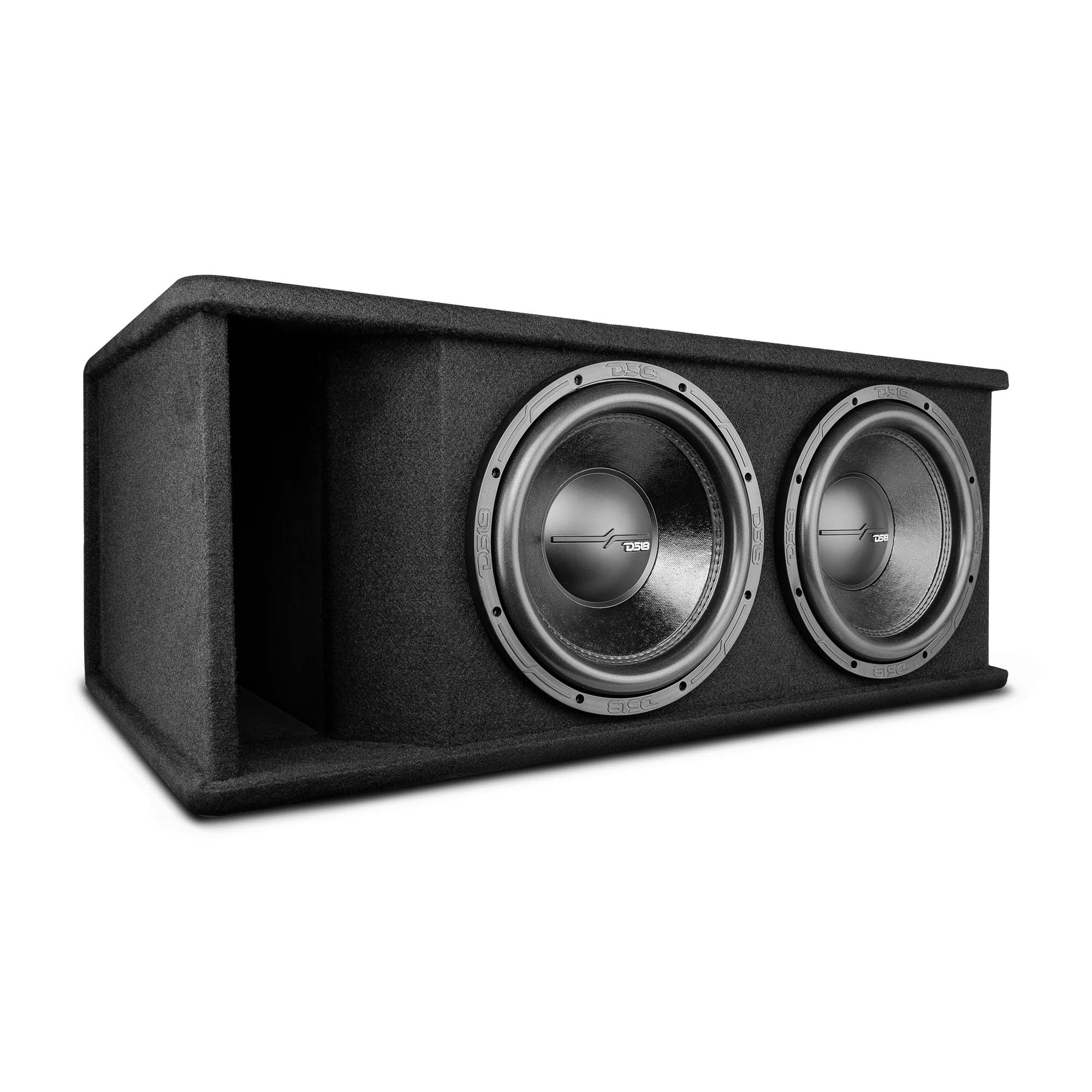

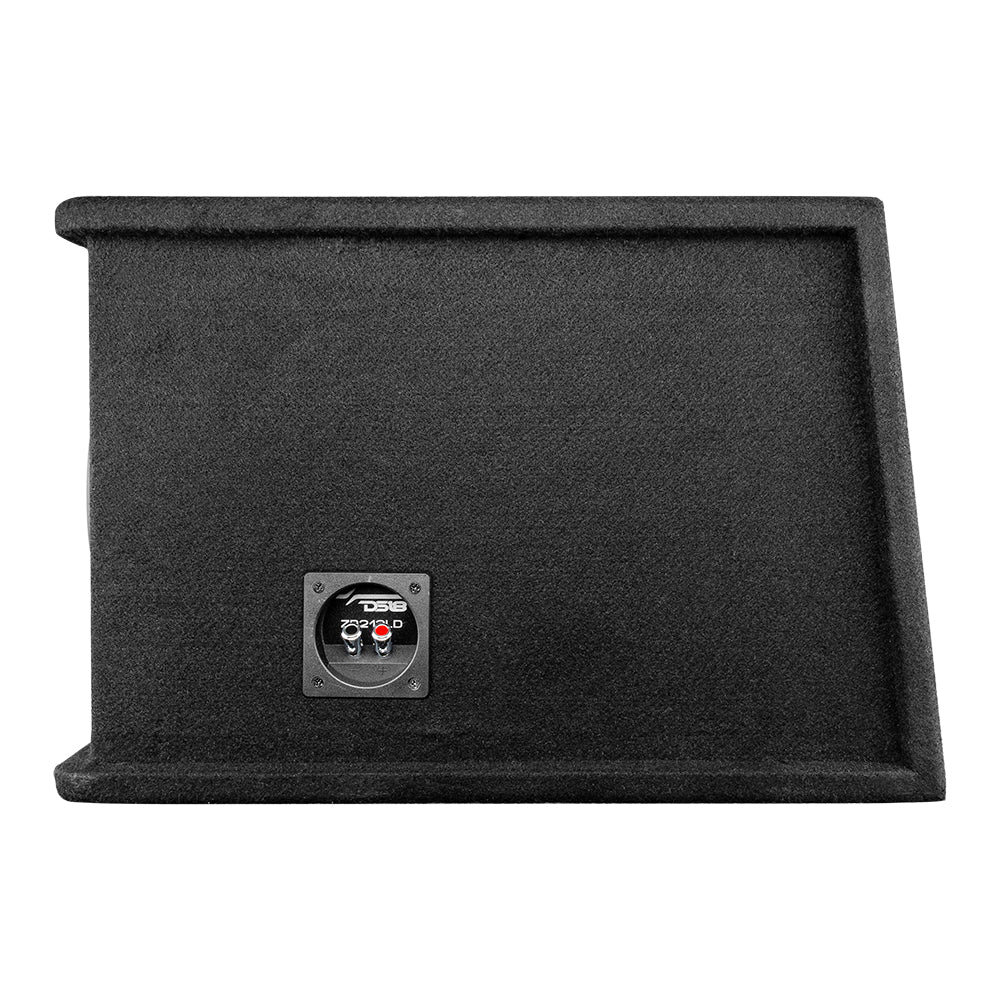

DS18 ZR212LD Bass Package 2 x ZR12.2 12″ Subwoofers In a Ported Box 3200 Watts
The ZR212LD provides dual 12 inch subwoofers loaded into a ported box for the listeners who like it loud!
The ported box is tuned to 29 Hz and helps get the most from your subwoofers by delivering a deeper, punchier bass. Included in the ported box are two ZR12.4D subwoofers, one of our bestselling car audio subs, designed with dual 4-Ohms voice coils wired in parallel for a nominal impedance of 1-Ohm.
This loaded subwoofer combo offers great sound through high-quality and high-power subwoofers in a prefabricated box that is guaranteed to last! The RMS requirement is 1600W RMS and 3200W max: so in order to power this combo to maximum potential, we recommend a 2000W RMS Amplifier like the ZR2000.1D, H-KO2, or EXL-P2000X1D.
Highlights
Key Features
ZR12.4D
Box:
Great For:
Technical Details ZR212LD Product Manual
Technical Data
| Specification | Details |
|---|---|
| Size | 12 inch |
| RMS Power | 1600 Watts RMS |
| Peak Power | 3200 Watts Max |
| Impedance | 4 Ohms |
| Speaker Type/Size / Tipo/Tamaño de Altavoz | Dual 12″ / 316mm |
| Total Impedance / Impedancia Total | 1 Ohm |
| Total RMS Power Handling / Manejo de Potencia RMS total.. | 1600W |
| Total MAX Power Handling / Manejo de Potencia MAX total | 3200W |
| Sensitivity (1w/1m) / Sensibilidad (1w/1m) | 86db |
| Frequency Response / Respuesta de Frecuencia | 20Hz-200Hz |
| Recommended Lo Pass Crossover / Crosover Paso Bajo Recomendado | 70Hz |
| Voice Coil Diameter / Diámetro de la Bobina de Voz…. | 2.5″/61.6mm |
| Voice Coil Former Material / Material Interior de Bobina Móvil | Aluminum/Aluminio |
| Winding Material / Material de Bobinado . | Copper / Cobre |
| Cone Material / Material del Cono | Non-Pressed Paper / Papel no Prensado |
| Dustcap Material / Material de la Tapa Anti-polvo. | PPI |
| Surround Material / Material de la Suspension | Foam / Espuma |
| Basket Material / Material de la Canasta | Steel / Acero |
| Magnet Material / Material del Imán | Ferrite / Ferrita |
| Magnet Weight / Peso del Imán | 100 oz |

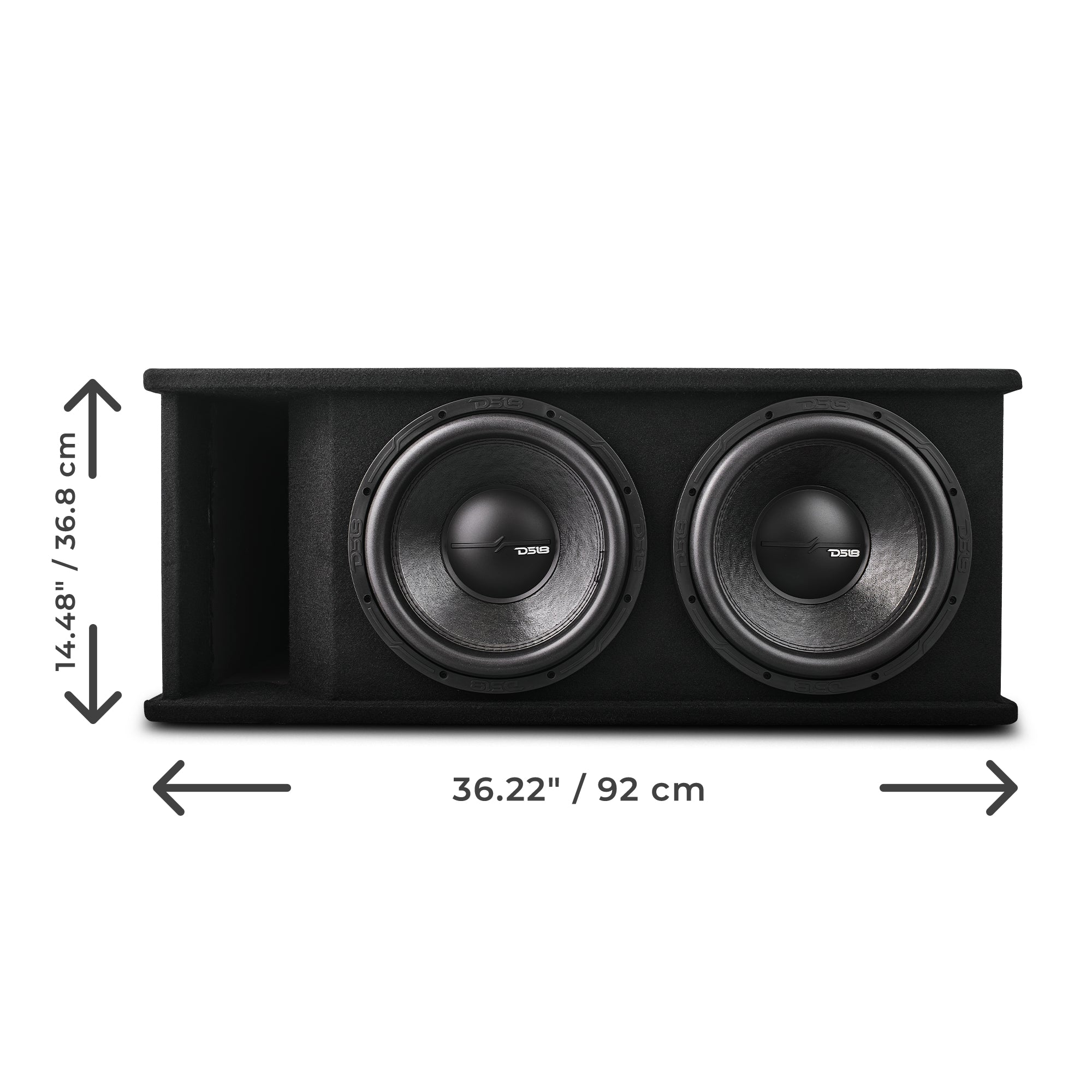

| Height / Altura | 14.48″ / 368 cm |
| Width / Ancho | 36.22″ / 920 cm |
| Depth 1 / Profundidad 1 | 19.68″ / 500 mm |
| Depth 2 / Profundidad 2 | 21.65″ / 550 mm |
