The details
Product Overview
Why we stock the DS18 ZR112LD

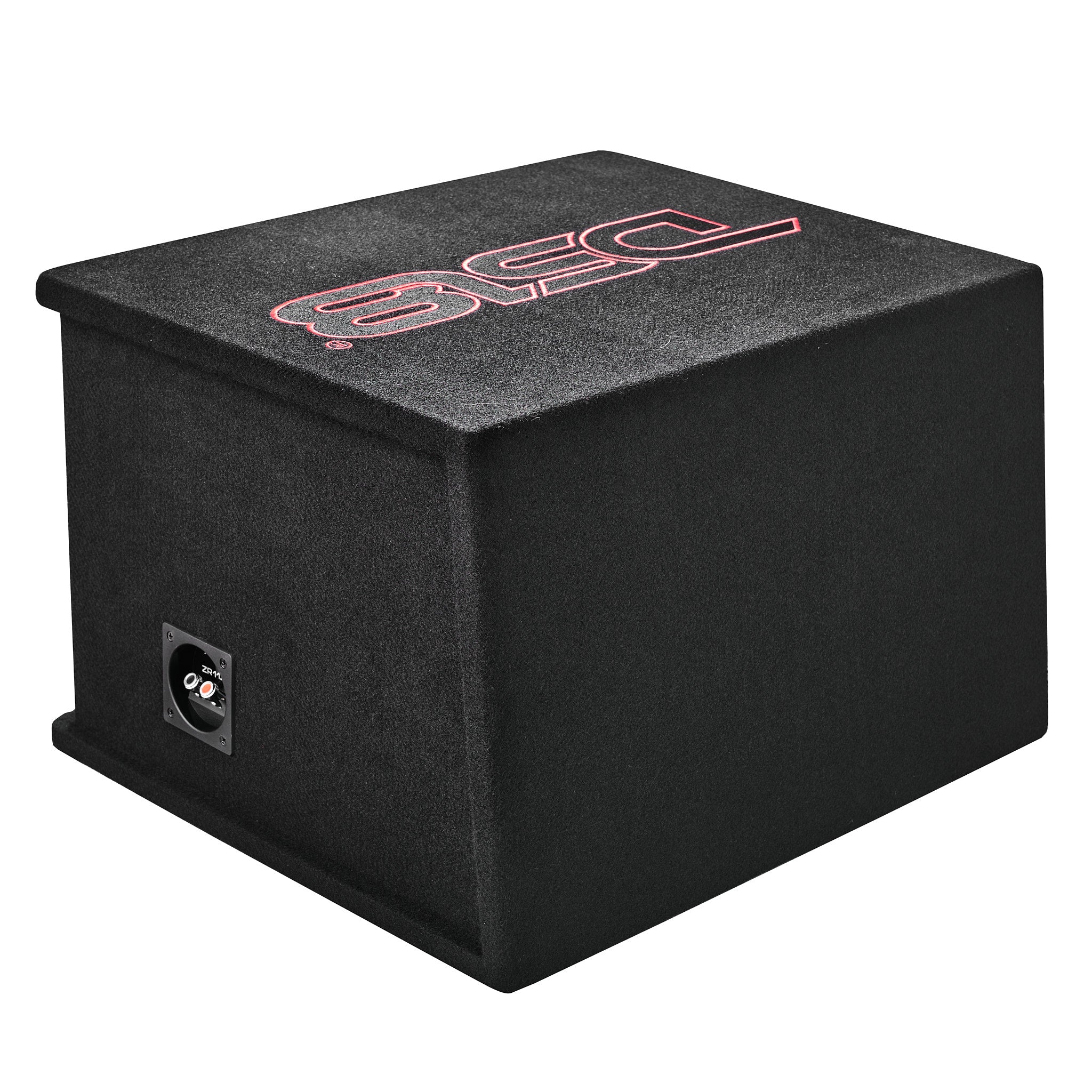

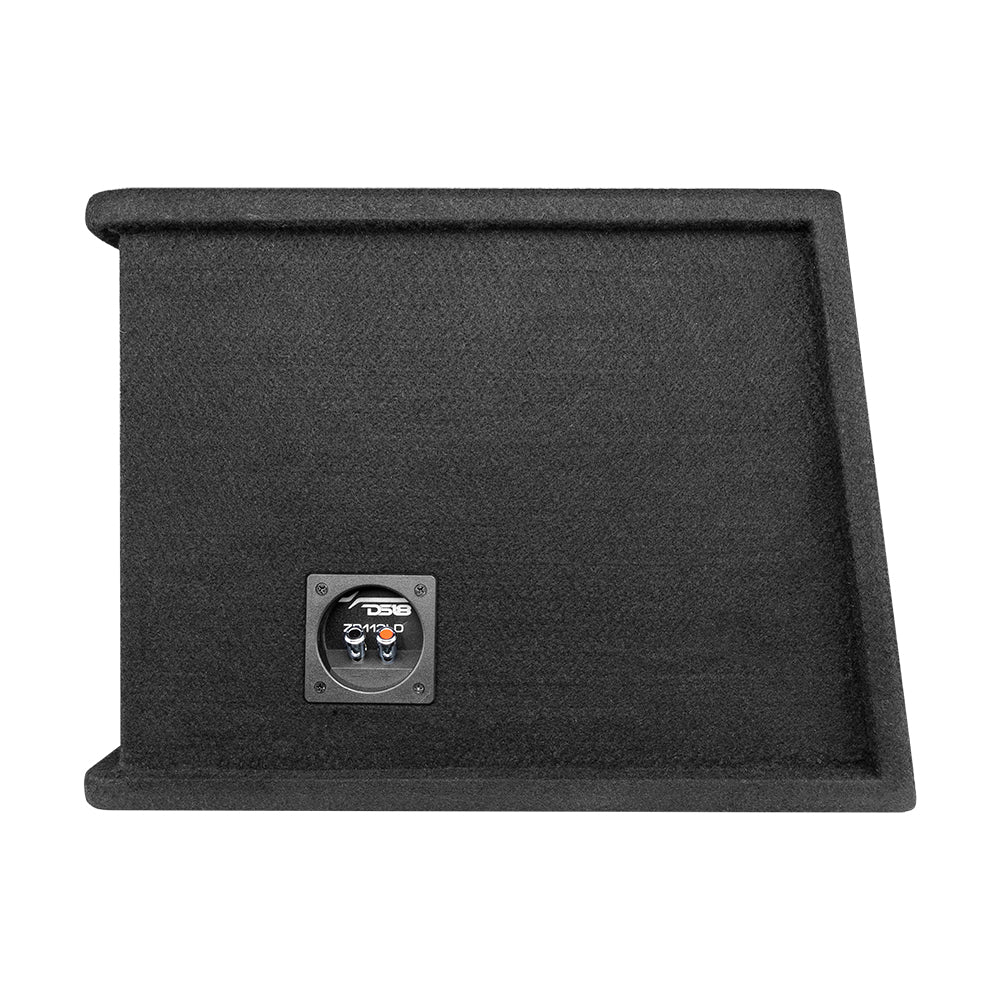

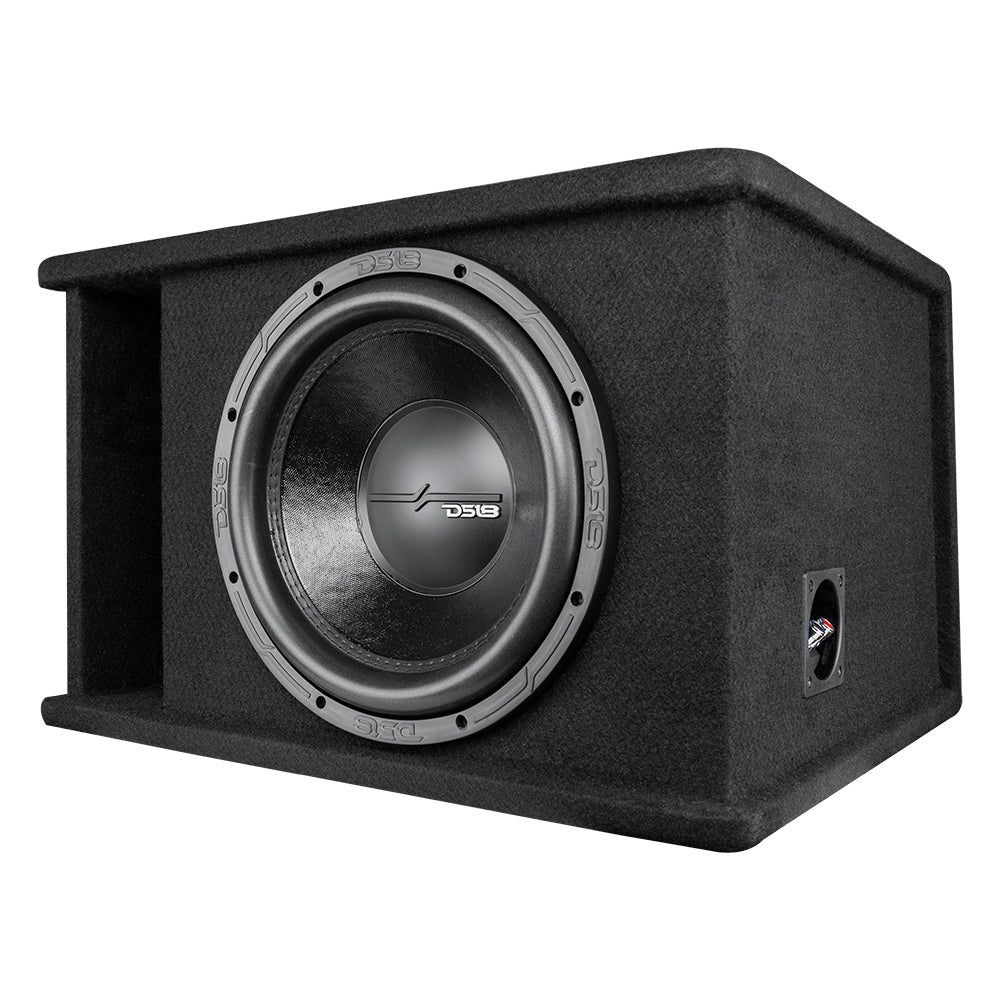

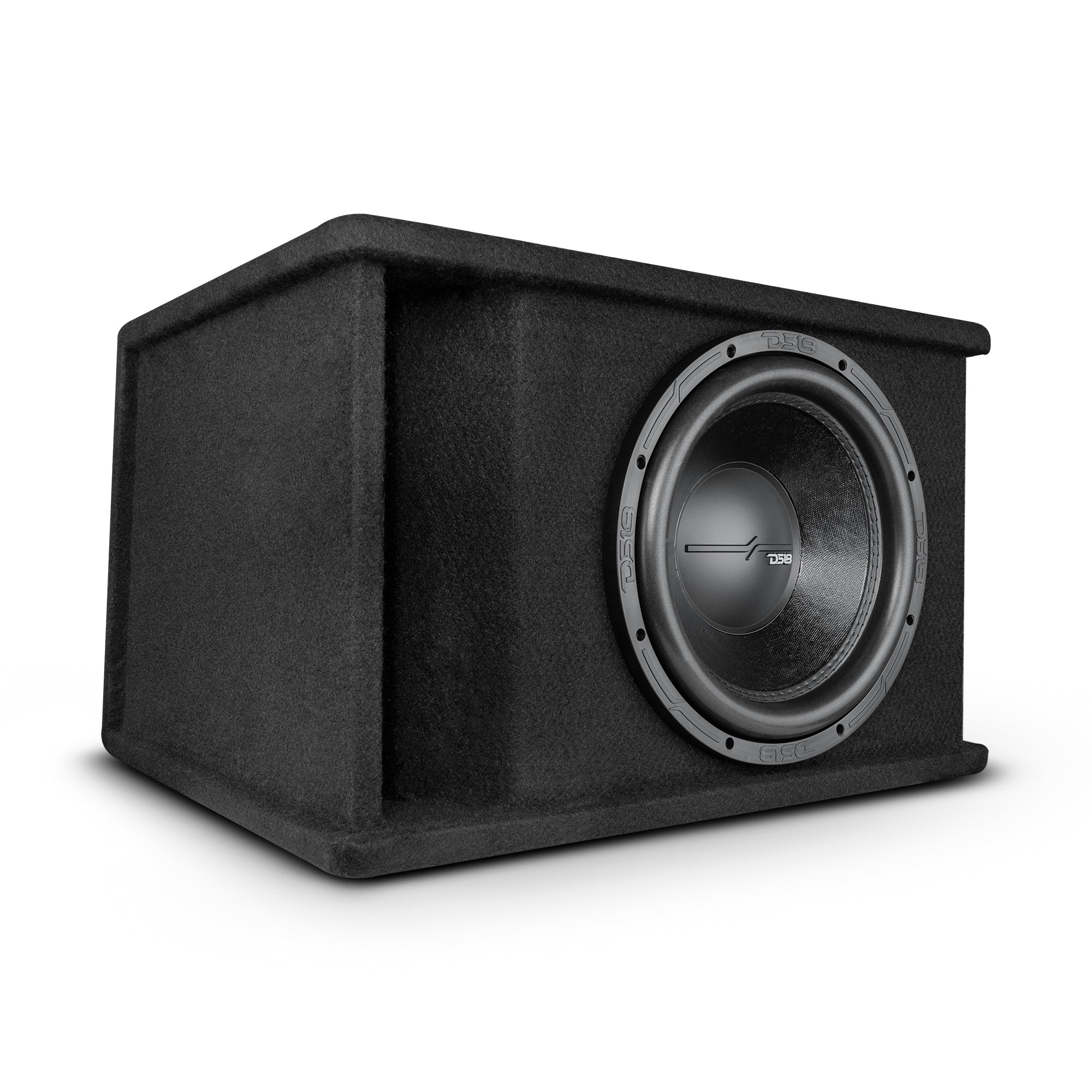

The DS18 ZR112LD is a ported enclosure loaded with one ZR12.2D 12″ subwoofer, with 84 dB sensitivity.
It’s a ready-to-wire ZR package for deeper bass than a GEN-X box. Want two? See the ZR212LD. Just the driver? Get the ZR12.2D.
This is a prefabricated box that comes with one of our best selling subwoofers, the ZR12.2D. Included is a beautiful carpeted box with DS18 designs tuned to 29 HZ.
The box is constructed of thick 3/4 MDF for great sound and acoustical resonance. The subwoofer included is the very popular ZR12.2D that is a dual voice coil 2 ohm subwoofer wired in parallel for a final nominal impedance of 1 ohm that will require 800w RMS and 1600 W MAX.
This loaded box is a great solution to get hard hitting heavy bass for all to enjoy. To power this combo, we recommend a 1000w RMS amplifier like the ZR1000.1D to power this setup to its maximum potential.
Highlights
Key Features
Box:
Dimensions:
Great For:
Technical Details
ZR112LD Product Manual
By the numbers
- RMS Power
- 800 Watts RMS
- Peak Power
- 1600 Watts Max
- Impedance
- 2 Ohms
- Speaker Type/Size / Tipo/Tamaño de Altavoz
- Single 12″ / 316mm
- Total Impedance / Impedancia Total.
- 1 ohm
- Total RMS Power Handling / Manejo de Potencia RMS total
- 750 w
- Total MAX Power Handling / Manejo de Potencia MAX total
- 1500 w
- Sensitivity (1w/1m) / Sensibilidad (1w/1m)
- 84db
- Frequency Response / Respuesta de Frecuencia .
- 20-200 Hz
- Voice Coil Diameter / Diámetro de la Bobina de Voz
- 2.5″ / 61.6mm
- Winding Material / Material de Bobinado
- Copper / Cobre
- Cone Material / Material del Cono
- Non-Pressed Paper / Papel no Prensado
- Dustcap Material / Material de la Tapa Anti-polvo
- PPI
- Surround Material / Material de la Suspension .
- Foam / Espuma
- Basket Material / Material de la Canasta ..
- Steel / Acero
- Magnet Material / Material del Imán
- Ferrite / Ferrita
- Magnet Weight / Peso del Imán .
- 100 Oz
- Box Material / Material de la caja
- 3/4” (19mm) MDF
- Finish Material / Material de acabado ..
- Black Carpet / Alfrombra Negra
- Size
- 12 inch
- BOX SPECIFICATIONS / ESPECIFICACIONES DE LA CAJA
- 79.3L / 2.8 ft3
- Port Tune / Melodía de Puerto
- 29 Hz
- Box Type / Tipo de caja
- Singe 12” / Individual 12”

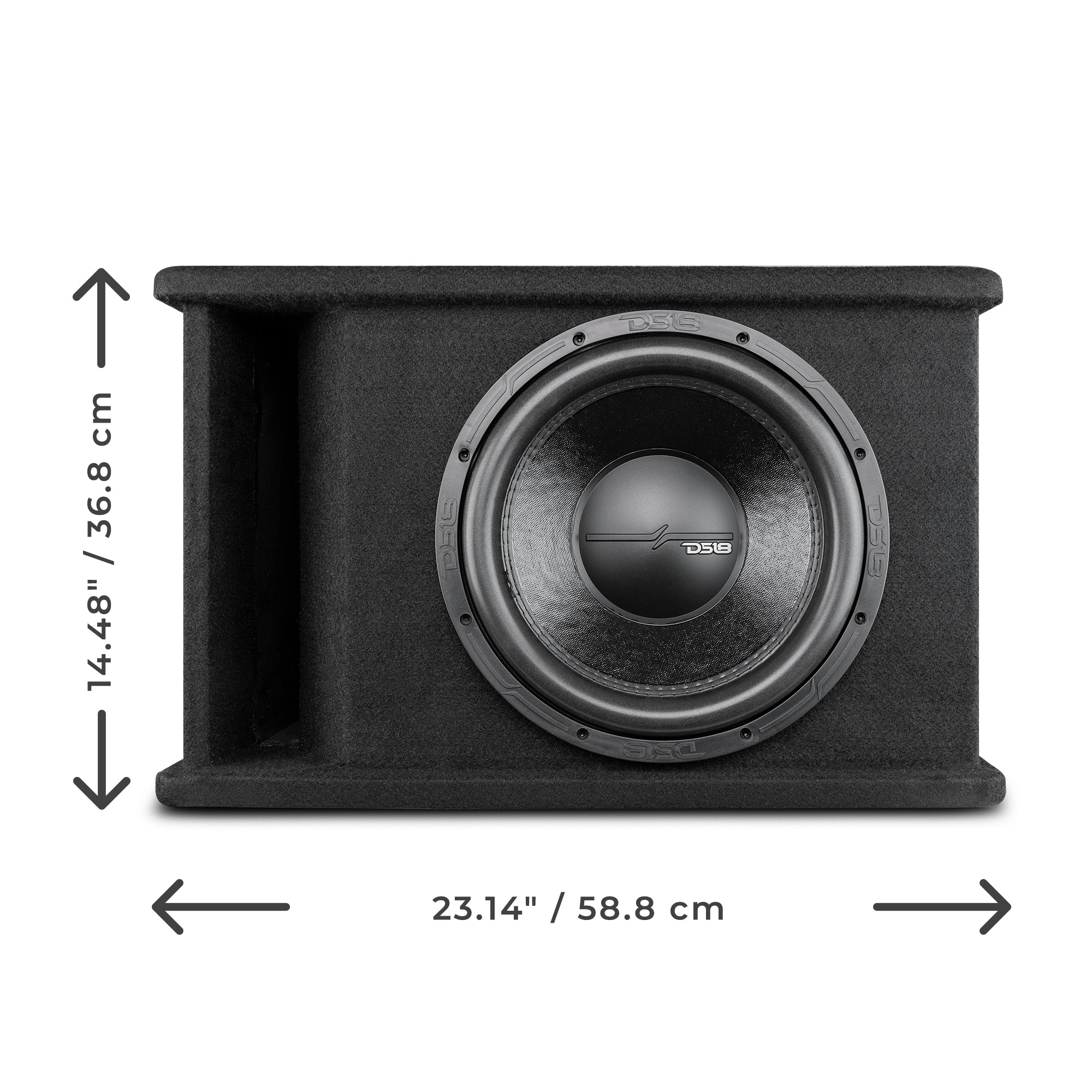

- Height / Altura
- 14.48″ / 36.8 cm
- Width / Ancho
- 23.14″ / 58.8 cm
- Depth 1 / Profundidad 1
- 17.71″ / 450 cm
- Depth 2 / Profundidad 2
- 19.68″ / 500 cm
- Load Configuration / Configuración de carga
- Ported Box / Caja Portada
- Logo / Logo .
- Red Stitched / Rojo Tejid
- -3Db Dropping Point / Punto de caída de -3Db ..
- 24 Hz
