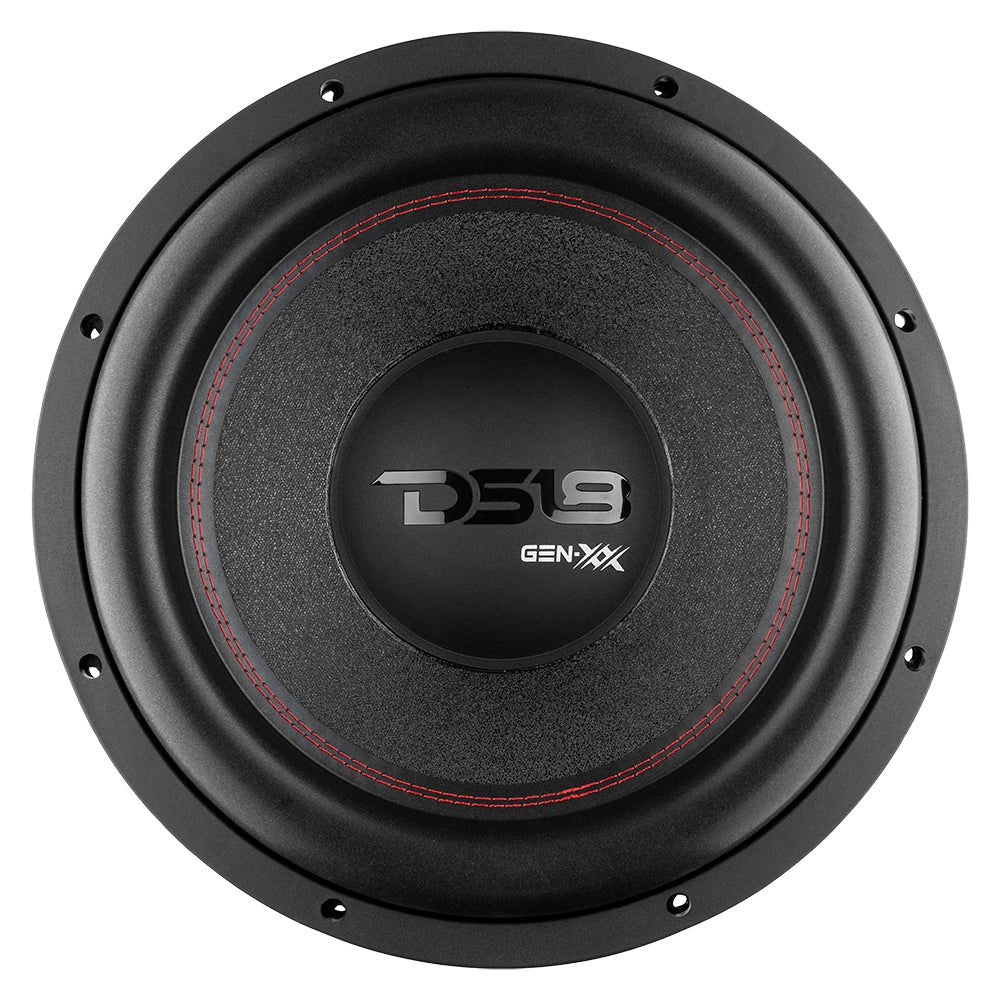

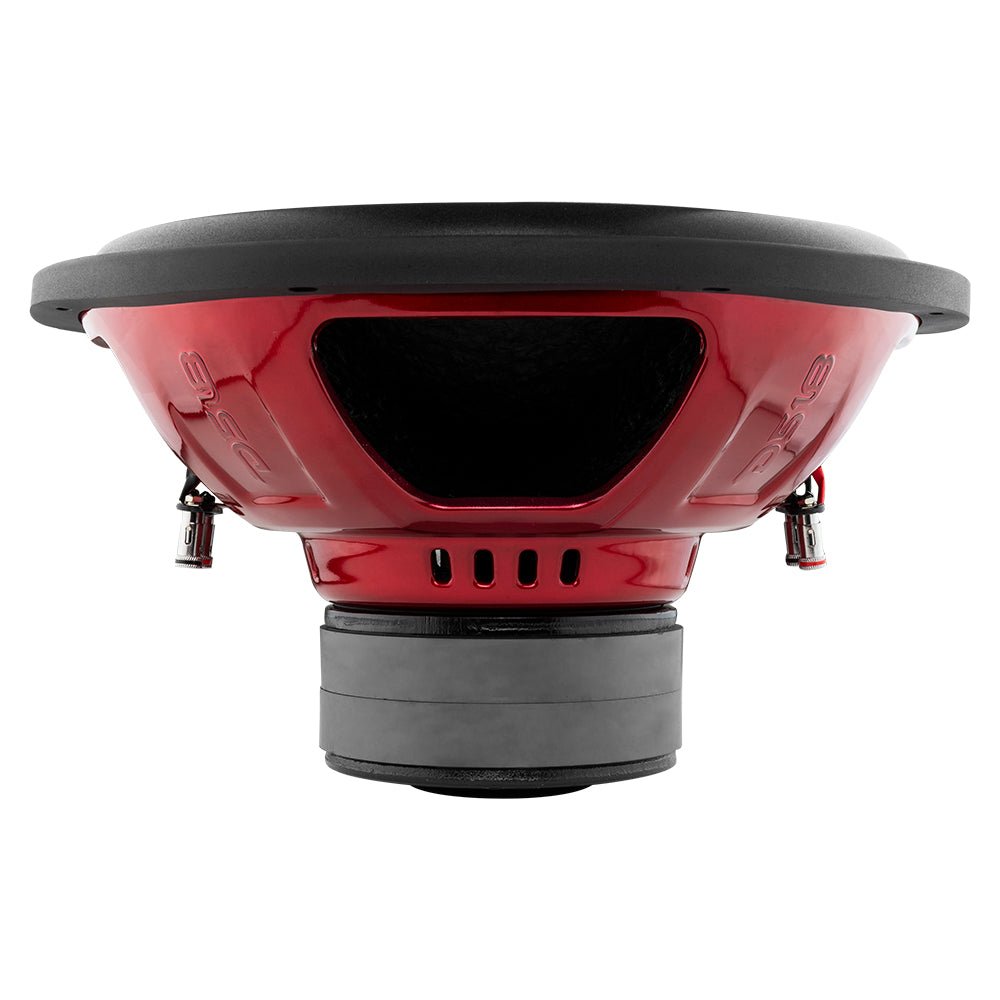

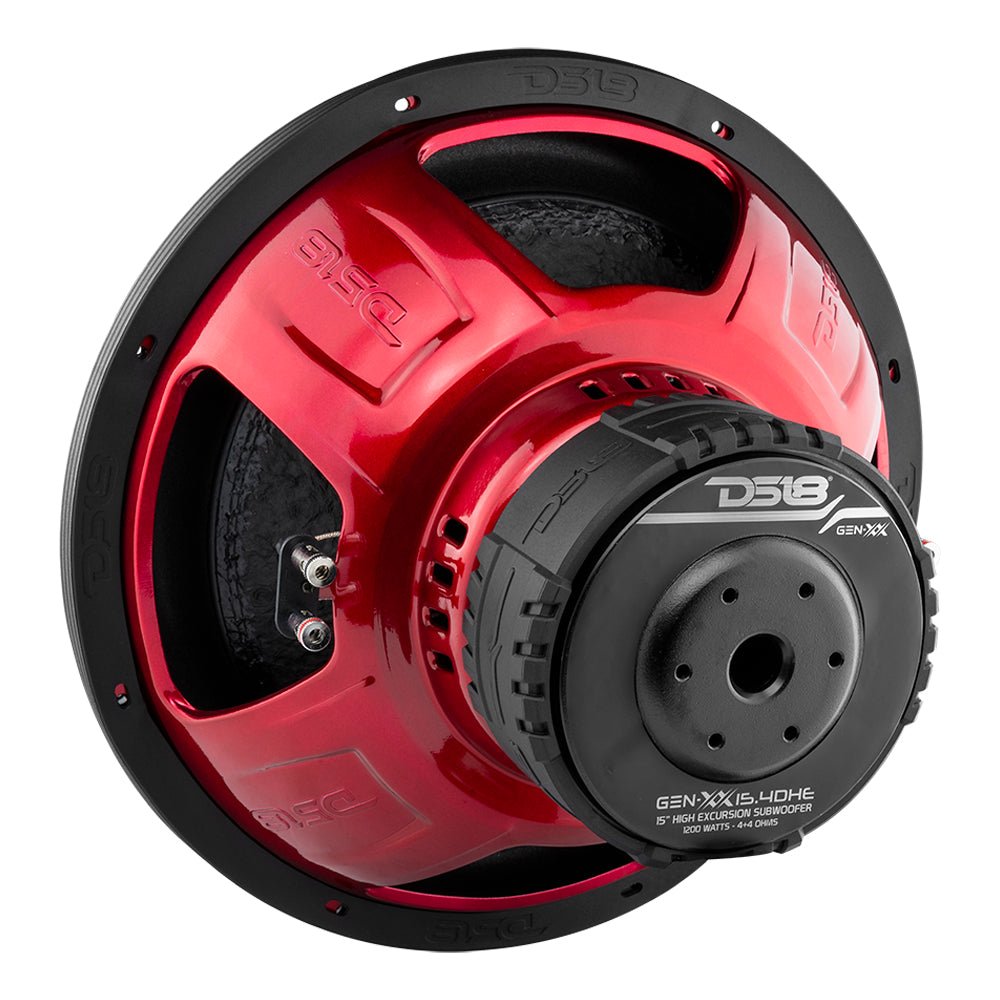

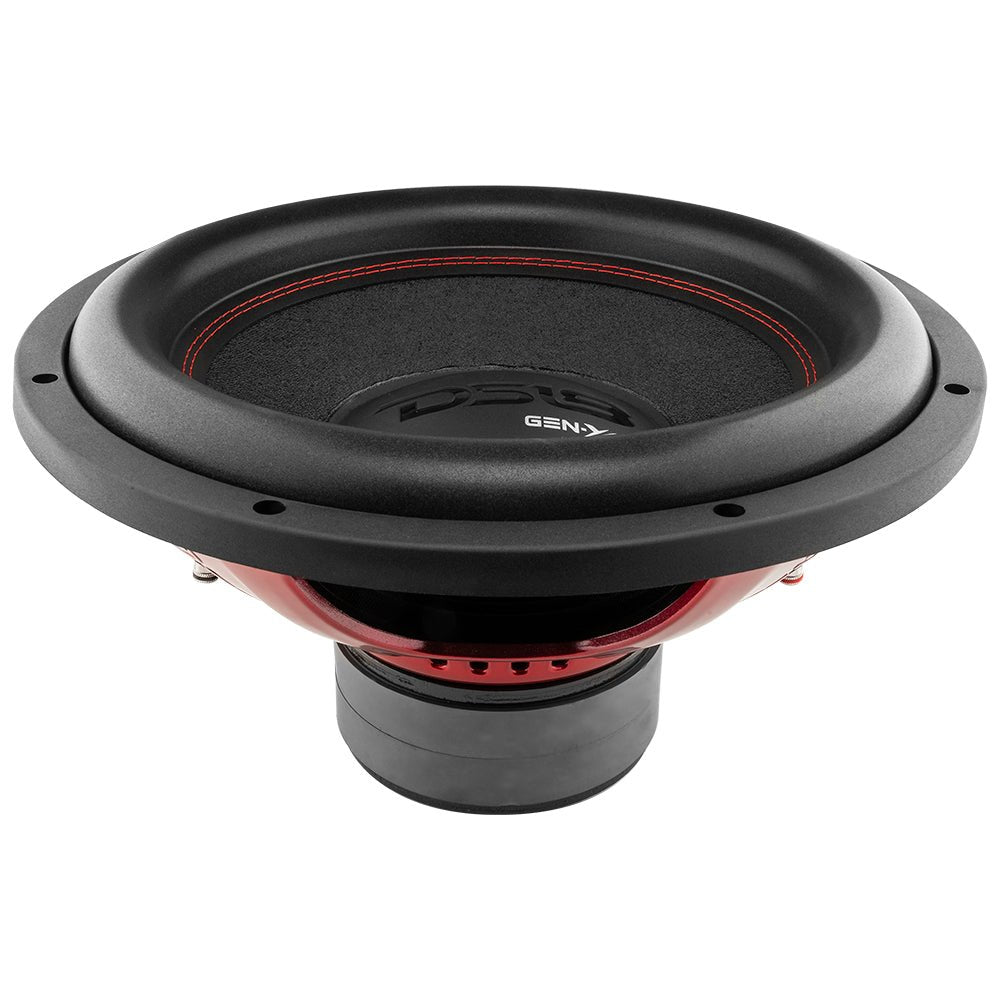

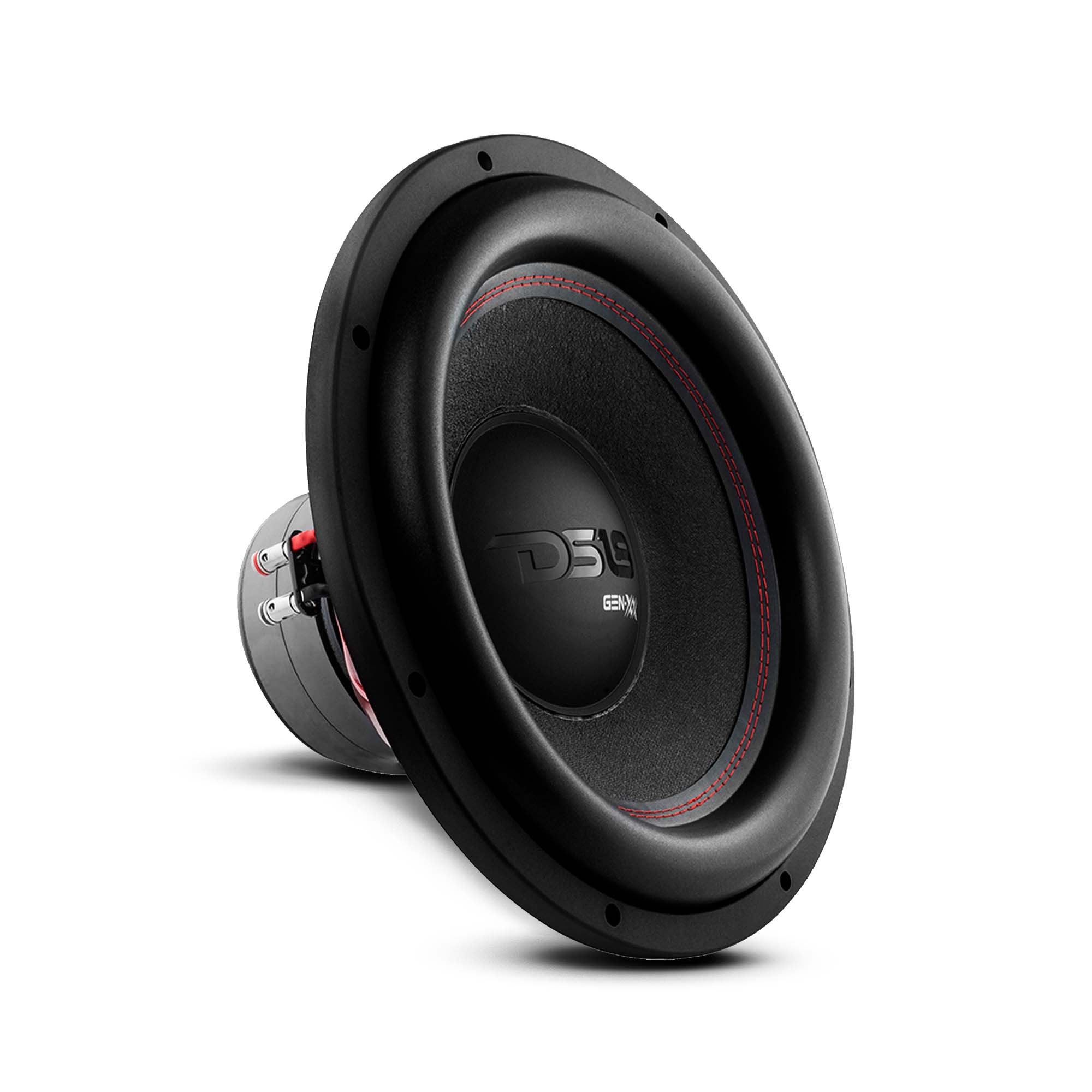

DS18 GEN-XX15.4DHE GEN-XX 15″ High Excursion Subwoofer Double Stacked Magnets 600 Watts Rms DVC 4-Ohm
$209.95
Lease for as low as $9.49/week. Apply Now
High excursion is now the mainstream and usually this feature is very expensive and enthusiasts sometimes miss out on amazing bass because of the large cost.
- Nominal Diameter: 15"
- RMS Power Handling: 600 Watts
- MAX Power Handling: 1200 Watts
- Nominal Impedance: 4 + 4 Ohms
- Frequency Response: 20Hz – 1KHz
- Sensitivity (1w/1m): 87.4 dB
The details
Product Overview
DS18 GEN-XX15.4DHE GEN-XX 15" High Excursion Subwoofer Double Stacked Magnets 600 Watts Rms DVC 4-Ohm – Impedance 4 + 4 Ohms, RMS Power 600 Watts, Frequency Response 20Hz – 1KHz.
High excursion is now the mainstream and usually this feature is very expensive and enthusiasts sometimes miss out on amazing bass because of the large cost. We want to bring the experience of low frequency bass to even the entry level user.
The GEN-XX15.4DHE is the answer to that issue. This subwoofer is a mid-tier addition that comes in at an amazing price point while getting all those features other much more expensive high excursion subs come with.
Also, with a power rating of 600w RMS and 1200w Max this sub does not require large amounts of power to come alive and beat up the block.
By the numbers
Excursion
Scale 0 to 32mm- Nominal Impedance
- 4 + 4 Ohms
- RMS Power Handling
- 600 Watts
- MAX Power Handling
- 1200 Watts
- Recommended Lo Pass Crossover
- 80Hz
- Sensitivity (1w/1m)
- 87.4 dB
- Frequency Response
- 20Hz – 1KHz
- Excursion (one way)
- Xmax 25mm
- Free Air Resonance
- Fs 27 Hz
- BL Factor
- BL 24.045N/A
- Efficiency Bandwidth Product
- EBP 46.3
- Xmax
- 25 mm
- Voice Coil Diameter
- 2"
- VC Former Material
- Black Aluminum
- Winding Material
- SV
- Cone Material
- Paper
- Dust Cap Material
- PPI
- Surround Material
- Foam
- Basket Material
- Steel
- Basket Color and Finish
- Glossy Red
- Magnet Material
- Ferrite
- Magnet Weight
- 136 oz
- Voice Coil Inductance
- Le 0.6741mH
- Cone Area
- Sd 814.332cm2
- Motor Diameter
- 6.15" / 156mm
- Nominal Diameter
- 15"
- Displacement Volume
- 3.26L
- Equivalent Volume
- Vas 105.083 L
- Overall Diameter
- 10.28" / 261 mm
- Overall Depth
- 7.21" / 183 mm
- Front Mount Baffle Cutout
- 9.14" / 232 mm
- Mounting Depth
- 6.15" / 156mm
- Mechanical Factor
- Qms 3.658
- Electrical Factor
- Qes 0.583
- Total Factor
- Qts 0.503
- Mechanical Mass
- Mms 309.67g
- Mechanical Compliance
- Cms 0.112mm/N
- DC Resistance
- Re 3.2+3.2 ohms
