Product Overview
Why we stock the DS18 HOOL-X12.1DHE

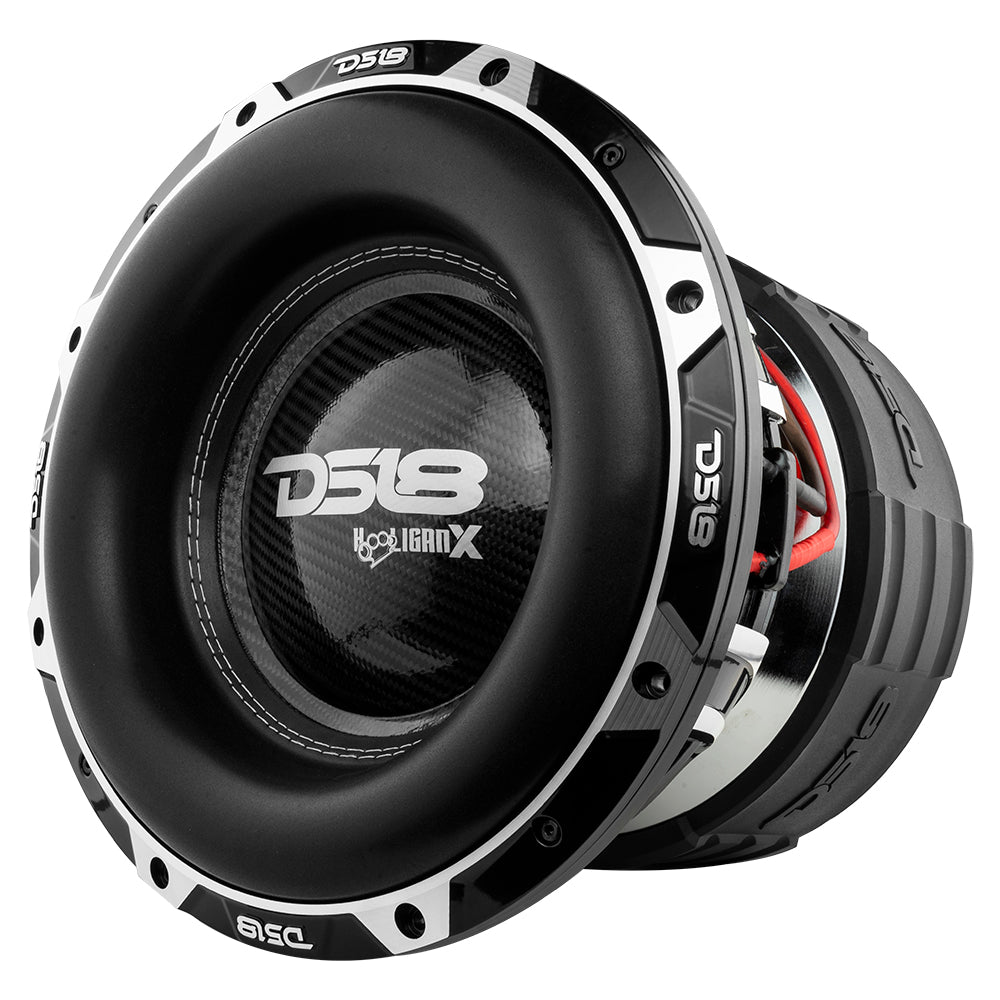

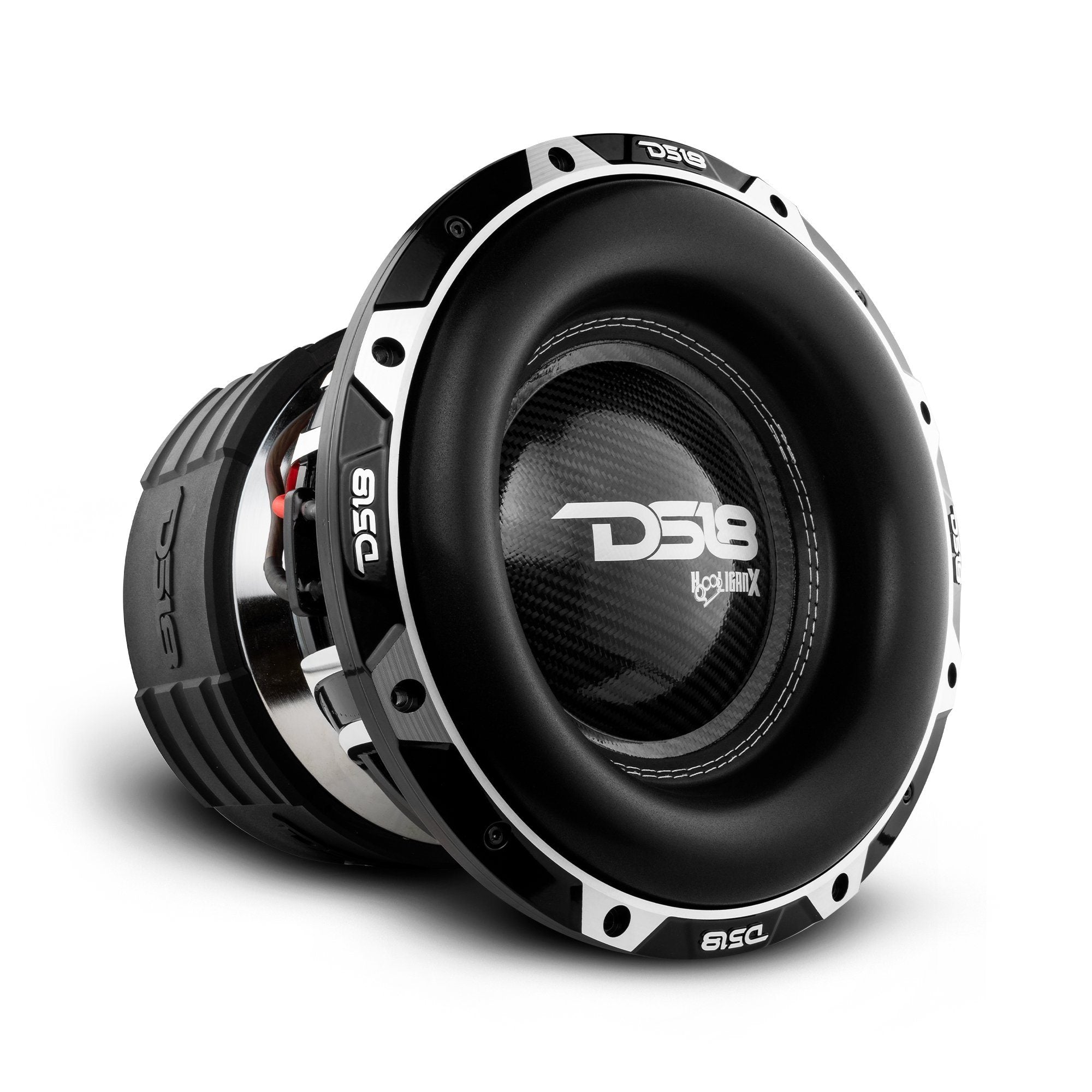

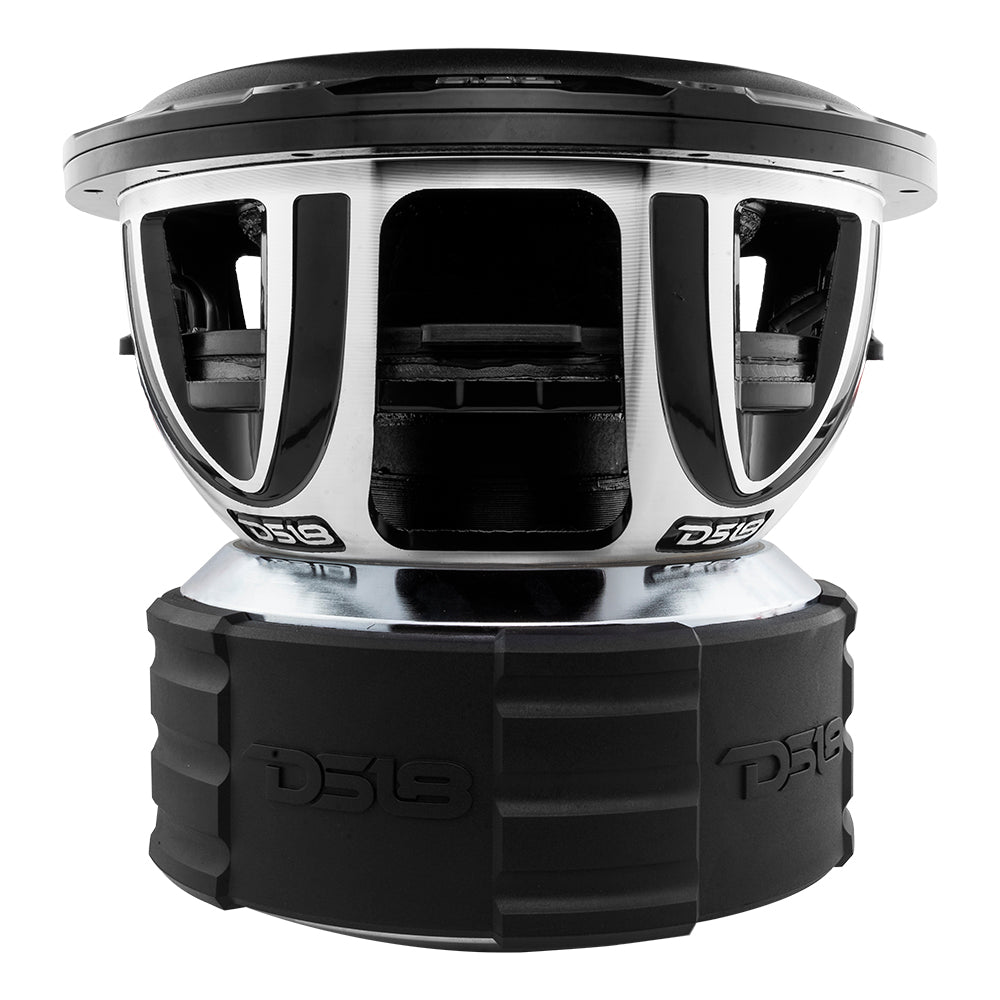

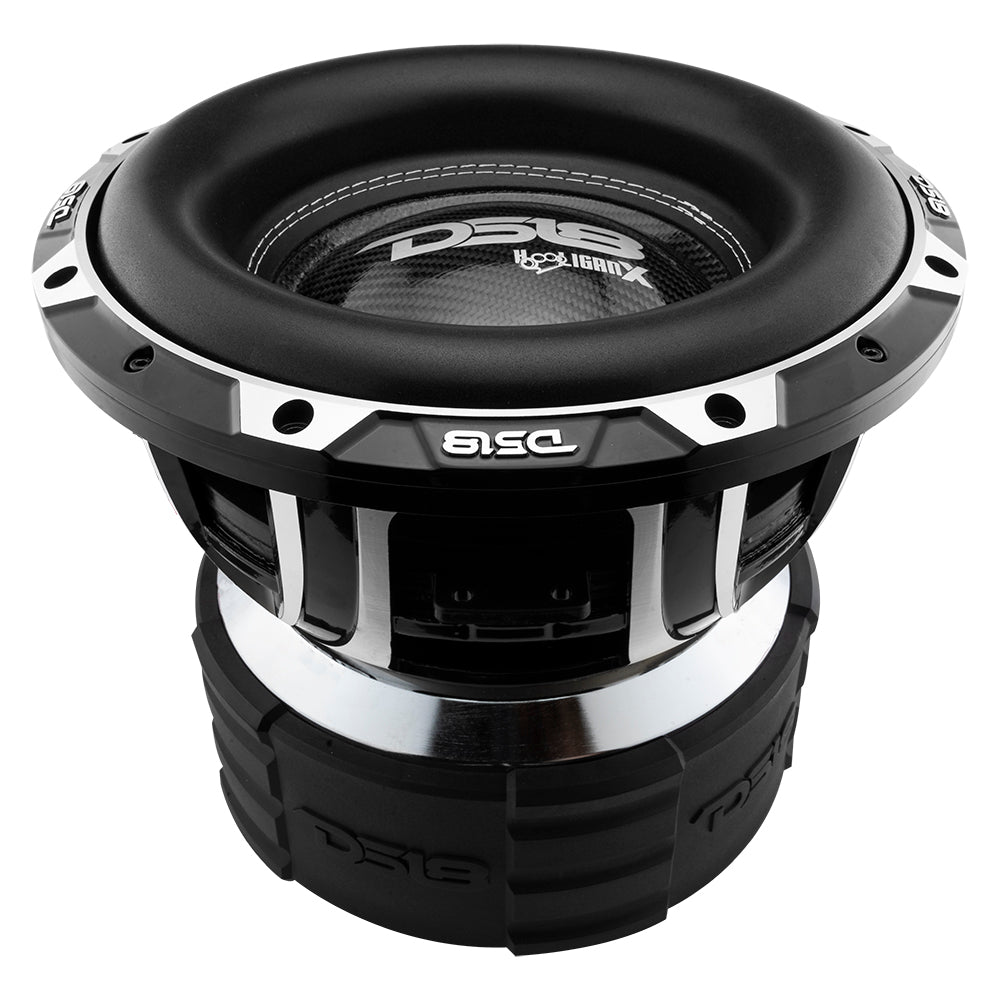

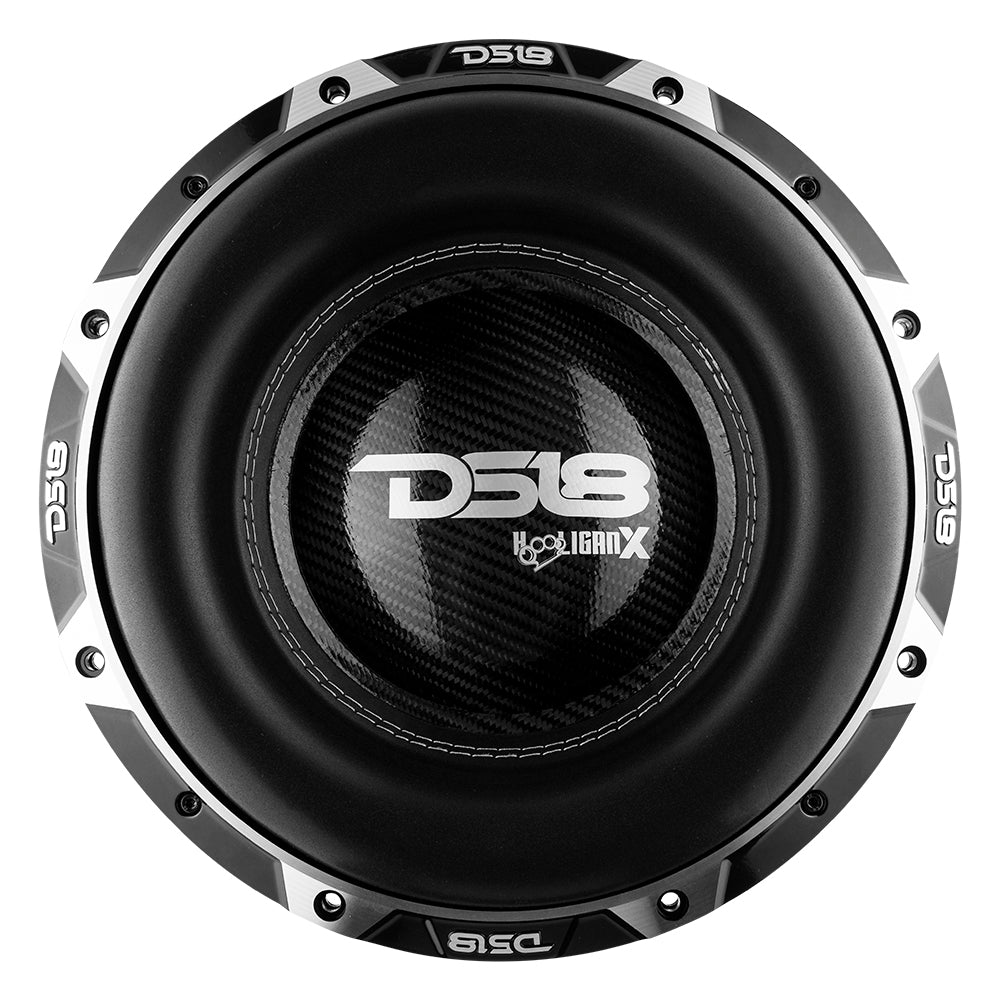

The DS18 HOOL-X12.1DHE is a 12″ Hooligan X high-excursion subwoofer with a 4″ dual 1 ohm voice coil. It handles 4,000 watts RMS (6,000 max) and plays down to 20Hz.
It needs 10″ of mounting depth and is built for competition-level output from a single 12. Running different amp loads? See the HOOL-X12.2DHE or HOOL-X12.4DHE. Want a 15? Look at the HOOL-X15.1DHE.
The DS18 Hooligan X12 has already been proven to provide top end performance and bass now for multiple years on the streets and in the lanes, hooligans have been a choice of music lovers and competitors alike.
We have taken the Traditional Hooligan and revamped it in our newest revision, the Hooligan X12 High Excursion subwoofer. This model features long throw pole, larger spider, and high excursion surround to lower the FS of the speaker making it louder at subsonic frequencies. This massive sub will be great for high powered music or SPL. A FS of 26 will ensure deep lows down to 20hz and great punchy bass up around 40hz depending on your box tuning. This subwoofer is rated at 4000w RMS and 6000w max so your vehicle will require electrical upgrades and large wire.
This sub will be friendly to 4th orders, 6th orders, ported boxes, and large sealed boxes and can be used in most applications that has room for the box. With a 59mm one way XMAX, this sub is sure to pump out extreme decibils with the proper power and box setup. We recommend a tuning of 25-35hz for ported boxes depending on your goals.
If you are looking for extreme bass and massive power look no further than the Hooligan High Excursion line! This Hooligan variant will be sure to start you on your way to high volume hairtricks and massive lows!
Highlights
Technical Details HOOL-X12.1DHE Product Manual
Box Info
By the numbers
Excursion
Scale 0 to 68mm- RMS Power
- 4000 Watts RMS
- Peak Power
- 6000 Watts Max
- Impedance
- 1 Ohms
- Nominal Impedance
- 1+1 OHMS
- RMS Power Handling
- 4000 Watts
- MAX Power Handling
- 6000 Watts
- Recommended Lo Pass Crossover
- 80 Hz
- Frequency Response
- 20Hz – 500Hz
- Sensitivity (1w/1m )
- 87 dB
- Excursion (one way)
- 50 mm
- Free Air Resonance
- 26 Hz
- Bl Factor
- 24.65
- Efficiency Bandwidth Product
- 54.6
- Sealed Box Output Response
- 41 Hz
- Port Tunning Frequency
- 30 Hz
- Ported Box Output Response
- 25 Hz
- Xmax
- 59 mm
- Voice Coil Diameter
- 4” / 99.8 mm
- Voice Coil Former Material
- Black Aluminum
- Winding Material
- CCAW
- Cone Material
- Non Pressed Paper
- Dust Cap Material
- Carbon Fiber
- Surround Material
- Foam
- Basket Material
- Aluminum
- Basket Color | Finish
- Glossy Black with Machined Aluminum
- Magnet Material
- Ferrite
- Magnet Weight
- 500 Oz
- Voice Coil Inductance
- 43.12 mH
- Motor Diameter
- 9.96″
- Size
- 12 inch
- Mounting Depth
- 10”
- Nominal Diameter
- 12″ / 304.8 mm
- Displacement Volume
- 4.8L / 0.169ft3
- Equivalent Volume
- 23.22L / 0.82 ft3
- Sealed Internal Volume
- 17L / 0.6 ft3
- Ported Internal Volume
- 42.5L / 1.5 ft3
- Port Size *Square (WxHxL)
- 1.52″ x 12.28″ x 31.82″
- Overall Diameter
- 12.64”
- Overall Depth
- 11.6”
- Front Mount Baffle Cutout
- 11.2”
- Mechanical Factor
- 2.65
- Electrical Factor
- 0.476
- Total Factor
- 0.444
- Moving Mass
- 554.22 g
- Compliance
- 0.069 mm/N
- Diaphragm Area
- 471.44 cm2
- DC Resistance
- 0.9+0.9 OHM
