The details
Product Overview
Why we stock the DS18 IXS10.2D

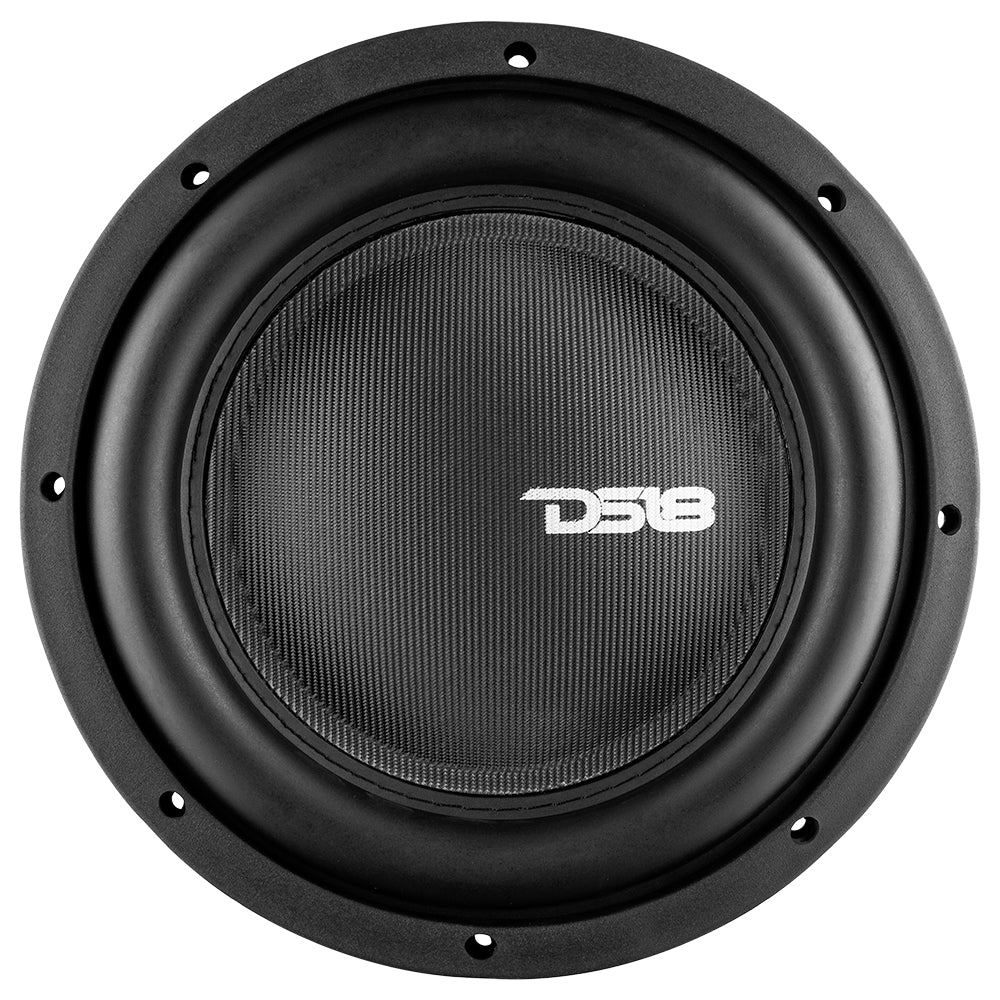

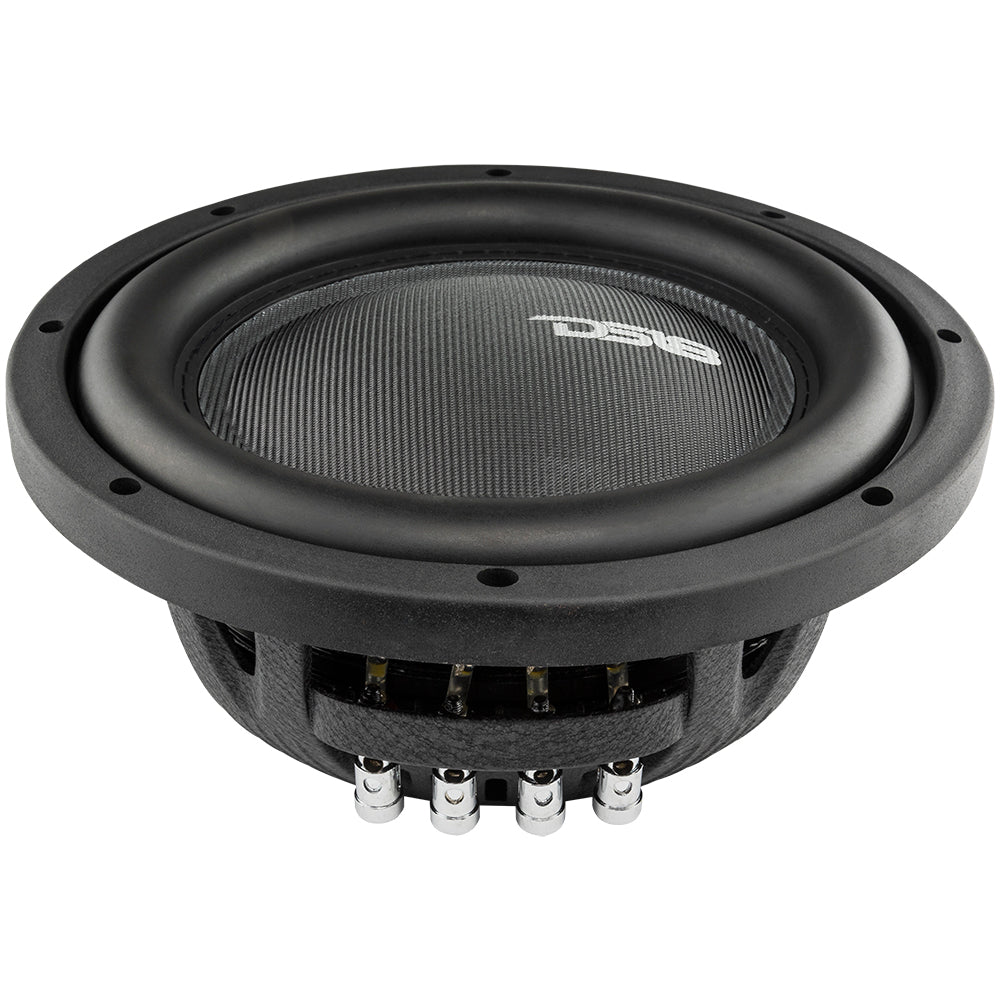

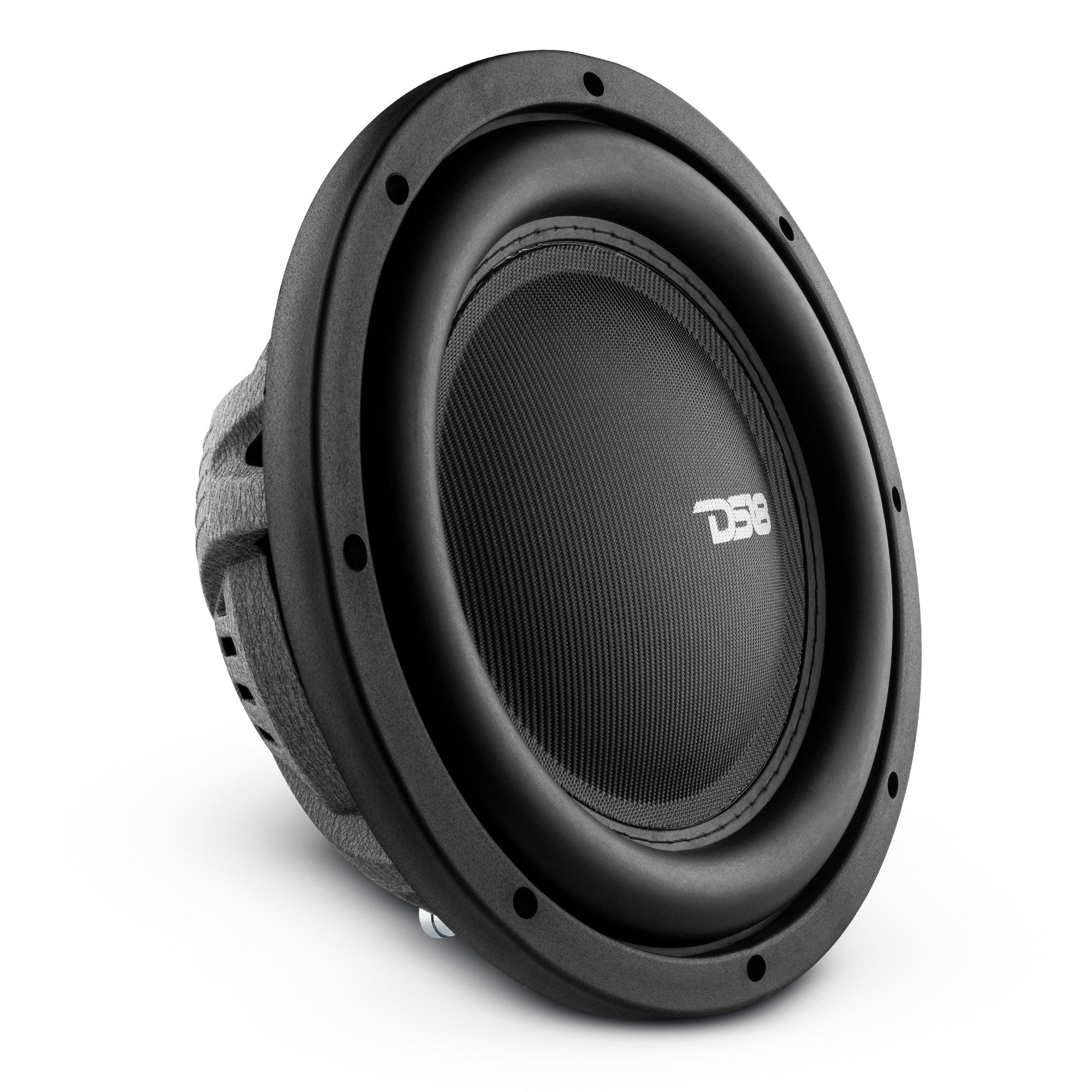

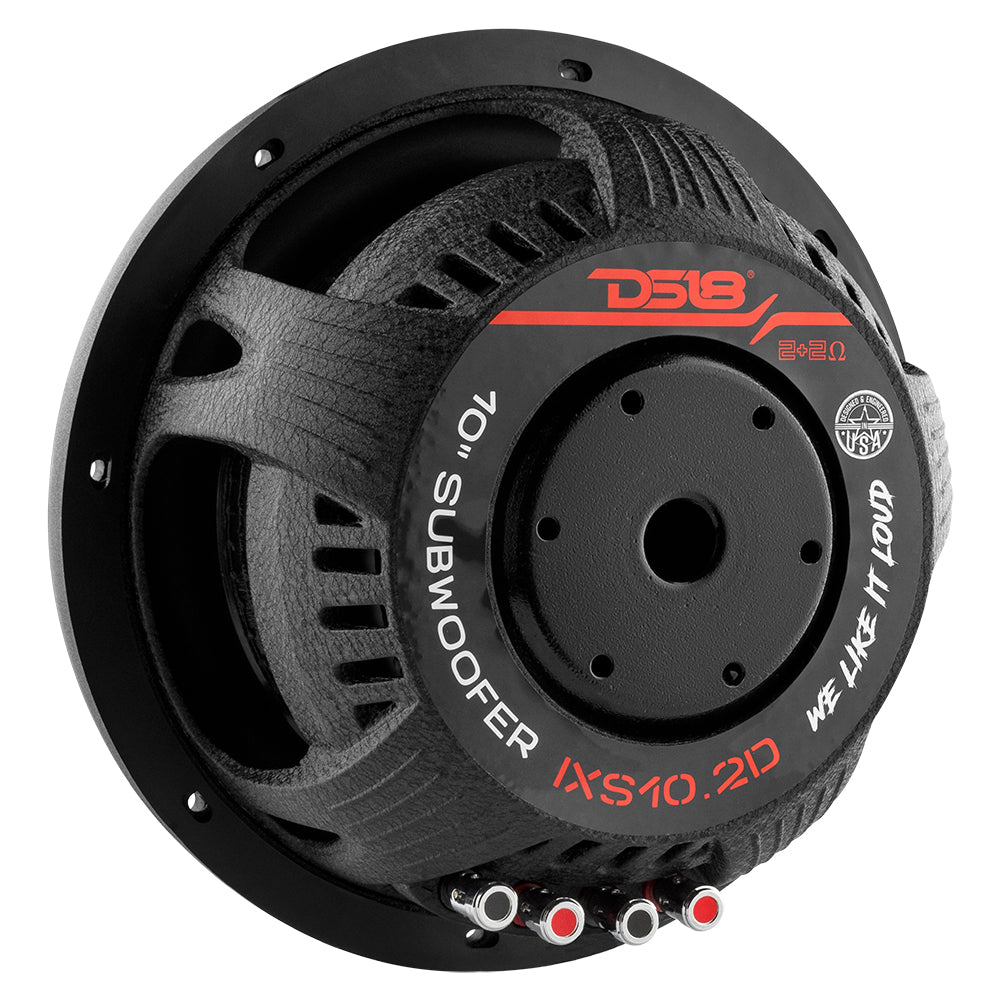

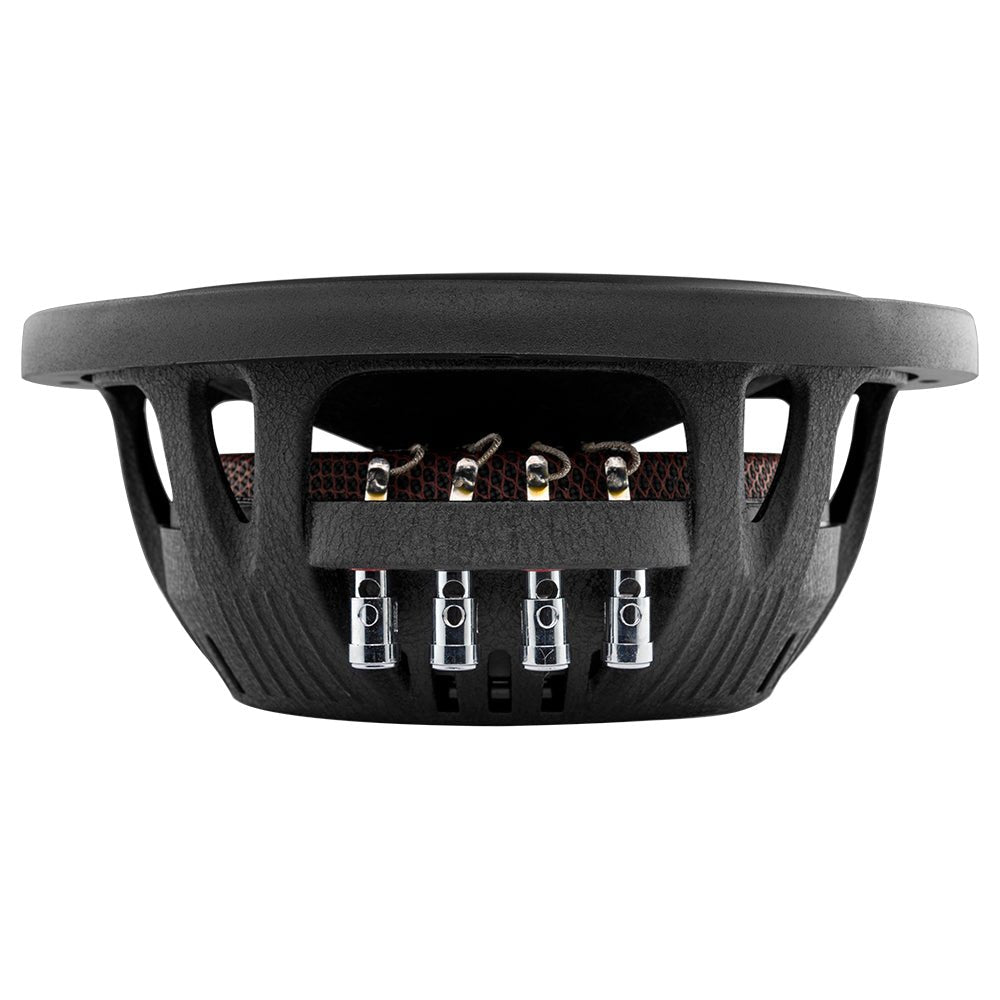

The DS18 IXS10.2D is a shallow-mount 10″ subwoofer with a 2.5″ dual 2 ohm voice coil and a fiberglass dust cap. It handles 600 watts RMS (1,200 max) with 84 dB sensitivity and plays from 20Hz to 800Hz.
It needs only 3.66″ of mounting depth and uses an aluminum basket. Need dual 4 ohm? Use the IXS10.4D. Want a 12? See the IXS12.2D.
DS18’s IXS Line of Shallow Mount Subwoofers are back with the IXS10.2D!
Built from our best selling SW slim subwoofer line the experts at DS18 took the SW line and made it even beefier for more bass.
This sub handles 600 W RMS and 1200 W MAX Power with a 84 dB sensitivity: high sensitivity for a shallow mount sub raising this model above and beyond the standard.
These Dual Voice Coil Subs are perfect for the listener looking to add more thump to their system.
Make the most of your space with the IXS10.2D!
Highlights
Great For
Technical Details Download IXS10.2D Product Manual
By the numbers
- RMS Power
- 600 Watts RMS
- Peak Power
- 1200 Watts Max
- Impedance
- 2 Ohms
- Nominal Impedance
- 2+2 ohms
- RMS Power Handling
- 600w
- MAX Power Handling
- 1200w
- Recommended Lo Pass Crossover
- 90 Hz
- Sensitivity
- 84 dB
- Frequency Response
- 20 – 800 Hz
- Sensitivity (1w/1m)
- 84 dB
- Voice Coil Diameter
- 2.5″ / 63.5mm
- Voice Coil Former Material
- Aluminum
- Winding Material
- Copper
- Cone Material
- Paper
- Dust Cap Material
- Fiberglass
- Surround Material
- Stitched rubber
- Basket Material
- Aluminum
- Basket Color/Finish
- Corrugated Black
- Magnet Material
- Ferrite
- Magnet Weight
- 62 Oz
- Motor Diameter
- 6″ / 154 mm
- Size
- 10 inch
- Mounting Depth
- 3.66″ / 93 mm
- Nominal Diameter
- 10” / 254mm
- Displacement Volume
- 0.9L / 0.032ft3
- Overall Diameter
- 10.63″ / 270 mm
- Overall Depth
- 4.48″ / 114 mm
- Front Mount Baffle Cutout
- 9.25″ / 235 mm
