Product Overview

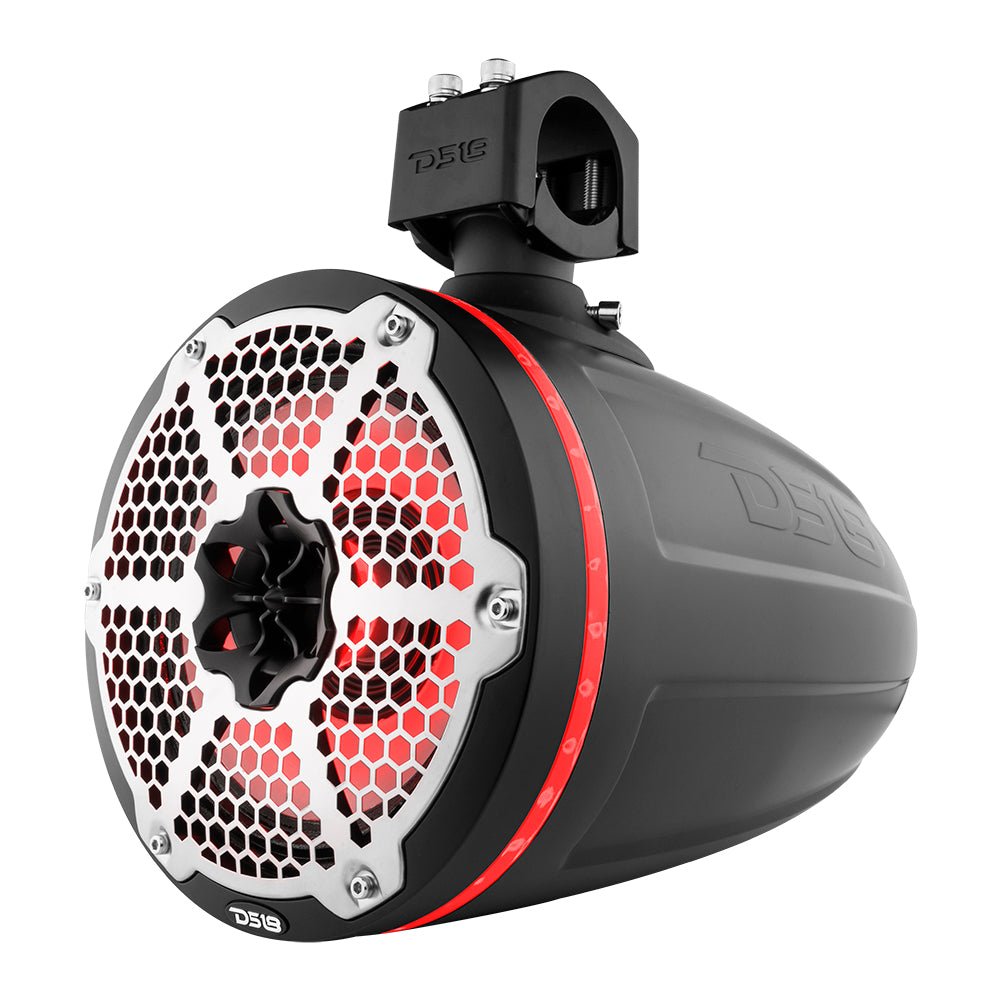

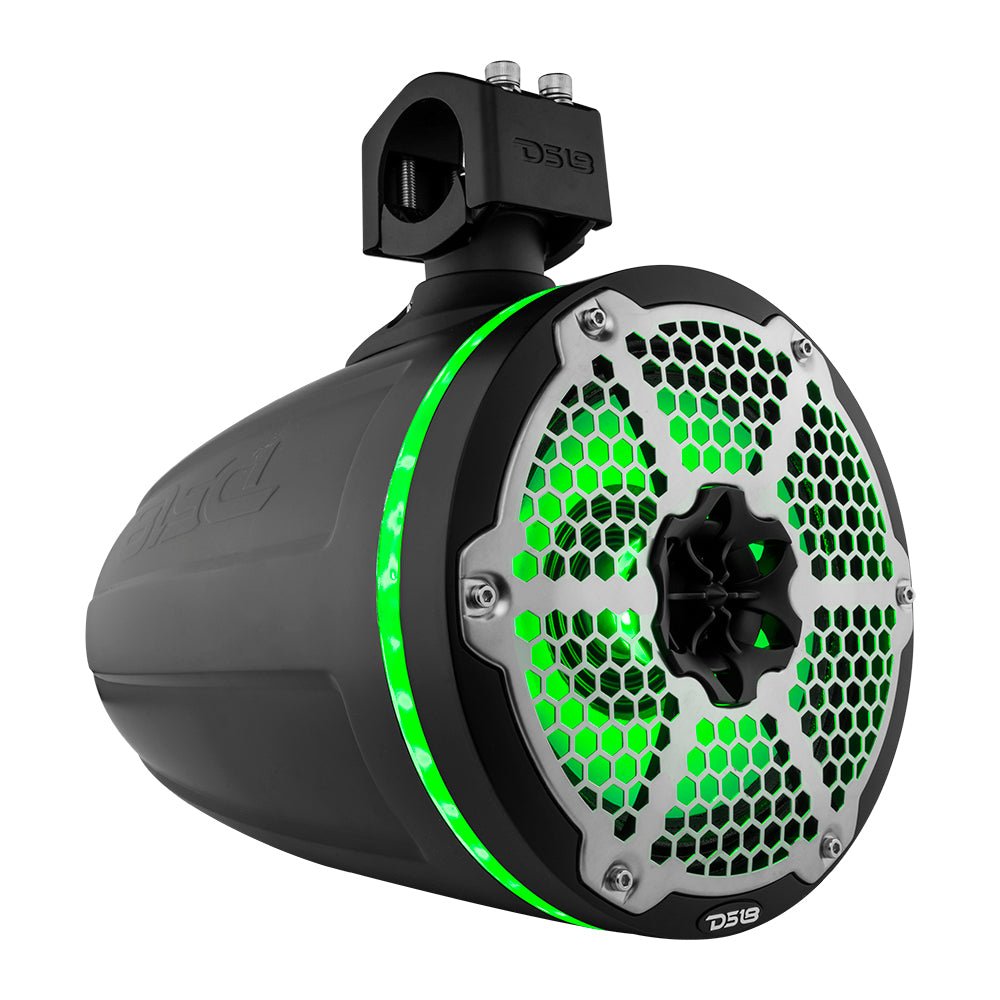

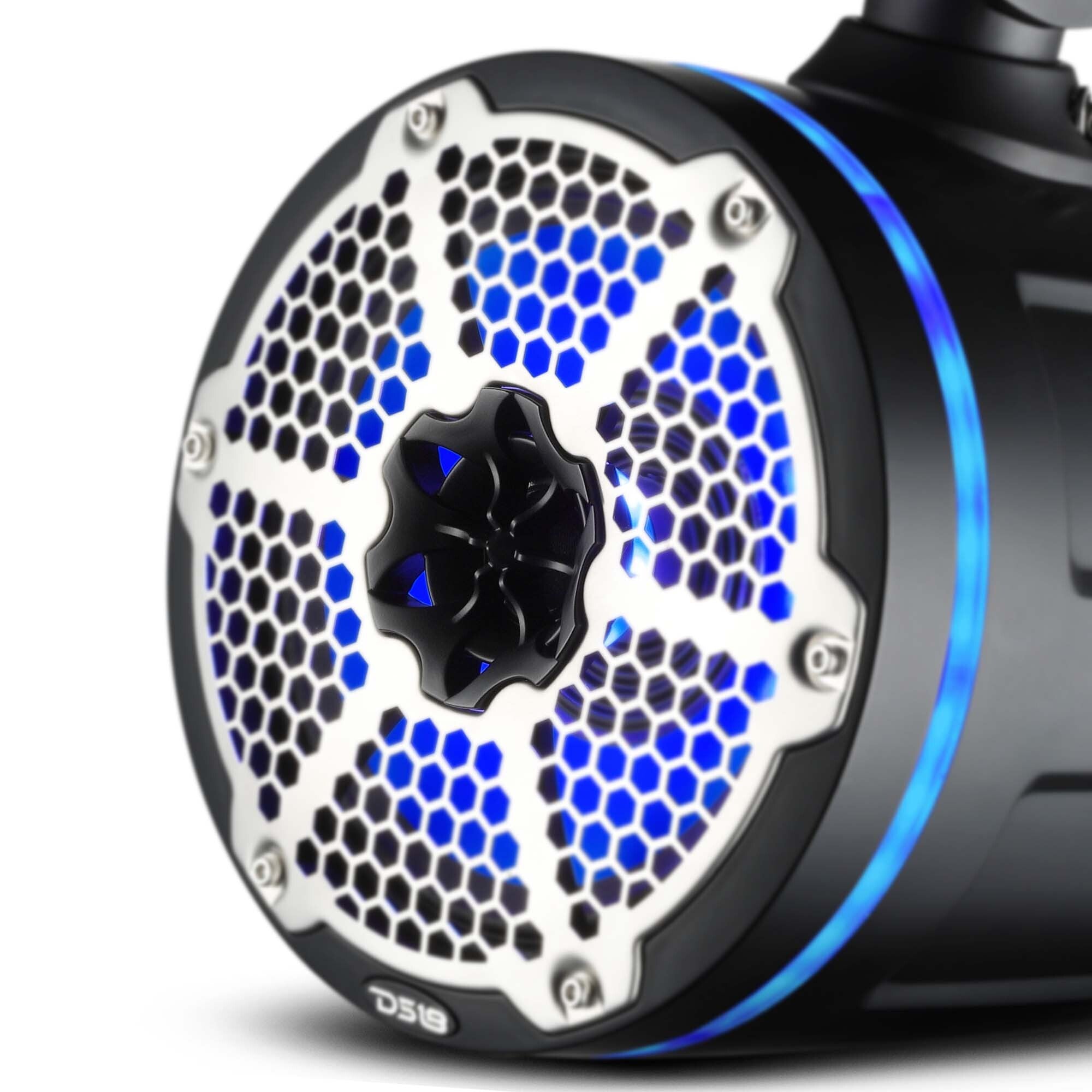

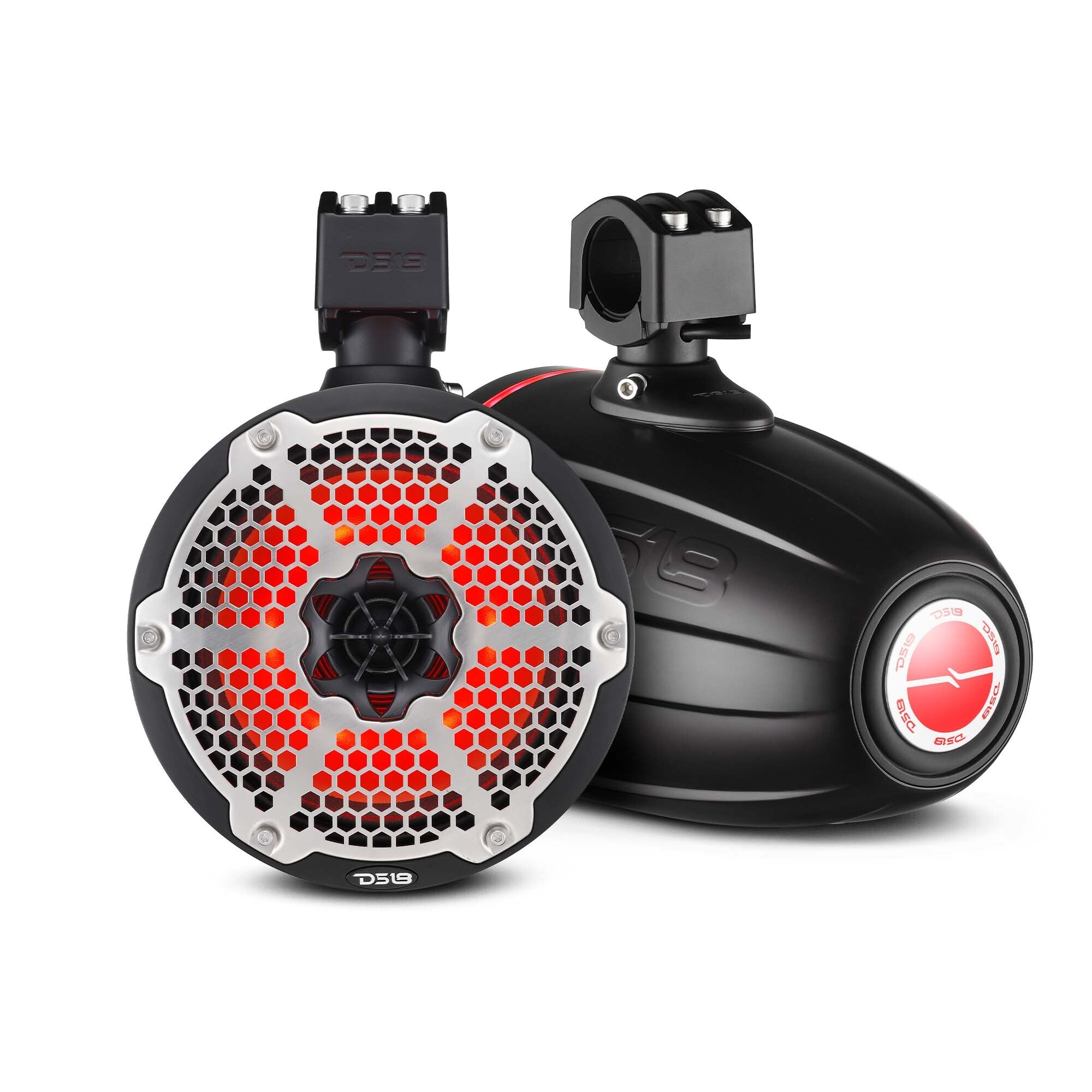

The newly redesigned NXL-8TPNEO tower speakers are louder and stronger than ever! The pod contains the same speaker and driver combo that everyone loves from the previous generation but now the clamping system has been reinforced for stronger grip and protection all around. Also to improve loudness and sound quality, we have added a passive woofer radiator for even more bass response. RGB lighting is also included so you can match colors to your mood or color scheme.
Highlights
Technical Details
Ecl297zl03000101s6hejmfzryE Download NXL-X8TPNEO Product Manual
Technical Data
| Specification | Details |
|---|---|
| Size | 8 inch |
| Frequency Response | 60Hz – 21Khz |
| Nominal Diameter | 8 |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 180W |
| MAX Power Handling | 550W |
| Sensitivity (1w/1m) | 95dB |
| Enclosure Material | Injection PC+ABS |
| Marine Grade Type | IP65 + UV Stable |
| RGB LED | Integrated LED-RGB Speaker Lighting Integrated LED-RGB Acrylic Ring Lighting 6 Core Wires for Lighting and Speaker |
| Grill Type | ABS+316 Stainless Metal Mesh |
| Pair | Yes |

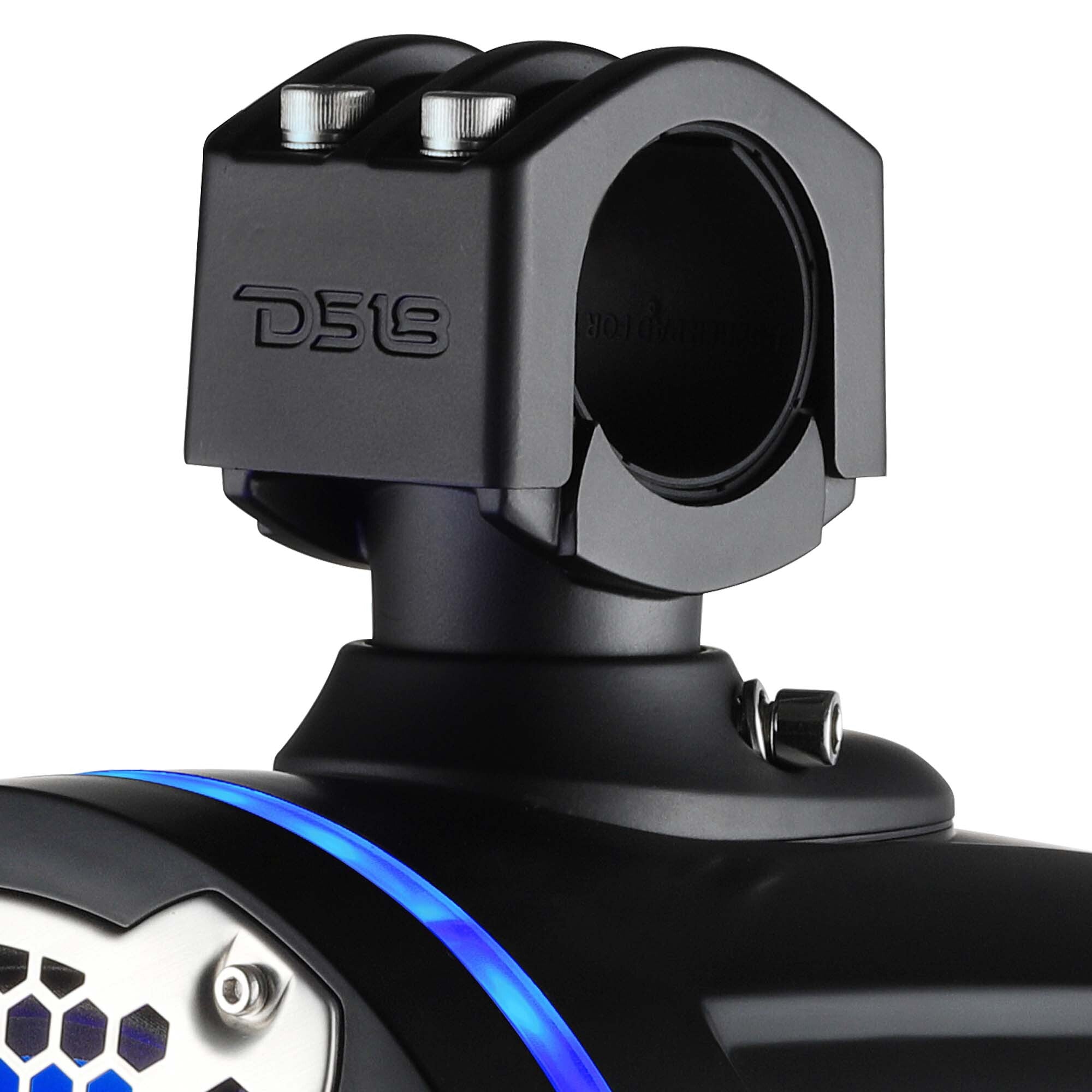

| Clamps | Die-Cast adjustable (1″ ~ 2″) 360 Degree Rotation Mounting Buried Wire or Open Wire Mounting Optional, Included NBR Pad And Stainless Hardware (Screws, Stop Washers, Hexagon wrench, Safety Rope, Screw fastening Glue) |
| Front Logo | Yes, Can be Rotated For Correct Angle Display |
| Voice Coil Diameter | 1″ |
| Cone Material | Waterproof Compress Paper + Carbon Fiber |
| Surround Material | Soft PC Damping Glued |
| Basket Material | PC Injection Molded Composite |
| Magnet Material | Neodymium |
| Magnet Grade | N40H |
| Passive Radiator | 4″ With LED RGB Light |
| Type | Compression Driver with CNC Solid Aluminum Horn |
| Diaphragm Material | PEN |
| Crossover | 12dB with Over Power Protection |
| Equivalent Volume | Vas – 17.5L |
| Excursion (one way) | Xmax – 3mm |
| Free Air Resonance | Fs- 62Hz |
| Total Factor | Qts – 0.756 |
| Overall Diameter | 8.59″ / 218.1mm |
| Overall Depth | 13.89″ / 352.9mm |
| Overall Height | 12.37″ / 314.3mm |
