Why we stock the DS18 PRO-1KP8.4

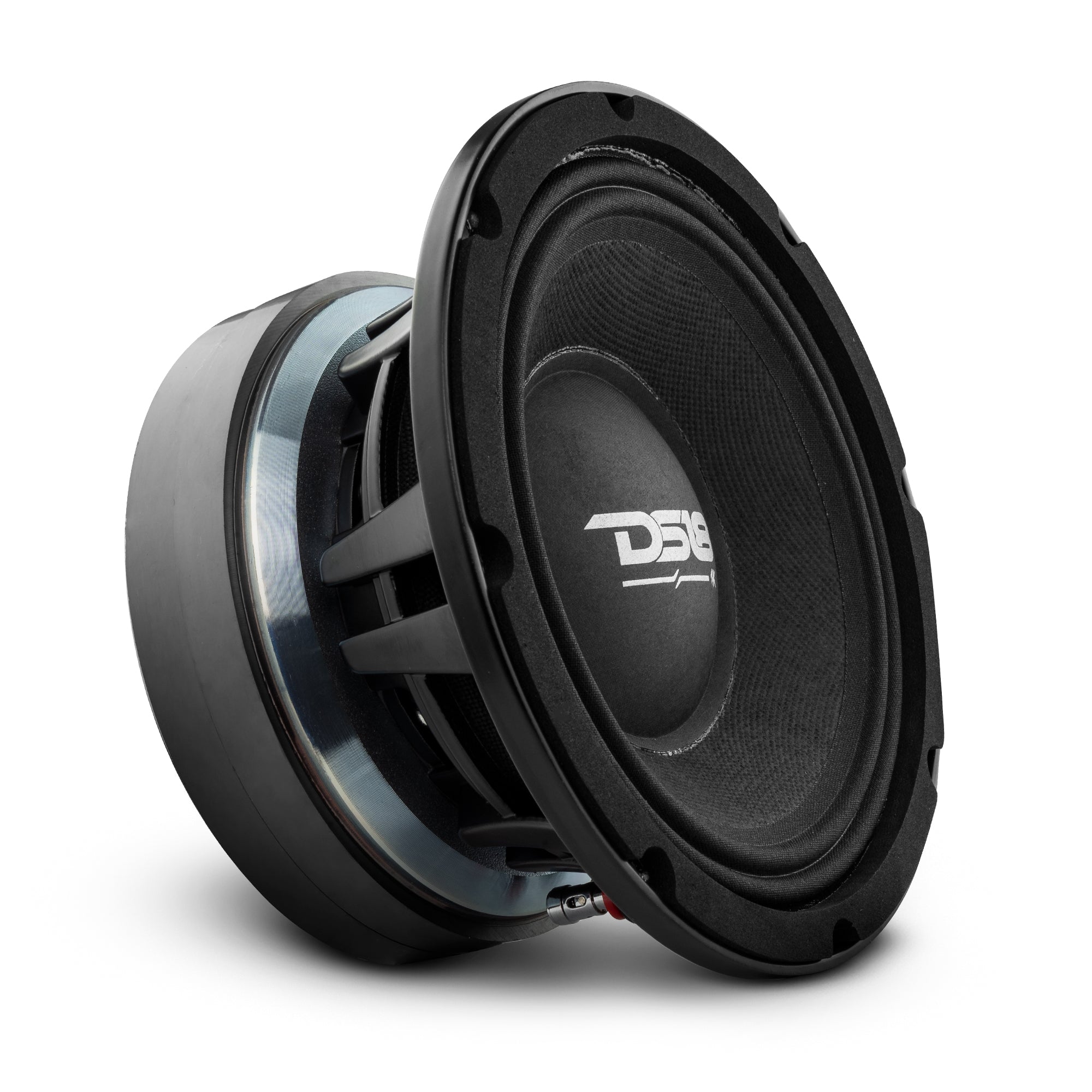

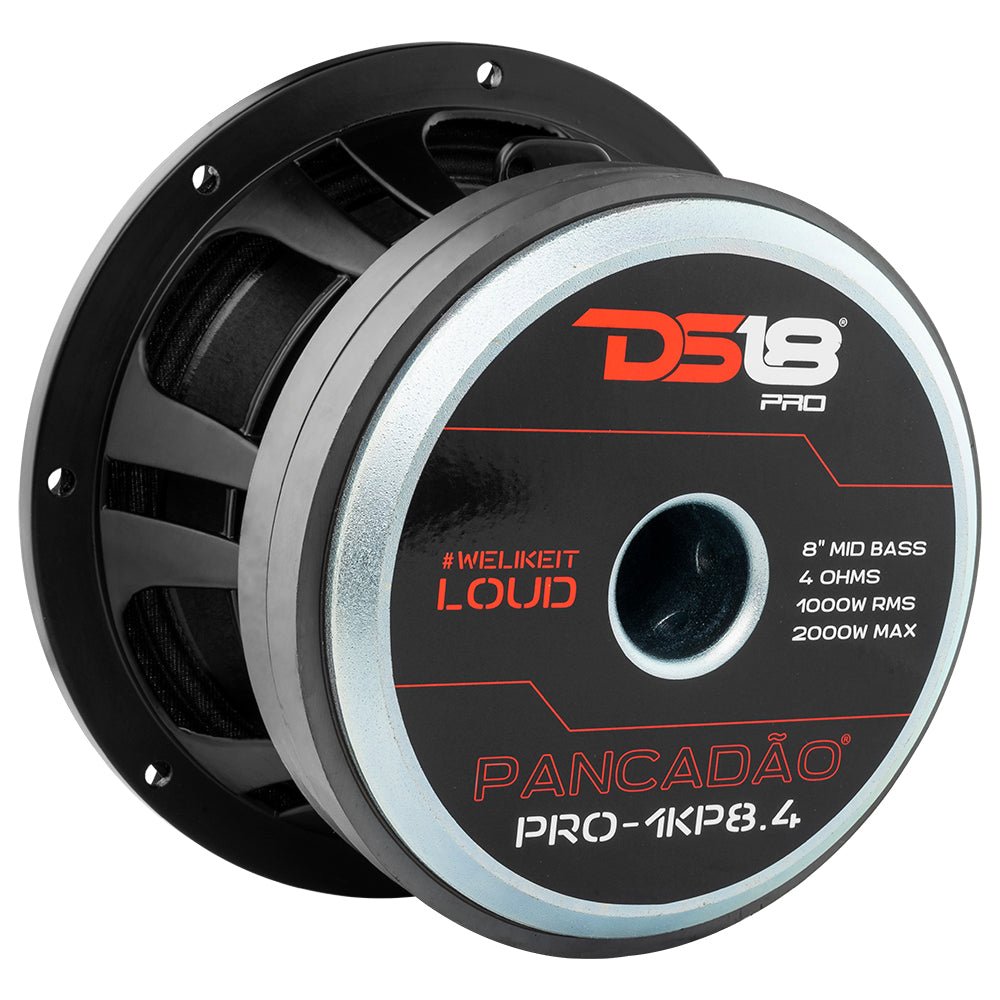

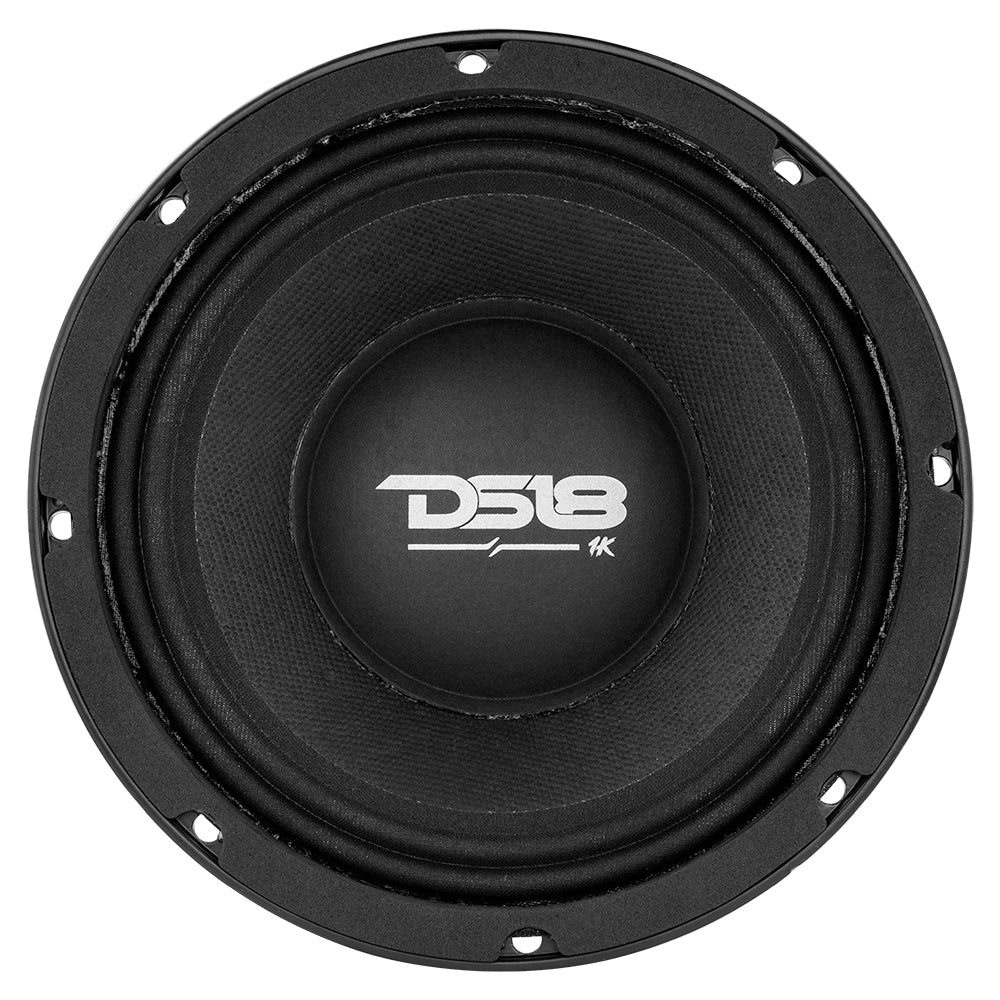

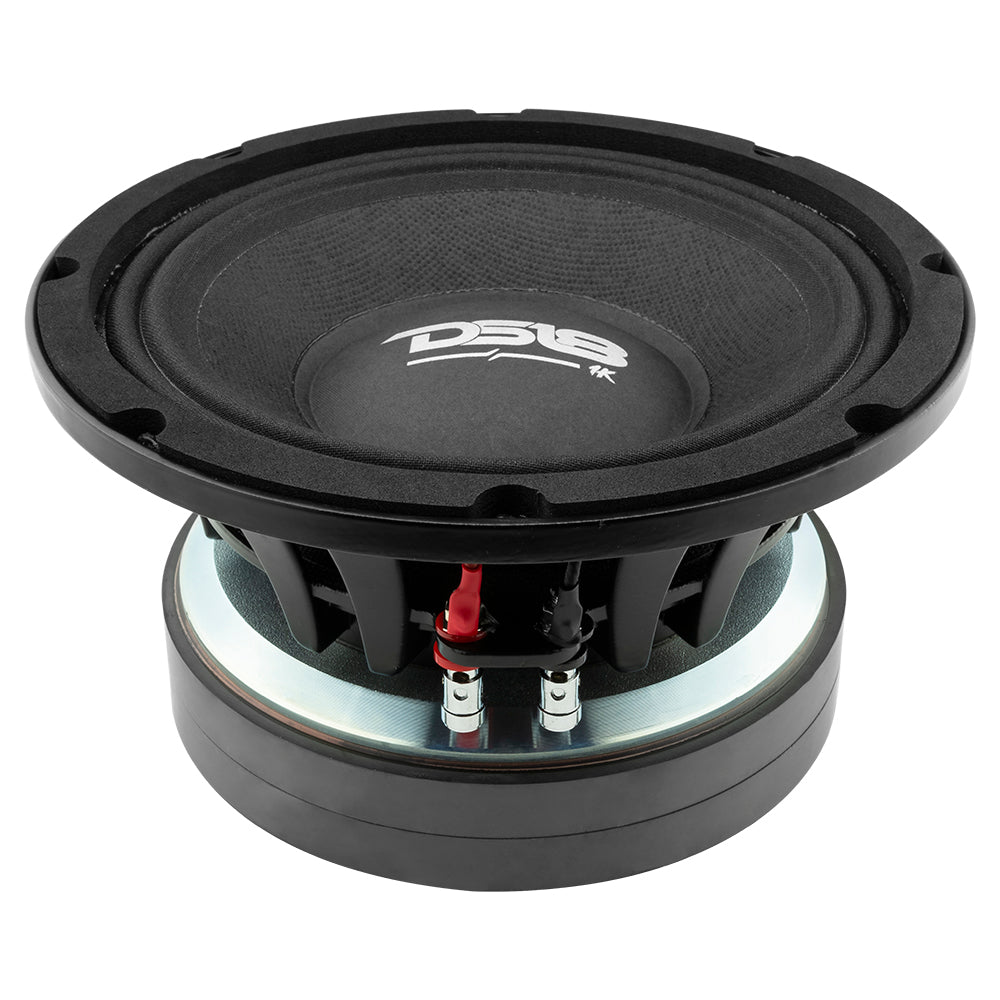

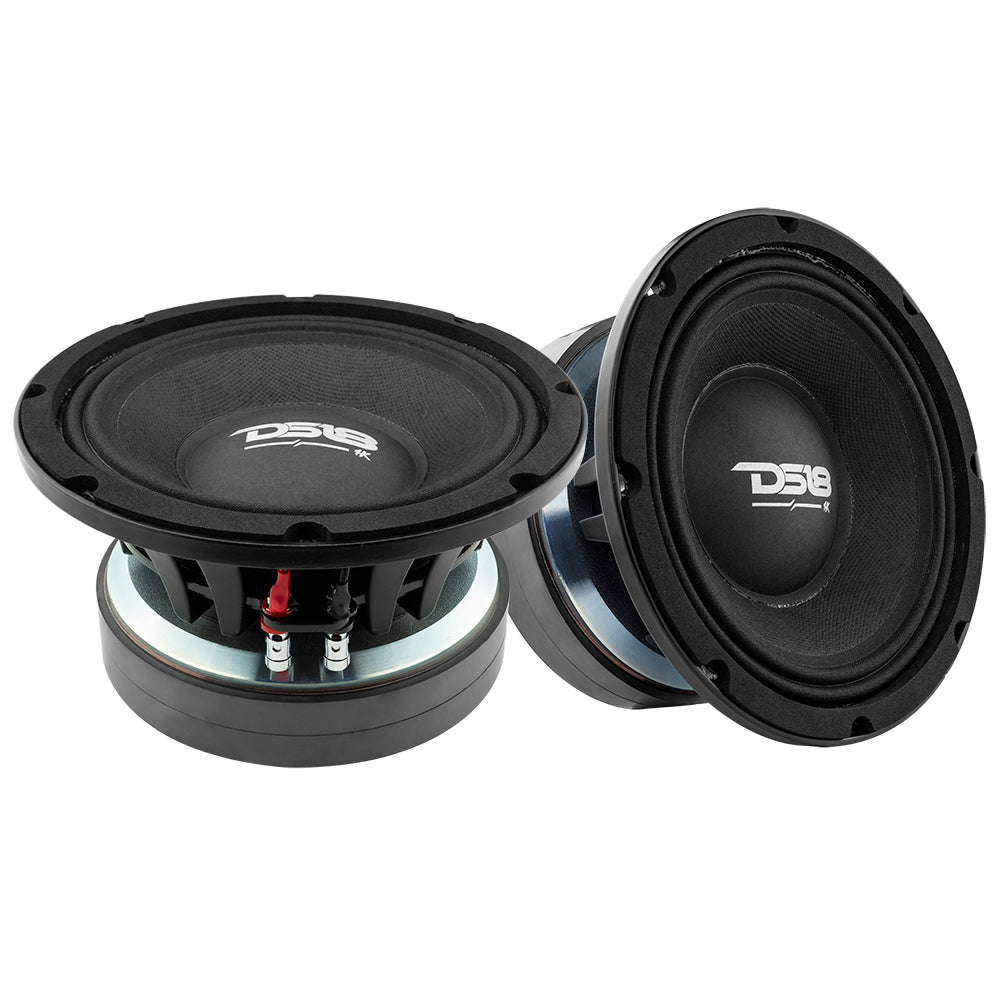

The DS18 PRO-1KP8.4 is the 8″ PANCADÃO, a do-it-all mid-bass driver built for serious pro audio. It handles 1,000 watts RMS (2,000 max) at 4 ohms with 95 dB sensitivity, uses a 3″ voice coil and a 90 oz ferrite magnet, and plays from 110Hz to 15kHz.
Few 8s can take this much power. Wiring several per channel? Get the 8 ohm PRO-1KP8.8. Want a bigger cone? Step up to the PRO-1.5KP10.4.
The Pancadao from DS18 has new siblings to complement anyone’s high performance pro audio system! Now, not only do we offer them in 12″, but also 10″, and 8″ so everyone can get a piece of Pancadao in their build. These high performance “do all” woofers can play an amazing range of frequencies. From hard punching mid-bass to mid high vocals at an unbelievable volume. These are the go to DS18 Pro Audio speakers to set your sound above the rest.
Technical Details Download PRO-1KP8.4 Product Manual
Key Features
- The most powerful mid-bass DS18 has to offer that not only plays intense punch mid-bass, it also has the ability to play mid to high vocals as well.
- Large high strength ferrite magnet and reinforced basket for great power handing and durability.
- Designed for intense mid-bass and high powered audio systems needing massive mid-bass.
By the numbers
- RMS Power
- 1000 Watts RMS
- Impedance
- 4 Ohms
- RMS Power Handling
- 1000 Watts
- MAX Power Handling
- 2000 Watts
- Minimum Impedance
- 4 Ohms
- Sensitivity (1w/1m)
- 95dB
- Frequency Response
- 110Hz-15kHz
- Voice Coil Diameter
- 3″
- Winding Material
- CC AW
- Magnet Weight
- Ferrite 90oz
- Basket Material
- Aluminum
- Size
- 8 inch
- Overall Diameter
- 8.38″
- Baffle Cutout Diameter
- 7.28″
- Overall Depth
- 4.92″
- Mounting Depth
- 4.33″
- Model
- PRO-1KP8.4
