Why we stock the DS18 PRO-3KP12.2

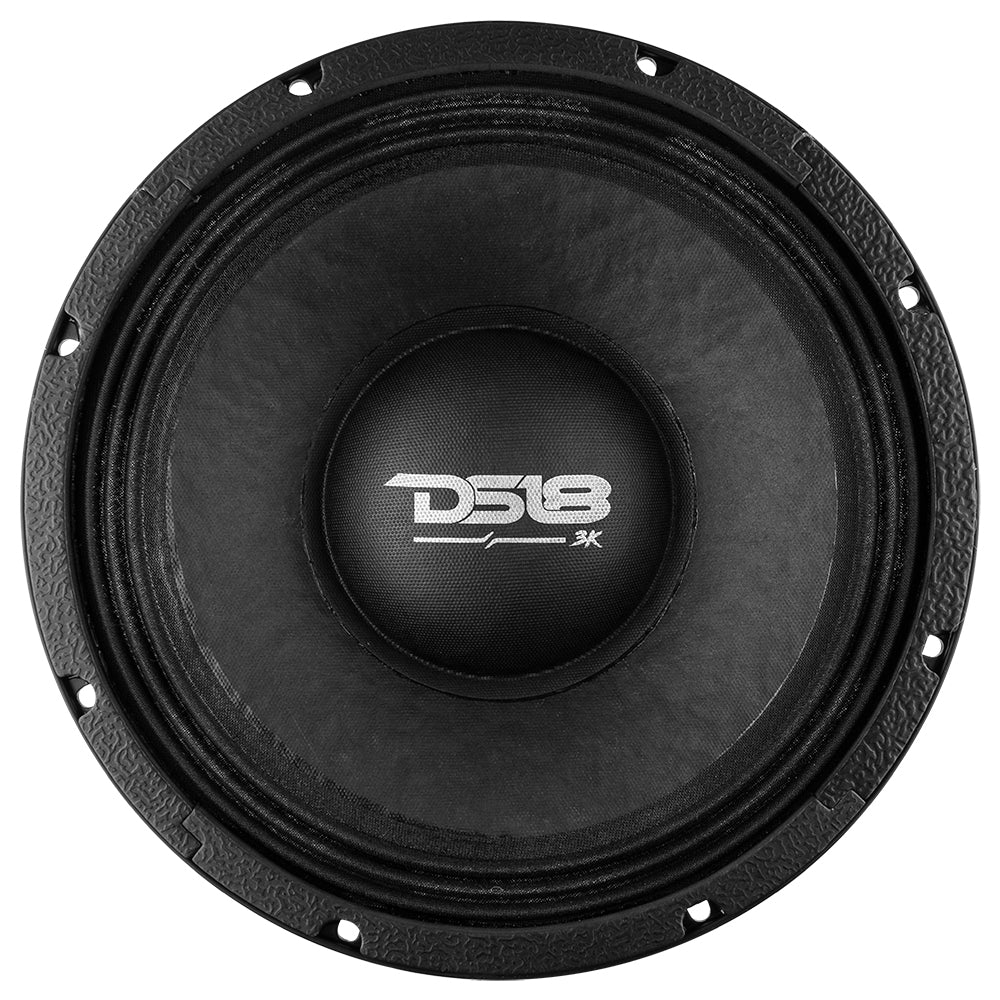

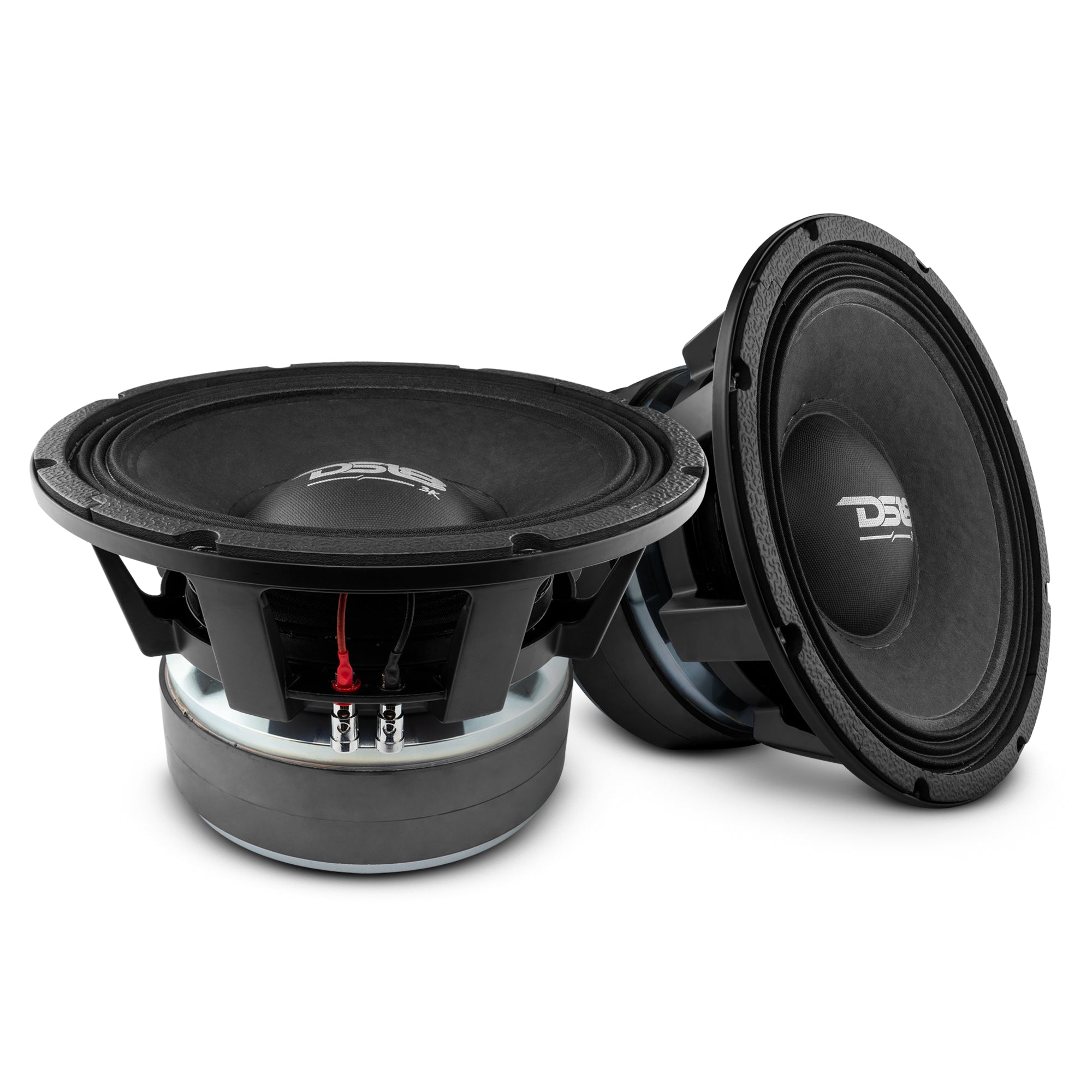

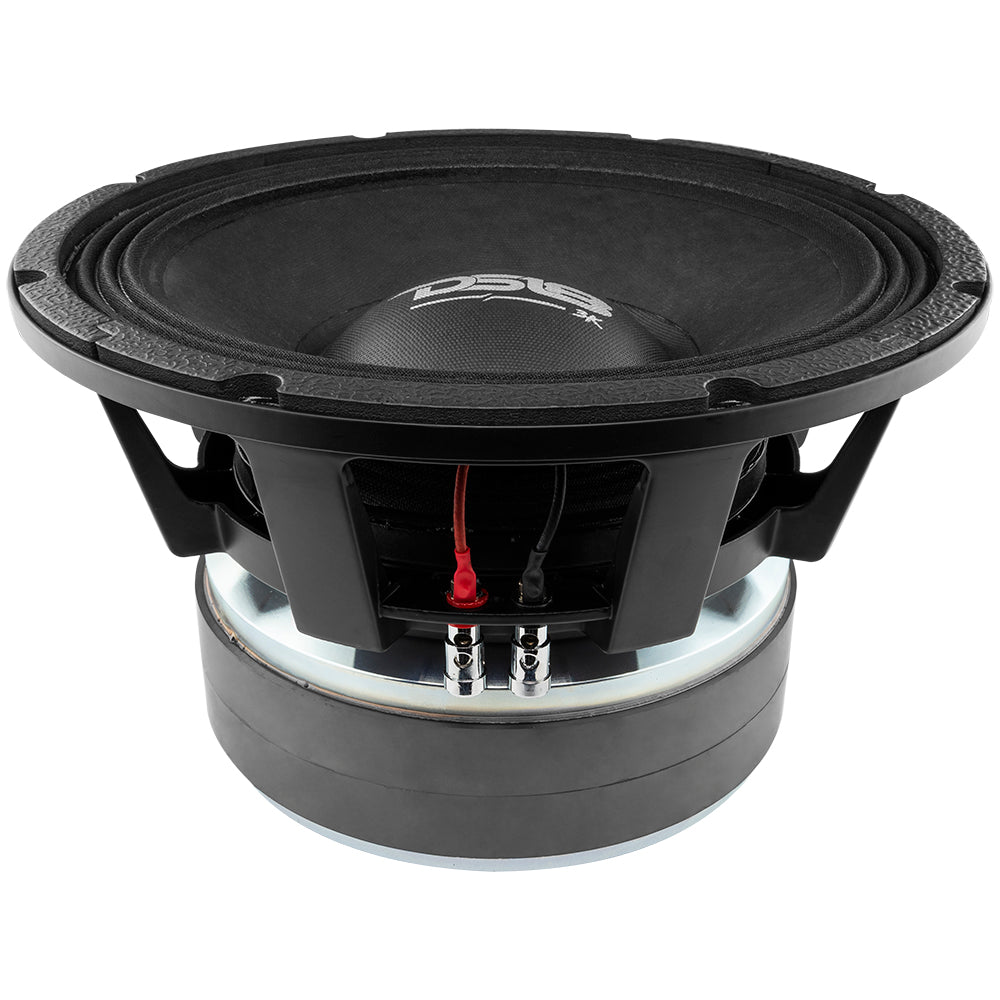

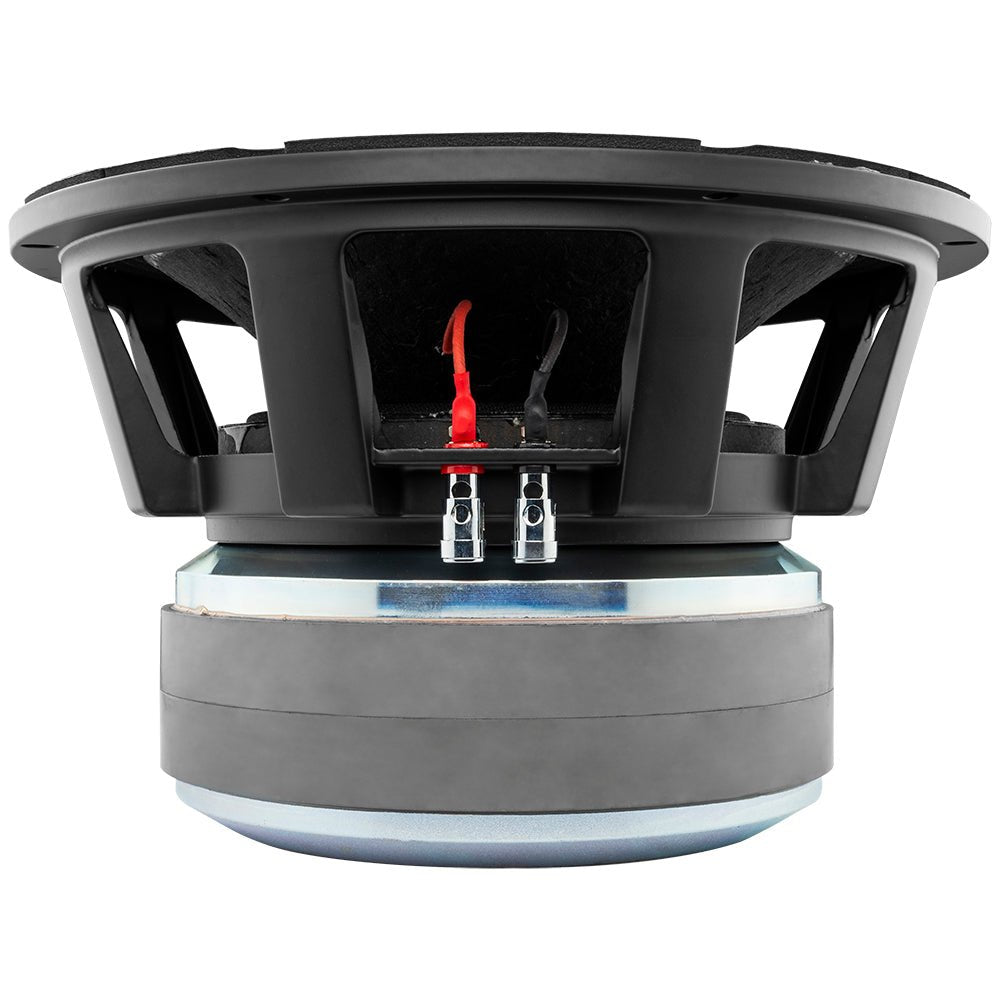

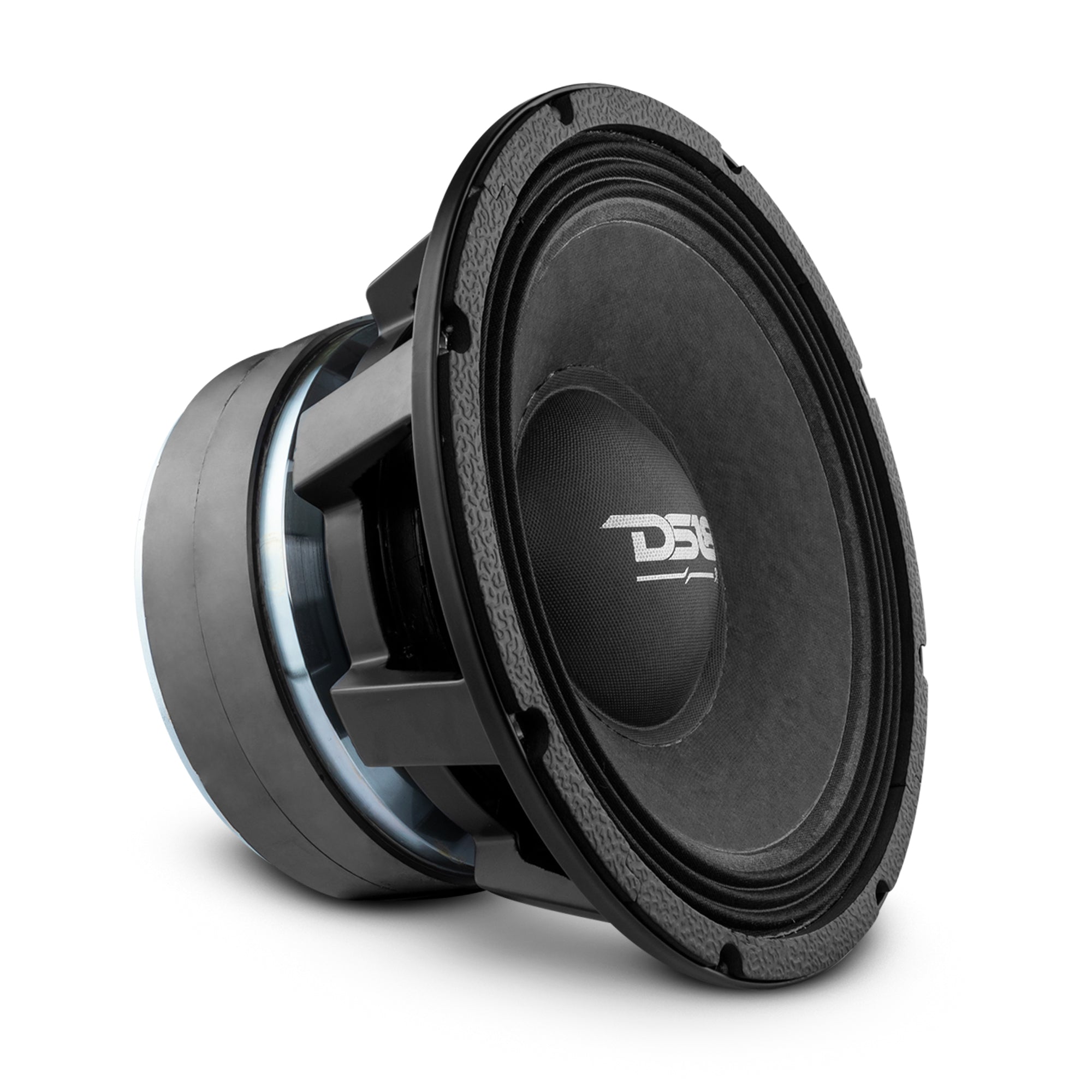

The DS18 PRO-3KP12.2 is the 3,000 watt 12″ PANCADÃO, one of the most powerful mid-bass drivers DS18 makes. It handles 3,000 watts RMS (4,500 max) at 2 ohms with 94.3 dB sensitivity, uses a 250 oz ferrite magnet, and plays from 65Hz to 4.5kHz.
It needs 7.2″ of depth and is meant for ported or open designs, not sealed boxes. Want a 4 ohm version? See the PRO-3KP12.4. Before running this much power, check our electrical upgrade guide.
DS18 PANCADAO 12″speaker was designed after many hours of hard work with our Brazilian engineers. This DS18 exclusive, brings you a astonishing amount of power to your system. Will play anything as low as 65Hz and as high as 4.5KHz. Will definitelyput you over the rest.
NOT TO BE INSTALLED IN SEALED BOX, RECOMMENDED TO BE IN A PORTED BOX
Technical Details Download PRO-3KP12.2 Product Manual
Key Features
- The most powerful midbass DS18 has to offer that not only plays intense punch midbass, it also has the ability to play mid to high vocals as well.
- Large high strength ferrite magnet and reinforced basket for great power handing and durability.
- Designed for intense midbass and high powered audio systems needing massive mid-bass.
By the numbers
- RMS Power
- 3000 Watts RMS
- Impedance
- 2 Ohms
- Max Power Handling
- 4500W
- RMS Power Handling
- 3000W
- Nominal Impedance
- 2 Ohms
- Sensitivity
- 94.3dB
- Frequency Response
- 65Hz – 4.5KHz
- Magnet Material
- Ferrite
- Magnet Weight
- 250 oz
- Voice Coil Material
- Fiber Glass
- Voice Coil Diameter
- 4″
- Size
- 12 inch
- Mounting Depth
- 183 mm (7.20″)
- Model
- PRO-3KP12.2
