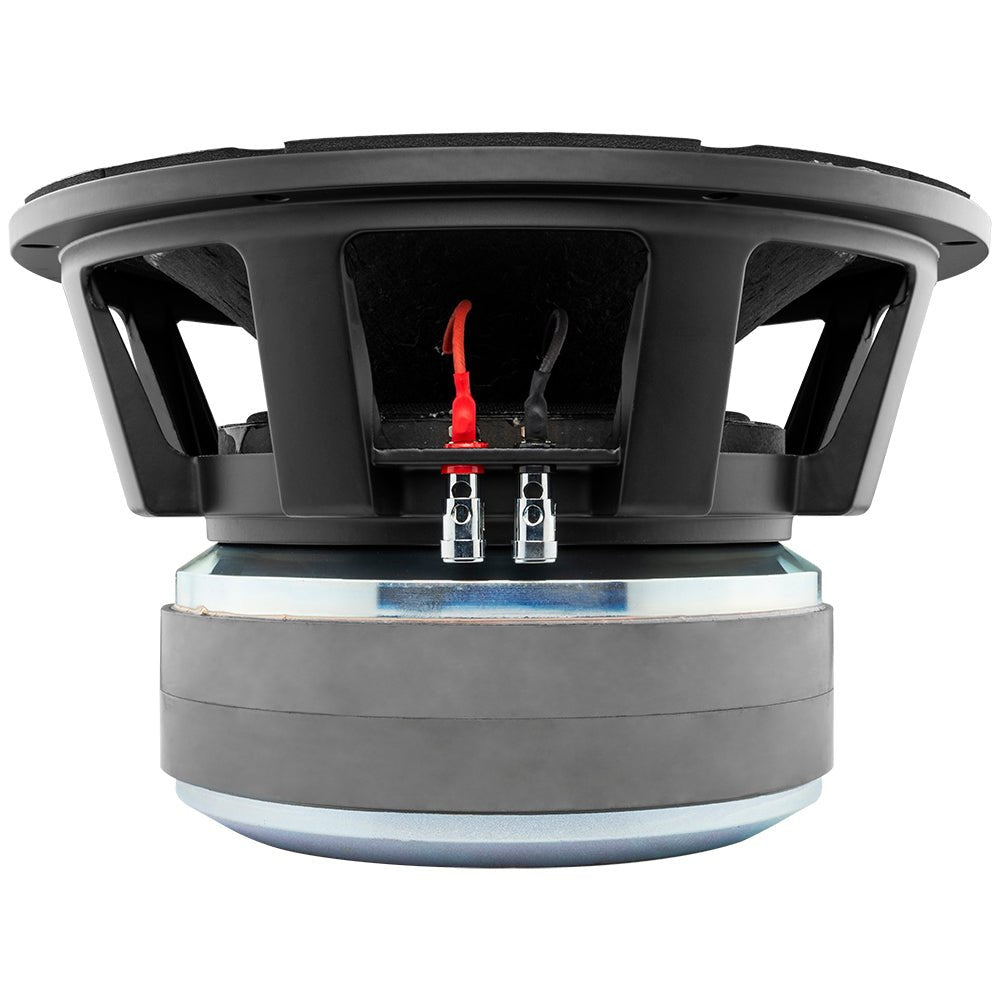

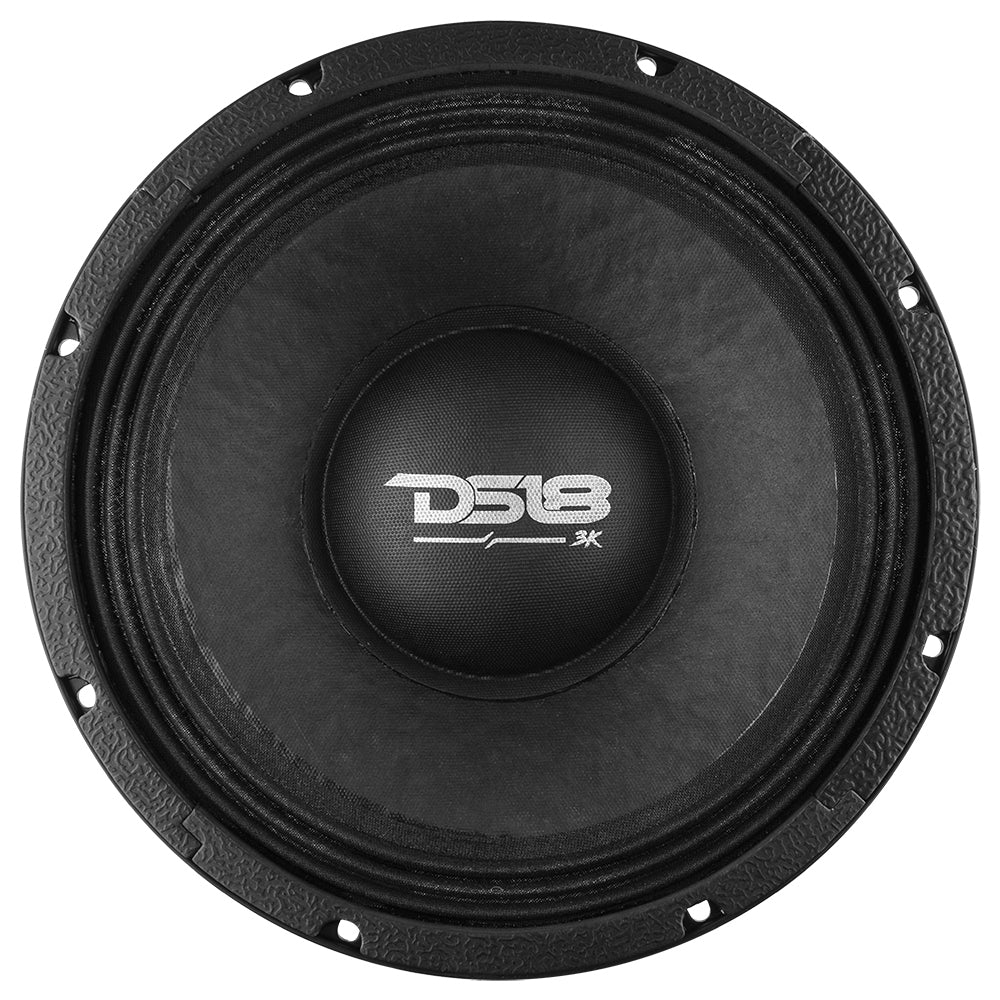

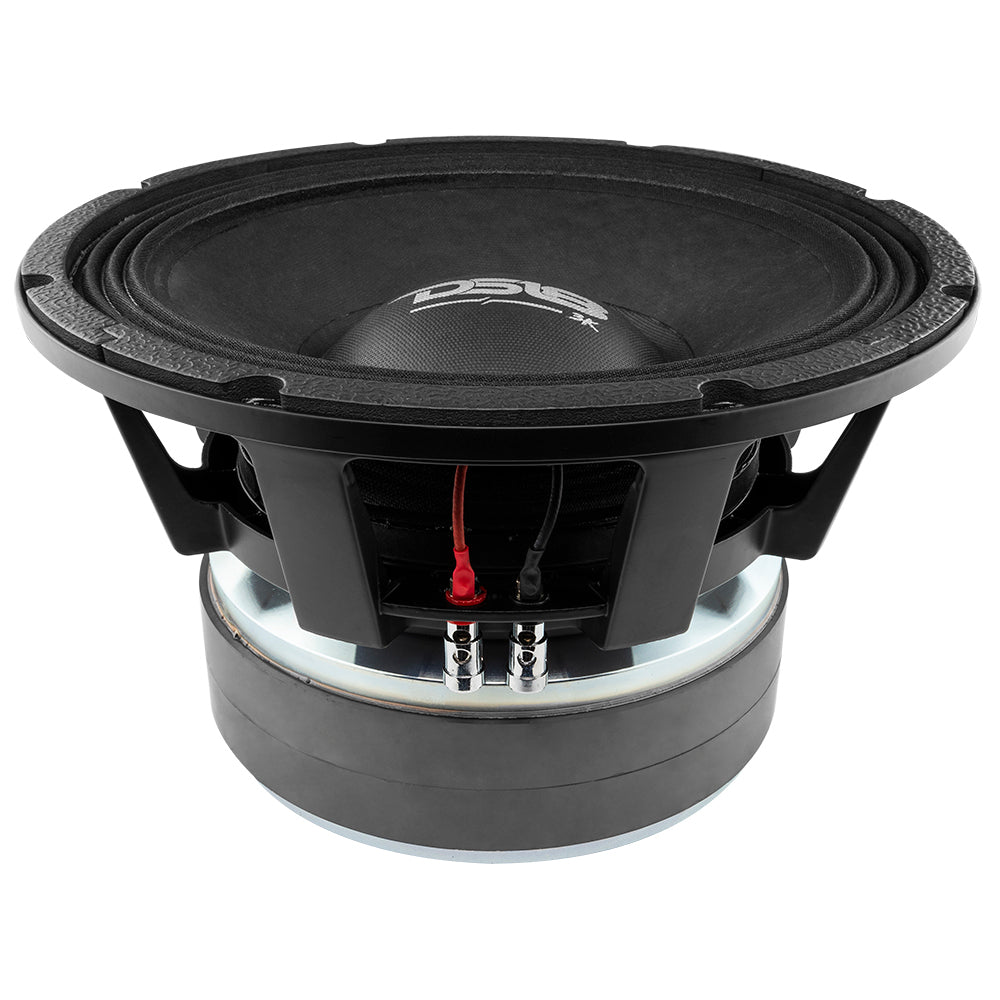

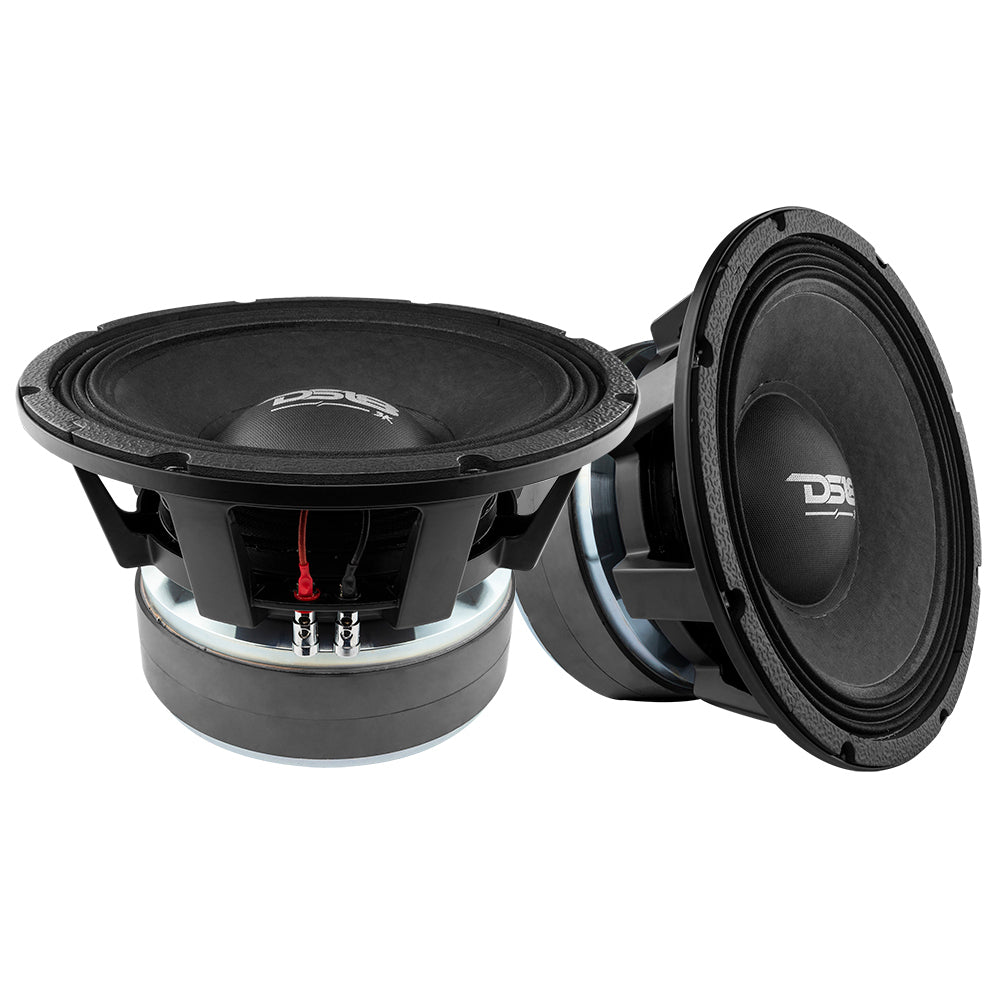

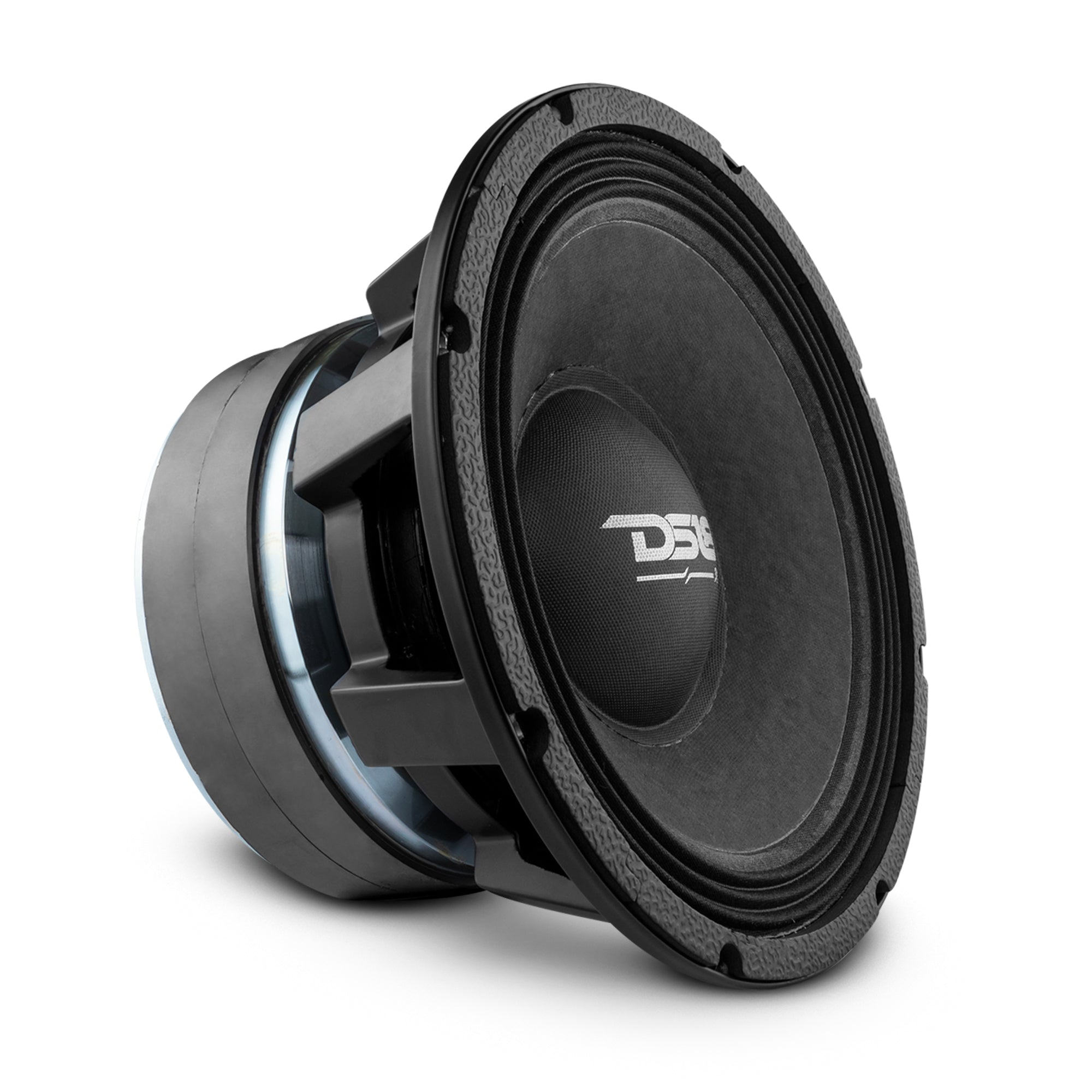

DS18 PRO-3KP12.4 PANCADÃO Mid-Bass Loudspeaker 12″ 3000 Watts Rms 4-Ohm

$499.95

Lease for as low as $22.59/week. Apply Now

RMS Power3,000W
Peak Power4,500W
Sensitivity95.8dB
SKU: PRO-3KP12.4 Categories: , , , Brand:
01 Overview

The details

Product Overview

Why we stock the DS18 PRO-3KP12.4

The DS18 PRO-3KP12.4 is the 4 ohm 3,000 watt 12″ PANCADÃO. It handles 3,000 watts RMS (4,500 max) with 95.8 dB sensitivity, a 4″ voice coil and a 250 oz ferrite magnet, and plays from 60Hz to 9kHz.

It’s built for competition-level pro audio walls. Need a 2 ohm load? See the PRO-3KP12.2. Wiring several per channel? Use the PRO-3KP12.8.

The PANCADAO from DS18 has new siblings to complement anyone’s high performance pro audio system! Now, not only do we offer them in 12″, but also 10″, and 8″ so everyone can get a piece of PANCADAO in their build. These high performance “do all” woofers can play an amazing range of frequencies. From hard punching mid-bass to mid high vocals at an unbelievable volume. These are the go to DS18 Pro Audio speakers to set your sound above the rest.

Technical Details Download PRO-3KP12.4 Product Manual

Key Features
  • The most powerful mid bass DS18 has to offer that not only plays intense punch mid bass, it also has the ability to play mid to high vocals as well.
  • Large high strength ferrite magnet and reinforced basket for great power handing and durability.
  • Designed for intense mid bass and high powered audio systems needing massive mid-bass.

02 Tech specs

By the numbers

PRO-3KP12.4 · Manufacturer rated
RMS Power 01
3,000W
Continuous rating
Peak Power 02
4,500W
Short-burst rating
Sensitivity 03
95.8dB
Efficiency
Size 04
12in
Nominal

RMS Power
3000 Watts RMS
Impedance
4 Ohms
RMS Power Handling
3000 Watts
MAX Power Handling
4500 Watts
Minimum Impedance
4 Ohms

Sensitivity (1w/1m)
95.8dB
Frequency Response
60Hz-9KHz

Voice Coil Diameter
4″
Winding Material
CC AW
Magnet Weight
Ferrite 250oz
Basket Material
Aluminum

Size
12 inch
Overall Diameter
12.36″
Baffle Cutout Diameter
11.22″
Overall Depth
7.63″
Mounting Depth
7.20″

Model
PRO-3KP12.4
