Description
Product Overview

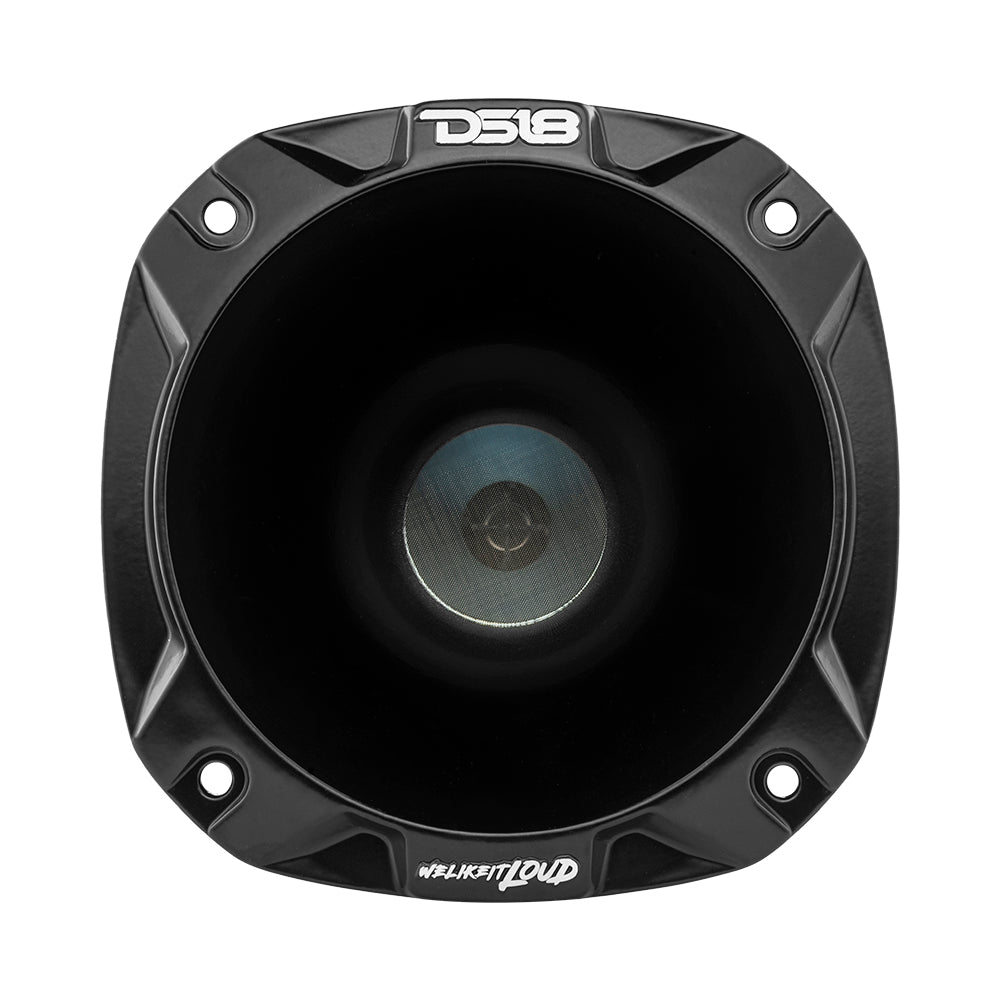

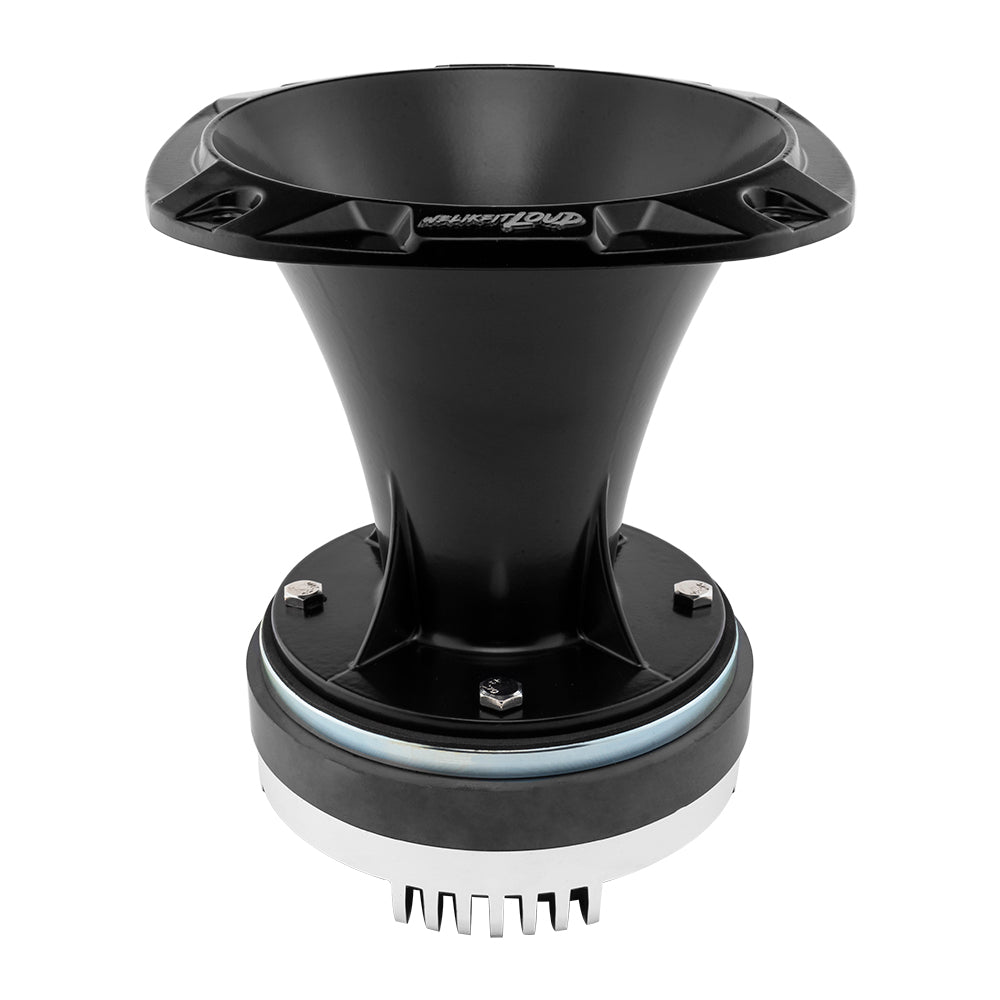

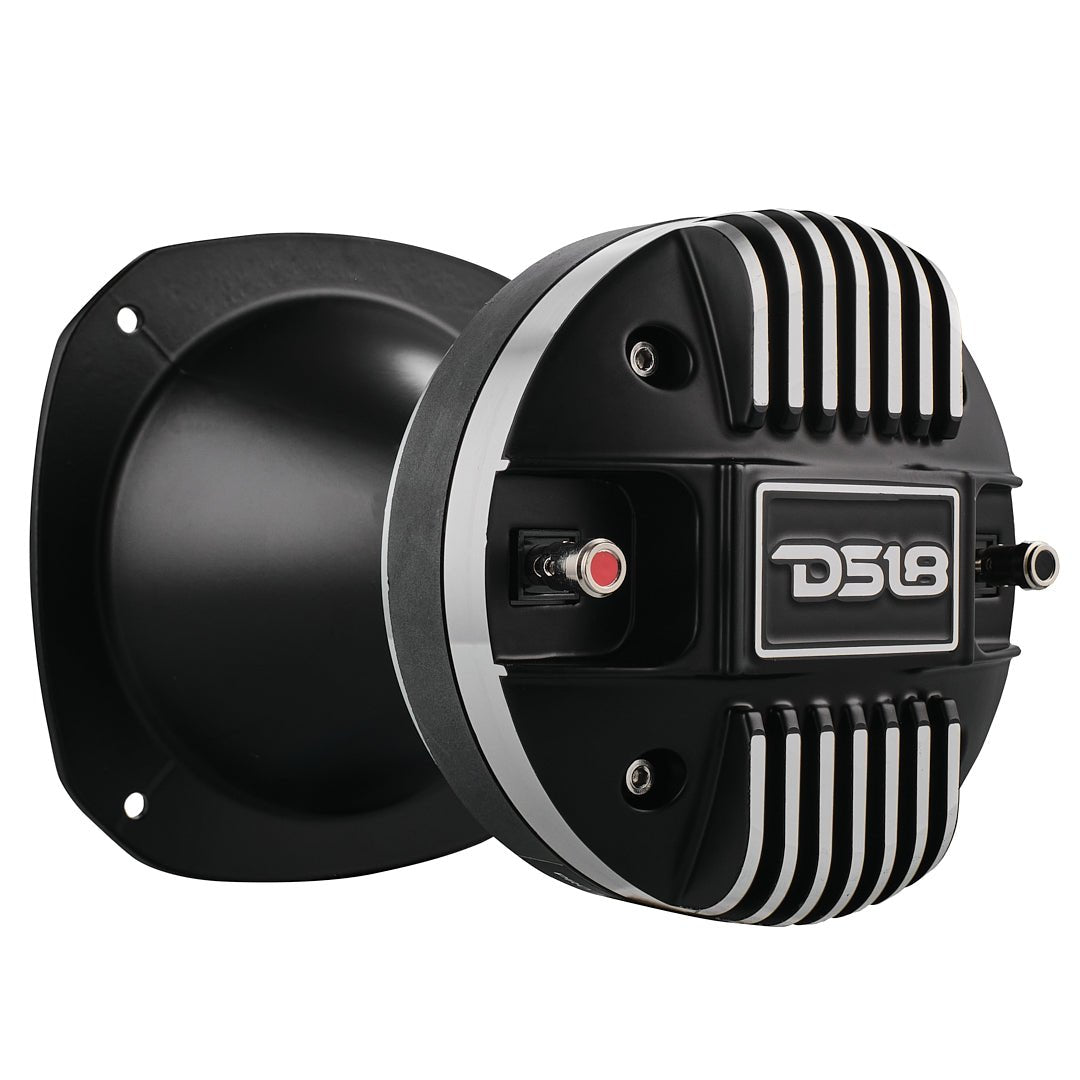

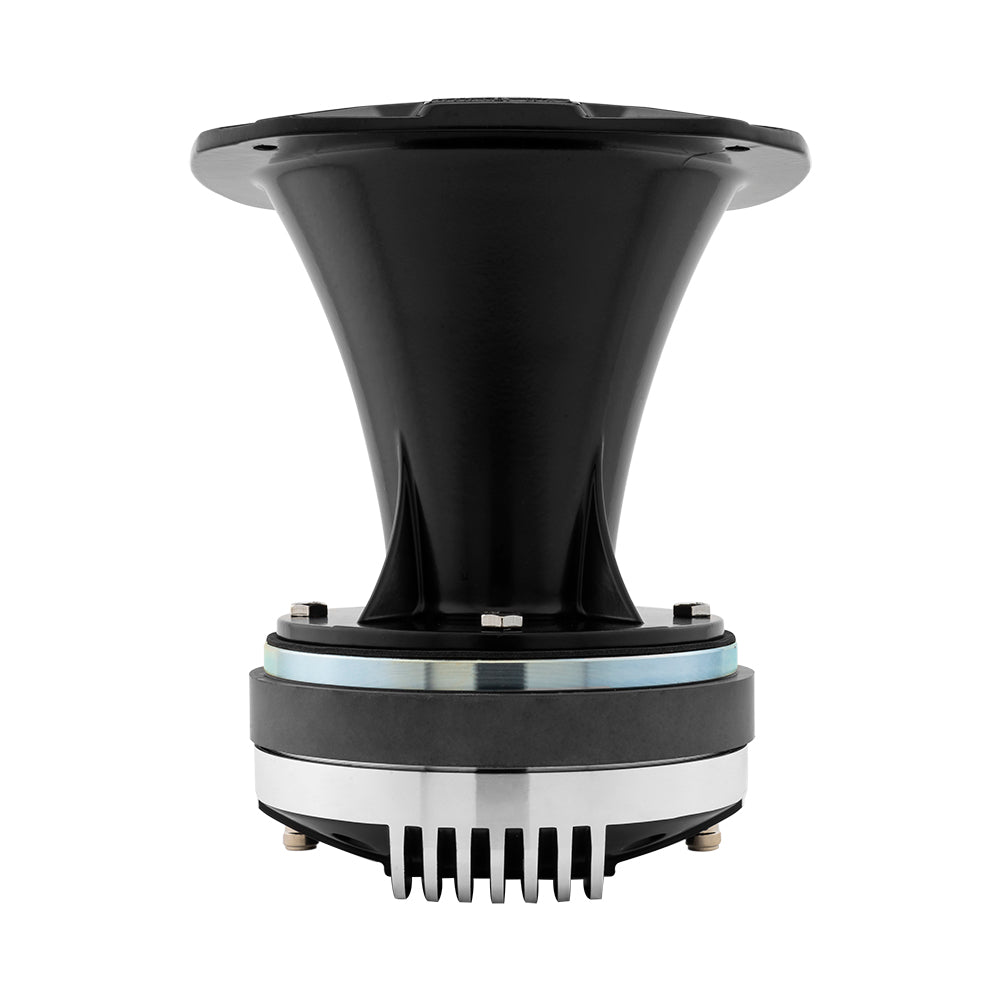

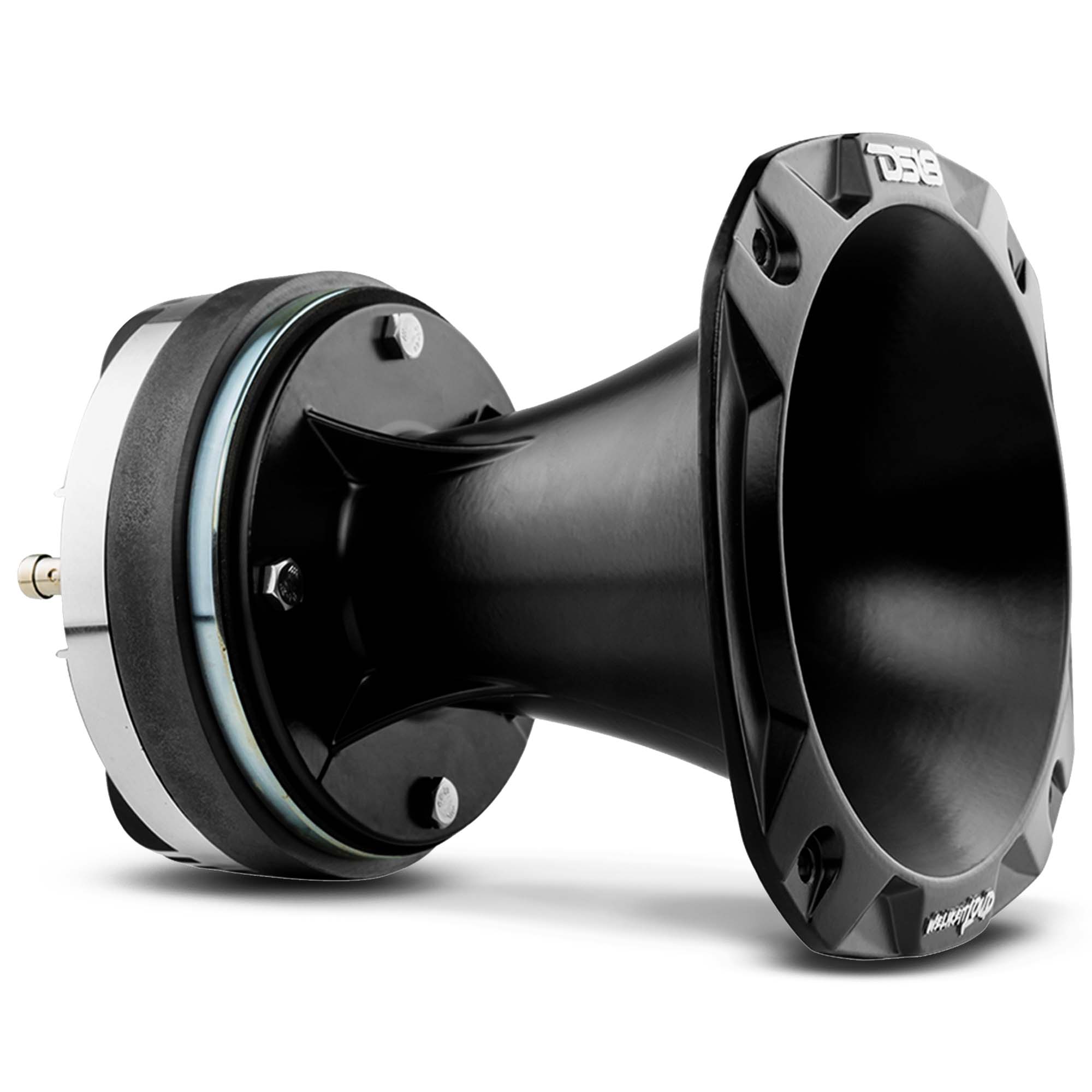

Engineered and Designed in the US, the DS18 Compression Drivers with aluminum horns are the top of the line high frequency driver/tweeter/horns in the market. These bad boys deliver so much power that you’d think with one horn your whole sound system is ready to deploy for a major concert. Simply put, there are no compression drivers that can compare to the sophistication, beauty, and precision of these horns especially in the Pro Audio/Voceteo World.
Thanks to the demands of our customers, after months of relentless tests and experiments, our team of audio-experts perfected the PRO line. We are ecstatic to share with you the product of hard-work and non-stop innovating attitude! We are sure that you will love your Compression Driver as much as we do.
WARNING: EXTREMELY LOUD!!
Highlights
Technical Details PRO-DKH1 Product Manual
Technical Data
| Specification | Details |
|---|---|
| Size | 2 inch |
| Impedance | 8 Ohms |
| Sensitivity | 115 dB |
| Frequency Response | 500Hz-18.5KHz |
| Peak Power Handling | 640 Watts |
| Program Power handling | 320 Watts |
| AES Rated Power | 160 Watts |
| Nominal Impedance | 8 Ohms |
| Throat Diameter | 2″ |
| Recommended Hi Pass Crossover | 800 Hz |
| Voice Coil Diameter | 2.03″ |
| Diaphragm Material | Titanium |
| Magnet Material | Ferrite |
| Magnet Weight | 35 oz |
| Bolt Type | Bolt-on |
| Overall Diameter | 6.88″ |
| Overall depth | 7.5″ |
