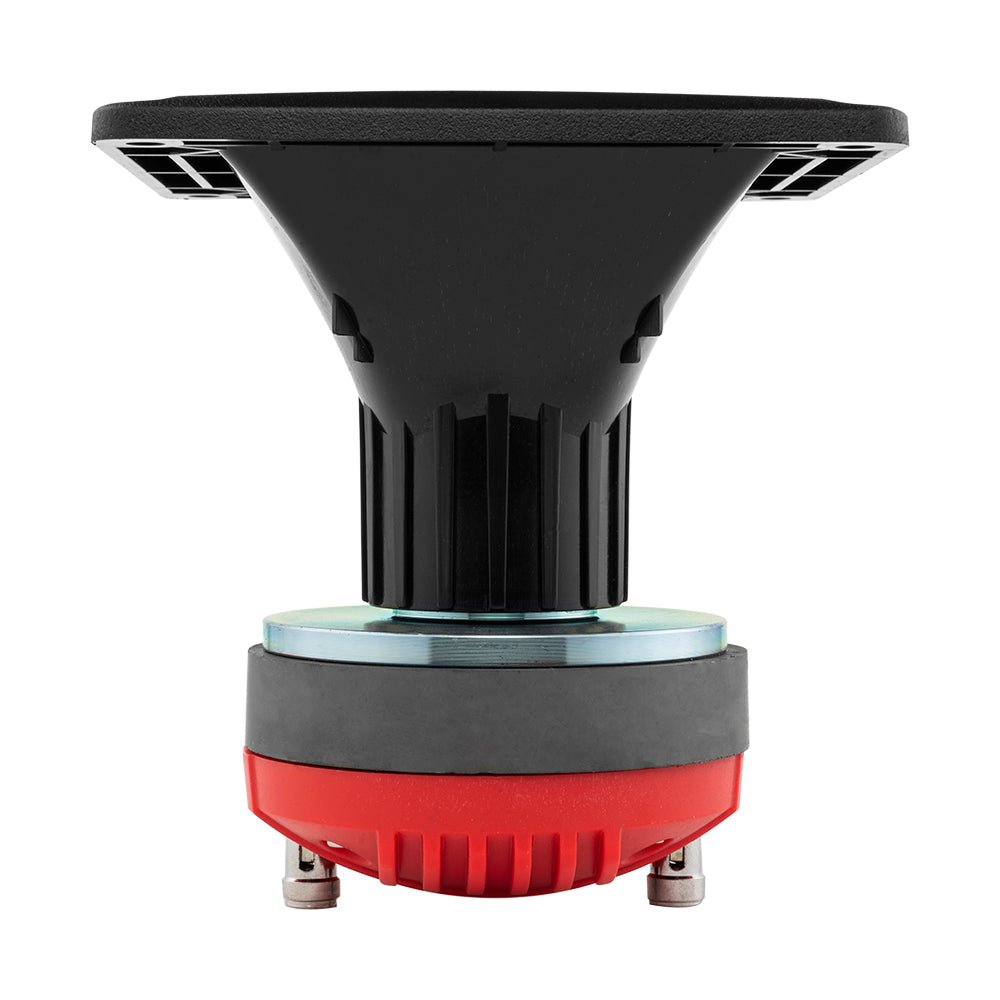

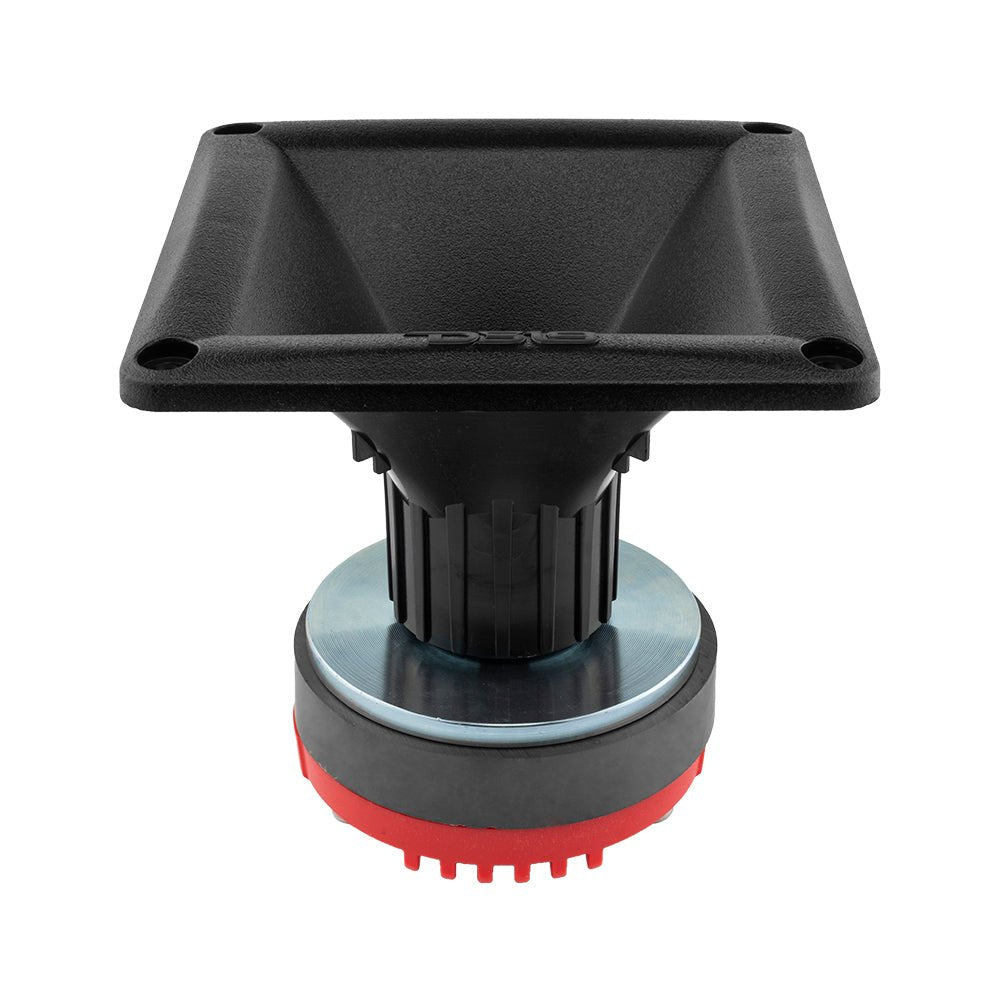

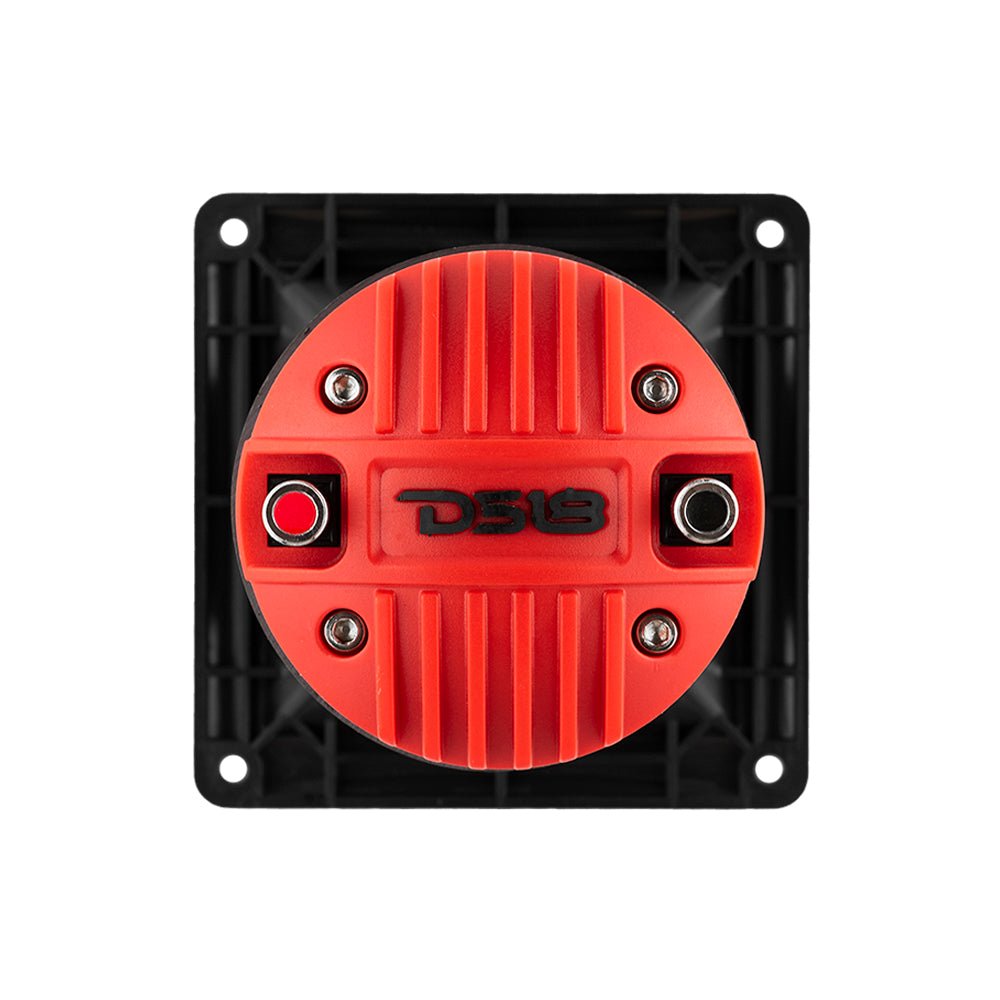

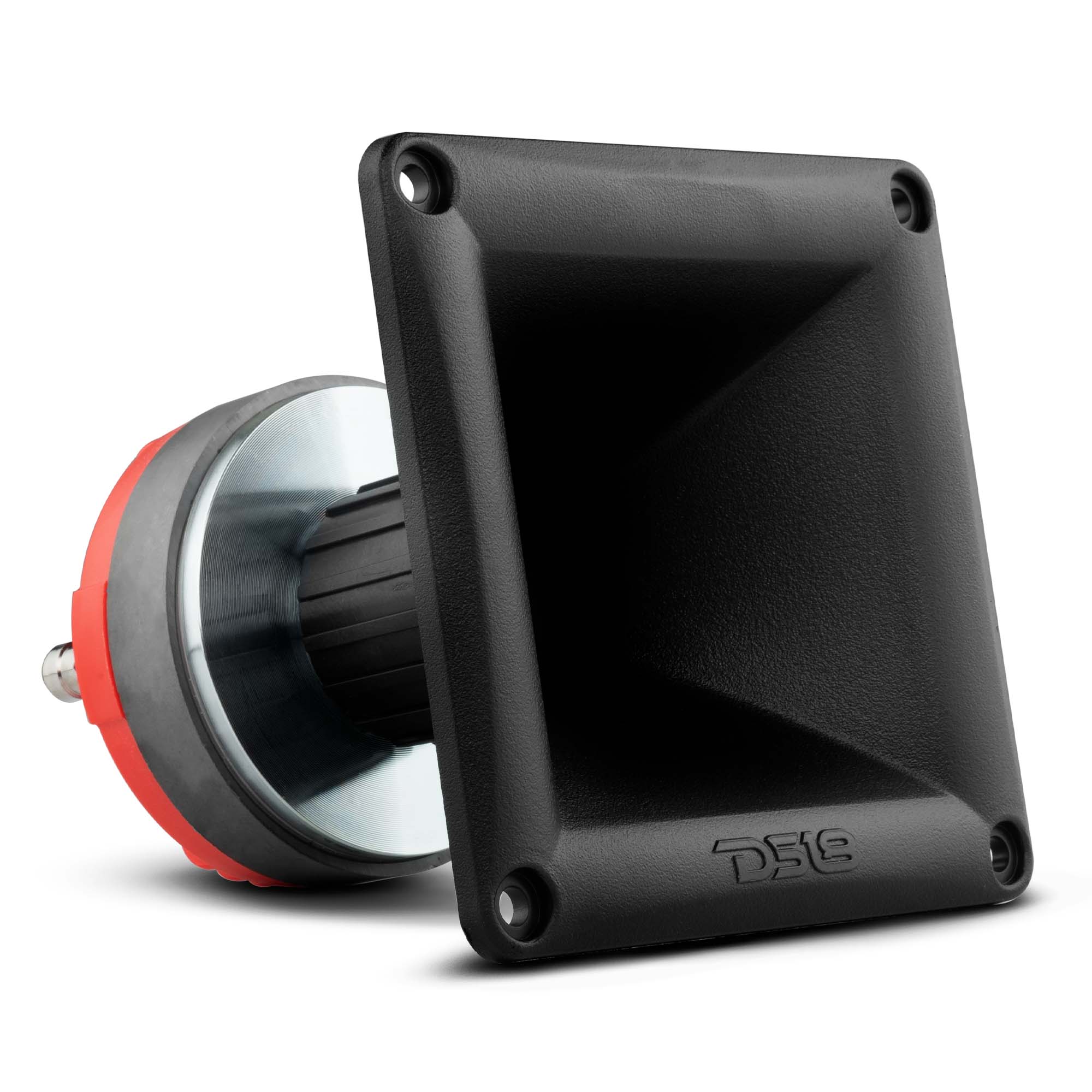

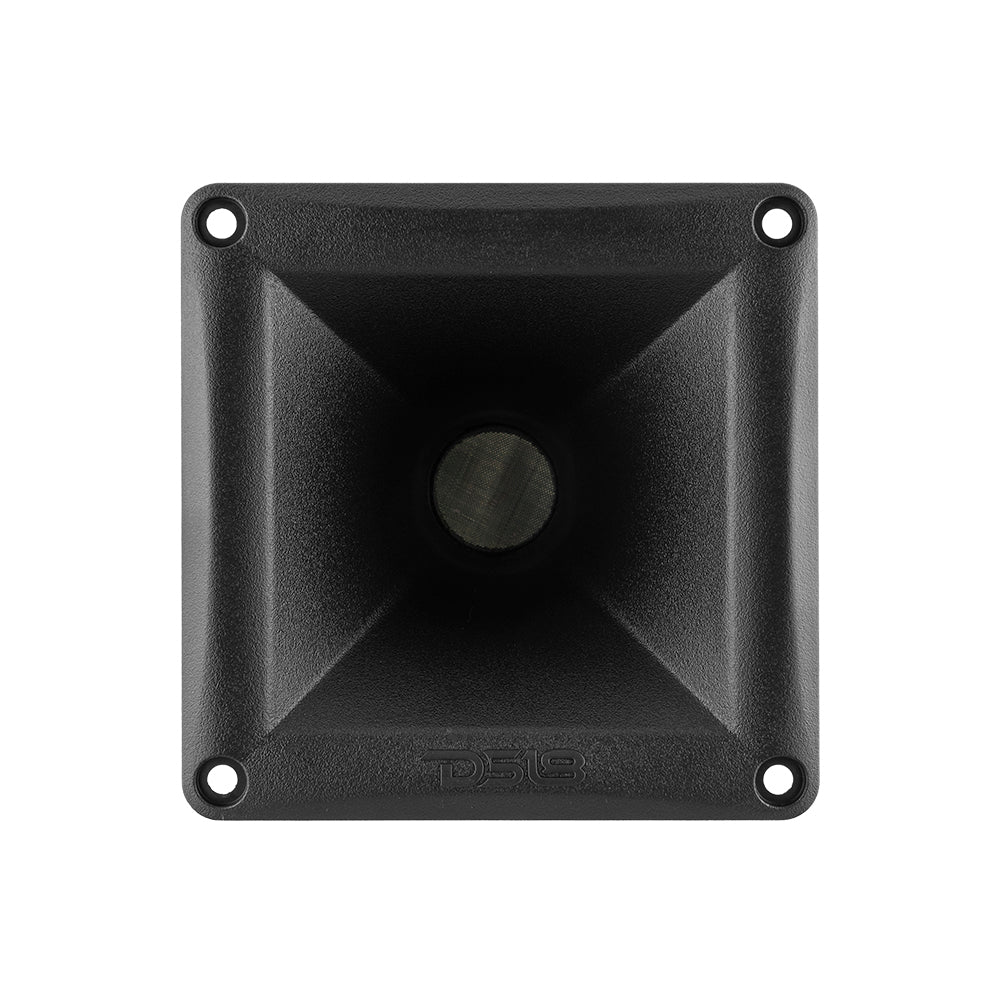

DS18 PRO-DR1PK44 1″ Driver Horn Kit 120 Watts 1″ Phenolic 8-Ohm Vc (PRO-DR1P +PRO-H44/BK)
$32.95
The details
Product Overview
Screaming onto the scene is DS18’s PRO-DR1PK44 that has an all new design and has been tweaked for maximum performance and loudness. This horn driver sports a 1″ 8-ohms CCA voice coil to absorb the 240w Peak power and is designed to really make it loud with efficiency.
This driver comes with an attached square shaped screw on throat that makes it very versatile while also enhancing acoustics and decibel levels. This driver has a 107.3 dB sensitivity so the potential of screaming loudness is easily obtainable with the right combination of power. This driver’s frequency range is very wide starting at 800 Hz all the way up to ear drum shattering 20 KHz!
The PRO-DR1PK44 is sure to complete your pro audio system and complement all your other speakers with crisp and clear high range sound.
Highlights
Technical Details
Download PRO-DR1PK44 Product Manual
By the numbers
- Peak Power
- 240 Watts Max
- Impedance
- 8 Ohms
- Nominal Impedance
- 8 Ohms
- Peak Power Handling
- 240W
- Program Power Handling
- 120W
- AES Power Handling
- 60W
- Recommended HI Pass Crossover
- 900Hz
- Sensitivity
- 107.3 dB
- Frequency Response
- 800Hz – 20KHz
- Sensitivity with Horn (1w/1m)
- 107.3dB
- Voice Coil Diameter
- 1″
- Voice Coil Former Material
- Kapton
- Winding Material
- CCA
- Diaphragm Material
- Phenolic
- Magnet Material
- Ferrite
- Magnet Weight
- 0.38 oz
- Size
- 1 inch
- Mounting Depth
- 4.56″
- Throat Diameter
- 1″
- Horn Diameter
- 3.14 x 3.14″
- Horn Depth
- 2.36″
- Overall Diameter
- 4.52″
- Overall Depth
- 4.88″
- Mounting Hole
- 3.26″ x 3.26″
- Installation Type
- Screw Down
- Bolt Pattern
- 3.95″
