DS18

DS18 PRO-HY6MSL PRO 6.5″ Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver | 150W RMS 8-Ohm

$84.95

RMS Power150W
Peak Power300W
Sensitivity93dB
SKU: PRO-HY6MSL Categories: , , , Brand:
01 Overview

The details

Product Overview

Why we stock the DS18 PRO-HY6MSL

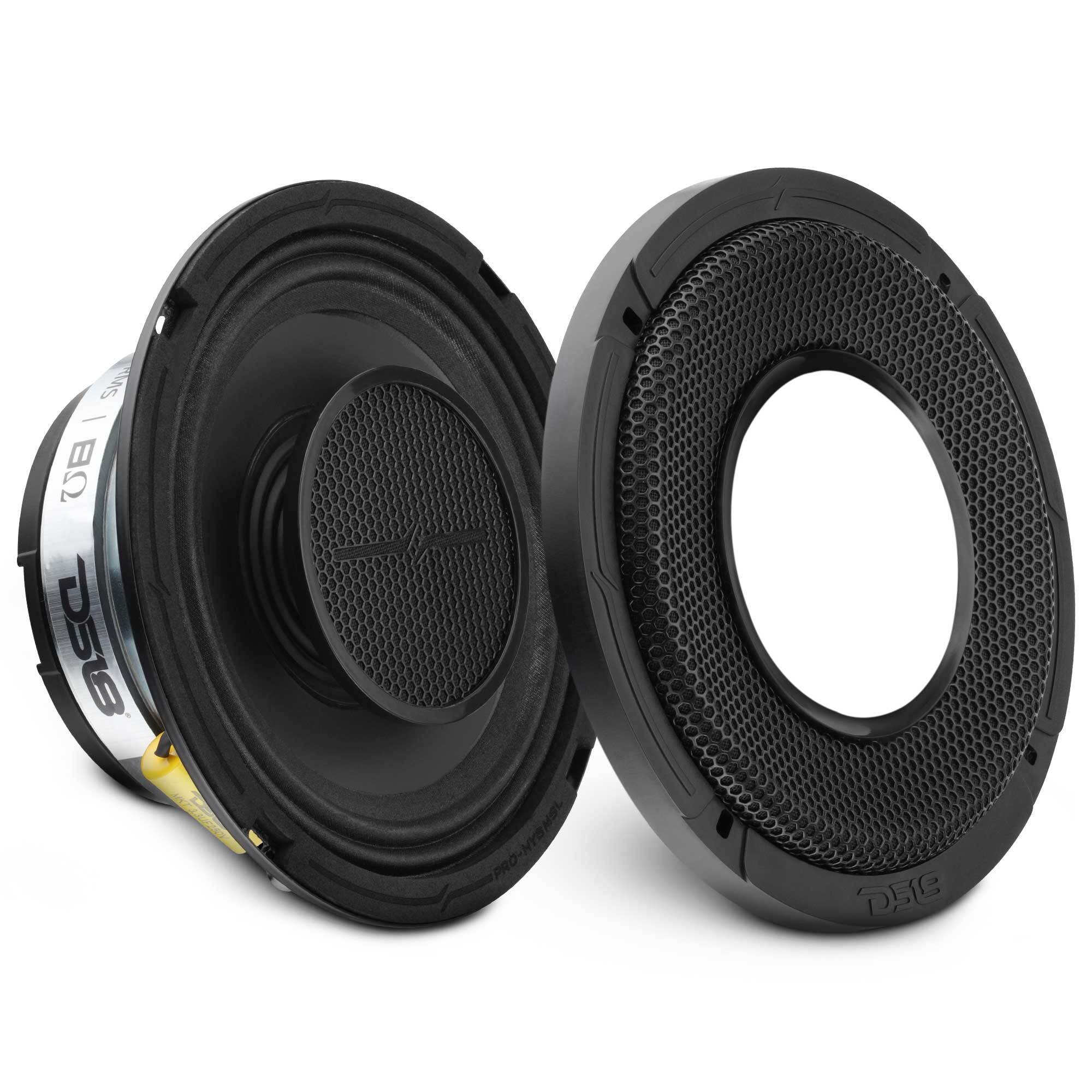

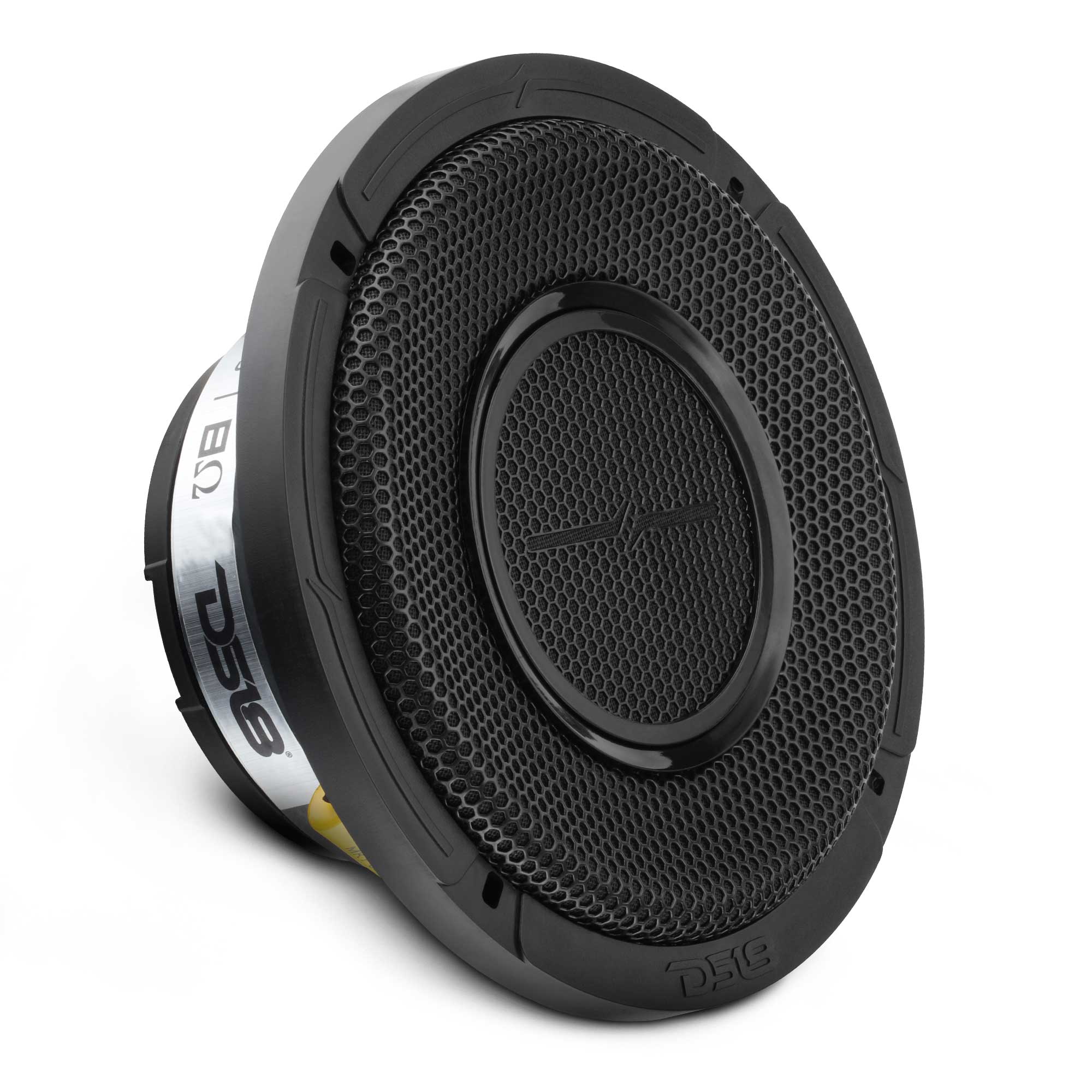

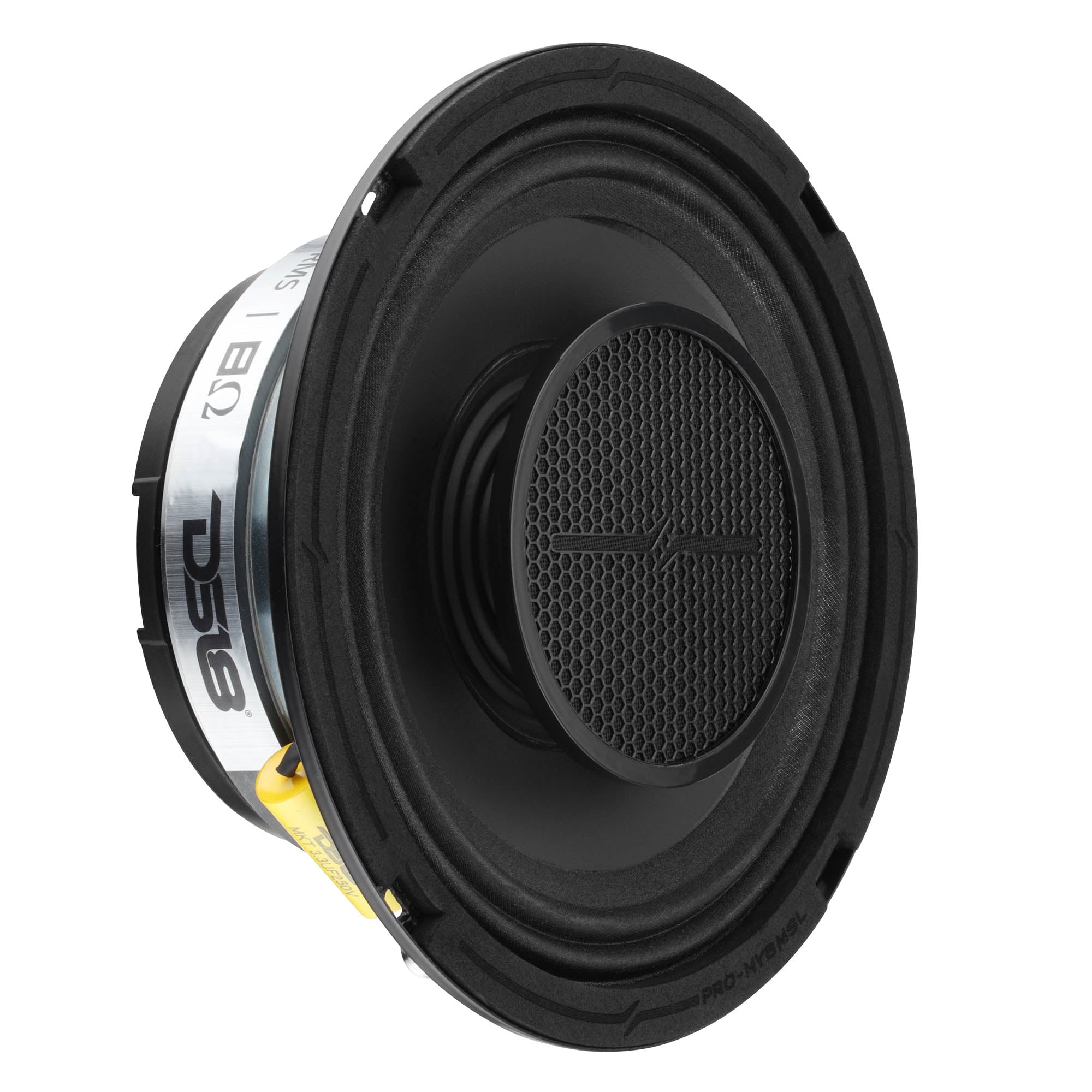

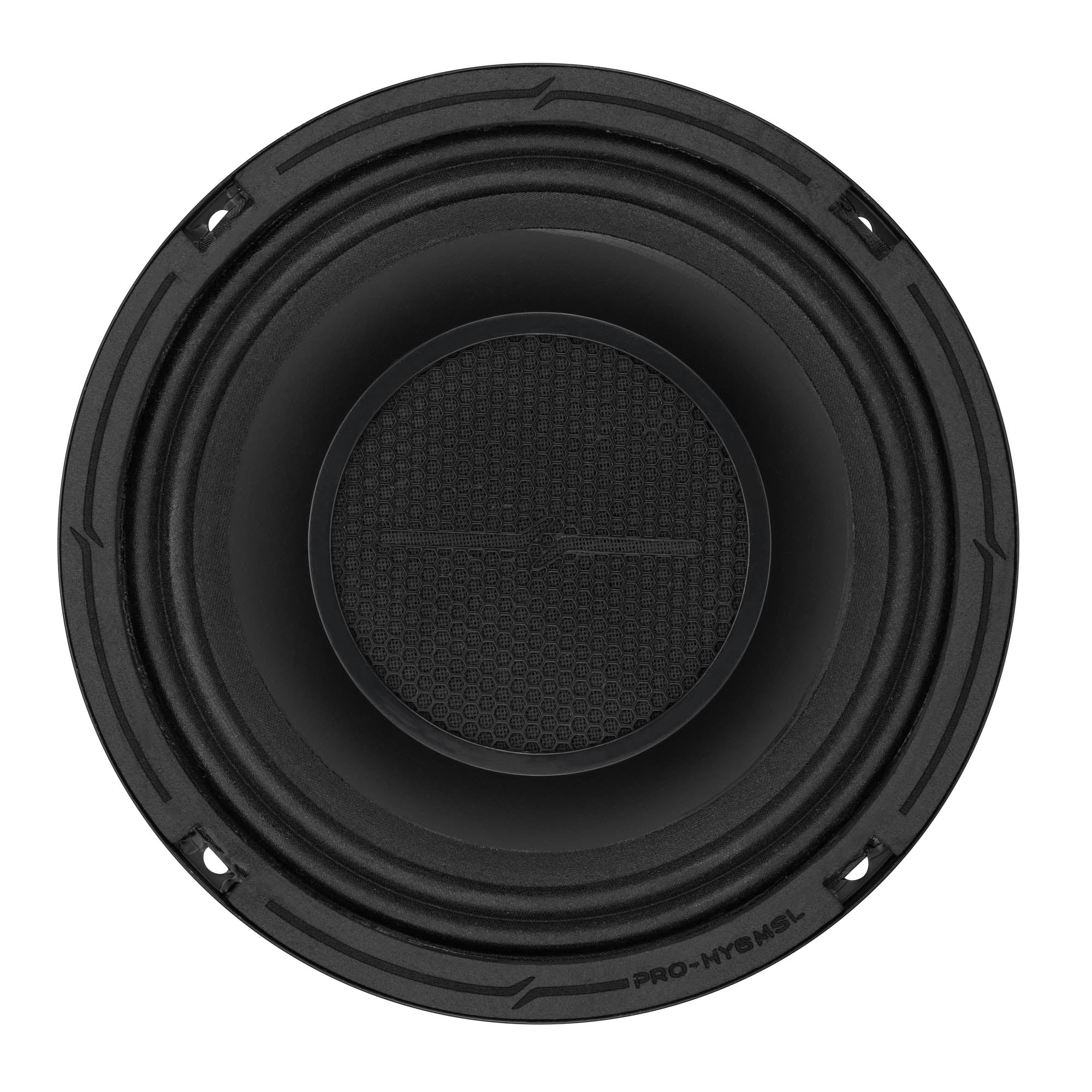

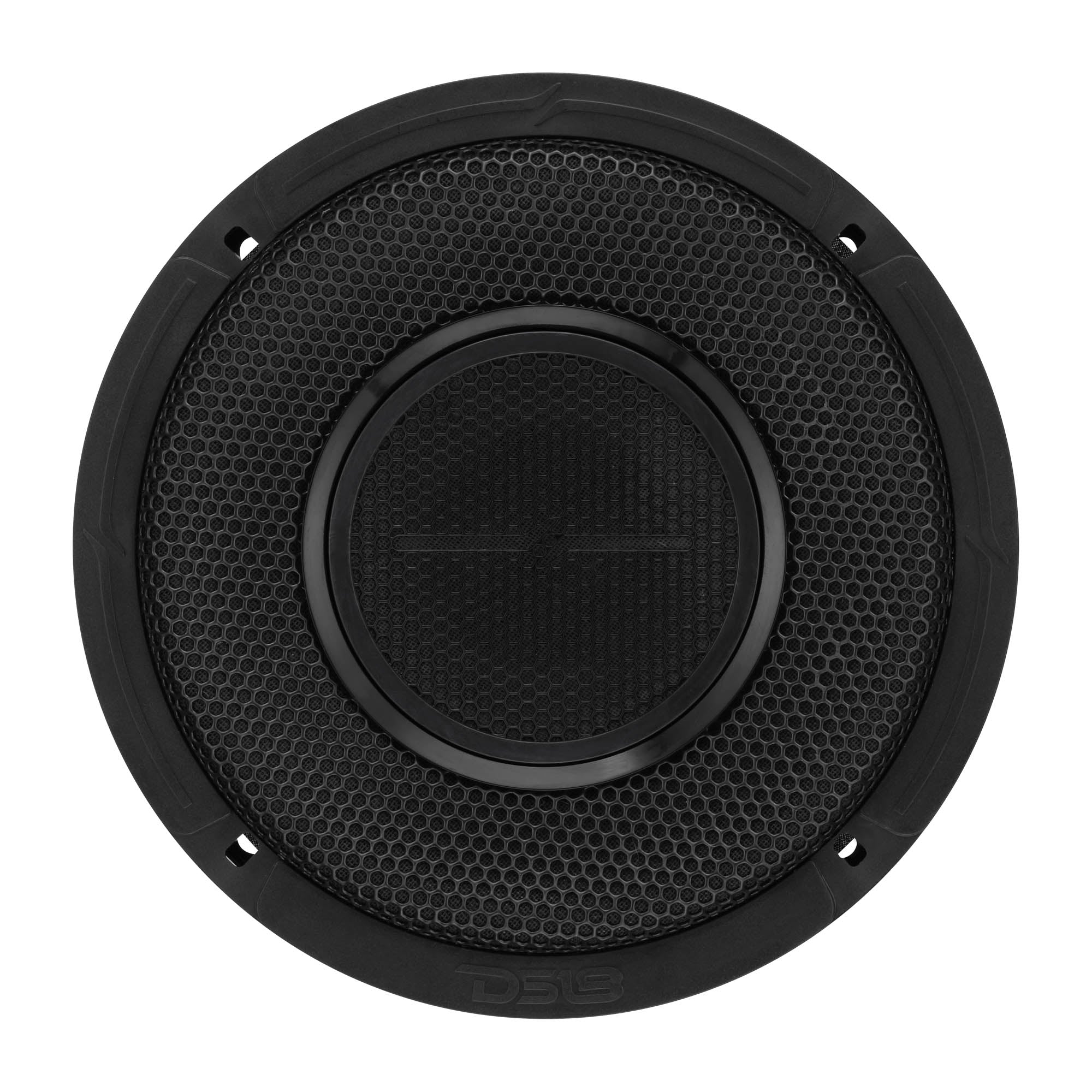

The DS18 PRO-HY6MSL is a shallow 6.5″ hybrid with a 3″ horn on a titanium compression driver. It handles 150 watts RMS (300 max) at 8 ohms with 93 dB sensitivity and needs only 2.77″ of depth.

The 8 ohm load makes it easy to wire in pairs. Running one per channel? Get the 4 ohm PRO-HY6.4MSL. Have more depth? See the PRO-HY6.4B.

Your search for the best high-powered audio speakers comes to an end with the DS18 Hybrid Speakers!

These compact Speakers combine the best of both worlds! We have emphasized and carefully combined both our Pro-Audio midrange and a high intensity driver all in a slim package for an endless amount of applications that need Pro-Audio sound in tight spaces where traditional drivers wouldn’t fit.

This high-quality, durable, and innovative design perfectly blends a high-volume Speaker with a high wattage driver. These Speakers are the ultimate choice for extreme loudness with amazing clarity at high volumes.

Be sure no other brand can match up to this powerful and durable 6.5″ Pro-Audio Speaker and Driver Hybrid. If you are looking for a high-powered Audio Speaker for your car or any other application, this completely customized Speaker will give you the output you need to get the job done.

Highlights:

Key Features

Great For:

Technical Details PRO-HY6MSL Product Manual

02 Tech specs

By the numbers

PRO-HY6MSL · Manufacturer rated
RMS Power 01
150W
Continuous rating
Peak Power 02
300W
Short-burst rating
Sensitivity 03
93dB
Efficiency
Size 04
6.5in
Nominal

RMS Power
150 Watts RMS
Impedance
8 Ohms
Nominal Impedance
8 ohms
RMS Power Handling
150W
MAX Power Handling
300W
Recommended HI Pass Crossover
140Hz

Frequency Response
120Hz-20KHz
Sensitivity (1w/1m)
93dB

Voice Coil Diameter
1″ / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Paper
Surround Material
Cloth
Basket Material
Steel
Basket Color/Finish
Glossy Red
Magnet Material
Neodymium
Magnet Weight
17.5 Oz
Diaphragm Material
Titanium
Motor Diameter
4.33″ / 110mm

Size
6.5 inch
Mounting Depth
2.77″ / 70.5mm
Nominal Diameter
6.5″ / 165.1mm
Horn Diameter
3″ / 76.2mm
Overall Diameter
6.92″ / 176mm
Overall Depth
3.52″ / 89.5mm
Front Mount Baffle Cutout
5.6″ / 142mm

Number of ways
2 ways
Pair or Single
Single
Grill Included
Yes
