Description
Product Overview

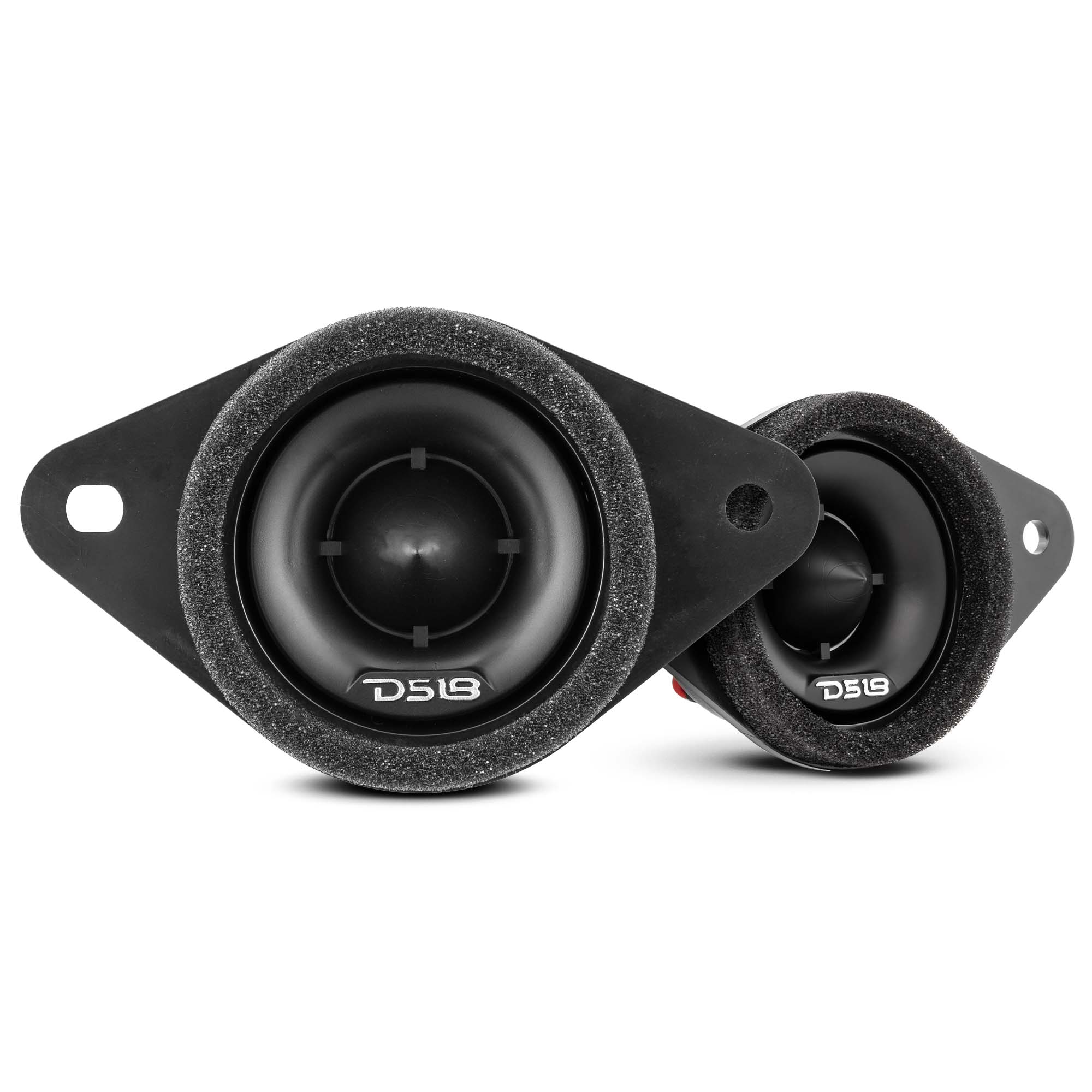

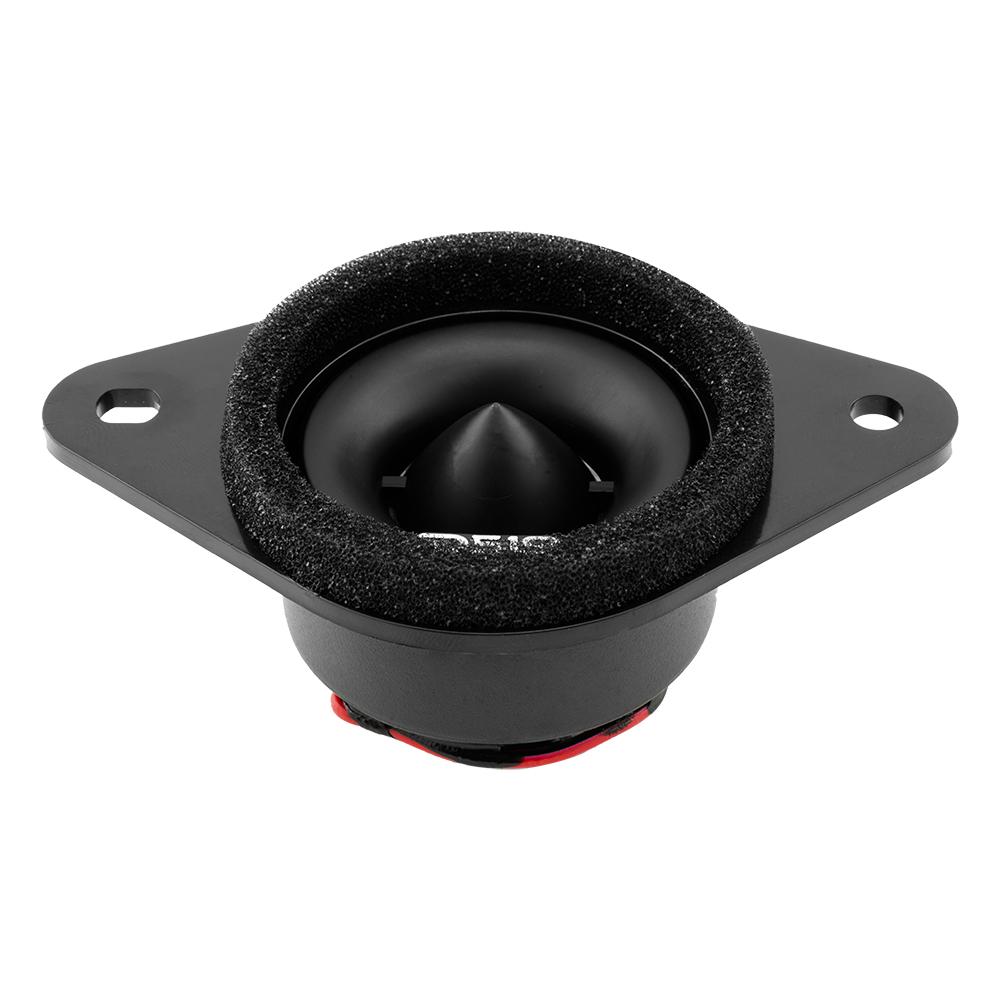

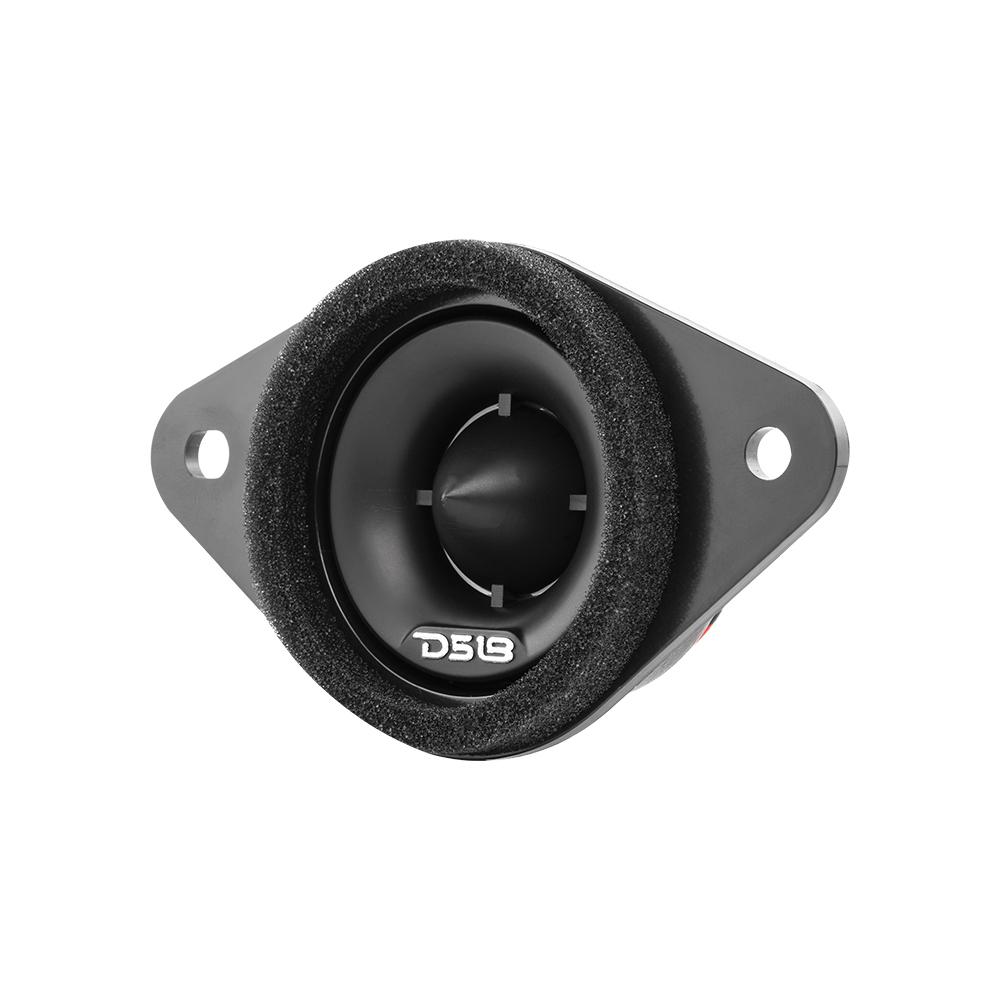

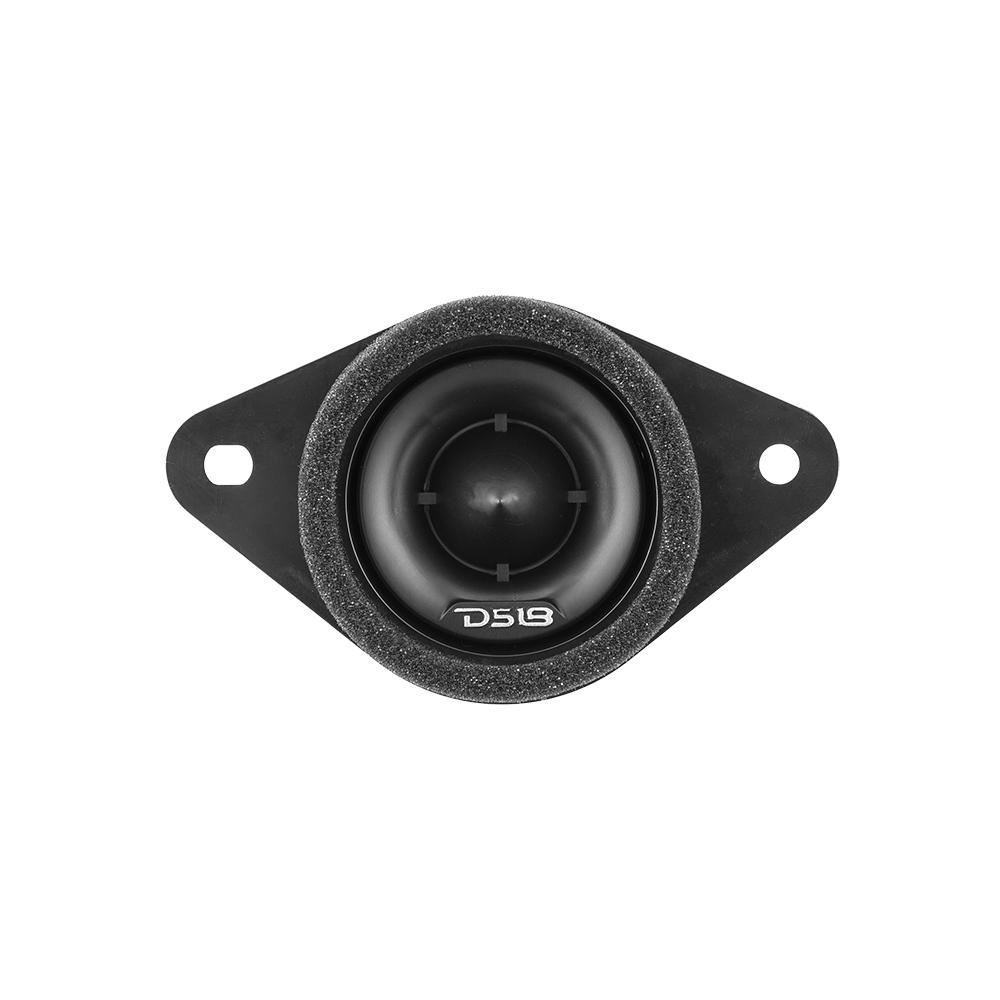

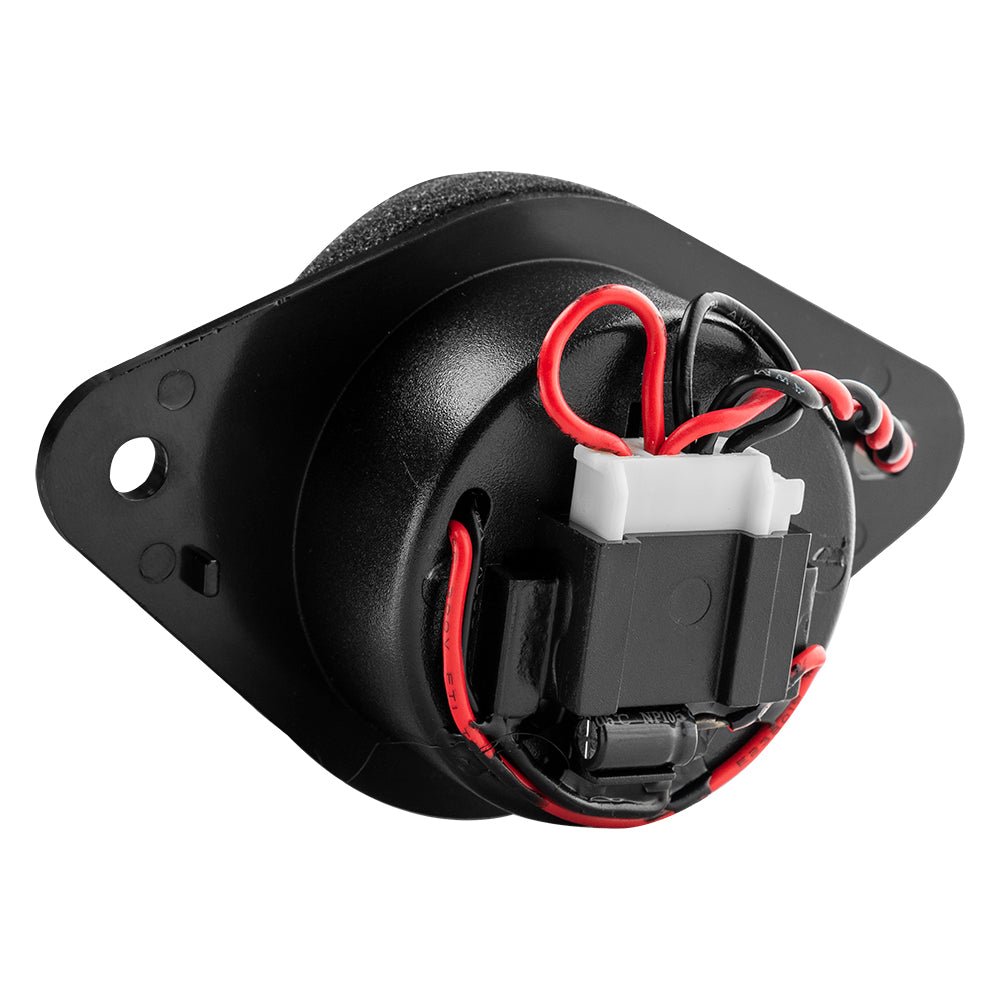

DS18 PRO-ST 3.5″ OEM Replacement Tweeter perfect for some Toyota and Subaru Models 200 Watts 1″ Aluminum 4-Ohms VC
Introducing an amazing factory replacement speaker for your Subaru or Toyota vehicle that’s easy to install and bolts right on as a factory replacement. These speakers were designed to give you a much better audio experience than your OEM speaker setup and also work great on your vehicle’s factory amplifier or head unit. These are universal dash speakers that fit on most Subaru and Toyota models that take a 3.5 inch speaker in the dashboard speaker location and will be a night and day difference between your factory speakers.
Highlights
PRO-ST is compatible with2011 – 2015 Venza (Dashboard) 2004 – 2021 Sienna (Dashboard) 2005 – 2015 Tacoma (Door) 2015 – 2021 Tacoma (Dashboard) 2002 – 2011 Camry (Dashboard) 2008 – 2020 Sequoia (Dashboard) 2007 – 2020 Tundra (Dashboard) 2004 – 2008 Solara (Dashboard) 2010 – 2015 Prius (Dashboard) 2003 – 2009 4runner (Door) 2010 – 2021 4runner (Dashboard) 2008 – 2013 Highlander (Dashboard) Subaru: 2012 – 2020 Impreza / WRX / STi 2014 – 2020 Forester 2013 – 2020 Crosstrek Notes: Scion BRZ or Toyota FRS / 86 can be replacing the 3.5” mid and 1” tweeter for this tweeter instead.
Technical Details PRO-ST Product Manual
Technical Data
| Specification | Details |
|---|---|
| Size | 1.9 inch |
| Impedance | 4 Ohms |
| Frequency Response | 1KHz- 20KHz |
| Mounting Depth | 1.33” / 34mm |
| Nominal Diameter | 1” |
| Nominal Impedance | 4 Ohms |
| AES Power Handling | 50 W |
| Program Power Handling | 100 W |
| Peak Power Handling | 200 W |
| Sensitivity (1w/1m) | 98 dB |
| Recommended Hi Pass Crossover | 4 KHz |
| Pair or Single | Pair |
| Voice Coil Diameter | 1” / 25.4 mm |
| VC Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | PEN |
| Magnet Material | Neodymium |
| Magnet Weight | 0.57 oz |
| Body Material | PC |
| Overall Diameter | 4.41×2.68” / 112X68 mm |
| Overall Depth | 1.77” / 45 mm |
| Front Mount Baffle Cutout | 2.15” / 54.5 mm |
