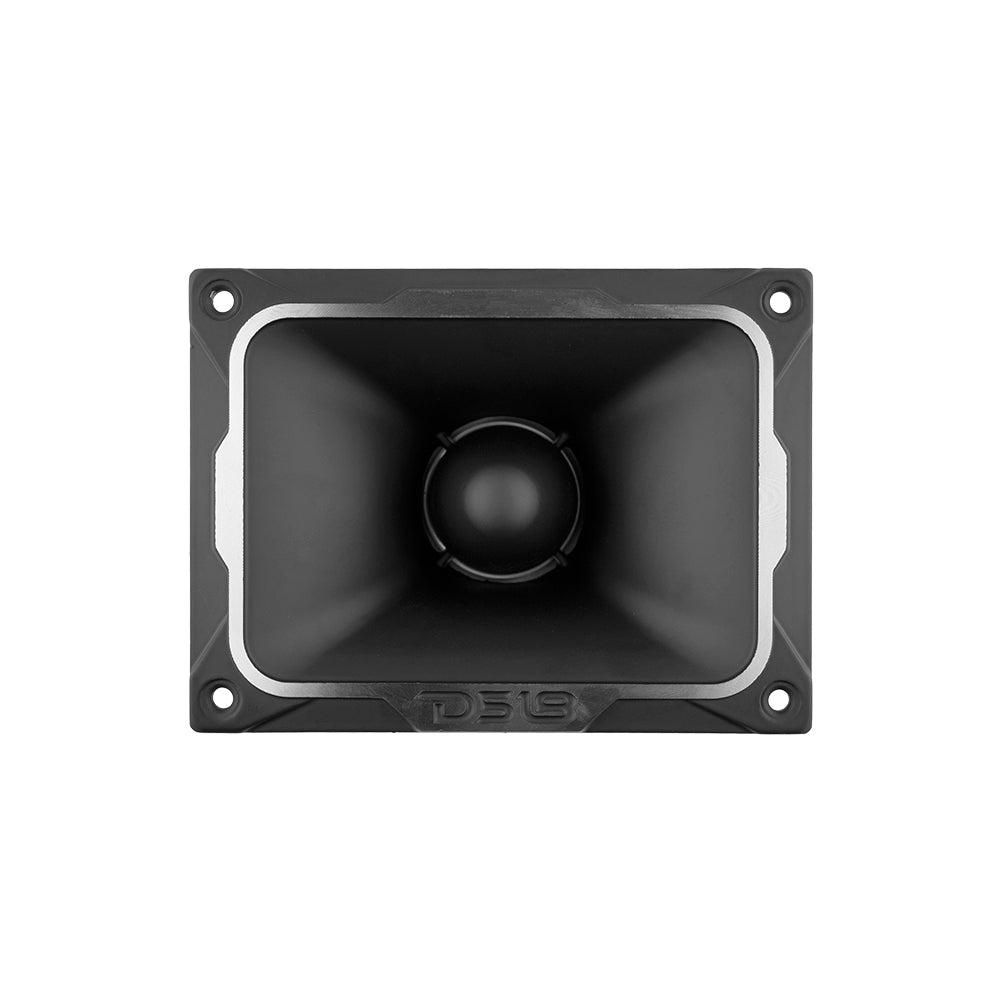

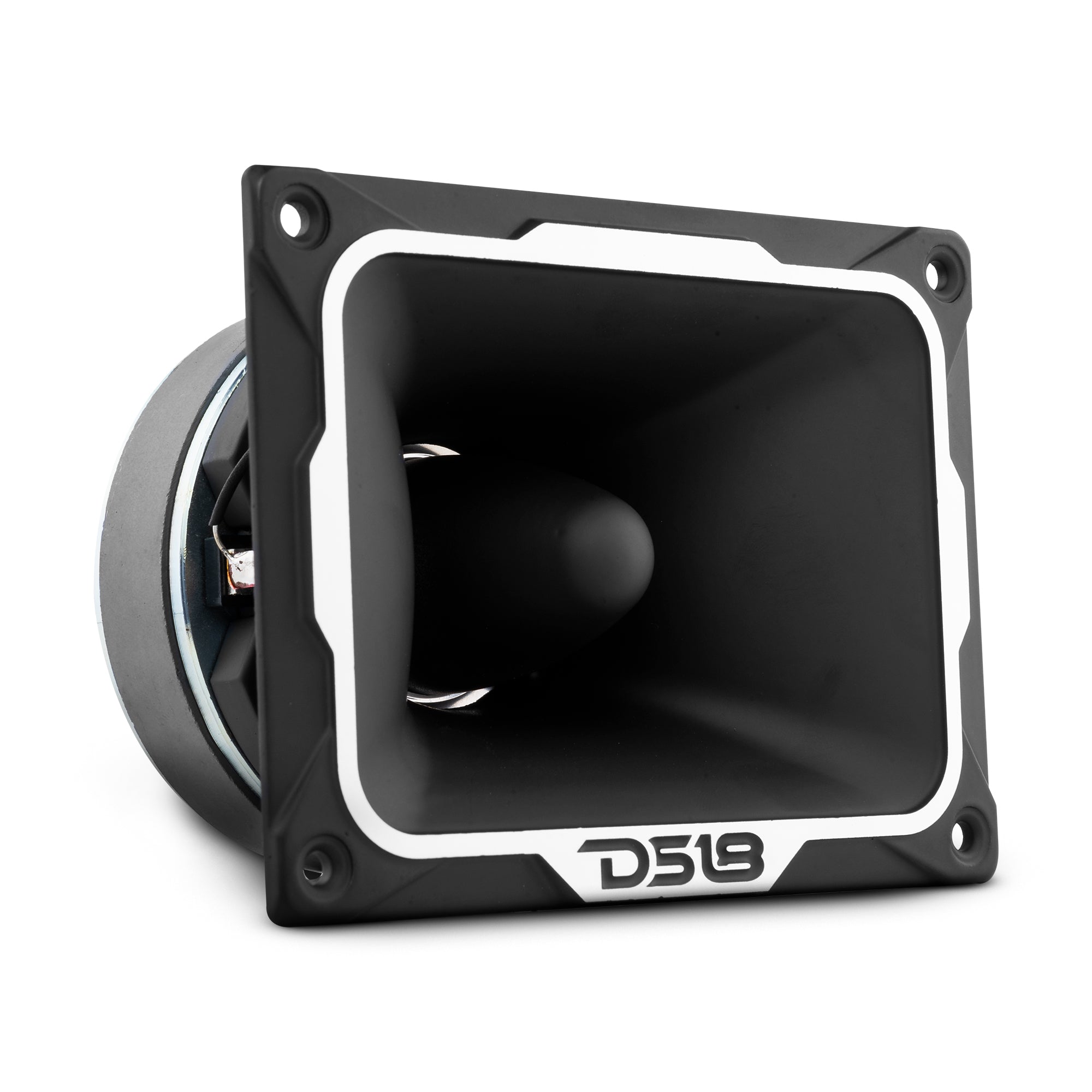

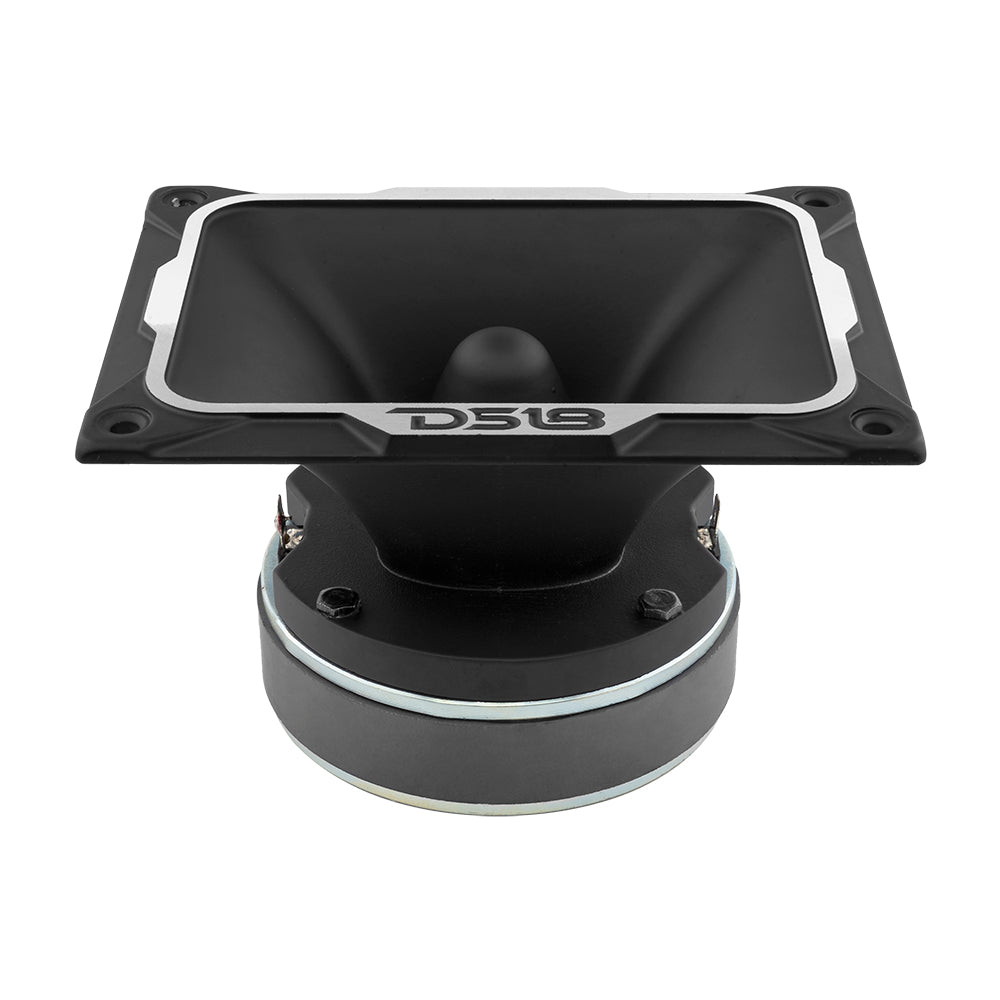

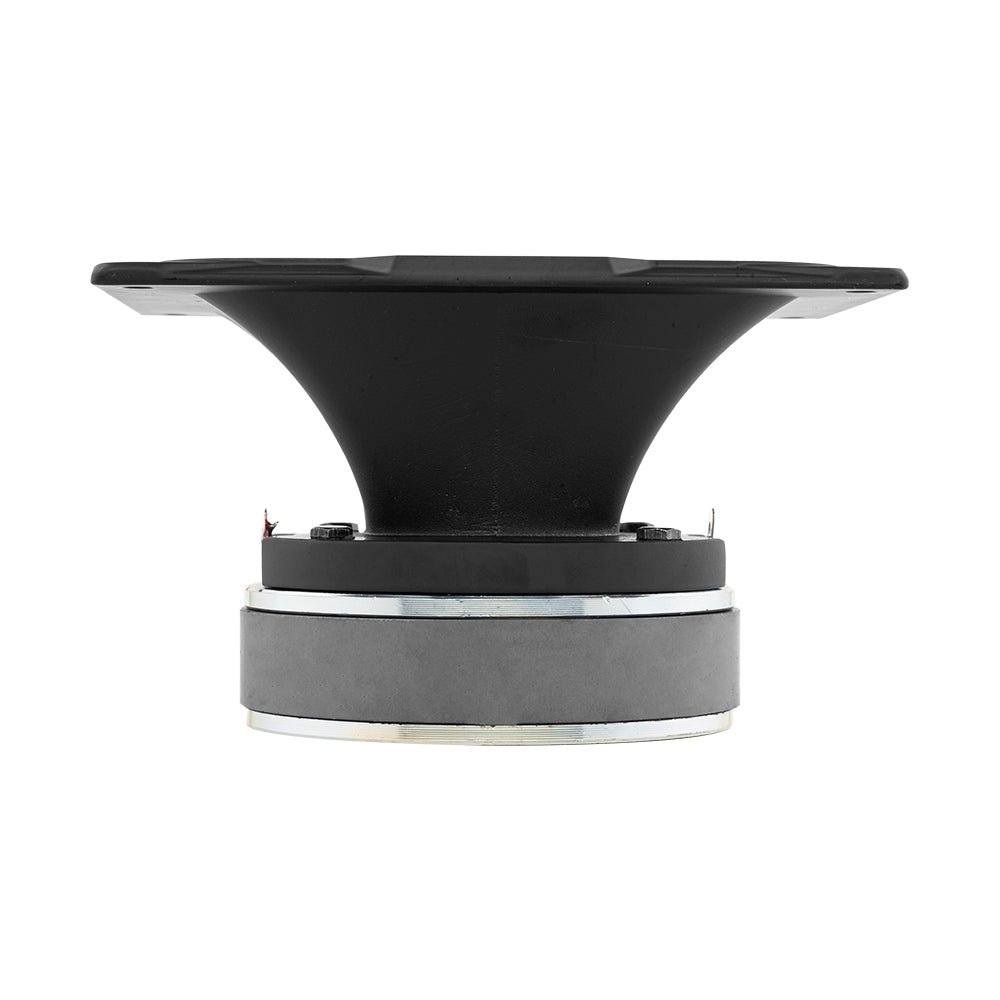

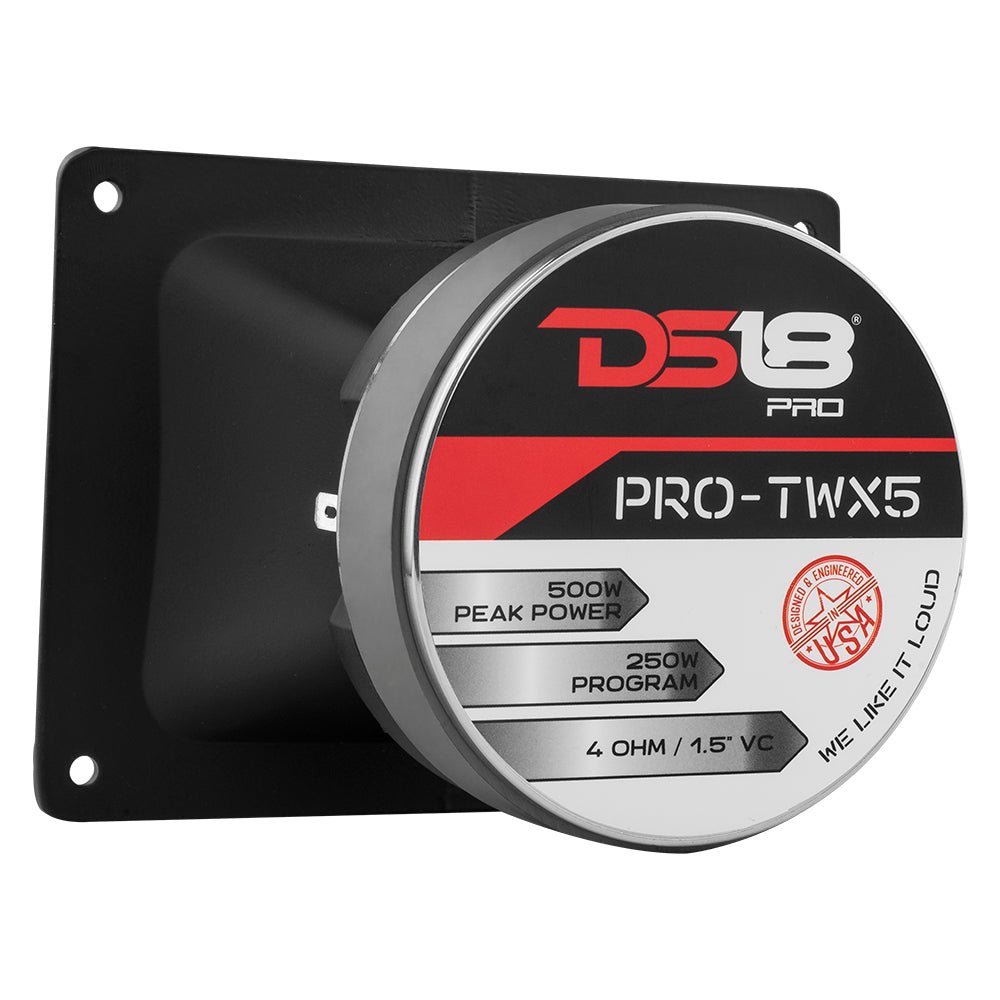

DS18 PRO-TWX5 4 x 5.35″ Super Bullet Tweeter 250 Watts 1.5″ Aluminum 4-Ohm Vc

$49.95

RMS Power250W
Peak Power500W
Sensitivity107dB
01 Overview

The details

Product Overview

DS18’s new 4 ohms super tweeter is sleek and refined after many years of testing and development. These aluminum housings hold a titanium 1.5 inch voice coil rated for 250w RMS and 500w Max power with a ferrite motor structure. With a 107dB sensitivity rating, these tweeters do not need a lot of power to get extremely loud. These tweets have a range of 3KHz to 20KHz so you will be sure you wont miss one crack of the high hat!

Technical Details PRO-TWX5 Product Manual

Key Features
  • Award winning DS18 super tweeter design that has been seen in countless shows and competitions in some of the loudest vehicles in the world.
  • High powered super tweeter made to emphasize extreme high notes with amazing precision and clarity.
  • Easily disassembled so you can change your voice coil in the go in minutes.
  • Various sizes signified by their respective model number so you can fit the largest tweeter you can in the space you have available for the loudest volume.

02 Tech specs

By the numbers

PRO-TWX5 · Manufacturer rated
RMS Power 01
250W
Continuous rating
Peak Power 02
500W
Short-burst rating
Sensitivity 03
107dB
Efficiency
Size 04
35in
Nominal

RMS Power
250 Watts RMS
Peak Power
500 Watts Max
Impedance
4 Ohms
Peak Power Handling
500 Watts
Program Power Handling
250 Watts
AES Power Handling
125 Watts

Sensitivity
107 dB
Frequency Response
3KHz – 20KHz

Voice Coil
1.5 inch
Voice Coil Diameter
1.5″
Magnet
Ferrite

Size
35 inch
Mounting Depth
2.95″
Nominal Diameter
4×5.35″
Overall Width
4″ x 5.35″
Overall Depth
3.17″
Front Mount Baffle Cutout
3.03″x4.09″

Model
PRO-TWX5
Type
Super Bullet Tweeter
Package Quantity
1
