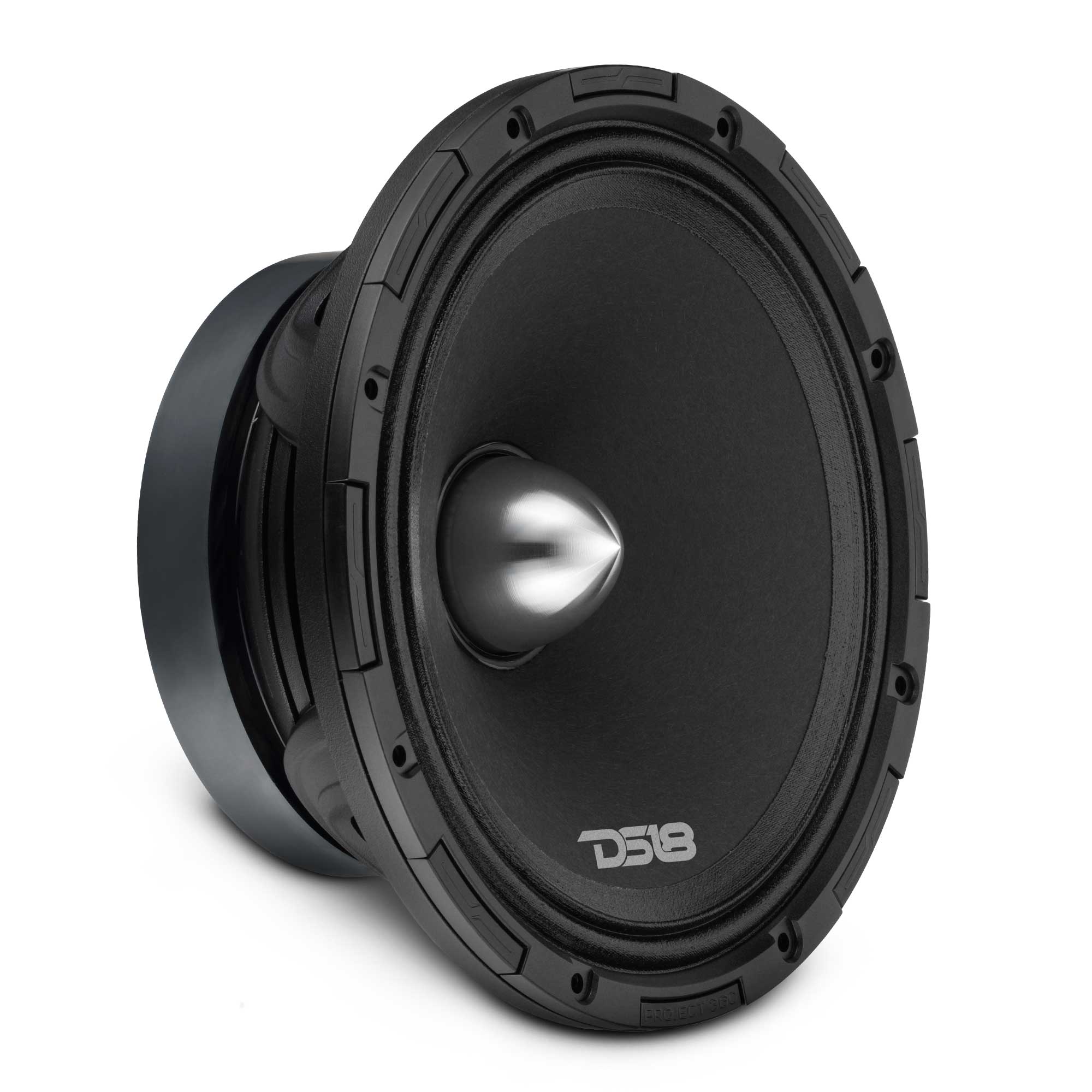

DS18 PROJECT360.88B 8 inch Mid-High Loudspeaker with Bullet 300W RMS 8 Ohm Rotating Recone Design
$134.95
It isn’t just louder, it’s smarter with a focus on high output, clarity, and reliability.
- Nominal Diameter: 8" / 203mm
- RMS Power Handling: 300 W
- MAX Power Handling: 600 W
- Nominal Impedance: 8 Ohms
- Frequency Response: 95Hz – 17kHz
- Sensitivity (1w/1m): 100.2 dB
The details
Product Overview
DS18 PROJECT360.88B 8 inch Mid-High Loudspeaker with Bullet 300W RMS 8 Ohm Rotating Recone Design – Impedance 8 Ohms, RMS Power 300 W, Frequency Response 95Hz – 17kHz.
The PROJECT360 Series It isn’t just louder, it’s smarter with a focus on high output, clarity, and reliability. Designed for enthusiasts who demand powerful midrange and crisp highs, each bullet speaker delivers consistent sound quality whether you’re building a daily system or pushing the limits in a high-performance setup.
Exclusive DS18 Technology What sets PROJECT360 apart is its patent-pending Rotating Recone Design, an innovative, serviceable system that allows for quick and easy maintenance and repair. Built with durable materials and engineered for efficiency you can spend more time enjoying your system and less time working on it.

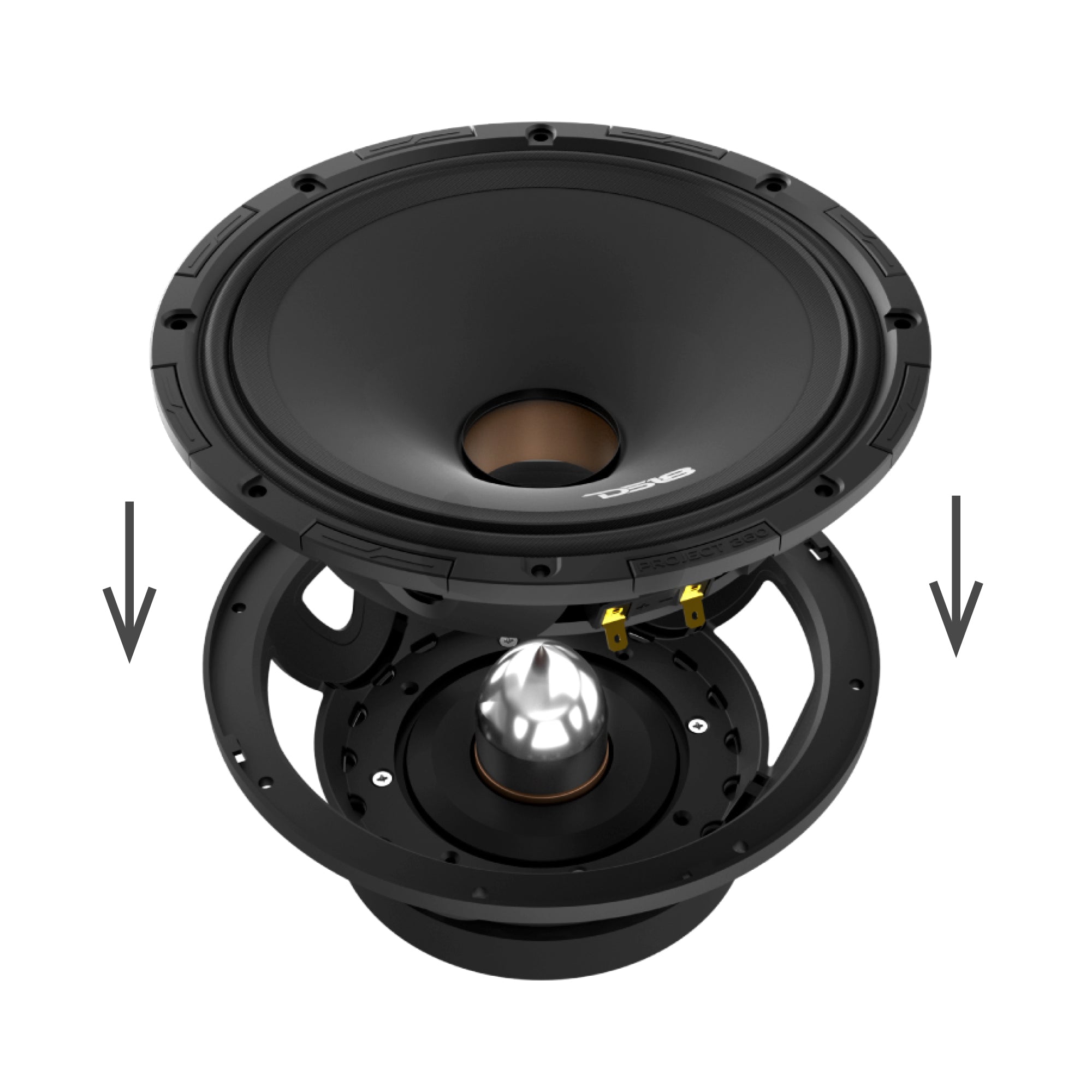

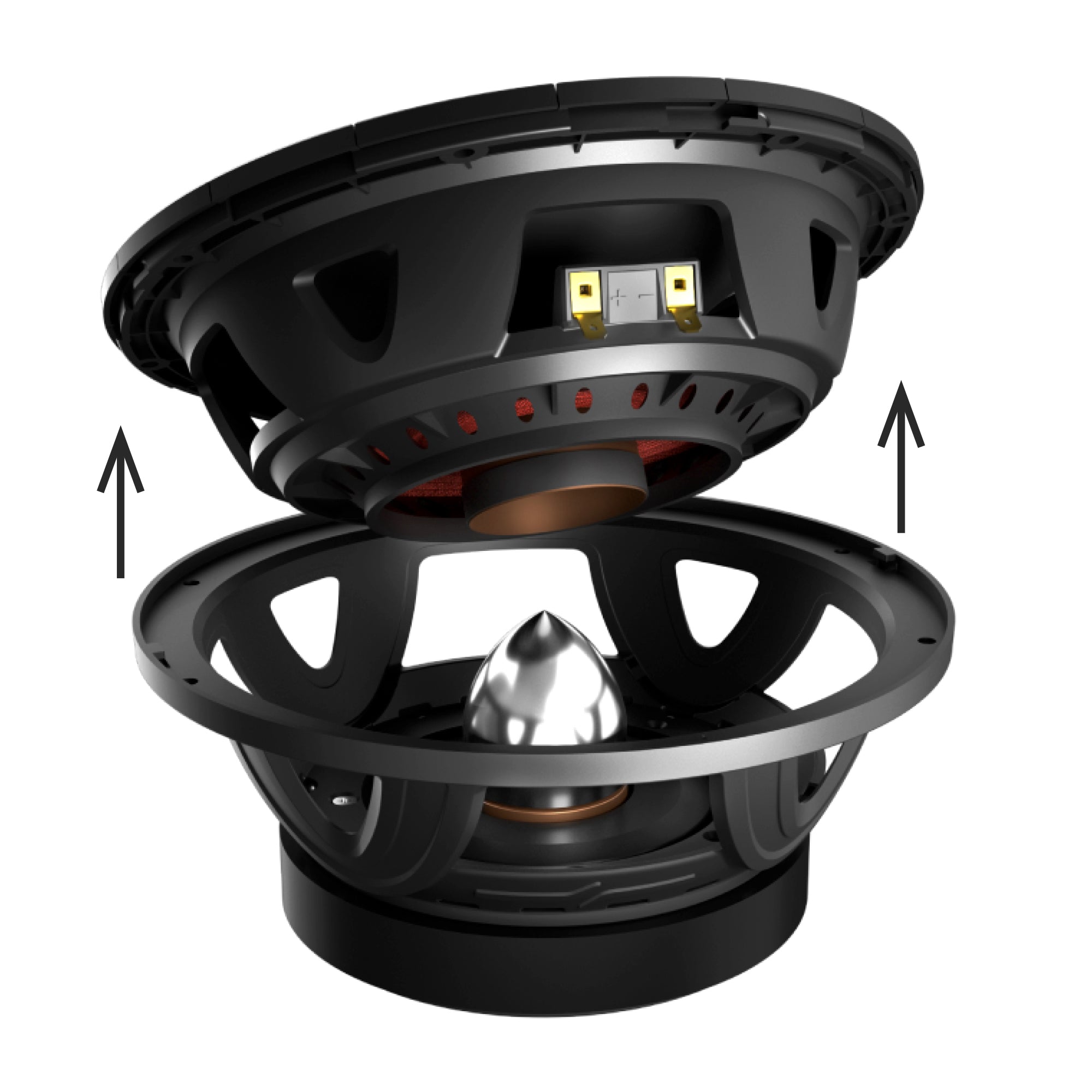

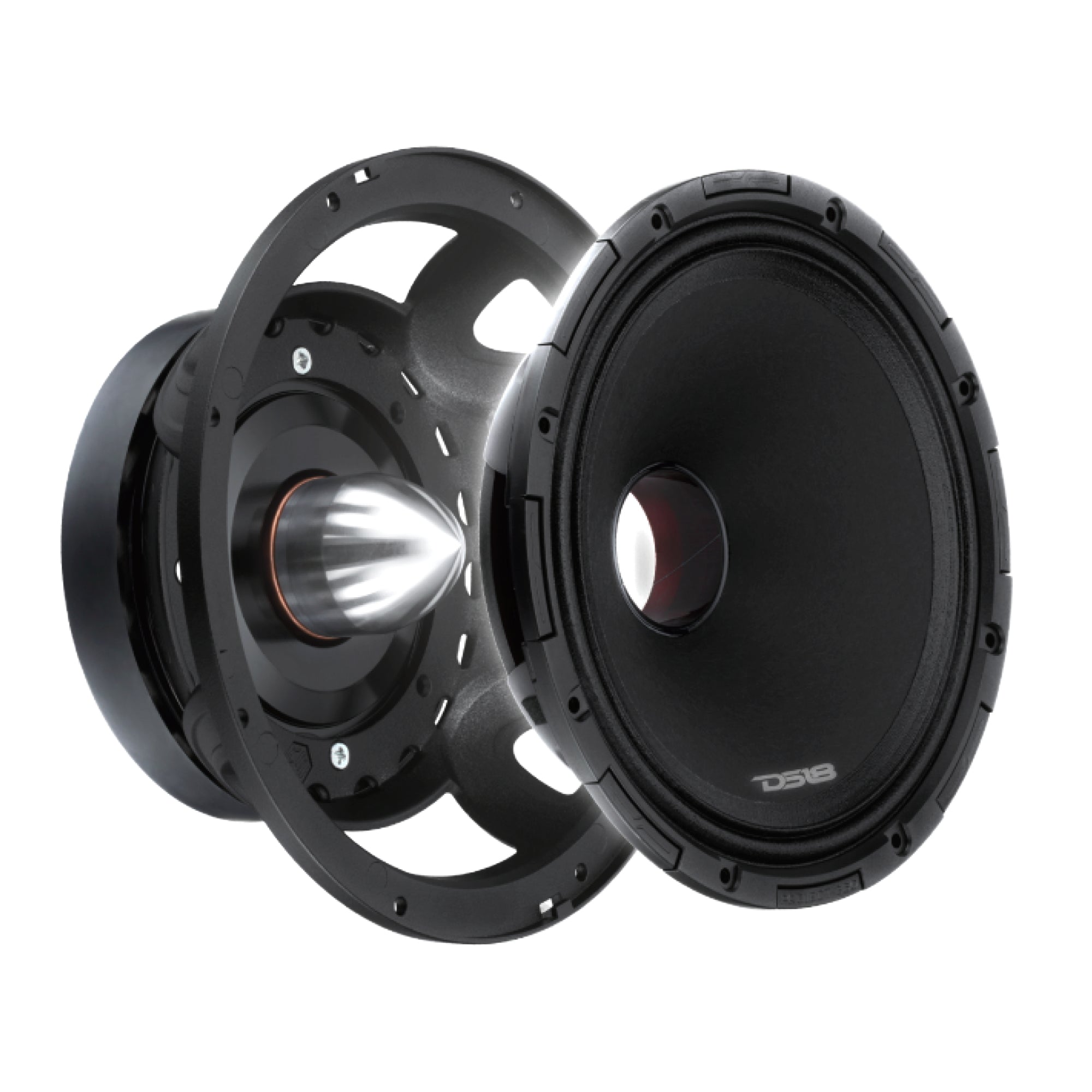

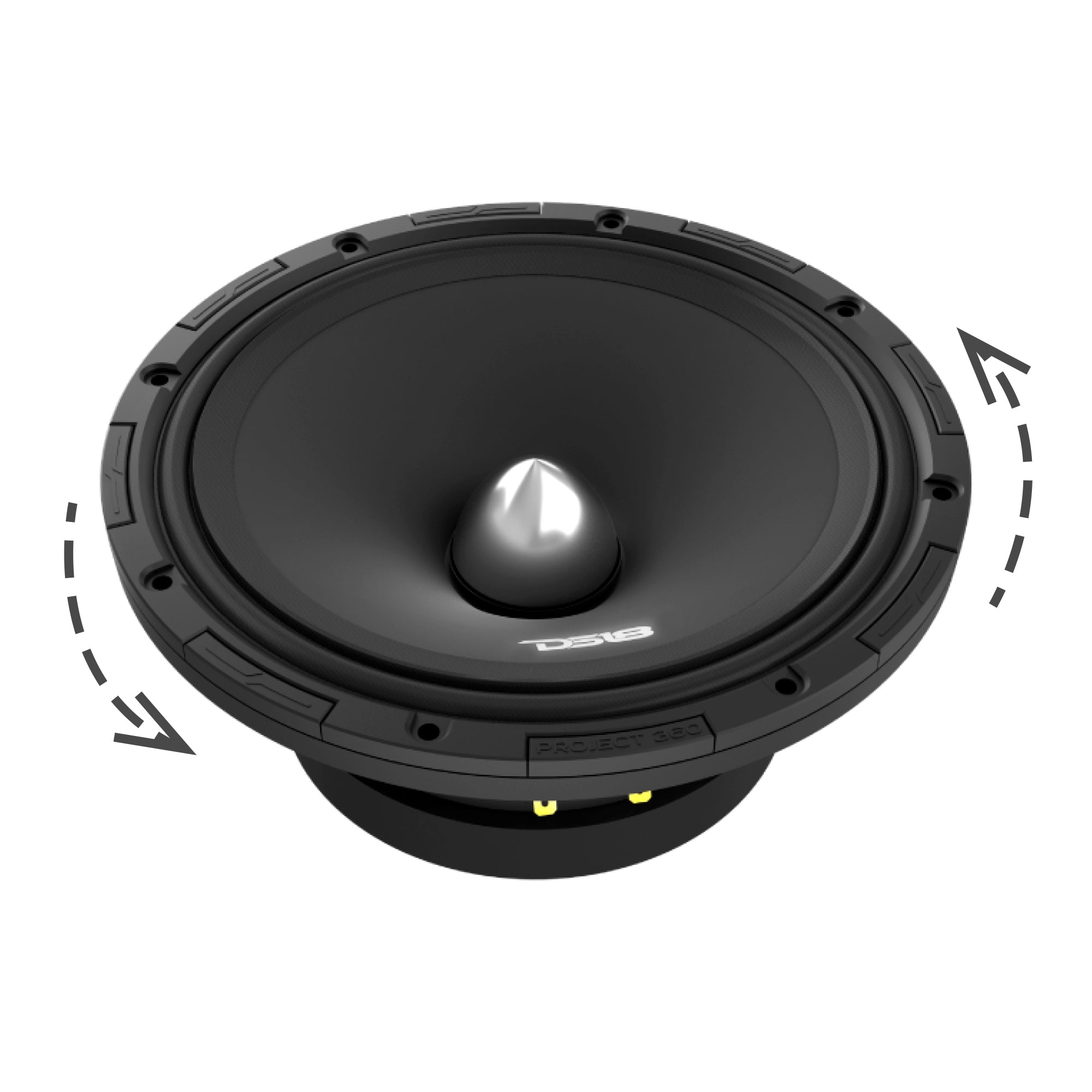

Patent-Pending Rotating Recone Design Designed for quick and easy replacement of the speaker’s moving components.
Crystal-Clear Highs Clean vocal projection and enhanced sound reproduction with minimal distortion.
Competition-Level Output Impressive performance with minimal amplifier power.
No Glue. No Downtime The patent-pending rotating design eliminates the traditional glue curing process.
High Power Handling 1.75” voice coil and carefully selected materials increase power handling while enhancing thermal management.
Efficient Bullet Design Aluminum basket and silver bullet provides rigidity, improved heat dissipation, and reduced resonance.
By the numbers
- Nominal Impedance
- 8 Ohms
- RMS Power Handling
- 300 W
- MAX Power Handling
- 600 W
- Recommended High-Pass Crossover
- 120 Hz
- Speaker Terminals
- Spade
- Sensitivity (1w/1m)
- 100.2 dB
- Frequency Response
- 95Hz – 17kHz
- Excursion (one way)
- 0.85 mm
- Free Air Resonance
- 167 Hz
- BL Factor
- 12.015
- Cone Shape
- Curvilinear
- Easy Recone Design
- Yes
- Bullet Material
- CNC Aluminum
- Bullet Color
- Silver
- Voice Coil Diameter
- 1.75" / 44.5mm
- Voice Coil Former Material
- Kapton
- Winding Material
- CCAW
- Cone Material
- Paper
- Dust Cap Material
- Paper
- Surround Material
- Cloth
- Spider Diameter
- 4.5" / 114mm
- Basket Material
- Aluminum
- Basket Color / Finish
- Black
- Magnet Material
- Ferrite
- Magnet Weight
- 48 oz
- Voice Coil Inductance
- 0.041 mH
- Cone Area
- 240.53 cm2
- Motor Diameter
- 5.5" / 140mm
- Nominal Diameter
- 8" / 203mm
- Equivalent Volume
- 4.34L / 0.153ft3
- Overall Diameter
- 8.19" / 208mm
- Overall Depth
- 3.9" / 99mm
- Front Mount Baffle Cutout
- 7.13" / 181mm
- Mounting Depth
- 3.35" / 85mm
- Sold as
- Single Unit
- Grill Included
- No
- Demodulating Rings
- Yes
- Improved Heat Dissipation
- Yes
- Leads Connection Type
- Round Crossed
- Mechanical Factor
- 4.232
- Electrical Factor
- 0.626
- Total Factor
- 0.545
- Moving Mass
- 17.020g
- Mechanical Compliance
- 0.053 mm/N
- DC Resistance
- 5 Ohms
