The details
Product Overview
Why we stock the DS18 ZR10.2D

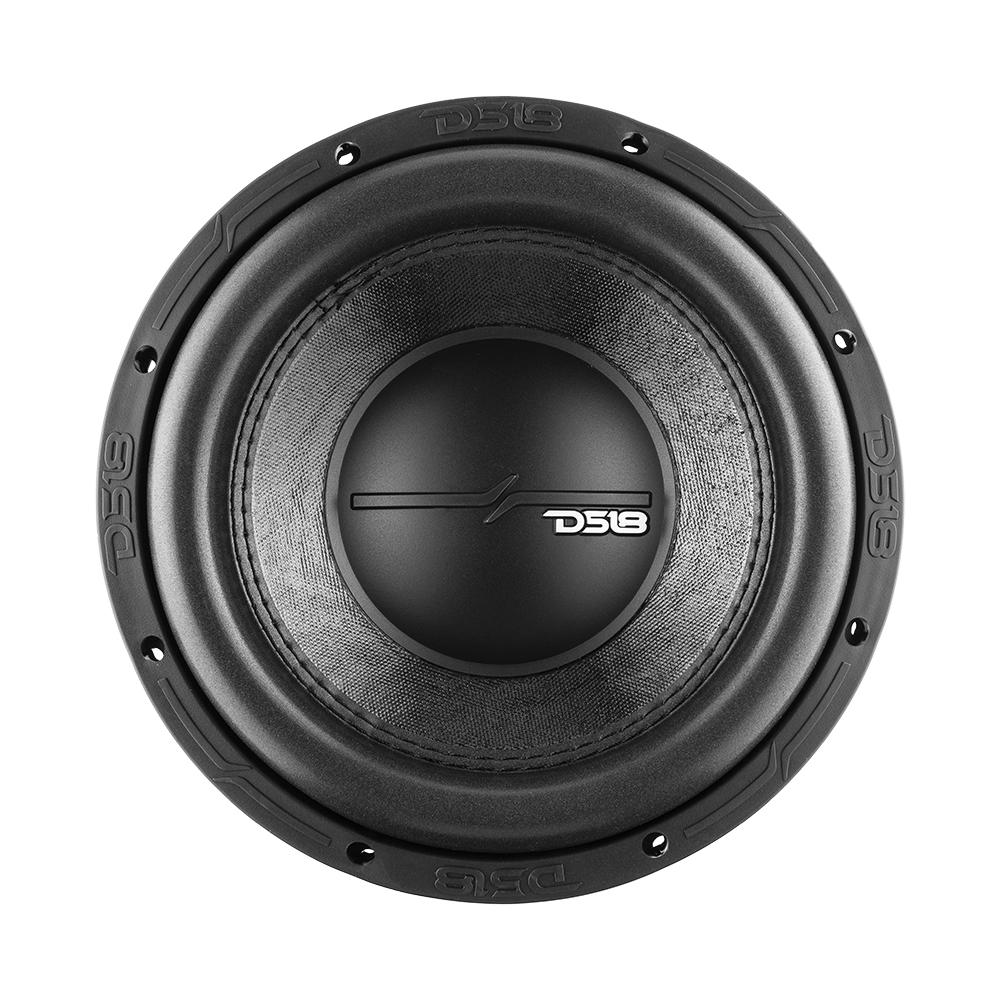

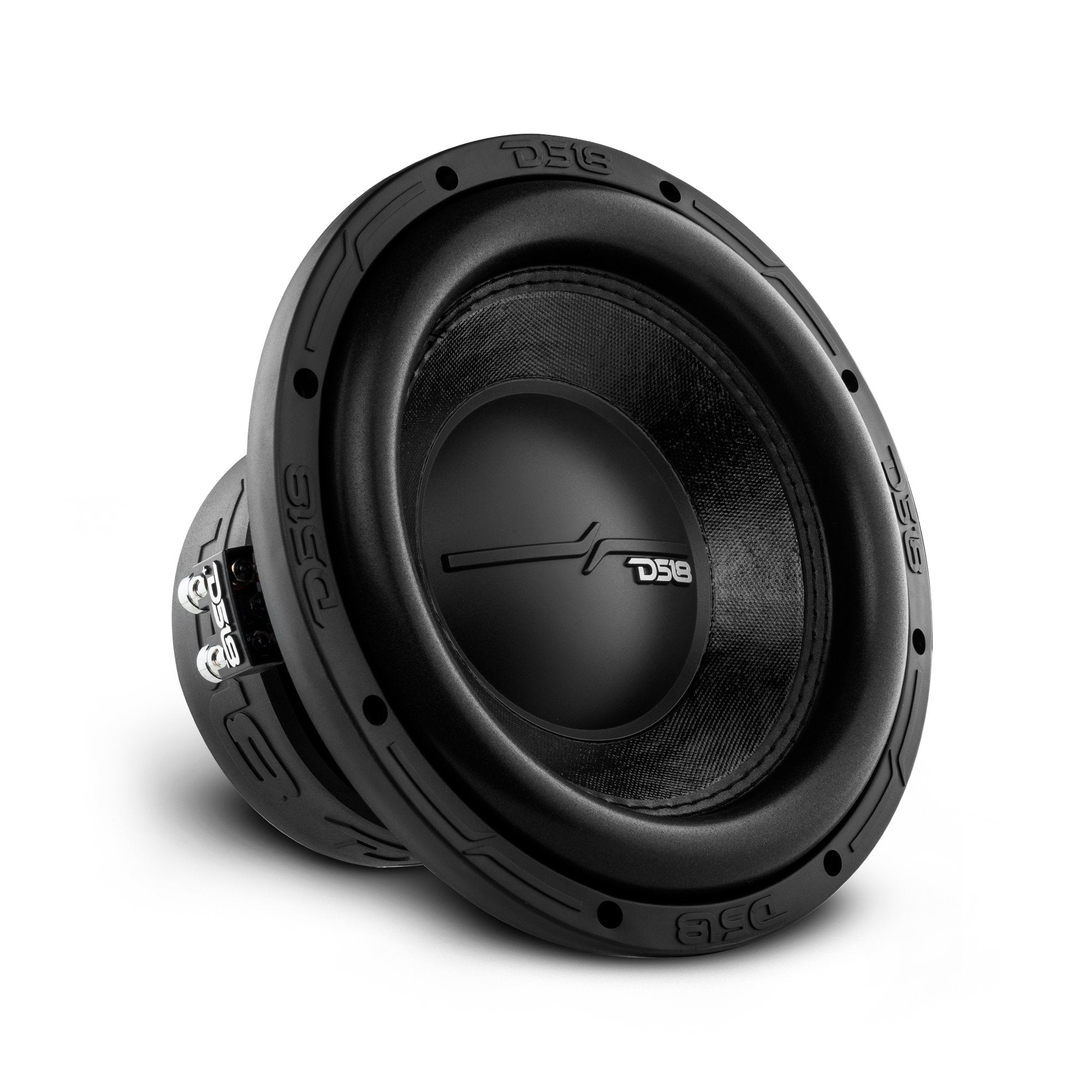

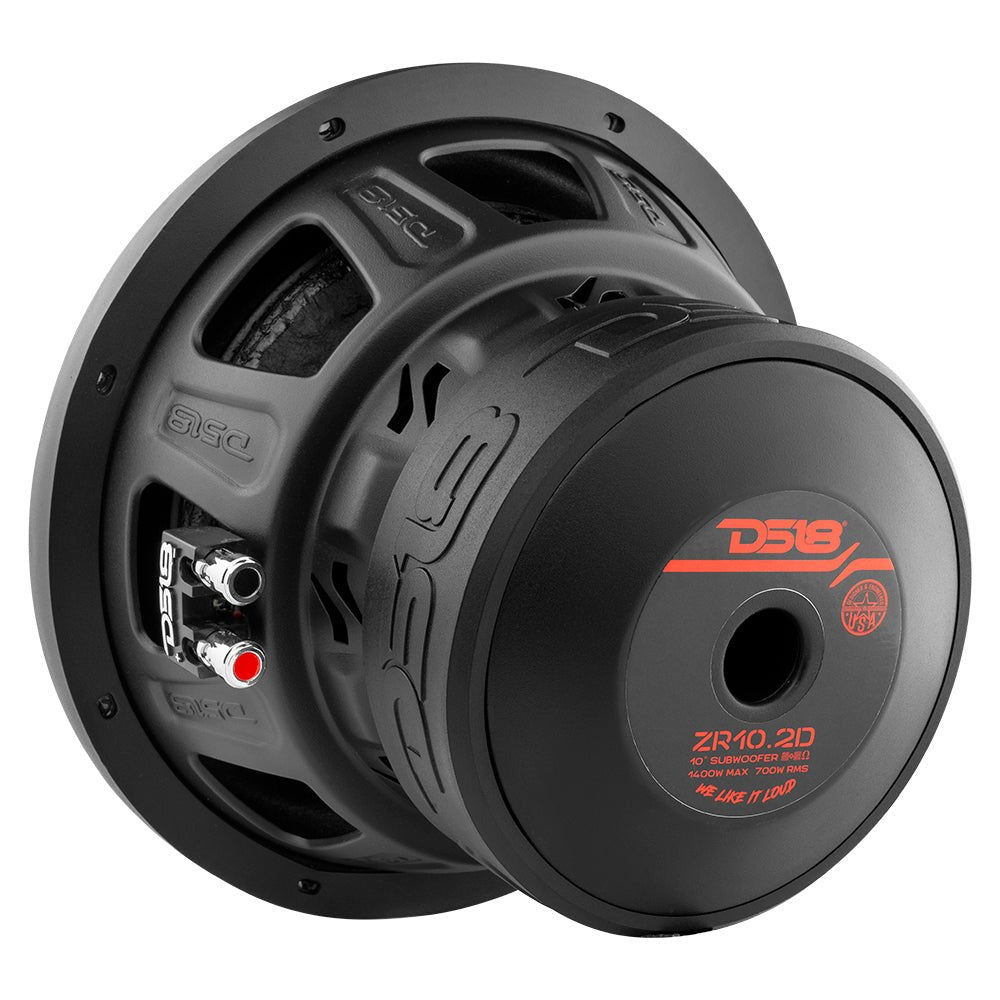

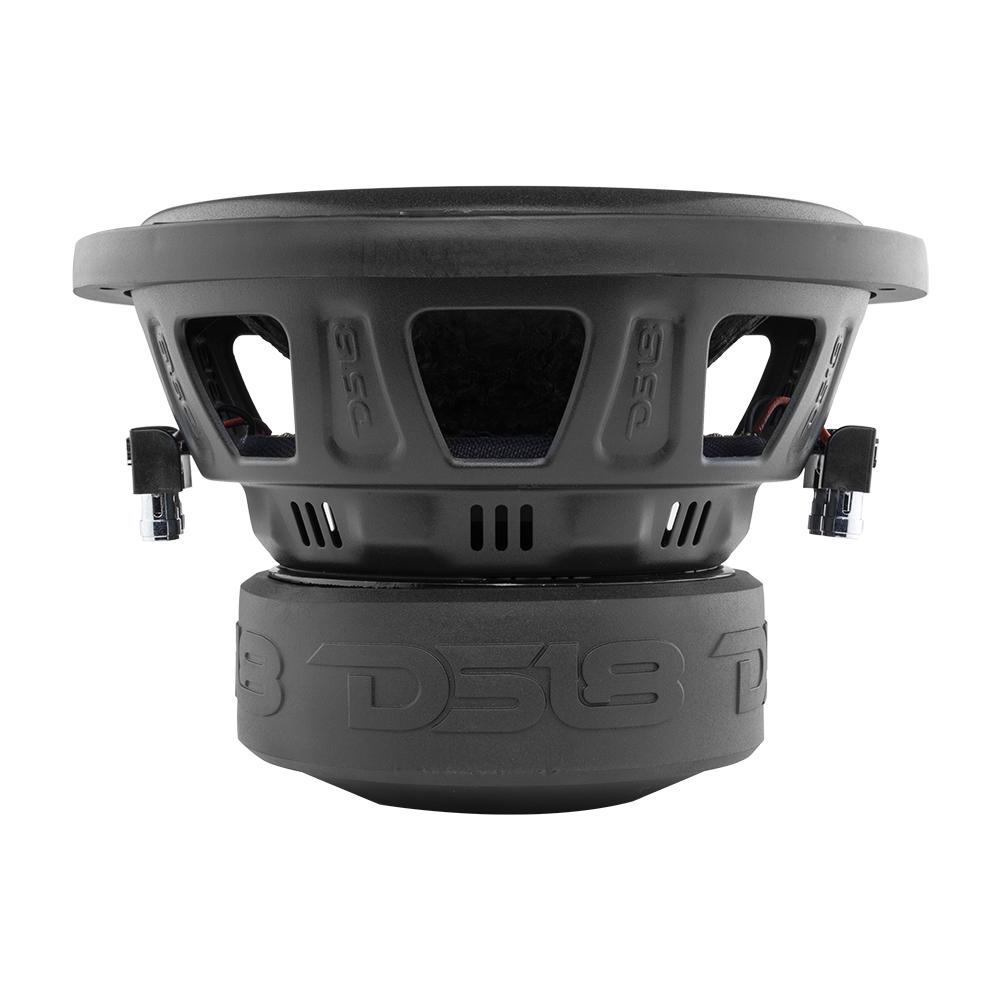

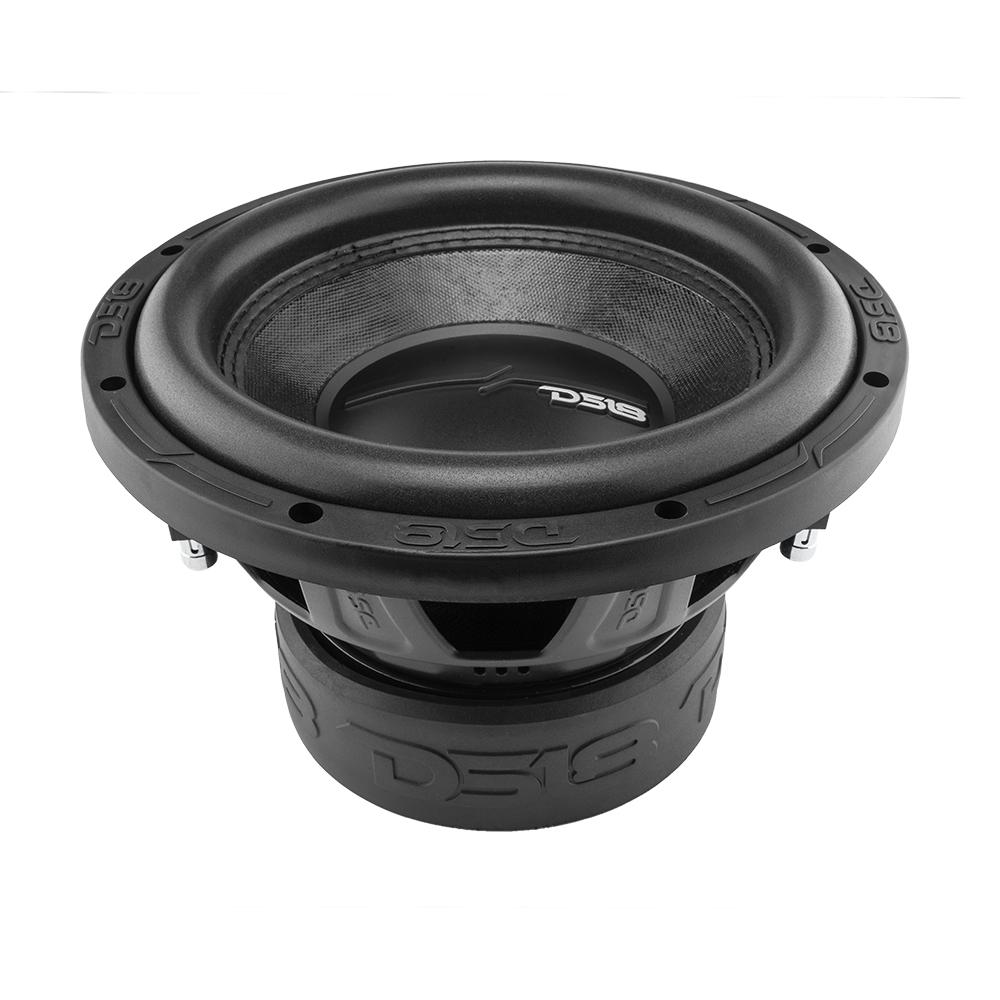

The DS18 ZR10.2D is a 10″ subwoofer with a 2.5″ dual 2 ohm voice coil. It handles 700 watts RMS (1,400 max) and plays from 27Hz to 200Hz.
It needs 6″ of mounting depth and gives you real bass on a budget. Need dual 4 ohm? Use the ZR10.4D. Want a 12? See the ZR12.2D.
The ZR subline is an amazing entry level subwoofer that both handles great power and gives you smooth clean bass. These subs work great in both sealed and ported boxes giving you many options for placement in any vehicle.
This 10 inch model comes in both dual 2 and dual 4 ohms configurations giving you many options to perfectly match your amplifiers optimal impedance. This model comes with a 2.5 inch aluminum voice coil that handles 700w RMS and 1400w Max power. The large foam surround and pressed paper cone works greatly together to deliver smooth crisp bass that can be heard strongly throughout and outside the vehicle.
Highlights
Technical Details ZR10.2D Product Manual
Box Info
By the numbers
- RMS Power
- 700 Watts RMS
- Peak Power
- 1400 Watts Max
- Impedance
- 2 Ohms
- Nominal Impedance
- 2 + 2 Ohms
- RMS Power Handling
- 700W
- MAX Power Handling
- 1400W
- Recommended Lo Pass Crossover
- 100 Hz
- Frequency Response
- 27Hz – 200 Hz
- Sensitivity (1w/1m)
- 81 dB
- Excursion (one way)
- 25mm
- Free Air Resonance
- 34Hz
- BL Factor
- 8.78
- Efficiency Bandwidth Product
- 42.5
- Voice Coil Diameter
- 2.5″ / 61.6mm
- VC Former Material
- Aluminum
- Winding Material
- Copper
- Cone Material
- Non Pressed Paper
- Dust Cap Material
- PPI
- Surround Material
- Foam
- Basket Material
- Steel
- Basket Color/Finish
- Matte Black
- Magnet Material
- Ferrite
- Magnet Weight
- 100 oz
- Voice Coil Inductance
- 546.4m mH
- Cone Area
- 333.29 Cm2
- Motor Diameter
- 6.1″ / 155mm
- Size
- 10 inch
- Mounting Depth
- 6″ / 152.3mm
- Nominal Diameter
- 10″
- Displacement Volume
- 0.05 ft3
- Equivalent Volume
- 8.26 L
- Overall Diameter
- 10.31” / 262mm
- Overall Depth
- 6.92″ / 176mm
- Front Mount Baffle Cutout
- 9″ / 229mm
- Mechanical Factor
- 4.3
- Electrical Factor
- 0.8
- Total Factor
- 0.67
- Moving Mass
- 252g
- Compliance
- 53.37µ m/N
- DC Resistance
- 1.8 + 1.8 ohm
