DS18 ZR10.4D ZR 10″ Subwoofer 700 Watts Rms DVC 4-Ohm

$179.95

Lease for as low as $8.13/week. Apply Now

RMS Power700W
Peak Power1,400W
Sensitivity81dB
SKU: ZR10.4D Categories: , , , Brand:
01 Overview

The details

Product Overview

Why we stock the DS18 ZR10.4D

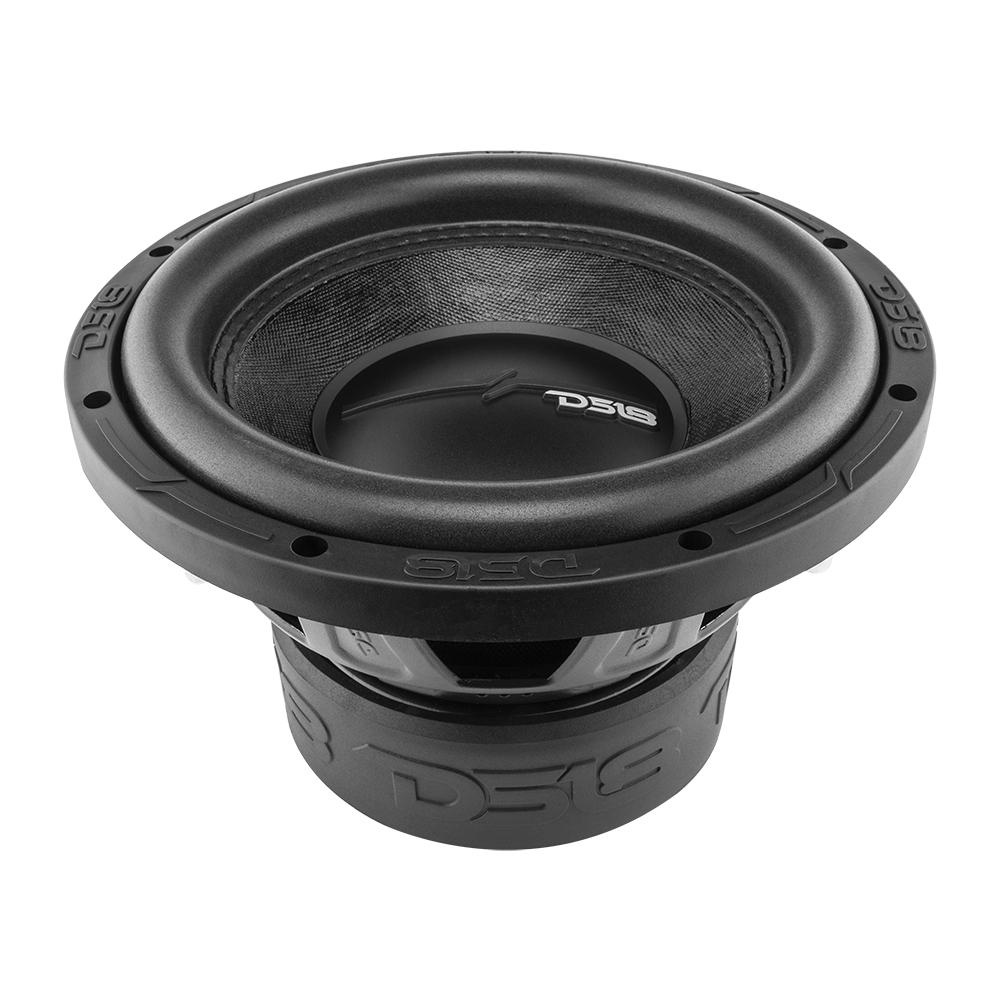

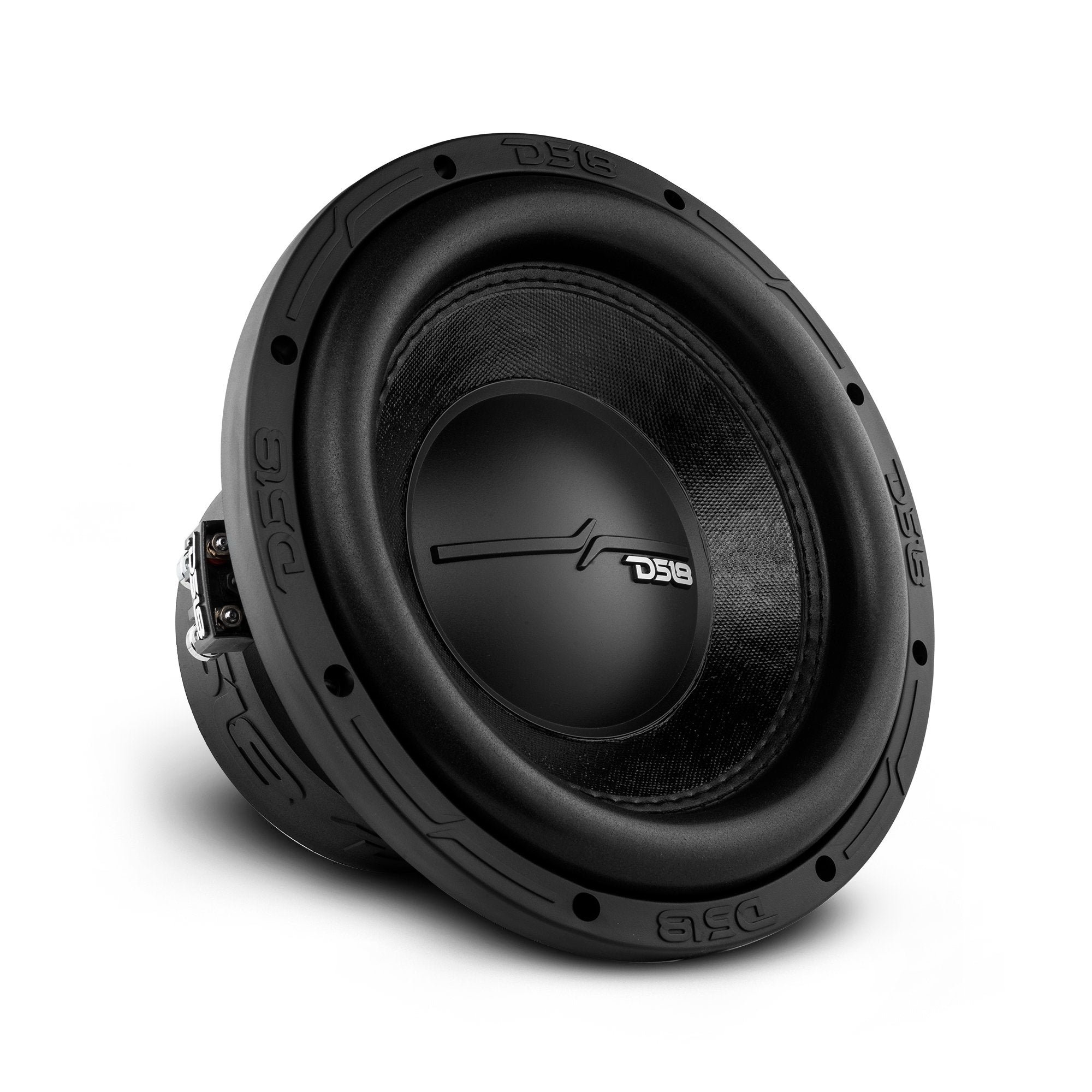

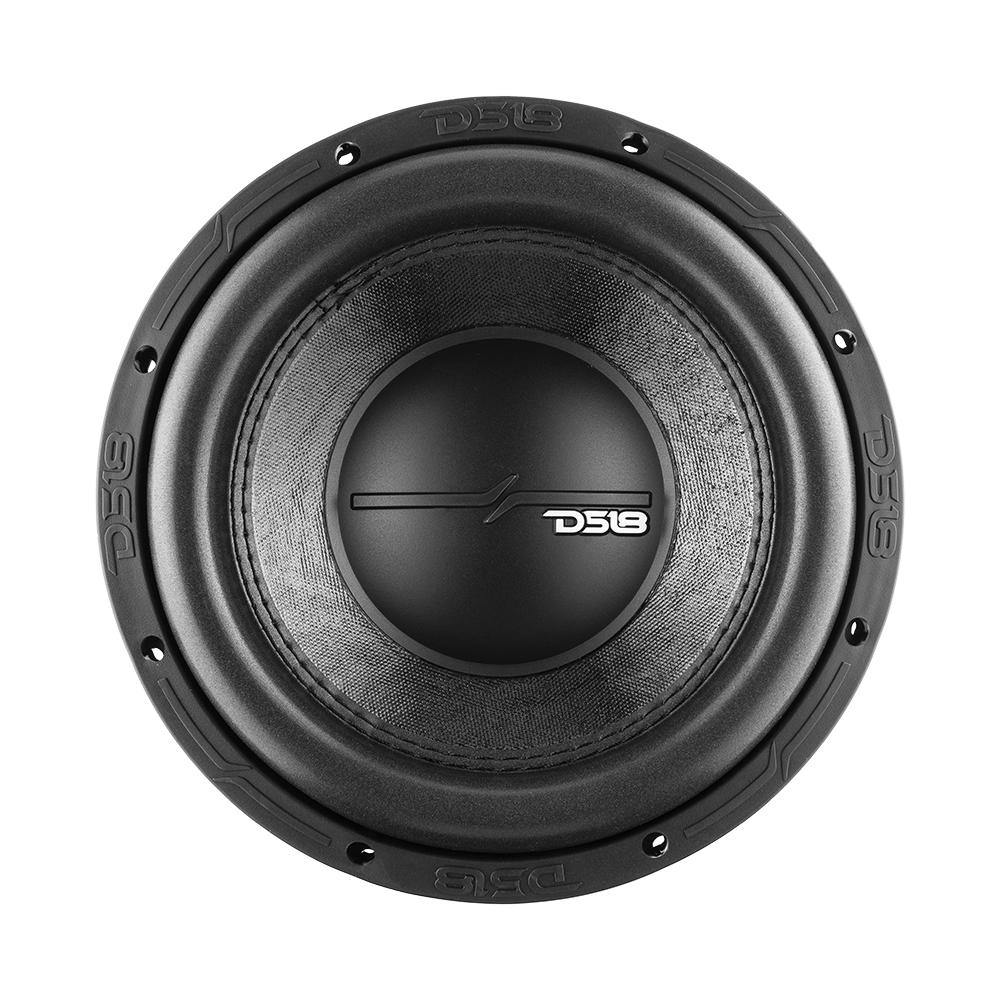

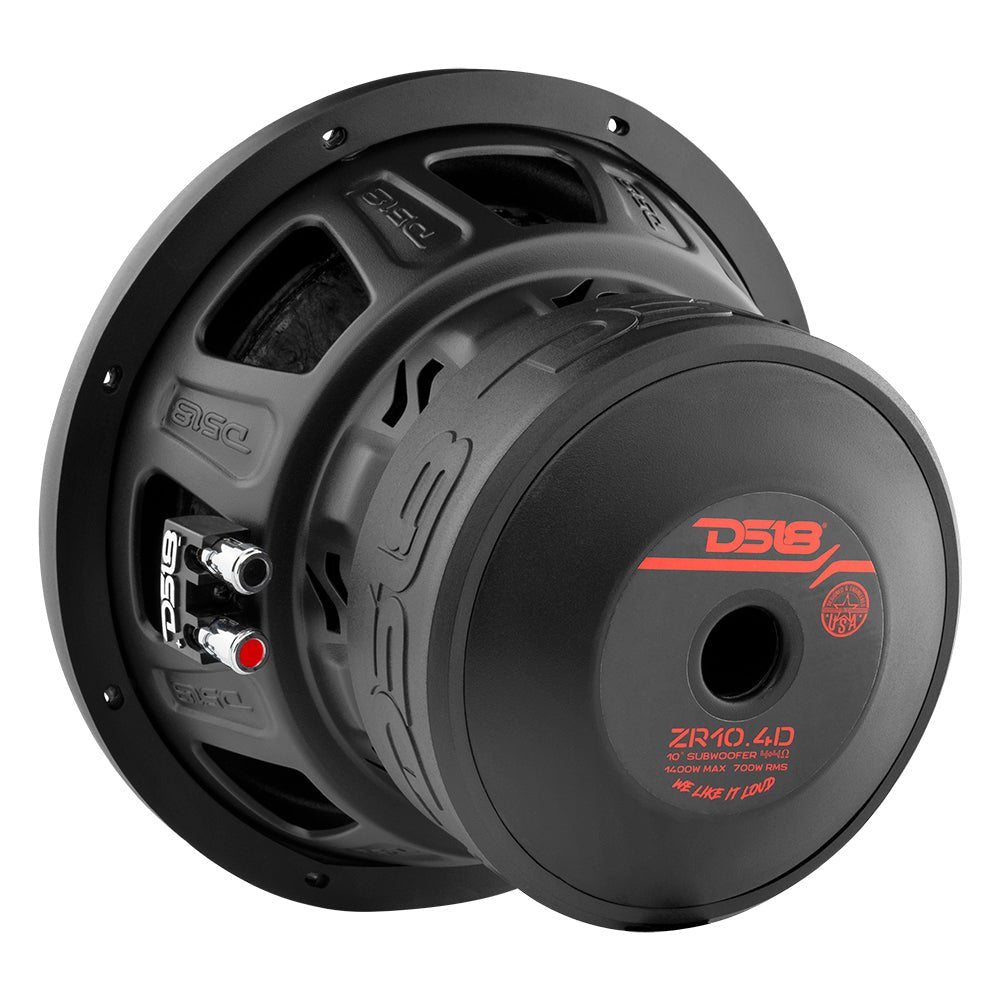

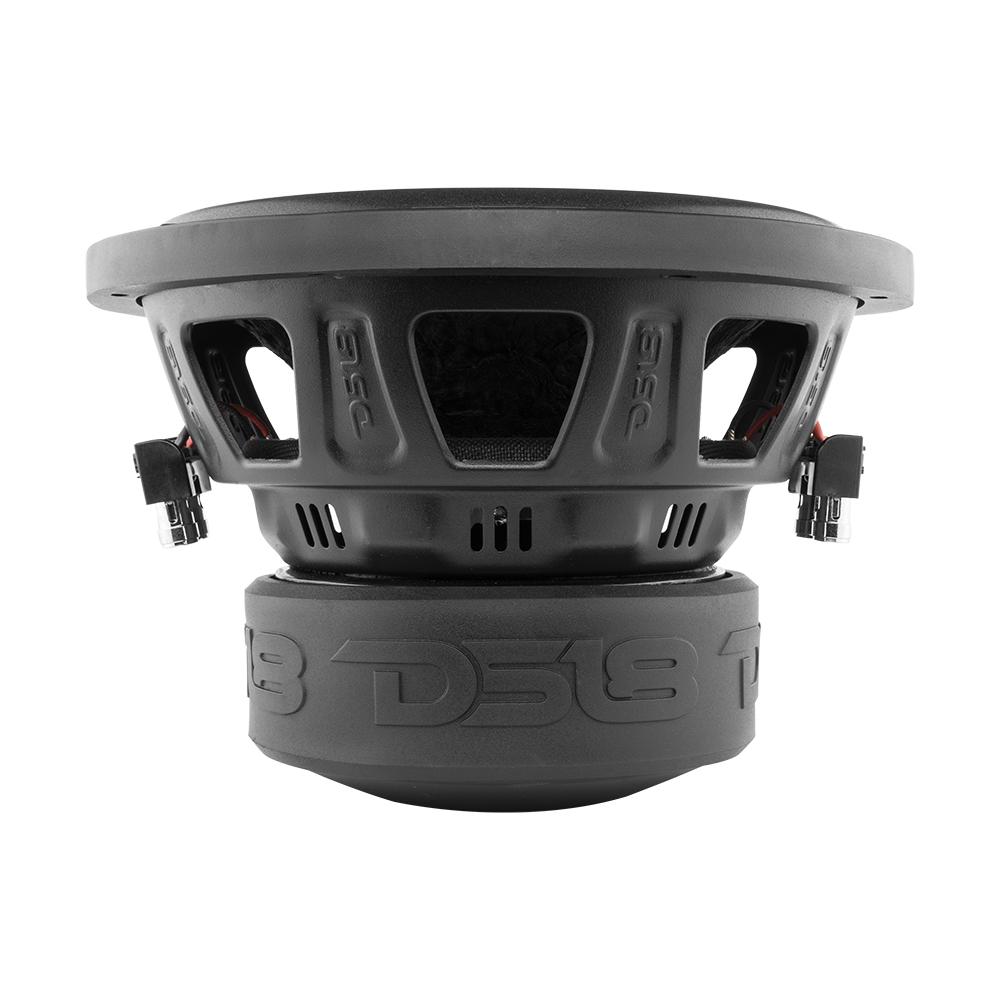

The DS18 ZR10.4D is a 10″ subwoofer with a 2.5″ dual 4 ohm voice coil. It handles 700 watts RMS (1,400 max) and plays from 27Hz to 200Hz.

It needs 6″ of mounting depth. Need dual 2 ohm? Use the ZR10.2D. Smaller box? See the ZR8.4D.

The ZR subline is an amazing entry level subwoofer that both handles great power and gives you smooth clean bass. These subs work great in both sealed and ported boxes giving you many options for placement in any vehicle.

This 10 inch model comes in both dual 2 and dual 4 ohms configurations giving you many options to perfectly match your amplifiers optimal impedance. This model comes with a 2.5 inch aluminum voice coil that handles 700w RMS and 1400w Max power. The large foam surround and pressed paper cone works greatly together to deliver smooth crisp bass that can be heard strongly throughout and outside the vehicle.

Highlights

Technical Details ZR10.4D Product Manual

Box Info

02 Tech specs

By the numbers

ZR10.4D · Manufacturer rated
RMS Power 01
700W
Continuous rating
Peak Power 02
1,400W
Short-burst rating
Sensitivity 03
81dB
Efficiency
Size 04
10in
Nominal

RMS Power
700 Watts RMS
Peak Power
1400 Watts Max
Impedance
4 Ohms
Nominal Impedance
4 + 4 Ohms
RMS Power Handling
700W
MAX Power Handling
1400W
Recommended Lo Pass Crossover
100 Hz

Frequency Response
27Hz – 200Hz
Sensitivity (1w/1m)
81 dB
Excursion (one way)
25mm
Free Air Resonance
37Hz
BL Factor
10.7
Efficiency Bandwidth Product
39.78

Voice Coil Diameter
2.5″ / 61.6mm
VC Former Material
Aluminum
Winding Material
Copper
Cone Material
Non Pressed Paper
Dust Cap Material
PPI
Surround Material
Foam
Basket Material
Steel
Basket Color/Finish
Matte Black
Magnet Material
Ferrite
Magnet Weight
100 oz
Voice Coil Inductance
823.5m mH
Cone Area
333.29 Cm2
Motor Diameter
6.1″ / 155mm

Size
10 inch
Mounting Depth
6″ / 152.3mm
Nominal Diameter
10″
Displacement Volume
0.05 ft3
Equivalent Volume
8.18 L
Overall Diameter
10.31” / 262mm
Overall Depth
6.92″ / 176mm
Front Mount Baffle Cutout
9″ / 229mm

Mechanical Factor
4.86
Electrical Factor
0.93
Total Factor
0.78
Moving Mass
216.3g
Compliance
52.8µ m/N
DC Resistance
3.4 + 3.4 ohm
