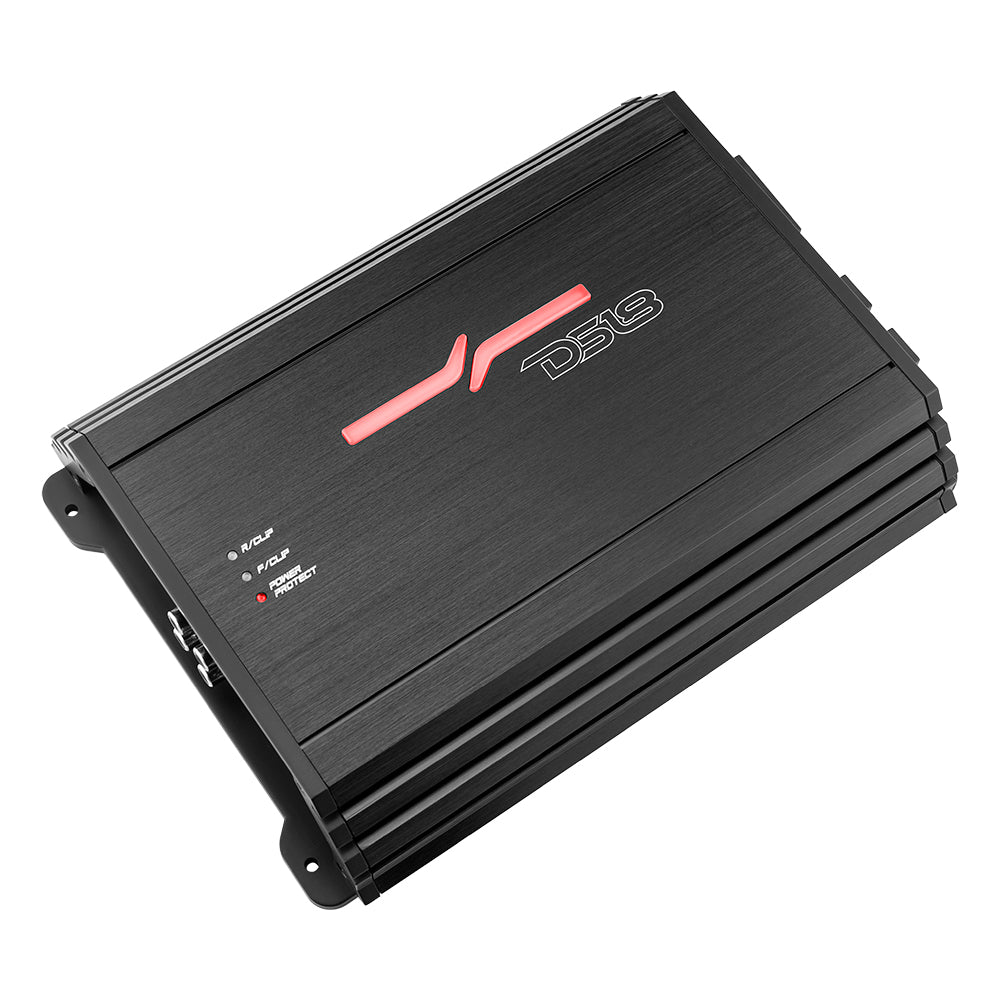

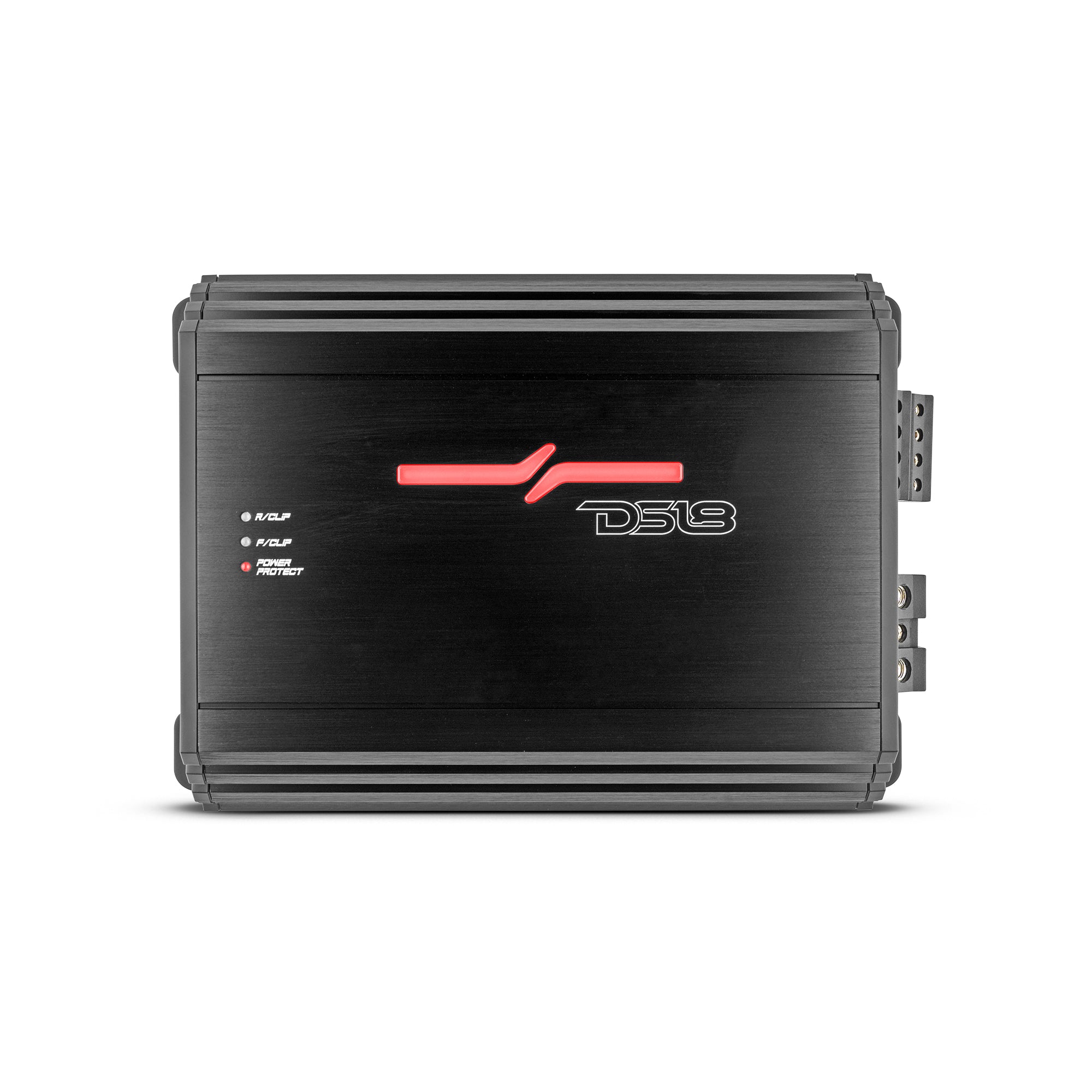

DS18 ZR600.4D ZR 4-Channel Class D Amplifier 4 x 150 Watts Rms @ 4-ohm

$299.95

Lease for as low as $13.56/week. Apply Now

RMS Power960W
Peak Power2,400W
Weight4.11lb
SKU: ZR600.4D Categories: , , , Brand:
01 Overview

The details

.woocommerce-tabs ul.wc-tabs{display:none}.woocommerce-Tabs-panel–description>h2:first-child{display:none}.woocommerce-Tabs-panel–description>p:empty{display:none}.dv8-brand{color:#e4321f}.dv8-spec{–r:#e4321f;–rd:#a3160b;–ink:#111114;–ink2:#4a4544;–line:#e5e0df;–wash:#faf8f8;background:#fff;color:var(–ink);line-height:1.62;max-width:100%}.dv8-spec *{box-sizing:border-box}.dv8-spec__mono{font-family:ui-monospace,SFMono-Regular,’SF Mono’,Menlo,Consolas,monospace;font-variant-numeric:tabular-nums;letter-spacing:-.01em}.dv8-spec__sec{border-top:1px solid var(–line)}.dv8-spec__sec:last-of-type{border-bottom:1px solid var(–line)}.dv8-spec__sum{display:flex;align-items:center;gap:14px;cursor:pointer;list-style:none;user-select:none;padding:16px 2px}.dv8-spec__sum::-webkit-details-marker{display:none}.dv8-spec__sum::marker{content:”}.dv8-spec__sum:focus-visible{outline:2px solid var(–r);outline-offset:3px}.dv8-spec__sum:hover .dv8-spec__t{color:var(–rd)}.dv8-spec__t{font-size:12px;font-weight:800;letter-spacing:.15em;text-transform:uppercase;color:var(–r);transition:color .15s}.dv8-spec__lead{flex:1 1 auto;min-width:18px;border-bottom:1px dotted #bdb6b5;transform:translateY(-2px)}.dv8-spec__sign{flex:none;width:22px;height:22px;display:grid;place-items:center;font-size:17px;line-height:1;color:var(–r);transition:transform .2s ease}.dv8-spec__sign::after{content:’+’}.dv8-spec__sec[open] .dv8-spec__sign{transform:rotate(135deg)}.dv8-spec__body{padding:2px 2px 22px}.dv8-spec__lede{margin:0 0 13px;font-size:15.5px;color:var(–ink2);max-width:68ch}.dv8-spec__lede:last-child{margin-bottom:0}.dv8-spec__lede b,.dv8-spec__lede strong{color:var(–ink);font-weight:700}.dv8-spec__lede a{color:var(–r);text-decoration:underline;text-underline-offset:2px}.dv8-spec__feats{list-style:none;margin:0;padding:0;display:grid;gap:1px;background:var(–line);border:1px solid var(–line)}.dv8-spec__feat{background:#fff;padding:14px 18px;transition:background .18s,box-shadow .18s}.dv8-spec__feat:hover{background:var(–wash);box-shadow:inset 3px 0 0 var(–r)}.dv8-spec__feat b{display:block;font-size:13px;font-weight:750;margin-bottom:3px}.dv8-spec__feat span{font-size:14px;color:var(–ink2)}.dv8-spec__tw{overflow-x:auto;-webkit-overflow-scrolling:touch}.dv8-spec__table{width:100%;border-collapse:collapse;font-size:14px;min-width:380px}.dv8-spec__table thead th{background:linear-gradient(180deg,var(–r),var(–rd));color:#fff;text-align:left;padding:11px 18px;font-size:10.5px;font-weight:800;letter-spacing:.14em;text-transform:uppercase;white-space:nowrap;border:none}.dv8-spec__table tbody tr{border-bottom:1px solid var(–line);transition:background .16s,color .16s,transform .16s,box-shadow .16s}.dv8-spec__table tbody tr:nth-child(even){background:var(–wash)}.dv8-spec__table tbody tr:hover{background:linear-gradient(90deg,var(–r),var(–rd));color:#fff;transform:scale(1.012);box-shadow:0 4px 14px rgba(228,50,31,.32);position:relative;z-index:1}.dv8-spec__table tbody tr:hover td{color:#fff}.dv8-spec__table td{padding:10px 18px;vertical-align:top;border:none}.dv8-spec__k{font-weight:650;width:46%}.dv8-spec__v{font-size:13px;color:var(–ink2)}.dv8-spec__sls{list-style:none;margin:12px 0 0;padding:0;display:grid;gap:1px;background:var(–line);border:1px solid var(–line)}.dv8-spec__sl{background:#fff;padding:11px 18px;font-size:13.5px;transition:background .18s,box-shadow .18s}.dv8-spec__sl:hover{background:var(–wash);box-shadow:inset 3px 0 0 var(–r)}.dv8-spec__fits{list-style:none;margin:0;padding:0;display:grid;gap:10px}.dv8-spec__fit{border:1px solid var(–line);border-left:3px solid var(–r);padding:13px 17px;transition:background .18s}.dv8-spec__fit:hover{background:var(–wash)}.dv8-spec__fit b{display:block;font-size:13px;font-weight:750;margin-bottom:3px}.dv8-spec__fit span{font-size:14px;color:var(–ink2)}.dv8-spec__tip{margin:22px 0 0;background:#111114;color:#f0eeed;padding:18px 22px;border-left:4px solid var(–r)}.dv8-spec__tip b{display:block;font-size:10.5px;font-weight:800;letter-spacing:.15em;text-transform:uppercase;color:#ff6a53;margin-bottom:6px}.dv8-spec__tip span{font-size:14.5px}@media (max-width:560px){.dv8-spec__table tbody tr:hover{transform:none}.dv8-spec__table td{padding:9px 13px}}@media (prefers-reduced-motion:reduce){.dv8-spec *{transition:none!important}.dv8-spec__table tbody tr:hover{transform:none}}

Product Overview

DS18’s ZR series of amplifiers are guaranteed to supercharge your sound system to deliver brilliant sound and bulky bass frequencies.

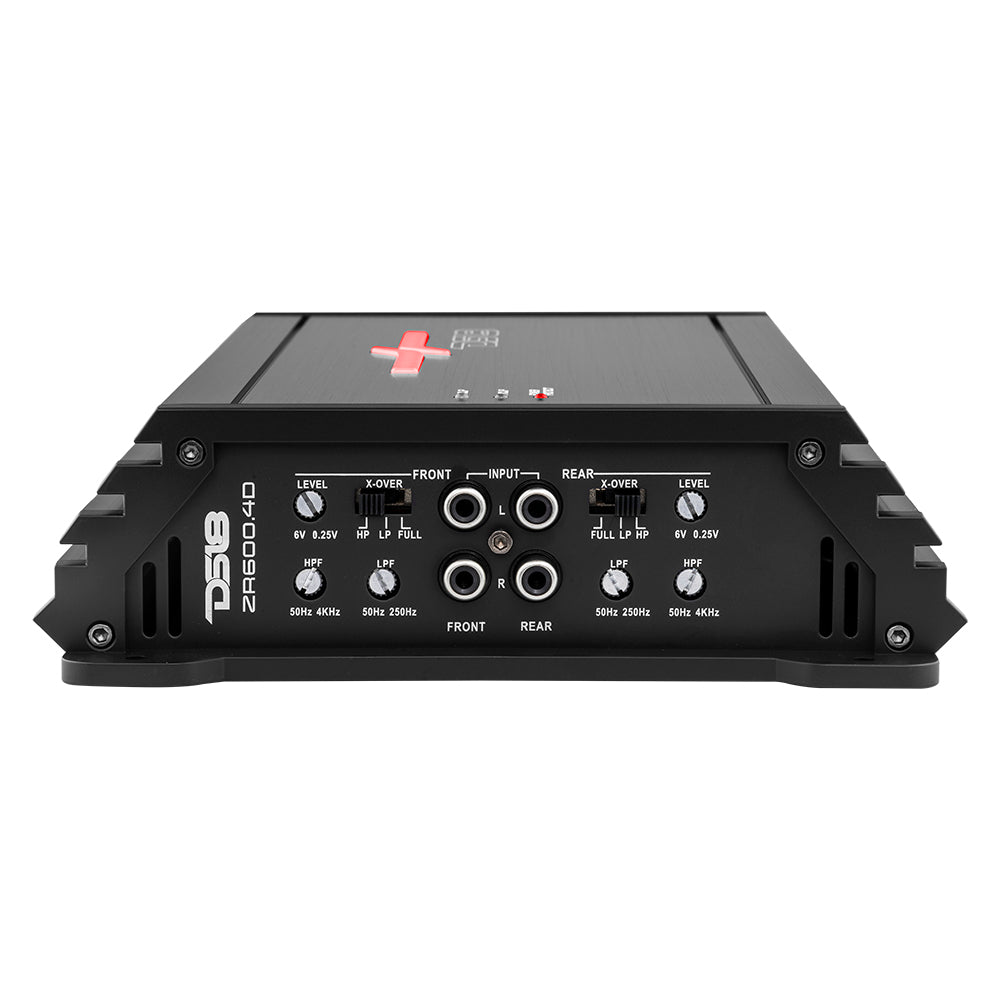

The ZR series was designed to pump up the bass and help your speakers reach their maximum potential as a part of your sound system. The ZR600.4D offers a surplus of tuning options: Low pass, High pass, and Full Frequency Selector Switches, as well as Gain Knob to help tune any song to your frequency.

The ZR600.4D is made to deliver 2 x 400W RMS @ 4-Ohms Bridge, 4 x 240W RMS @ 2-Ohms, and 4 x 150W RMS @ 4-Ohms giving you the perfect power for your bass.

Key Features

Great for

Technical Details ZR600.4D Product Manual

02 Tech specs

By the numbers

ZR600.4D · Manufacturer rated
RMS Power 01
960W
Continuous rating
Peak Power 02
2,400W
Short-burst rating
Weight 03
4.11lb
Per unit

Channels
4 Channel
Amplifier Class
Digital
RMS Power
960W (4 x 240W @ 2 ohm)
Impedance
4 Ohms
Total Watts (Peak)
2400W
RMS Power @ 4 ohm
4 x 150W
RMS Power @ 2 ohm
4 x 240W
RMS Power @ 4 ohm Bridge
2 x 400W
Damping Factor
160
Input Impedance
20K ohm
Channel Separation
60dB
Low Level Input Range
0.2-6V
High Level Input
No
X-Over Filter Range
40Hz-4KHz
Bass Boost Range
No
Infrasonic Filter
No
Number of Channels
4
Minimum Impedance
2 ohm (Stereo) / 4 ohm (Bridge)

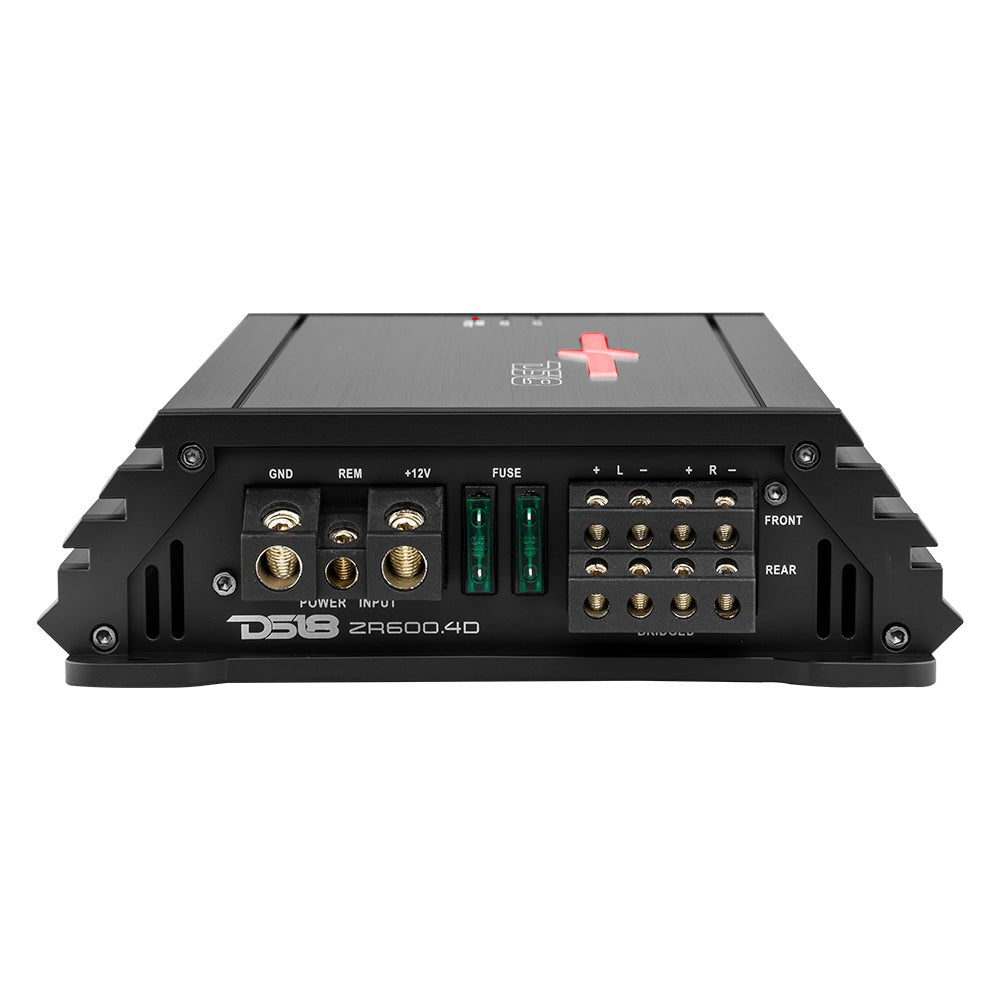

Power Input Terminal Size
4ga
Fuse Size
2*30A
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes 16 Volts

Frequency Response
20Hz-20KHz
Efficiency @ 4ohm
90%
Total Harmonic Distortion (THD)
1.00%
Bass Boost Frequency
N/A

Body Color / Finish
Black Aluminum Brush

Overall Length
10″ / 254mm
Overall Height
2″ / 53mm
Heatsink Length
8.54″ / 217mm
Gross Single Unit Weight
4.11Lb

Signal to Noise Ratio
>90dB
Selectable X-Over
FULL/LPF/HPF
Phase Selector
No
FEATURES
Description / Type
Amplifier Type
Stereo Full Range
Led Indicator
clipping/protect/power
Remote Level Control
No
Cooling Fan
No
Voltmeter
No
Thermal Protection
Yes
Over-Load Protection
Yes
Clipping Protection
Yes
Overall Wide
7.24″ / 184mm
