DS18 ZXI-354 ZXI 3.5″ Full-Range Speakers with Kevlar Cone | 40 Watts RMS 4-Ohm
$59.95
The details
Product Overview
Why we stock the DS18 ZXI-354

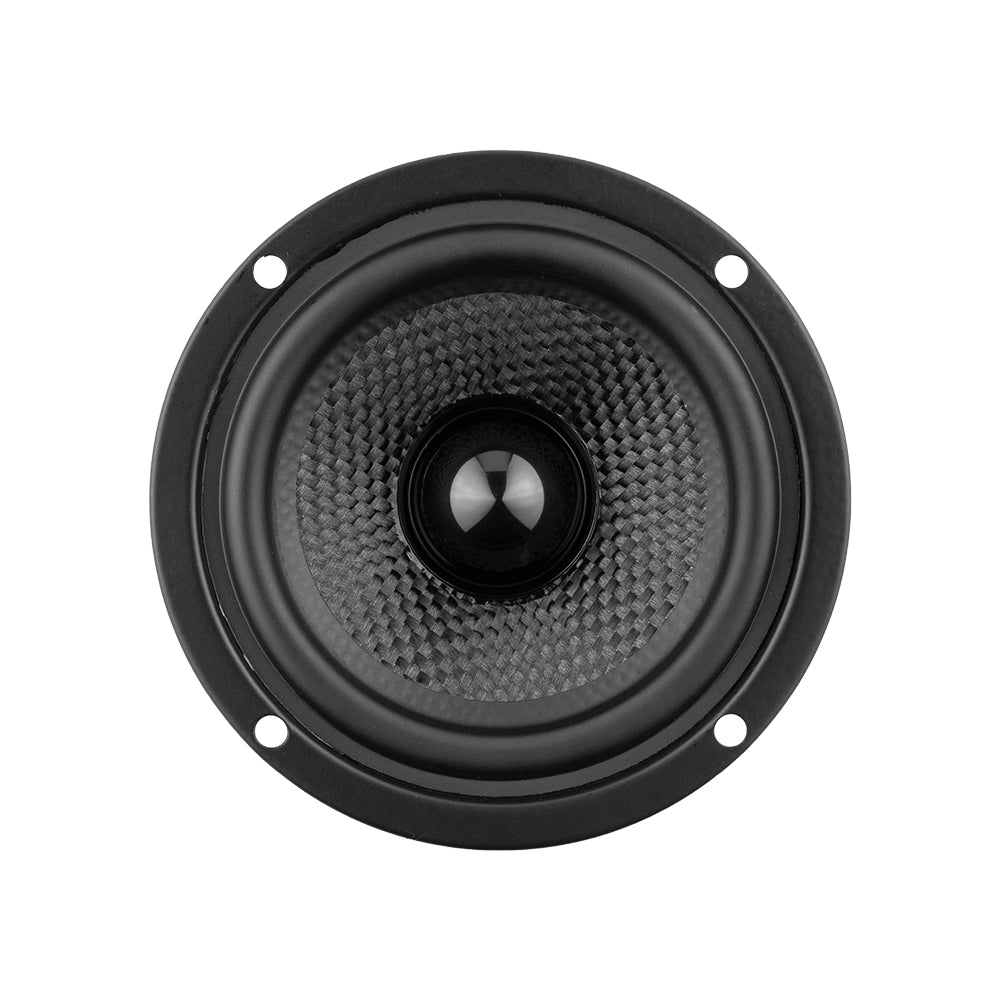

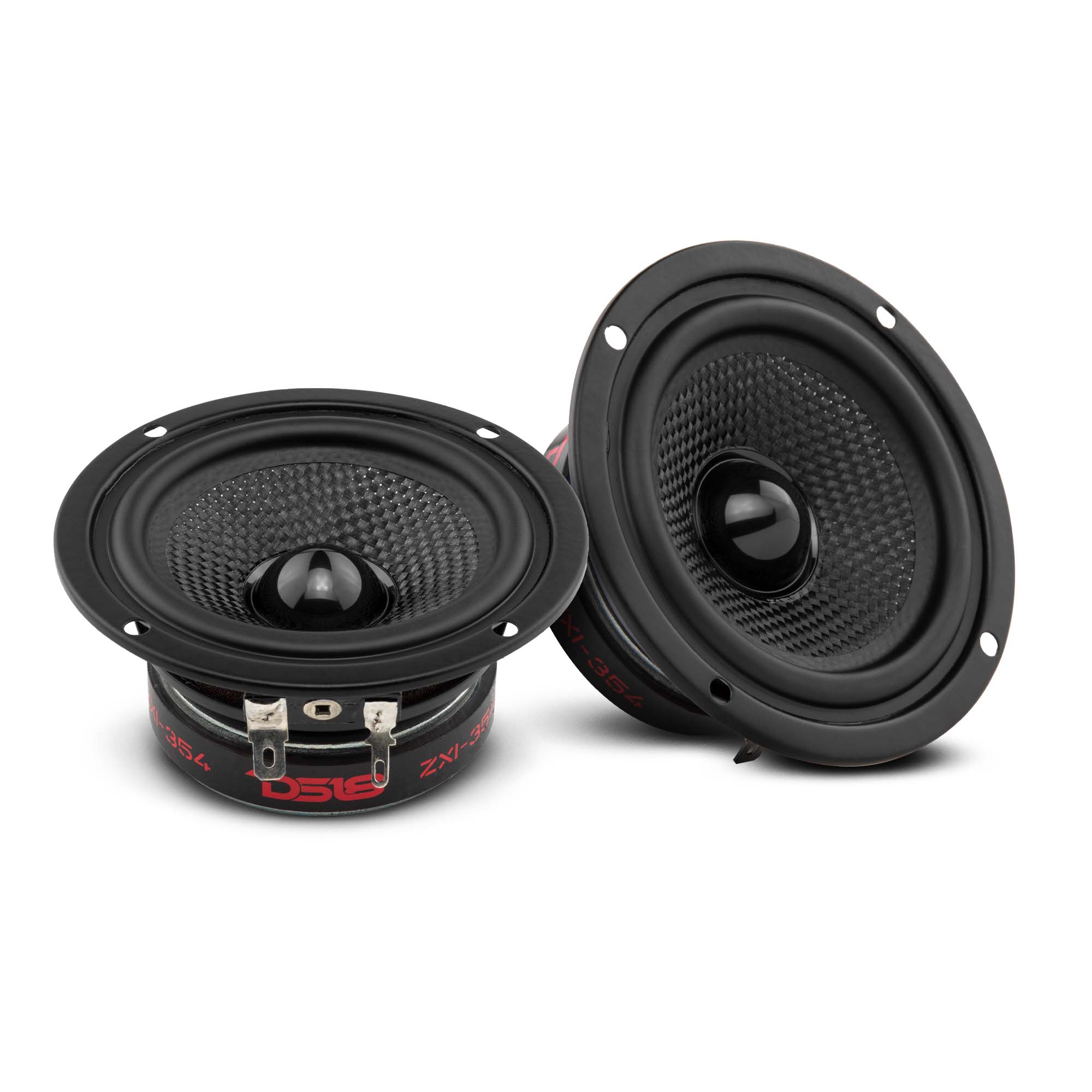

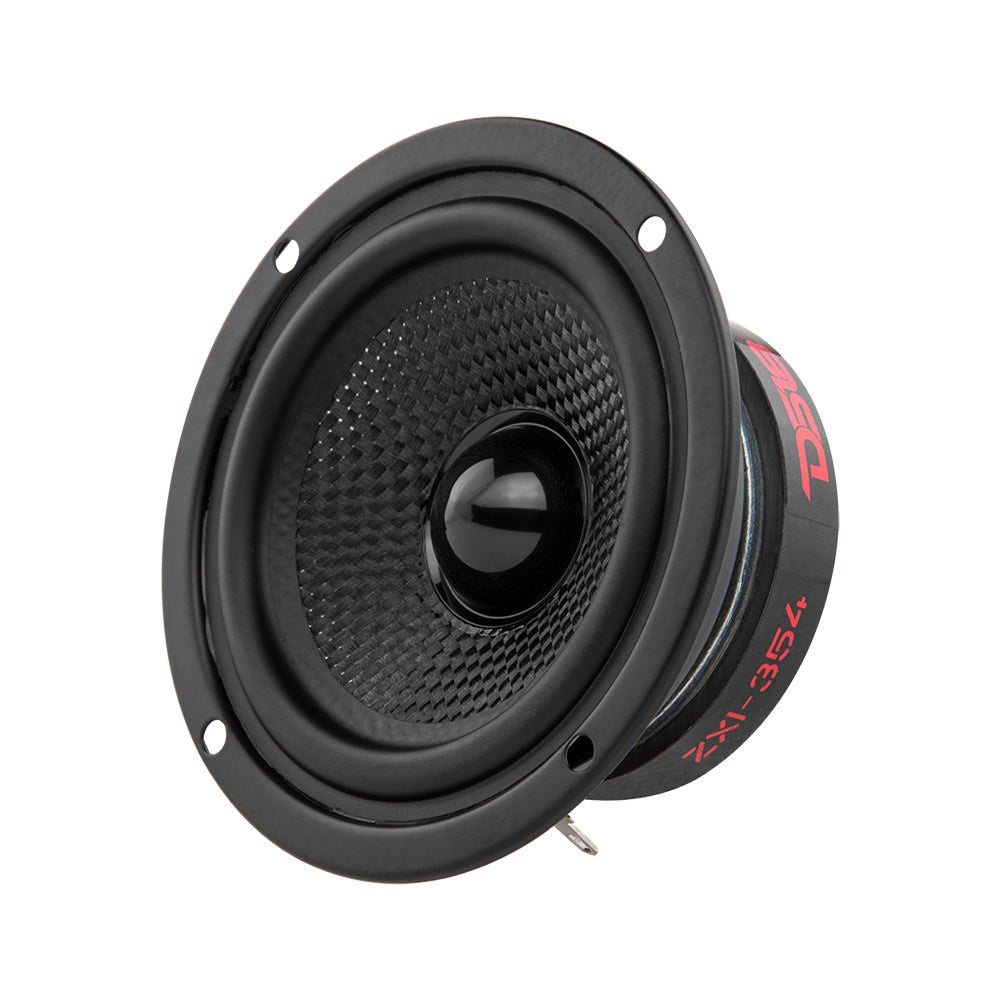

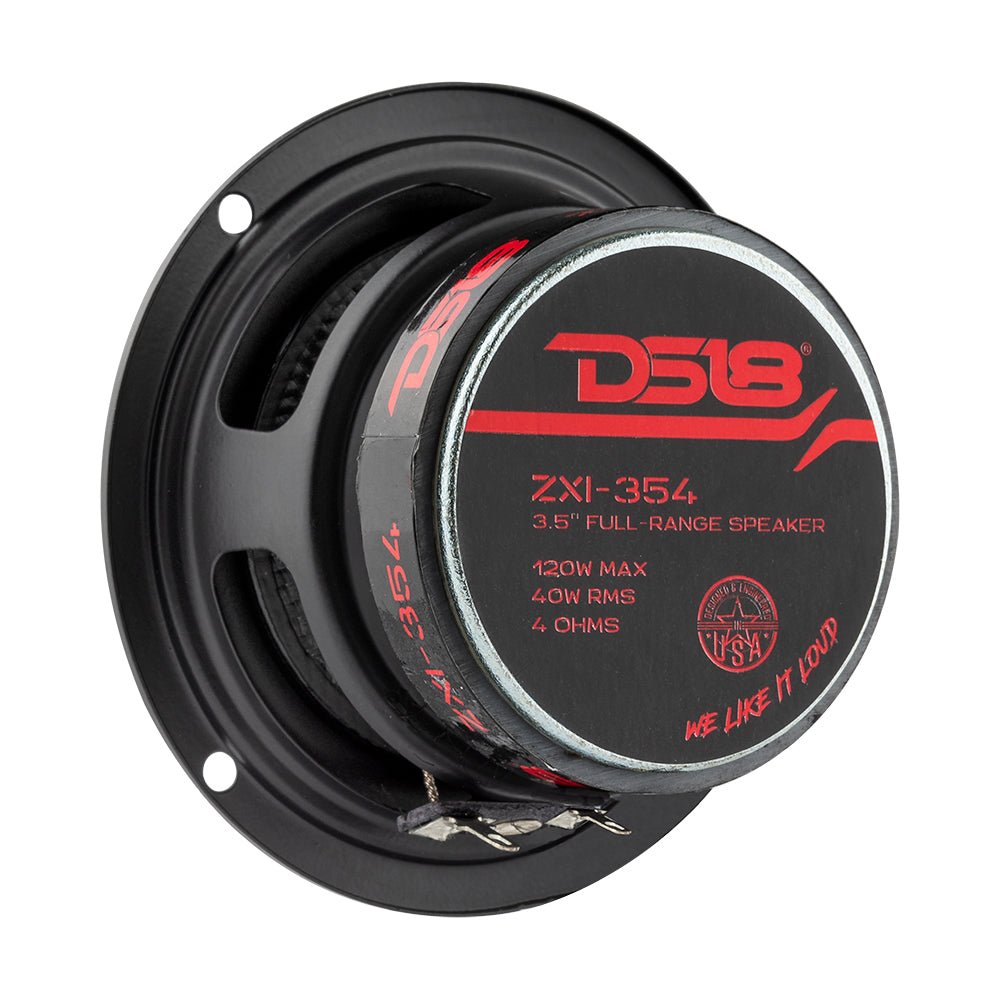

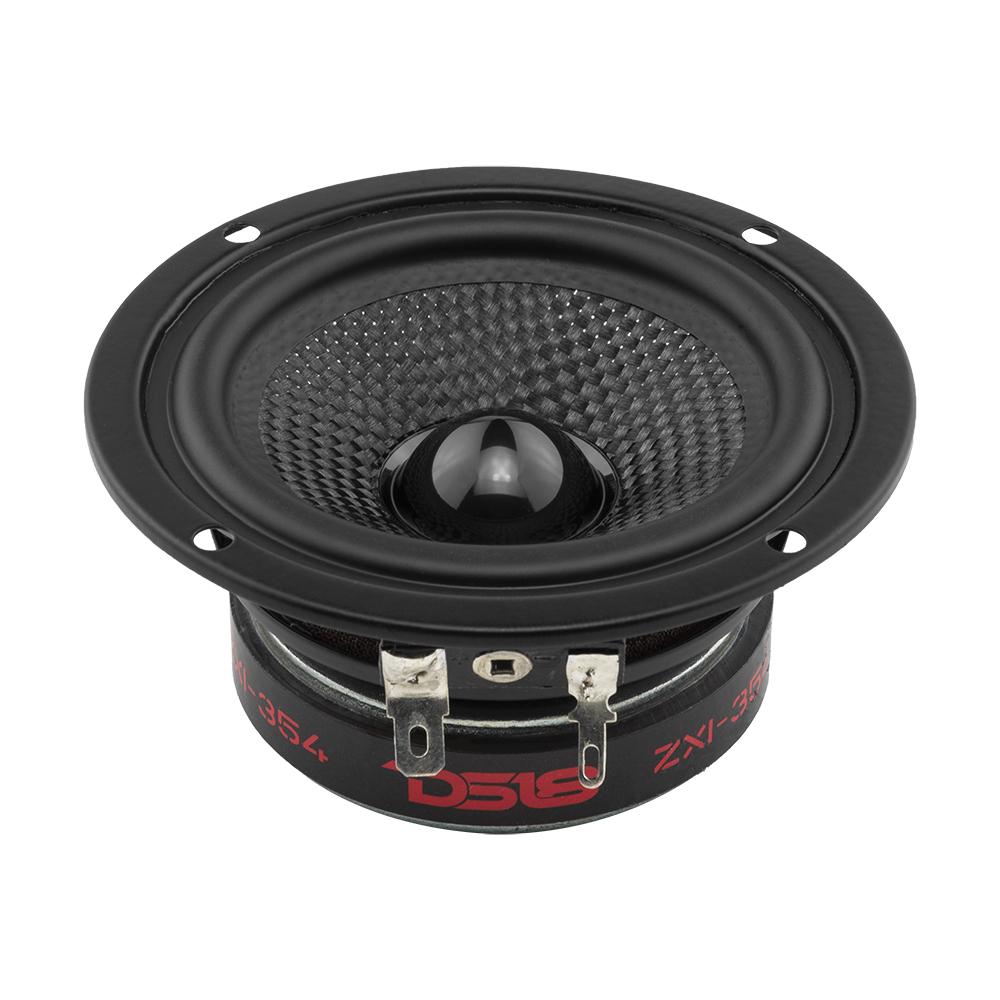

The DS18 ZXI-354 is a pair of 3.5″ full-range speakers with Kevlar cones. They handle 40 watts RMS (120 max) at 4 ohms with 86 dB sensitivity and play from 120Hz to 20kHz from a single cone.
They’re a simple replacement for factory dash and center channel speakers. Want a separate tweeter for more sparkle? Look at the ZXI-3542 coaxial.
The ZXI series is the go to DS18 line for great sounding audio that not only has very high volume, but also amazing sound quality for an amazing price.
The ZXI- 354 is 3.5″, 4 ohms coaxial speaker designed for mid tier audio enthusiasts to the extreme as they have an amazing range of frequencies and loudness.
The 1 – way design will ensure that you receive a full range of frequencies for an audio experience that you will truly remember.
Highlights
Technical Details
Download ZXI-354 Product Manual
By the numbers
- RMS Power
- 40 Watts RMS
- Impedance
- 4 Ohms
- Nominal Impedance
- 4 ohms
- RMS Power Handling
- 40W
- MAX Power Handling
- 120W
- Recommended HI Pass Crossover
- 140Hz
- Frequency Response
- 120Hz-20KHz
- Sensitivity (1w/1m)
- 86dB
- Excursion (one way)
- 1.4mm
- Free Air Resonance
- 140Hz
- BL Factor
- 2.938
- Voice Coil Diameter
- 1” / 25.5mm
- Voice Coil Former Material
- KSV
- Winding Material
- EISV
- Cone Material
- Glass fiber
- Surround Material
- Rubber
- Basket Material
- Steel
- Magnet Material.
- Barium Ferrite
- Magnet Weight
- 10.9 oz / 310g
- Cone Area
- 32cm2
- Motor Diameter
- 2.36” / 60mm
- Size
- 3.5 inch
- Nominal Diameter
- 3.5”
- Equivalent Volume
- 0.55L
- Overall Diameter
- 3.50” / 89mm
- Overall Depth
- 1.65” / 42mm
- Front Mount Baffle Cutout
- 2.80” / 71mm
- Mouting Depth
- 1.49” / 37.8mm
- Mechanical Factor
- 7.08
- Electrical Factor
- 1.37
- Total Factor
- 1.15
- Mechanical Mass
- 3.2g
- Mechanical Compliance
- 402mm/N
- DC Resistance
- 4.2 ohm
- Mechanical Mass w/o air
- 3.0g
