Description
Product Overview

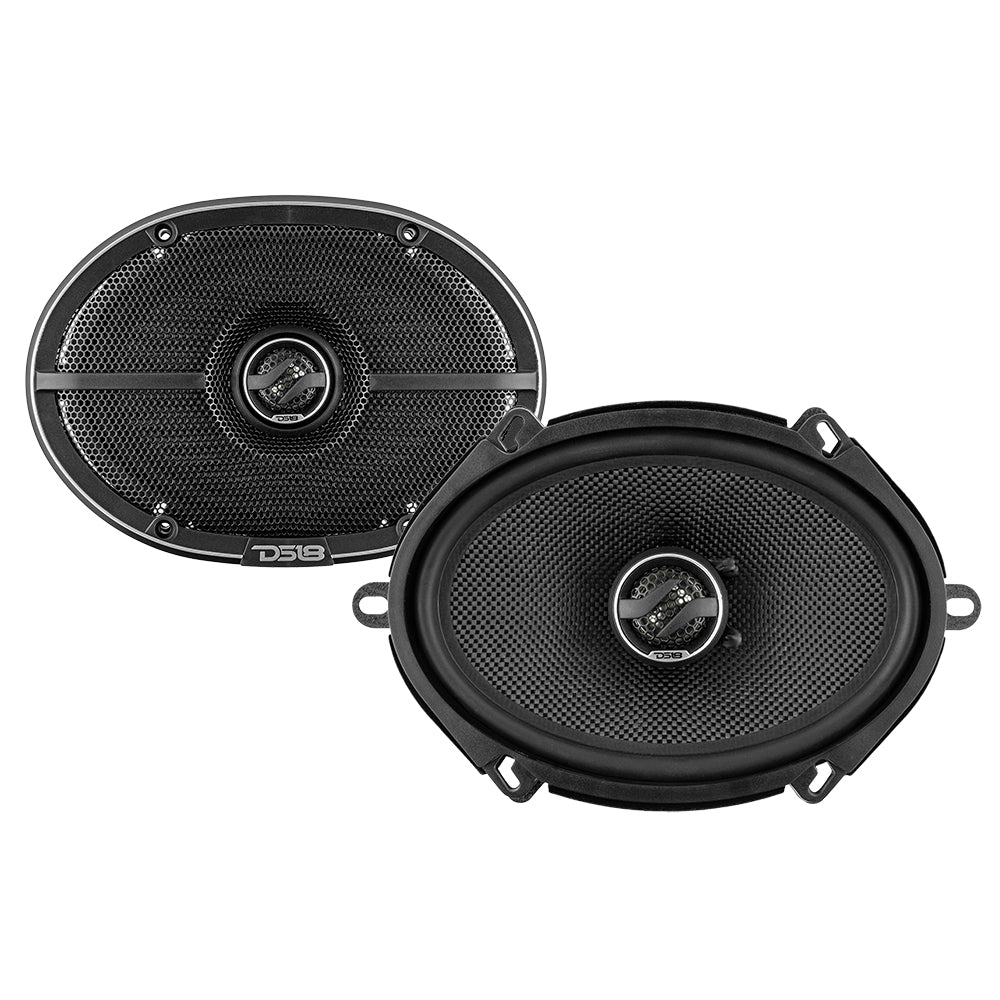

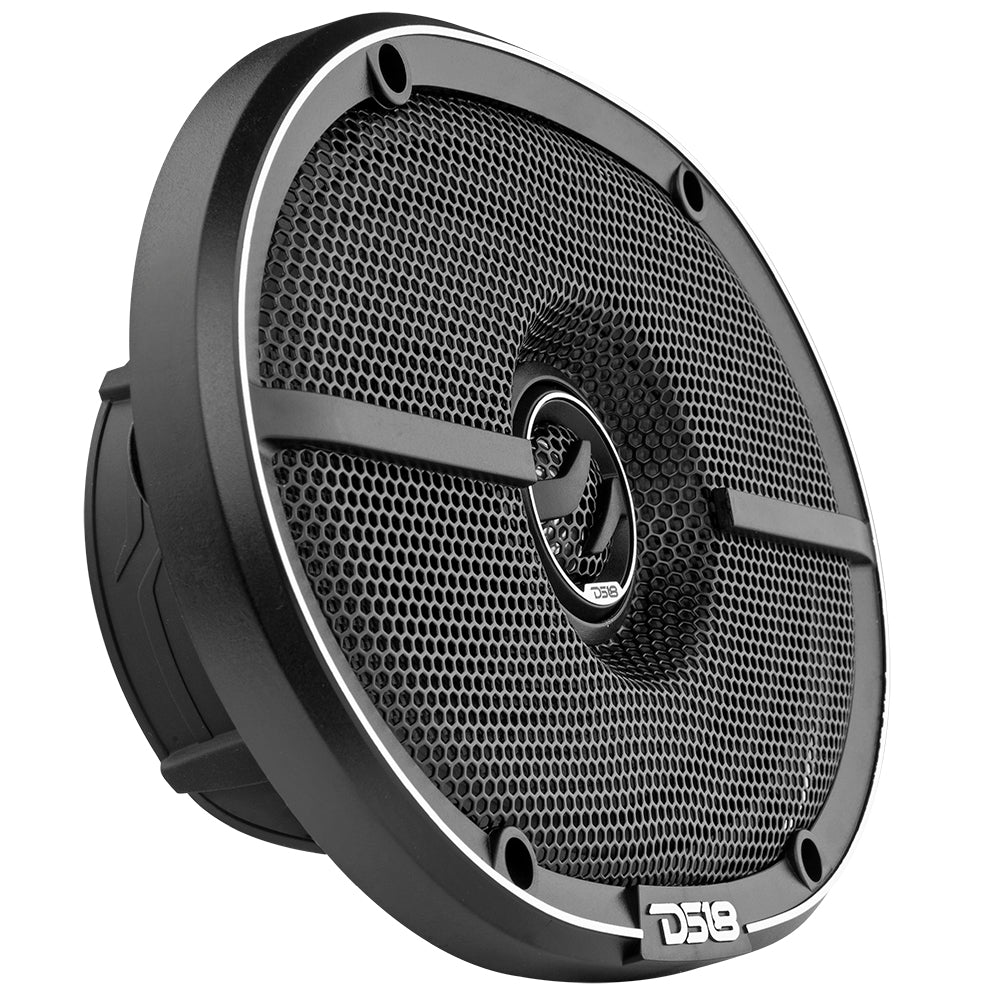

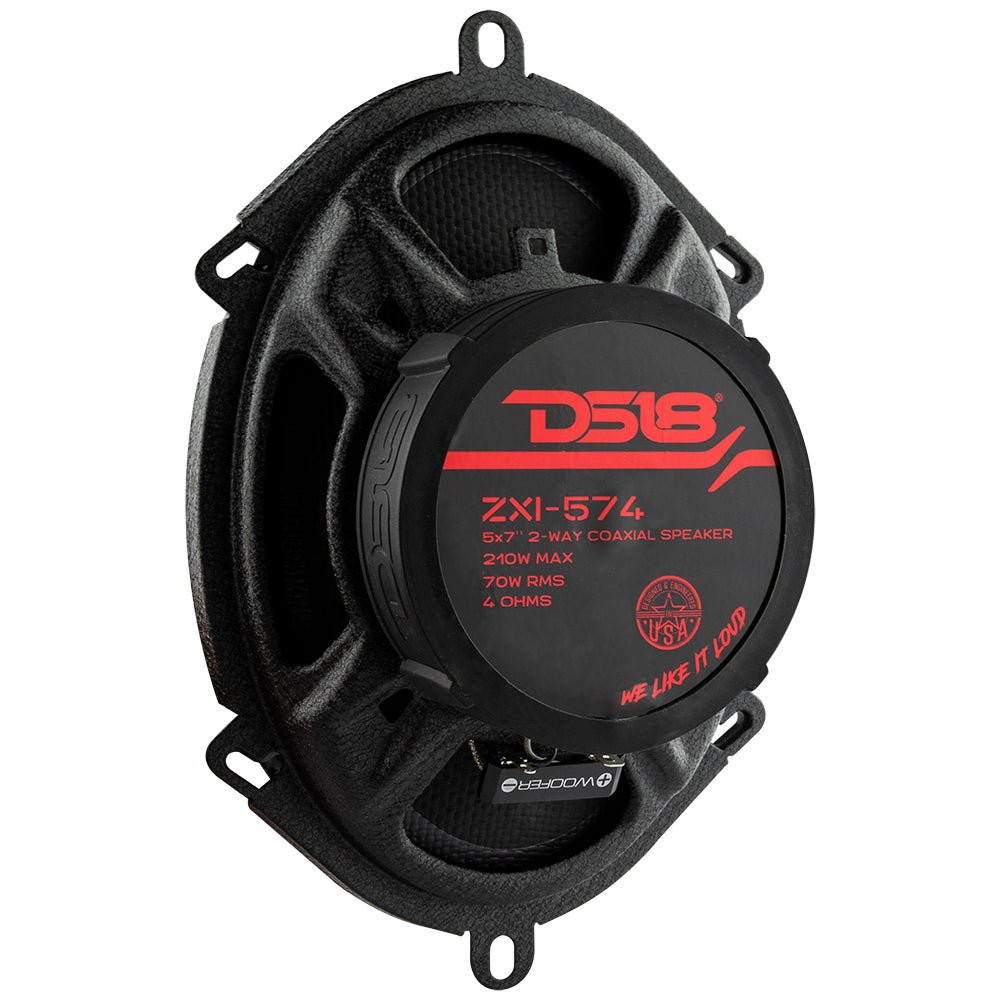

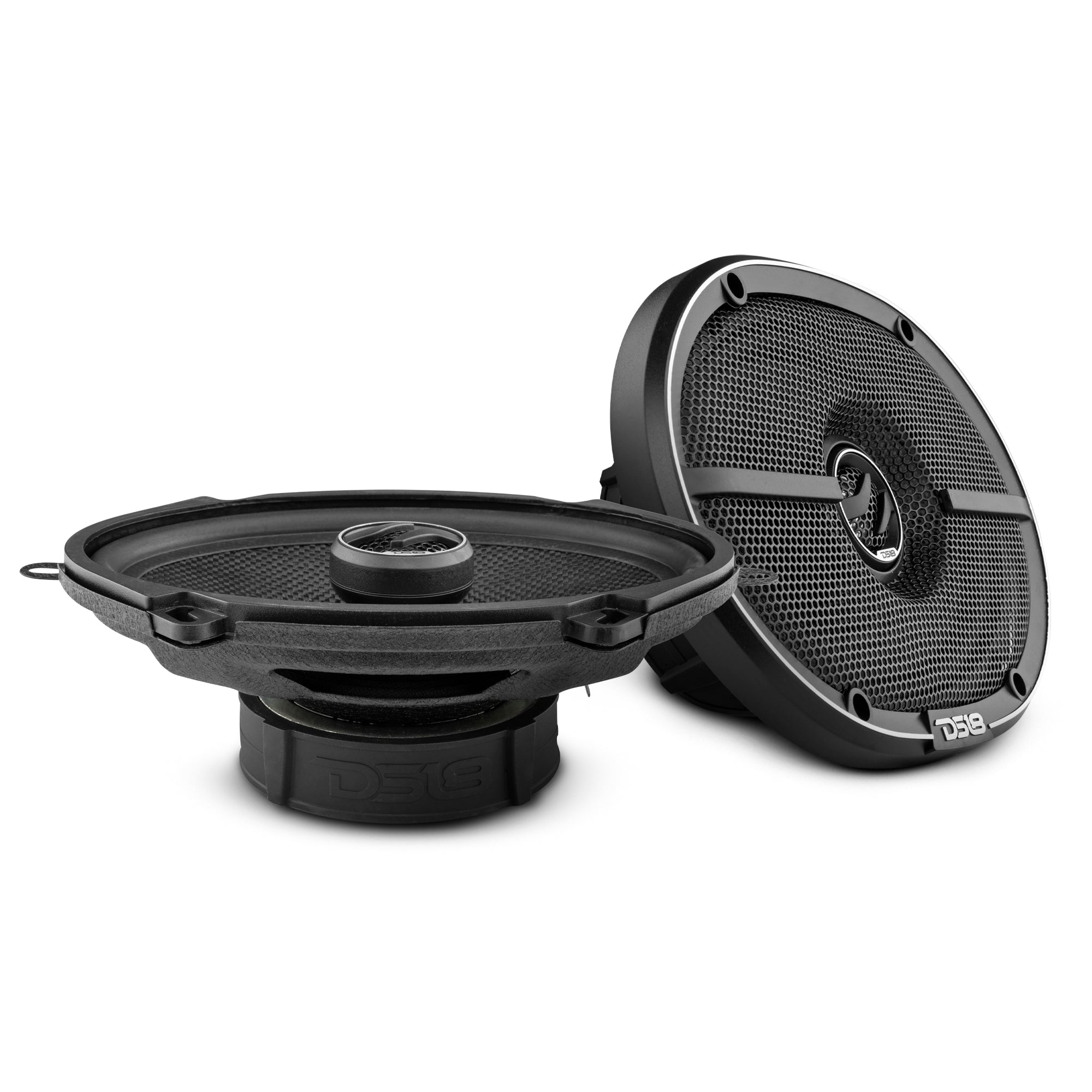

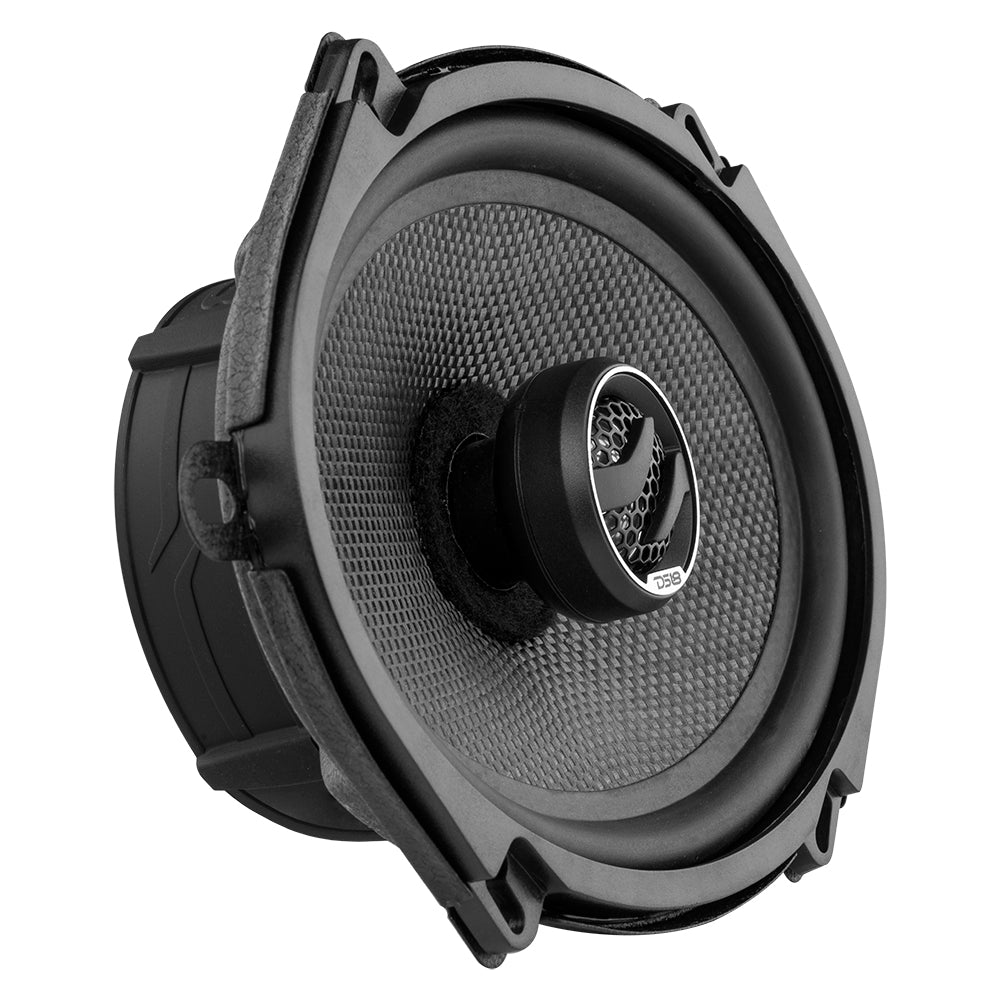

DS18’s ZXI line is both highly innovative and intuitive making it a very versatile audio line that will bring you loud and clear music on demand. This 2 – way 5×7″ takes 70w RMS and 210w Max watts and with a 91dB sensitivity rating, you don’t need a lot of power to bring these very loud speakers to extremely high volumes. These speakers are an amazing choice for your average every day to extreme audiophile!
Highlights
Technical Details Download ZXI-574 Product Manual
Technical Data
| Specification | Details |
|---|---|
| RMS Power | 70 Watts RMS |
| Peak Power | 210 Watts Max |
| Impedance | 4 Ohms |
| Sensitivity | 91 dB |
| Frequency Response | 40Hz-20KHz |
| Nominal Diameter | 1″ / 25.4mm |
| Nominal Impedance | 4 ohms |
| RMS Power Handling | 70 Watts |
| MAX Power Handling | 210 Watts |
| Sensitivity (1w/1m) | 91dB |
| Recommended HI Pass Crossover | 60Hz |
| Speaker Type | 2-Way |
| Voice Coil Diameter | 0.8″/ ø20.4mm |
| Voice Coil Former Material | KSV |
| Winding Material | EISVM |
| Cone Material | Glass fiber |
| Surround Material | Rubber |
| Basket Material | Steel |
| Magnet Material | Neodymium |
| Magnet Weight | 0.3 oz / 8.5g |
| Diaphragm Material | PEI |
| Equivalent Volume | 8.6L |
| Excursion (one way) | 2.7mm |
| Free Air Resonance | 68Hz |
| Mechanical Factor | 7.04 |
| Electrical Factor | 1.28 |
| Total Factor | 1.08 |
| Mechanical Mass | 16.1g |
| Mechanical Compliance | 258.7mm/N |
| BL Factor | 4.6 |
| Voice Coil Inductance | 228mH |
| Cone Area | 153.5cm2 |
| DC Resistance | 3.5 ohm |
| Mechanical Mass w/o air | 14g |
| Overall Diameter | 5.55×7.60” / 141x193mm |
| Overall Depth | 3.07″ / 78mm |
| Front Mount Baffle Cutout | 4.92×7.07”/ 125×179.5mm |
| Mouting Depth | 2.22” / 56.5mm |
| Motor Diameter | 3.70” / 94mm |
