Product Overview
Why we stock the DS18 ZXI-62C

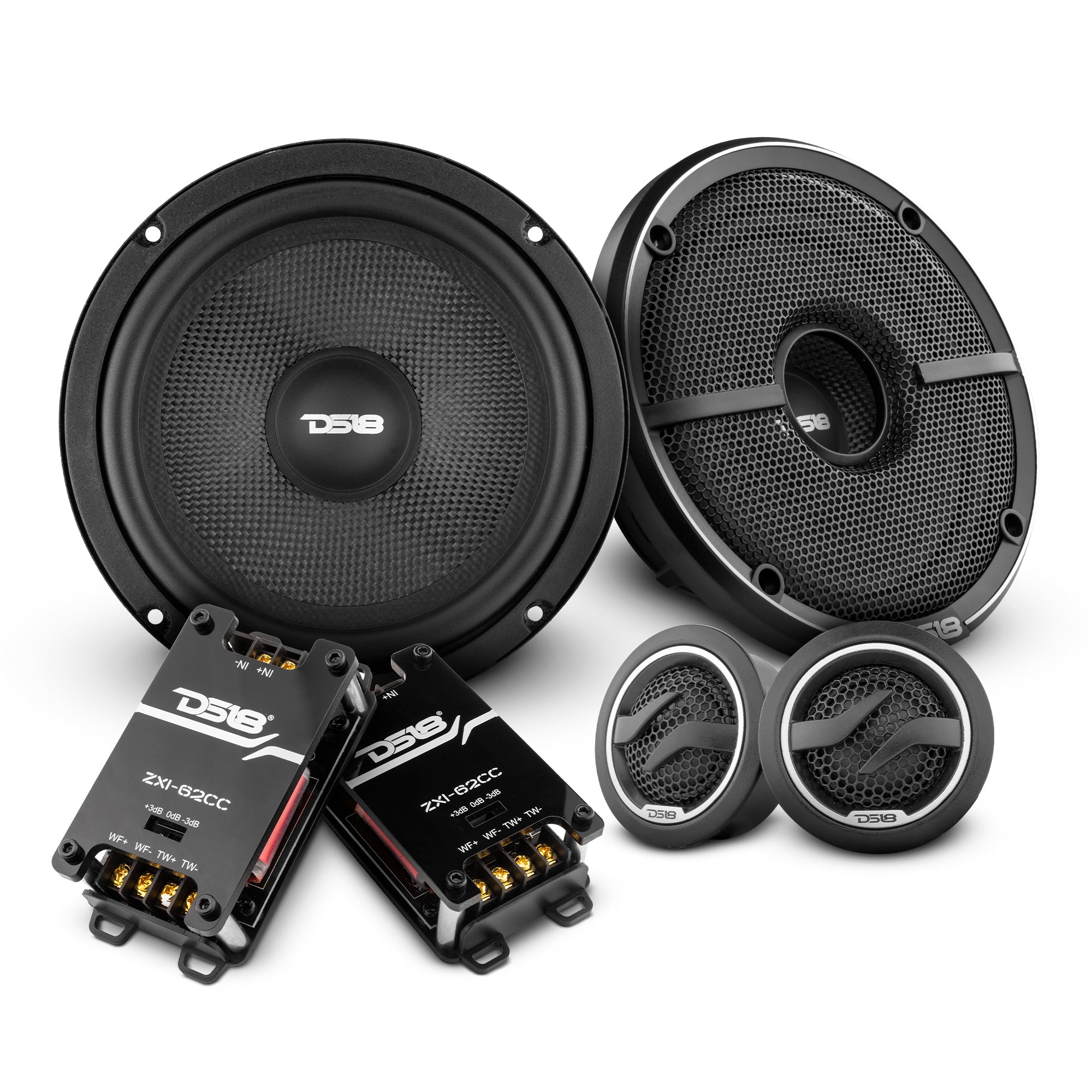

The DS18 ZXI-62C is a 6.5″ 2-way component set with Kevlar-cone woofers and separate tweeters. It handles 240 watts max at 4 ohms with 88 dB sensitivity and plays from 40Hz to 20kHz, and the tweeters can mount in the grille or on their own.
Separate tweeters let you aim the highs for better imaging than a coaxial. Want a simpler swap? The ZXI-654 coaxials fit the same openings. Need more power? Step up to the DXQ component sets.
DS18’s ZXI line is both highly innovative and intuitive making it a very versatile audio line that will bring you loud and clear music on demand. This component set includes a one-way 6.5″ that takes 120w RMS and 240 Max watts. It has a 88 dB sensitivity rating, you don’t need a lot of power to bring these very loud speakers to extremely high volumes. Also included is a 30w RMS tweeter that can either be mounted on the grill assembly, or in another location of your choosing. The included DS18 passive crossover will get your frequency just right for the best sound available. These speakers are an amazing choice for your average every day to extreme audiophile!
Highlights
Technical Details Download ZXI-62C Product Manual
By the numbers
- RMS Power
- 120 Watts RMS
- Impedance
- 4 Ohms
- Nominal Impedance
- 4 Ohms
- RMS Power Handing
- 80W
- MAX Power Handing
- 240W
- Recommended HI Pass Crossover
- 60Hz
- Speaker Type
- 2-Way
- Passive Crossover Ways
- 2 Ways
- Terminal Type
- Screw-On
- Sensitivity
- 88 dB
- Frequency Response
- 40Hz – 20KHz
- Sensitivity (1w/1m)
- 88dB
- Frequency Crossover point
- 3.5Khz
- Excursion (one way)
- 2.7mm
- Free Air Resonance
- 64Hz
- Voice Coil Diameter
- 1″(25.5mm)
- Voice Coil Former Material
- ASV
- Winding Material
- EISVM
- Cone Material
- Glass fiber
- Surround Material
- Rubber
- Basket Material
- Steel
- Magnet Material
- Neodymium
- Magnet Weight
- 0.46 oz / 13g
- Diaphragm Material
- SILK
- Coil Type
- KSV
- Housing Material
- ABS / Acrylic
- Size
- 6.5 inch
- Nominal Diameter
- 1.25″ (31.7mm)
- Equivalent Volume
- 10.36L
- Grill Included
- Yes
- Pair
- Yes
- Cut-Off Slope
- 12 dB/Oct
- Tweeter Attenuation
- (+/- 3dB)
- Capacitor Type
- NP
- Adjustments
- Tw Attenuation
- Extra Features
- Pt Tw protection
- Mechanical Factor
- 9.5
- Electrical Factor
- 0.85
- Total Factor
- 0.78
