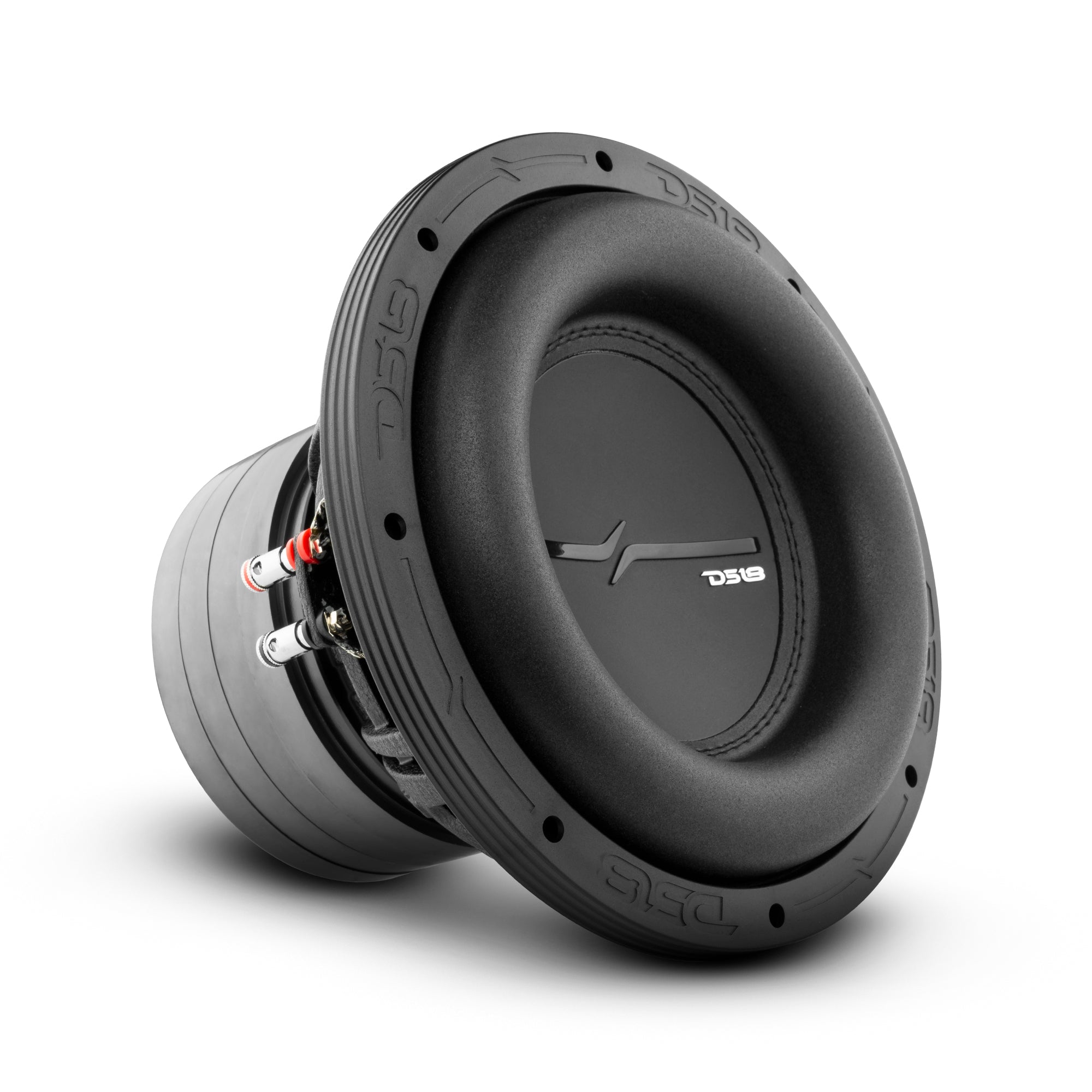

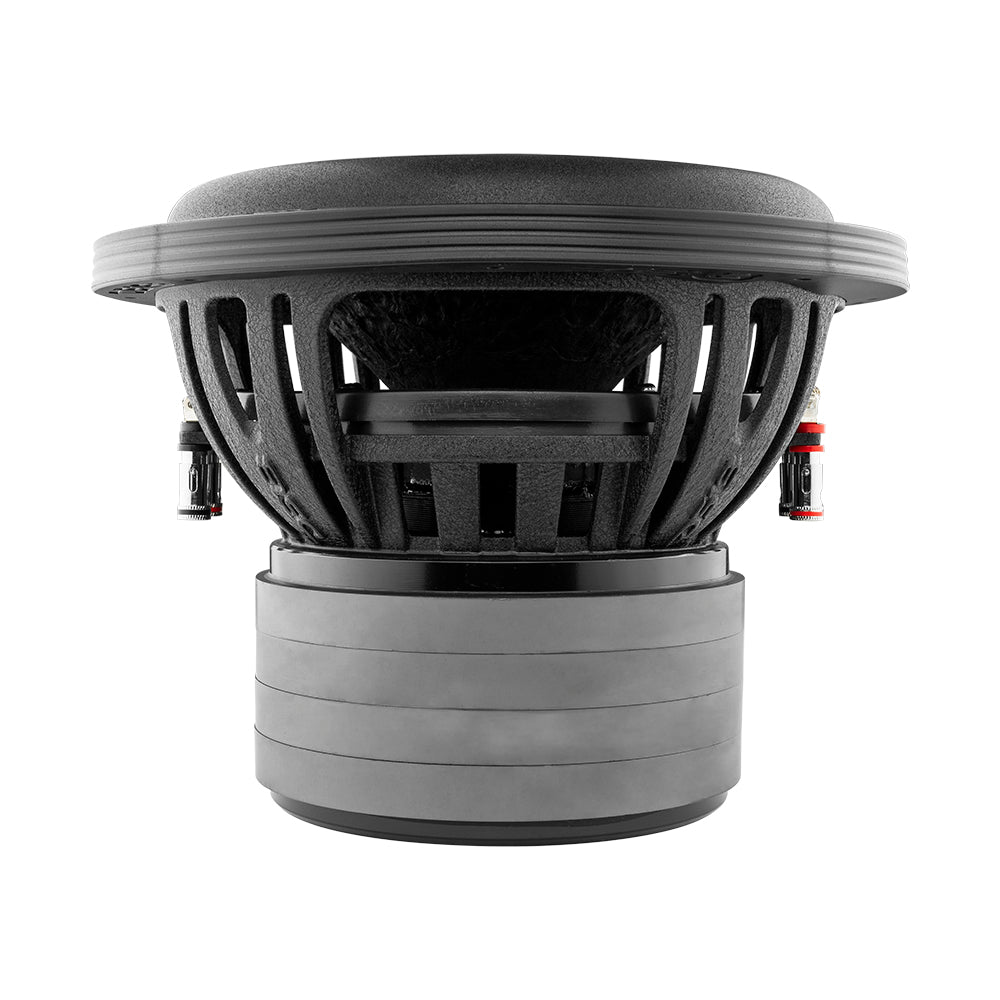

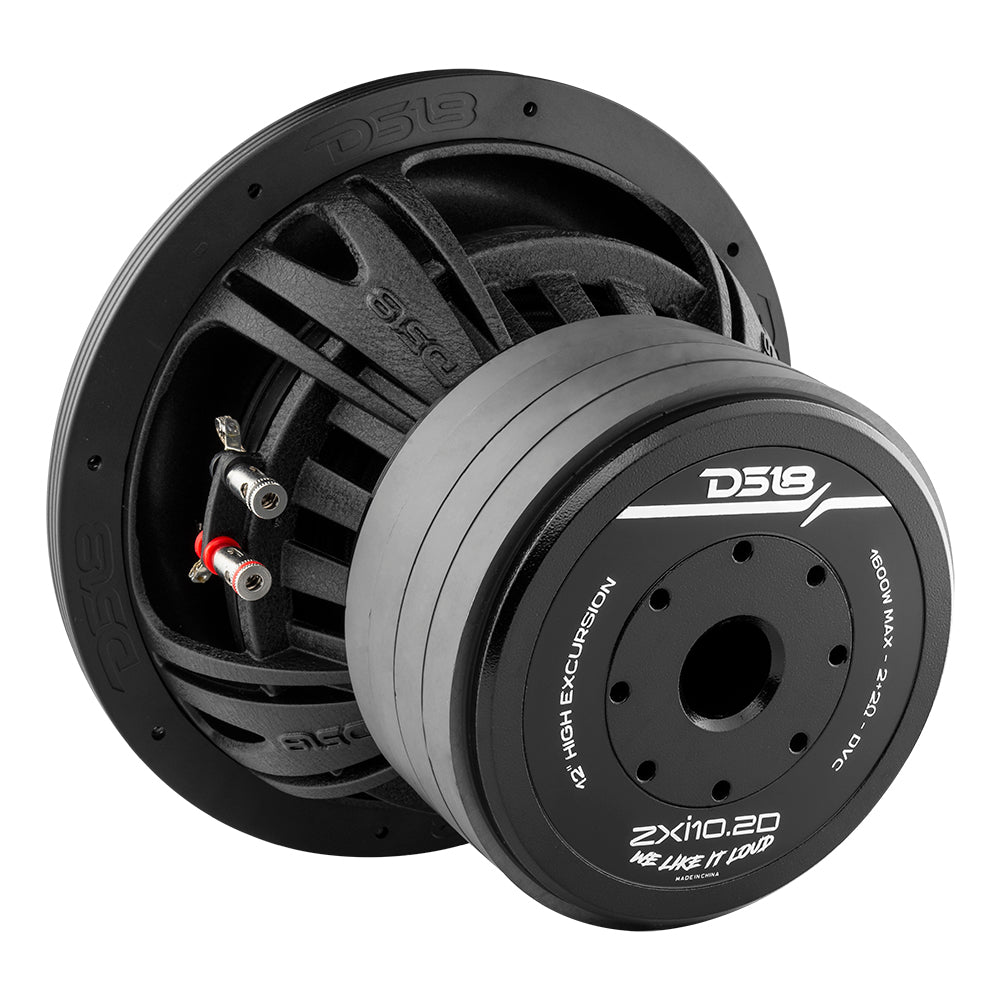

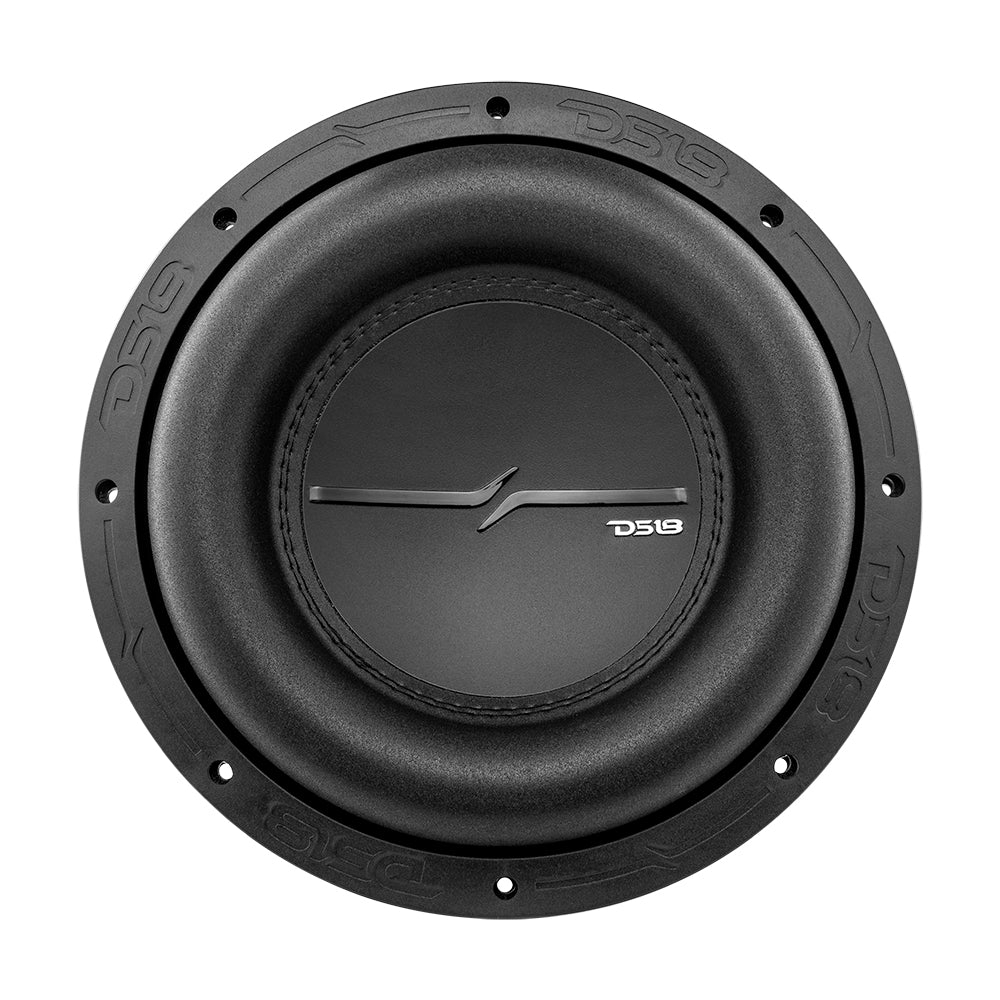

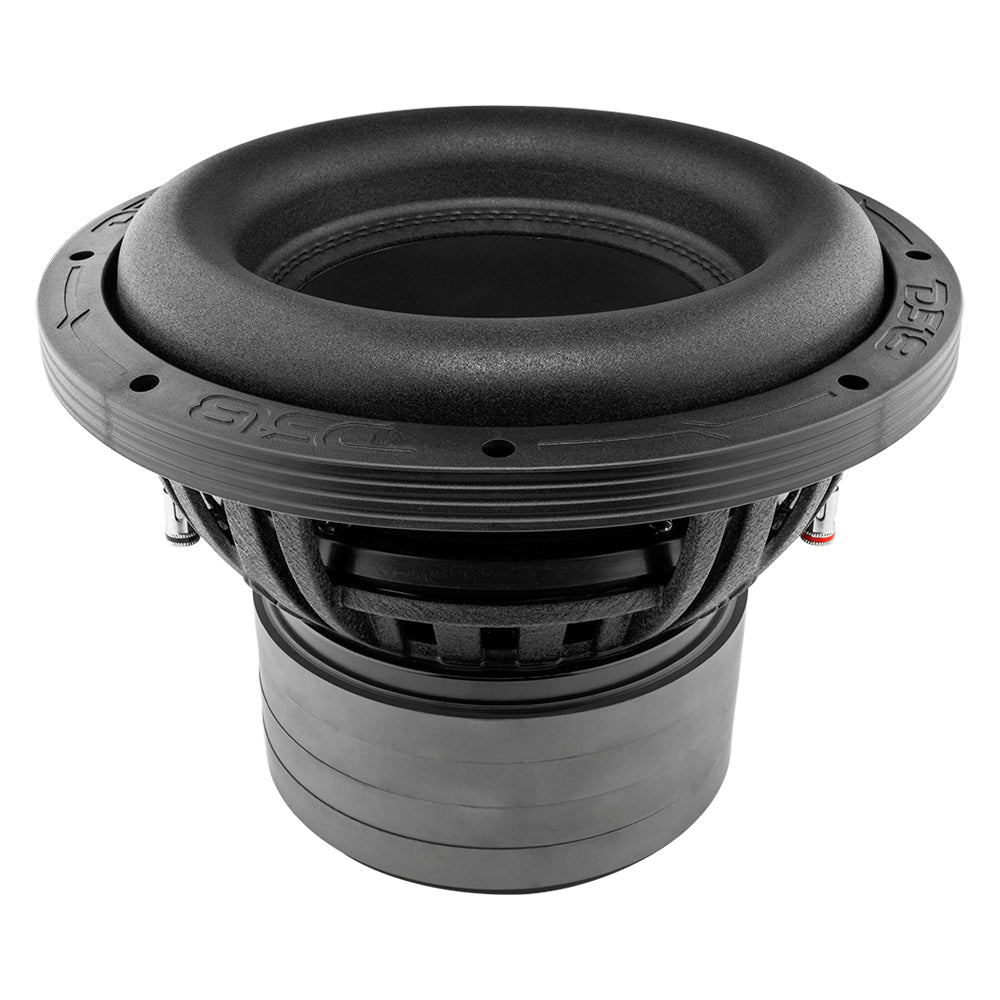

DS18 ZXI10.2D ZXI 10″ High Excursion Subwoofer Quad Stacked Magnets | 800W RMS DVC 2-Ohm

$299.95

Lease for as low as $13.56/week. Apply Now

RMS Power800W
Peak Power1,600W
Sensitivity86dB
SKU: ZXI10.2D Categories: , , , Brand:
01 Overview

The details

Product Overview

Why we stock the DS18 ZXI10.2D

The DS18 ZXI10.2D is a 10″ high-excursion subwoofer with four stacked magnets and a 2.5″ dual 2 ohm voice coil. It handles 800 watts RMS (1,600 max) with 86 dB sensitivity and plays from 20Hz to 900Hz.

It needs 6.91″ of mounting depth. Need dual 4 ohm? Use the ZXI10.4D. Want a 12? See the ZXI12.2D.

More Power, More Bass!

Designed to provide thumping power that shakes everyone’s mirrors, the ZXI10.2D is a newly designed subwoofer that could only be defined as a monster of a machine. It packs a 2.5-inch voice coil that’s made to withstand high amounts of power with unparalleled efficiency, while producing thunderous bass that’s free from distortion. Don’t get it twisted, this sub is versatile enough to play higher frequencies under 900Hz down to 20Hz with incredible clarity and accuracy!

Order the DS18 ZXI10.2Dtoday to turn up the bass with thunderous power!

Powerful Bass!

The majority of subs that produce this much bass usually have enormous power requirements to get to maximum XMAX and deliver crazy loud bass. The ZXI10.2D sets itself apart since it has an extremely efficient coil that handles large power with a higher dB rating than most subs at 86 dB. This sub is also conservatively rated at 800W RMS Power Handling and 1600W MAX Power Handling, making it capable of handling anything you throw at it!

Highlights

Great for:

Technical Details ZXI10.2D Product Manual

02 Tech specs

By the numbers

ZXI10.2D · Manufacturer rated
RMS Power 01
800W
Continuous rating
Peak Power 02
1,600W
Short-burst rating
Sensitivity 03
86dB
Efficiency
Size 04
10in
Nominal

RMS Power
800 Watts RMS
Peak Power
1600 Watts Max
Impedance
2 Ohms
Nominal Impedance
2 + 2 ohms
RMS Power Handling
800w
MAX Power Handling
1600w
Recommended Lo Pass Crossover
90Hz

Sensitivity
86 dB
Frequency Response
20Hz-900Hz
Sensitivity (1w/1m)
86dB

Voice Coil Diameter
2.5″ / 63.5mm
Voice Coil Former Material
Black Aluminum
Winding Material
CCAW
Cone Material
Non-Pressed Paper
Dust Cap Material
PPI
Surround Material
Foam
Basket Material
Aluminum
Basket Color/Finish
Sandblasted Black
Magnet Material
Ferrite
Magnet Weight
196 Oz (4 x 49 oz)
Motor Diameter
6.69″ / 170mm

Size
10 inch
Mounting Depth
6.91″ / 175.5mm
Nominal Diameter
10″ / 254mm
Displacement Volume
2.23L / 0.078ft3
Overall Diameter
10.96″ / 278.5mm
Overall Depth
8.34″ / 212mm
Front Mount Baffle Cutout
9.36″ / 237.7mm
