Description
Product Overview
More Power, More Bass!

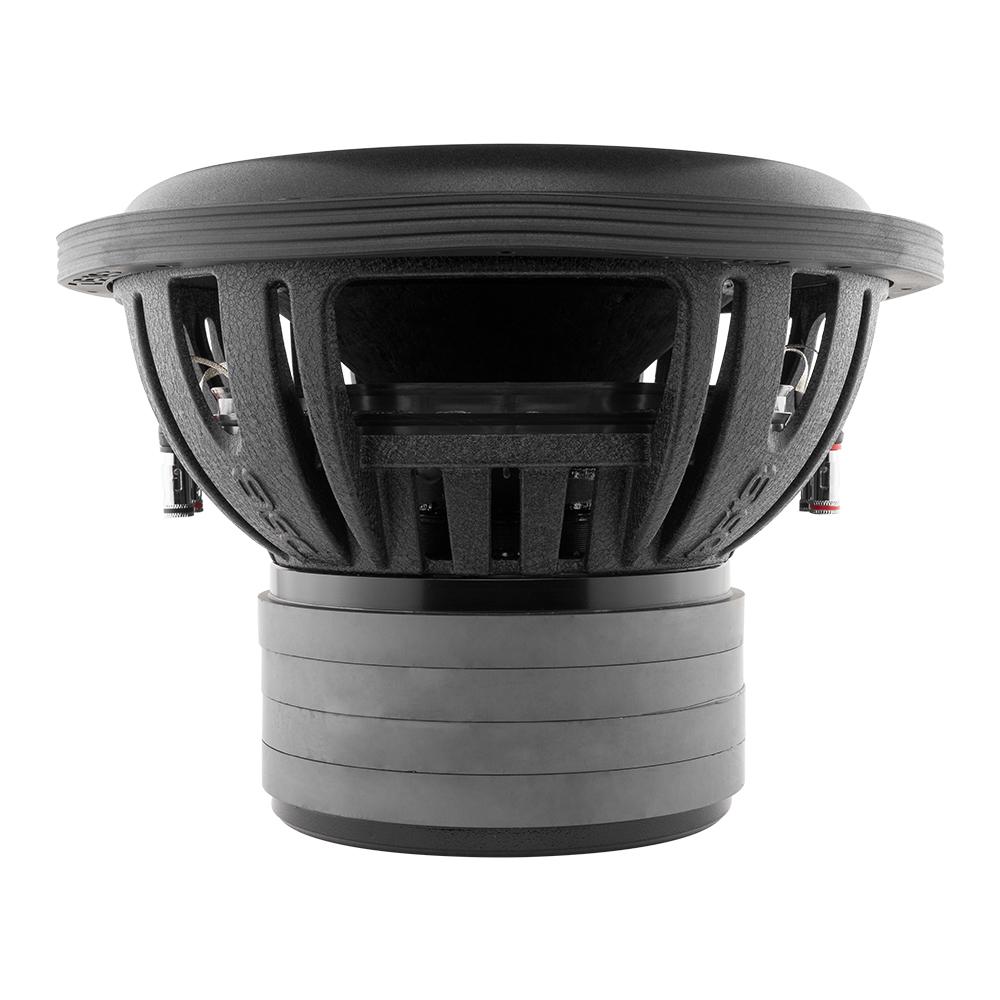

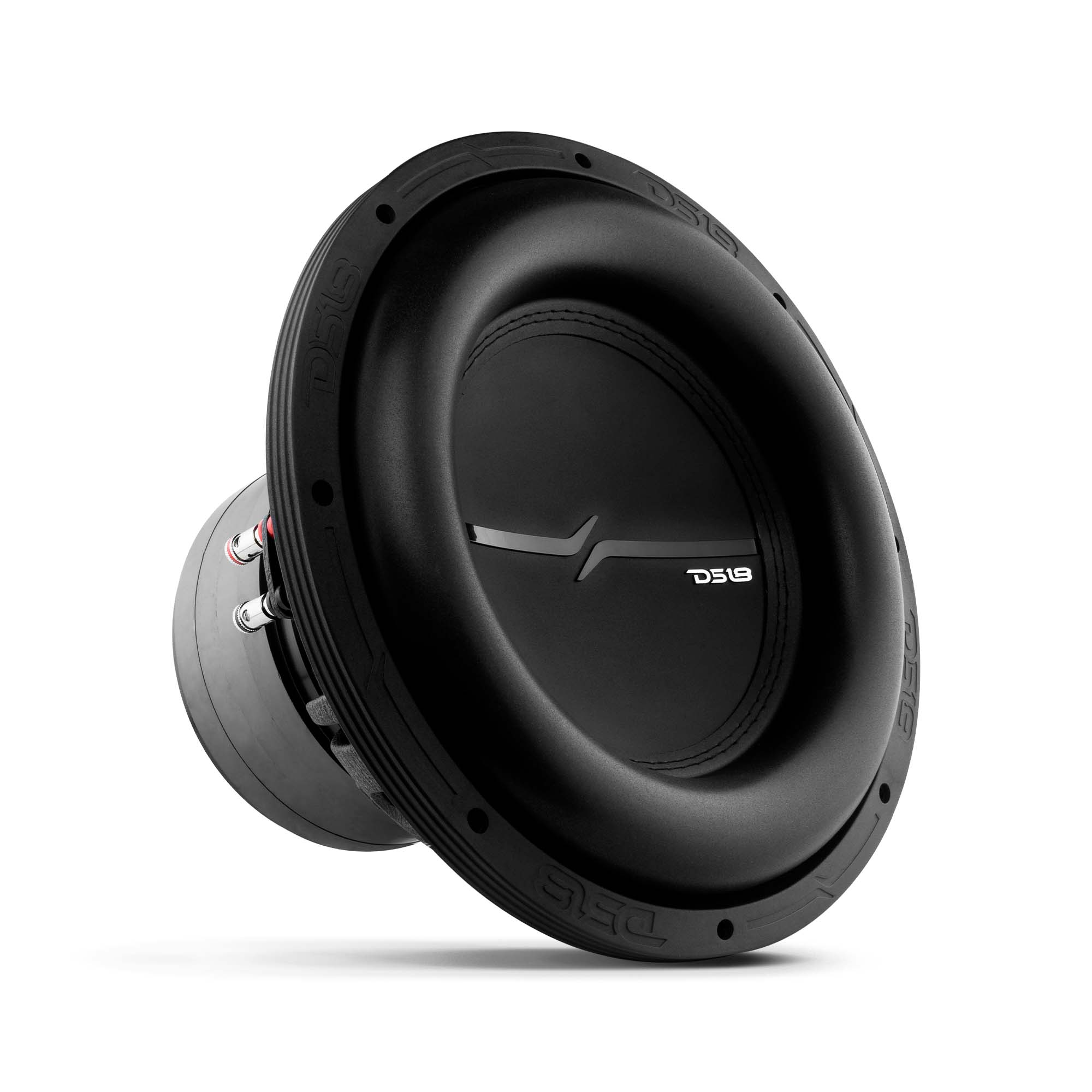

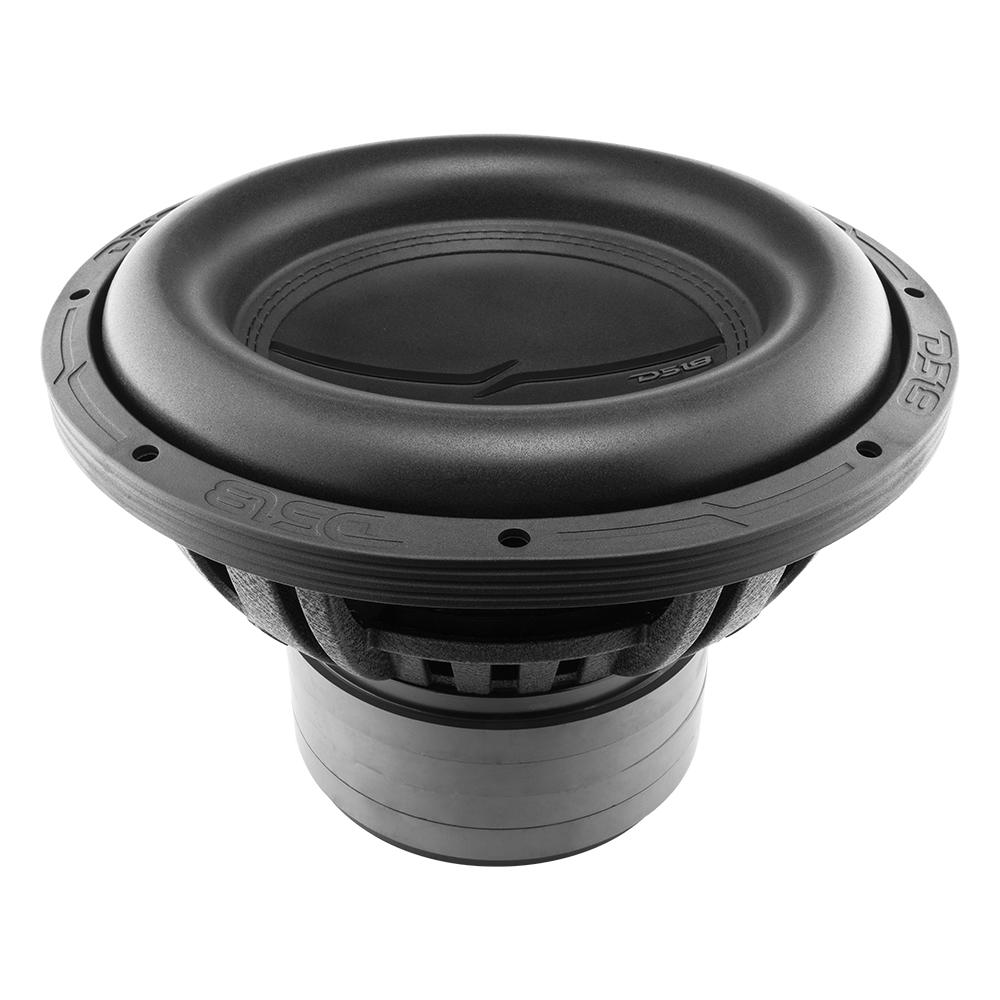

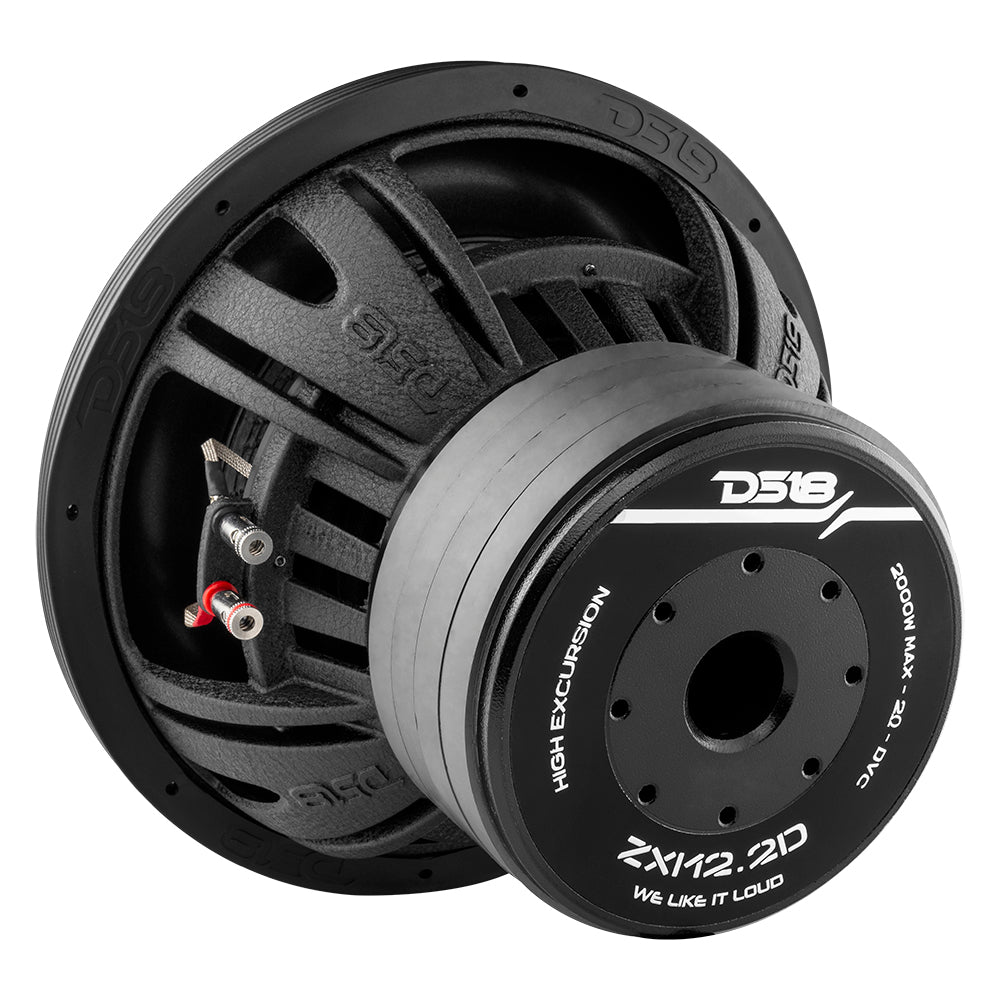

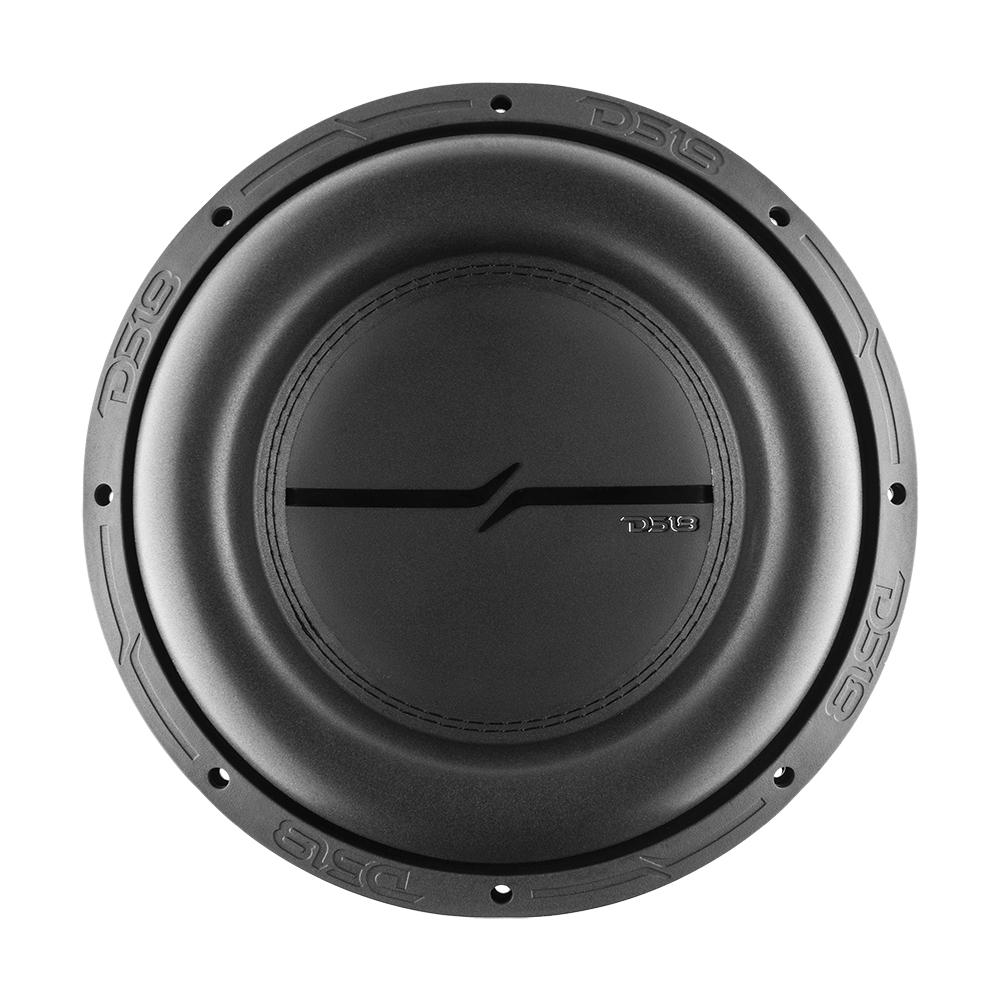

Designed to provide thumping power that shakes everyone’s mirrors, the ZXI12.2D is a newly designed subwoofer that could only be defined as a monster of a machine. It packs a 3-inch voice coil that’s made to withstand high amounts of power with unparalleled efficiency, while producing thunderous bass that’s free from distortion. Don’t get it twisted, this sub is versatile enough to play higher frequencies under 1.7KHz down to 15Hz with incredible clarity and accuracy!
Order the DS18 ZXI12.2D today to turn up the bass with thunderous power!
Powerful Bass!
The majority of subs that produce this much bass usually have enormous power requirements to get to maximum XMAX and deliver crazy loud bass. The ZXi12.2D sets itself apart since it has an extremely efficient coil that handles large power with a higher dB rating than most subs at 89.2 dB. This sub is also conservatively rated at 1000W RMS Power Handling and 2000W MAX Power Handling, making it capable of handling anything you throw at it!
Product Highlights
Technical Details ZR12.2D Product Manual
Box Info
Technical Data
| Specification | Details |
|---|---|
| Size | 12 inch |
| RMS Power | 1000 Watts RMS |
| Peak Power | 2000 Watts Max |
| Impedance | 2 Ohms |
| Sensitivity | 89.2 dB |
| Frequency Response | 15Hz – 1.7KHz |
| Mounting Depth | 7.55” / 192 mm |
| Nominal Diameter | 12″ / 304.8 mm |
| Nominal Impedance | 2 + 2 Ohms |
| RMS Power Handling | 1000 W |
| MAX Power Handling | 2000 W |
| Sensitivity (1w/1m) | 89.2 dB |
| Recommended Lo Pass Crossover | 90 Hz |
| Voice Coil Diameter | 3” / 76.5 mm |
| Voice Coil Former Material | Black Aluminum |
| Winding Material | CCAW |
| Cone Material | Non Pressed Paper |
| Dust Cap Material | PPI |
| Surround Material | Foam |
| Basket Material | Aluminum |
| Basket Color | Finish | Black Sandblasted |
| Magnet Material | Ferrite |
| Magnet Weight | 224 Oz (4 x 56 Oz) |
| Displacement Volume | 0.14 ft3 / 3.99 L |
| Equivalent Volume | 15.23 L / 0.53 ft3 |
| Excursion (one way) | 32 mm |
| Free Air Resonance | 30.8 Hz |
| Mechanical Factor | 5.268 |
| Electrical Factor | 0.576 |
| Total Factor | 0.528 |
| Moving Mass | 242.643 g |
| Compliance | 0.075mm/N |
| Bl Factor | 15.55 |
| Voice Coil Inductance | 12.6 mH |
| Diaphragm Area | 530.93 cm2 |
| DC Resistance | 2+2 ohms |
| Efficiency Bandwidth Product | 53.4 |
| Sealed Internal Volume | 21.2L / 1.4ft3 |
| Ported Box Output Response | 26 Hz |
| Ported Internal Volume | 39.6L / 1.4ft3 |
| Port Size *Square (WxHxLong) | 1.23″x12.28″x24.35″ |
| Port Tunning Frequency | 32 Hz |
| Overall Diameter | 12.55” / 319 mm |
| Overall Depth | 9.13” / 232 mm |
| Front Mount Baffle Cutout | 11.1” / 282 mm |
| Motor Diameter | 7.08″ / 180 mm |
