PRV 1 inch Exit Phenolic Mid Range Compression Driver 8 Ohm PRV-D270Ph-S
$34.91
Compact 1″ exit phenolic midrange driver, 150 W program power and 107.5 dB, plays down to about 500 Hz.
RMS Power75W
Sensitivity107.5dB
Size2in
01 Overview
The details
Product Overview

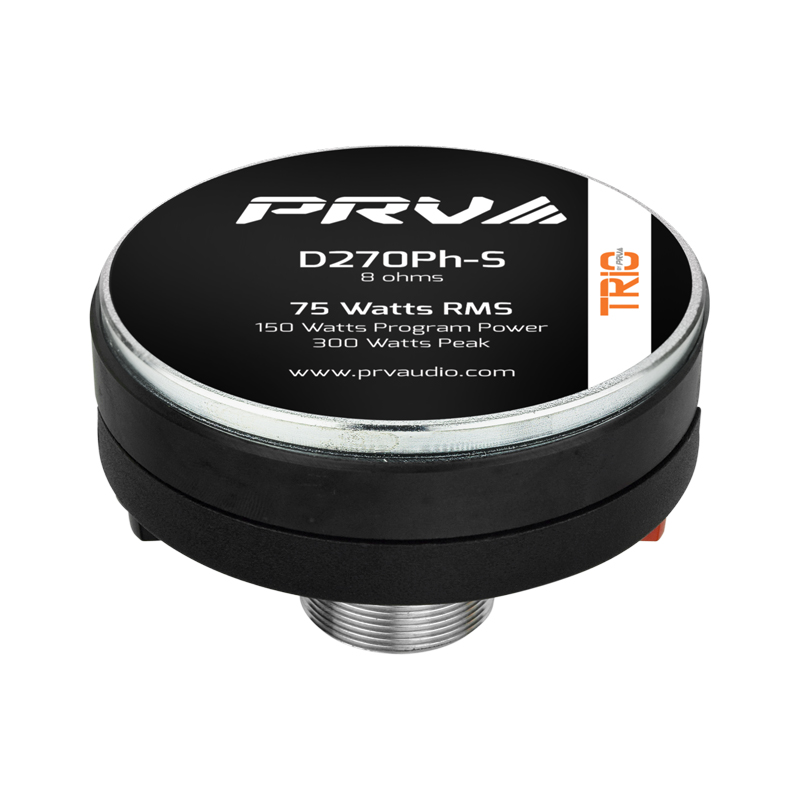

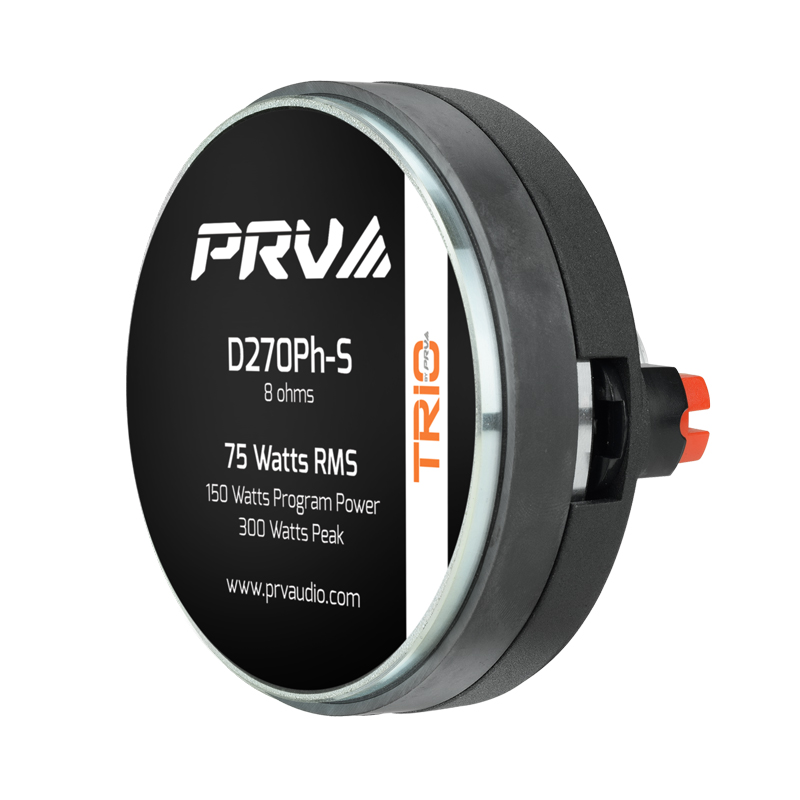

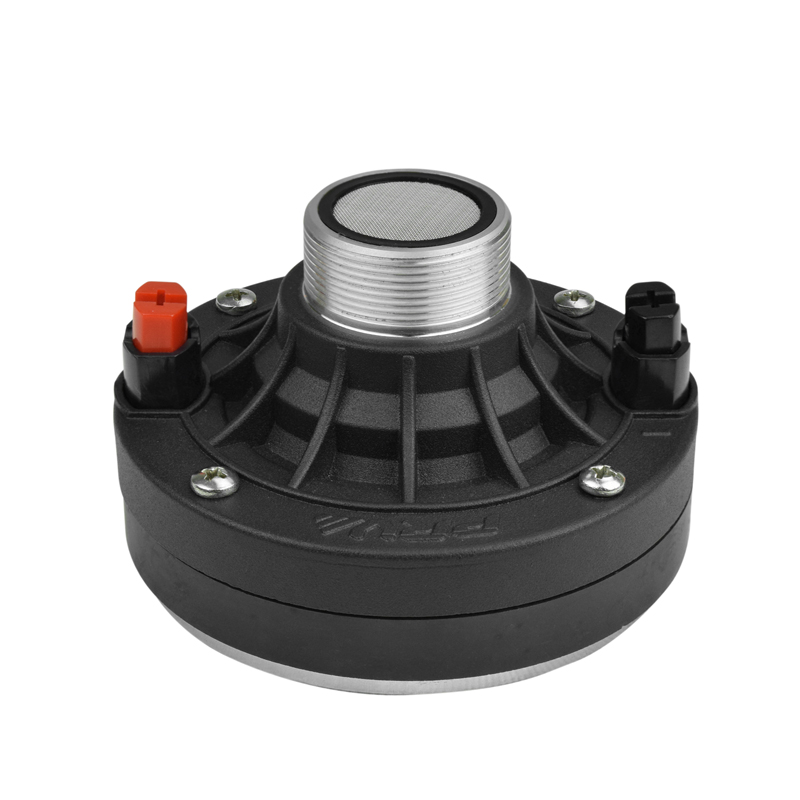

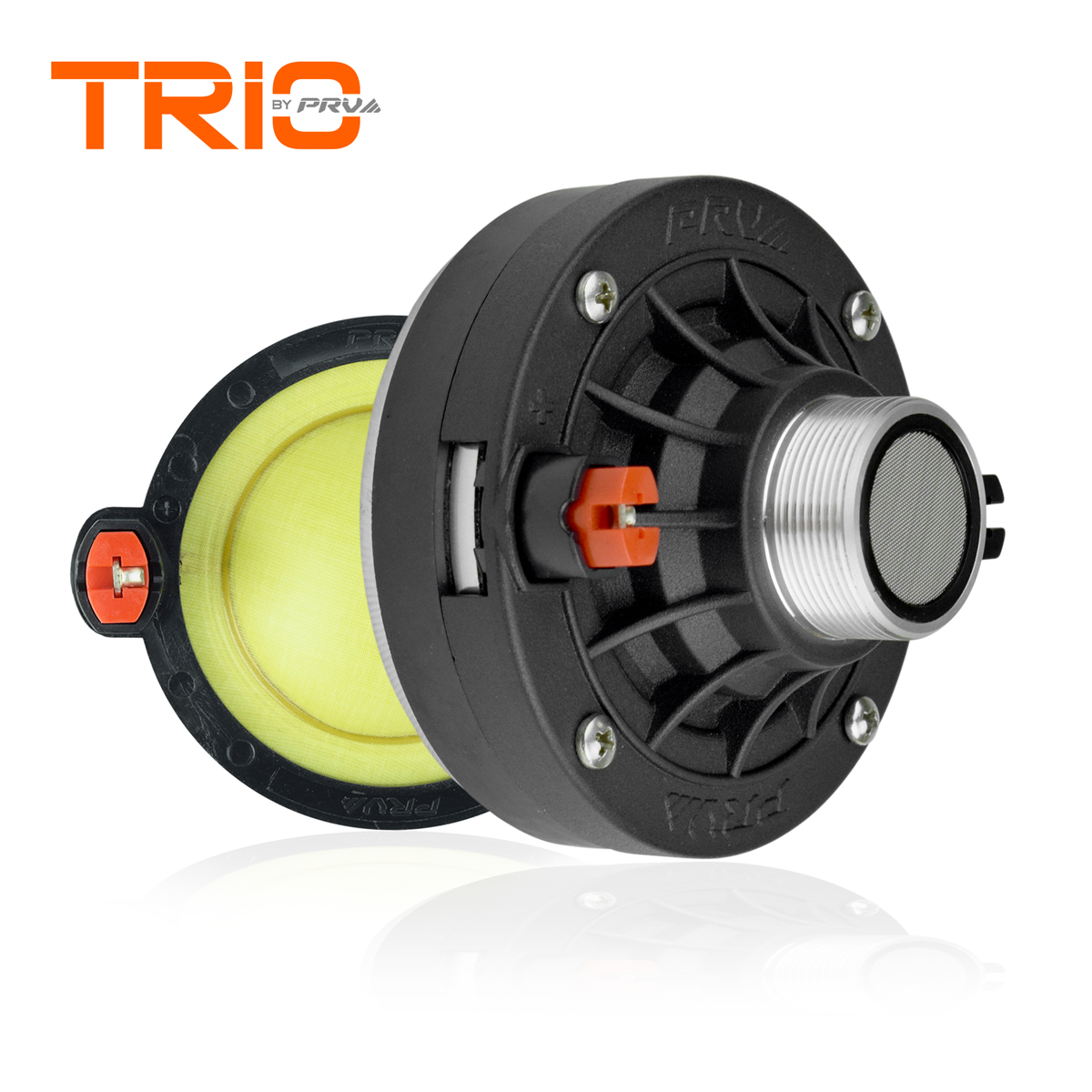

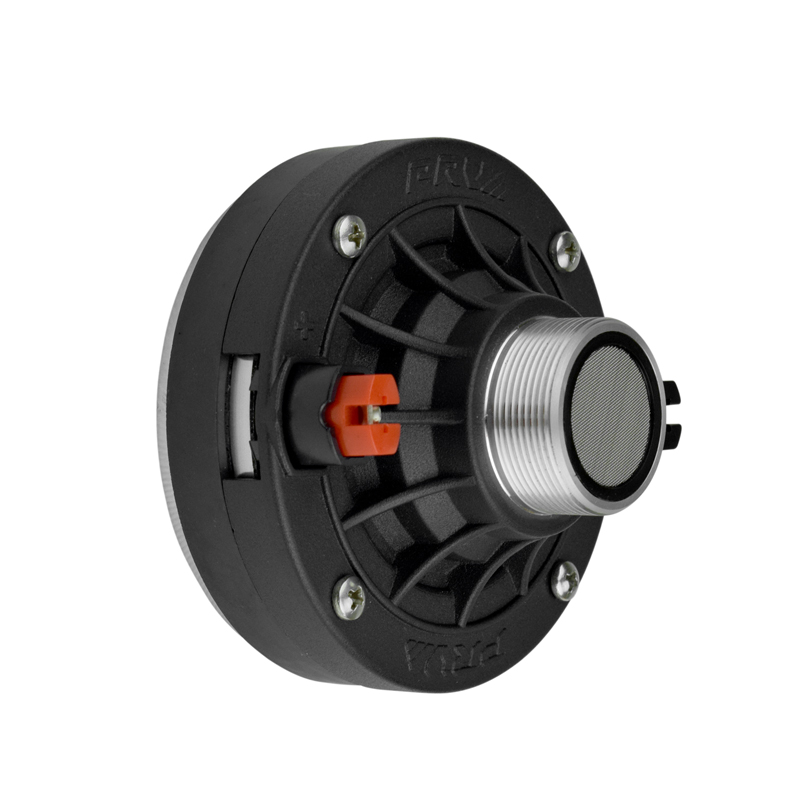

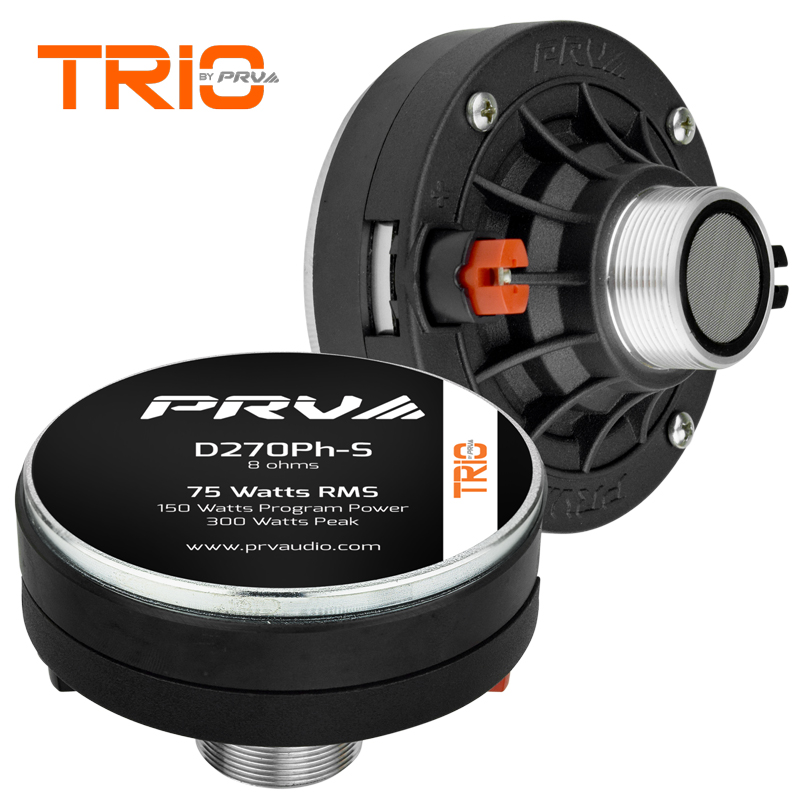

The PRV D270Ph-S is a compact 1" exit phenolic compression driver for vocal and midrange reinforcement in PA, small venues and 3-way car audio systems. Its durable phenolic diaphragm reproduces down to about 500 Hz, and the small body front-mounts without removing the driver from the horn.
Key Features
- 75 W AES RMS, 150 W program power
- 107.5 dB sensitivity (2.00V/1m)
- Phenolic diaphragm, 2" copper voice coil
- Screw-on, 1-3/8"-18 TPI thread
- Durable for outdoor use
- Sold individually
Specifications are manufacturer rated.
02 Tech specs
By the numbers
RMS Power 01
75W
Continuous rating
Sensitivity 02
107.5dB
Efficiency
Size 03
2in
Nominal
Weight 04
2.64lb
Per unit
- Impedance
- 8 Ohm
- Power Handling (AES, RMS)
- 75 W
- Program Power
- 150 W
- Recommended Hi Pass Crossover
- 500 Hz, 12 dB/octave
- Sensitivity (2.00V at 1m)
- 107.5 dB
- Frequency Response
- 400 – 8,000 Hz
- Voice Coil Diameter
- 2" (50 mm)
- Magnet
- Ferrite
- Mounting
- Screw-on, 1-3/8"-18 TPI thread
- Cutout
- 2.55" (65 mm)
- Overall Dimensions
- 4.01" (102 mm) dia.
- Net Weight
- 2.64 lbs (1.20 kg)
- Weight
- 2.8 lbs
- Dimensions
- 4.25 × 4.25 × 3 in
- Exit Throat
- 1" (25.4 mm)
- Diaphragm
- Phenolic
