PRV
PRV 1 inch Exit Phenolic Mid Range Driver + Horn 8 Ohm PRV-WG270Ph
$39.91
Compact 1″ exit phenolic midrange driver and horn, 150 W RMS and 106.5 dB, plays down to 600 Hz.
RMS Power150W
Peak Power300W
Sensitivity106.5dB
01 Overview
The details
Product Overview

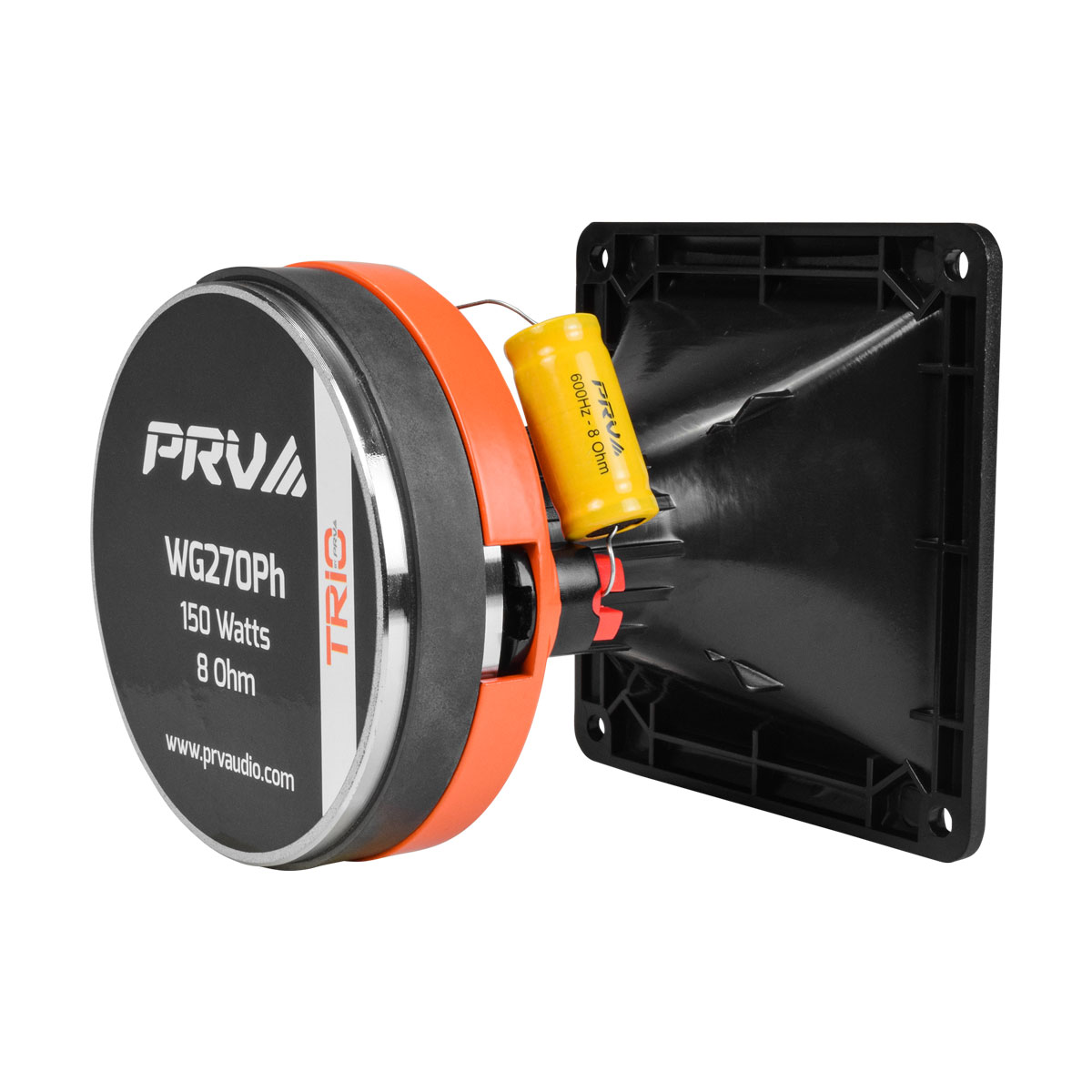

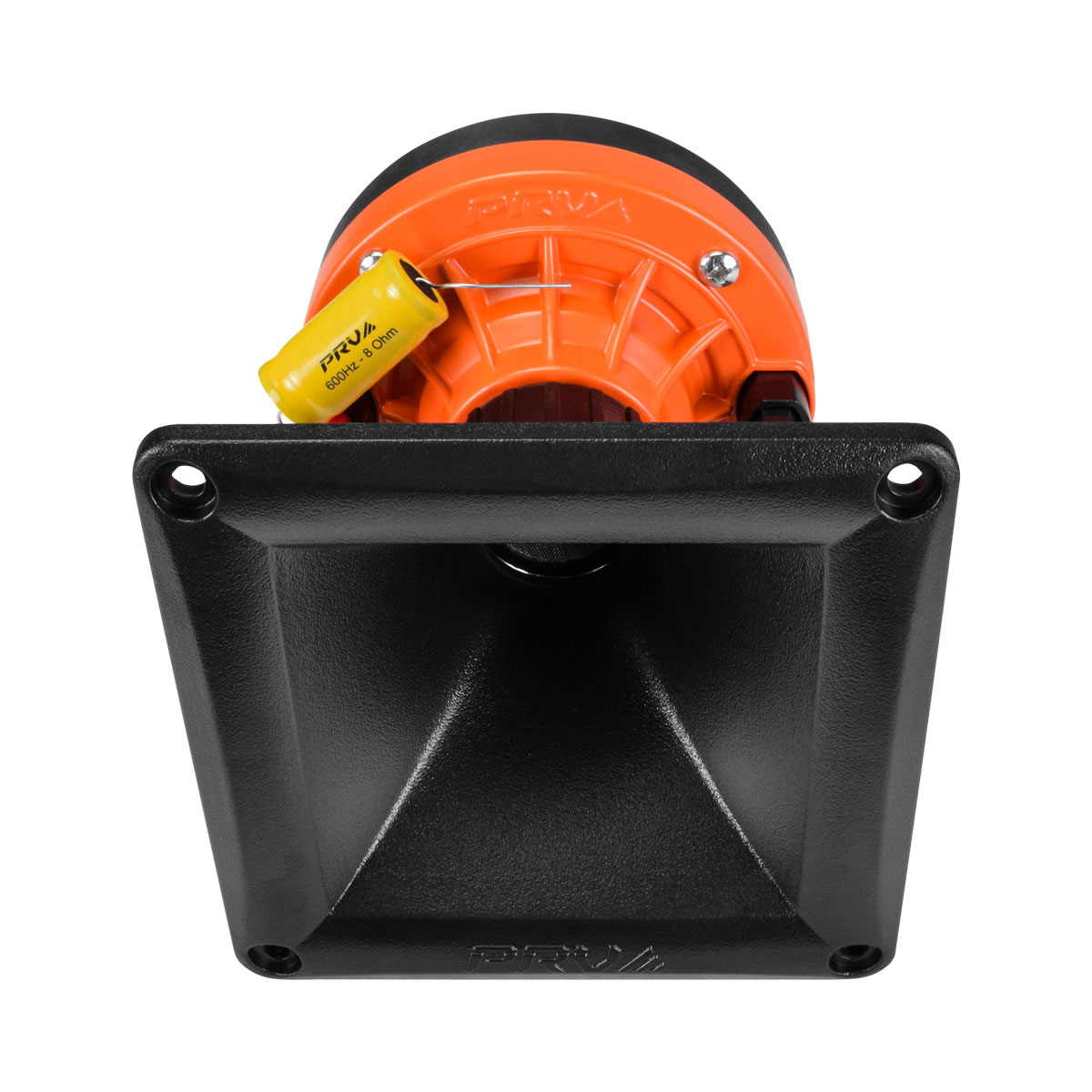

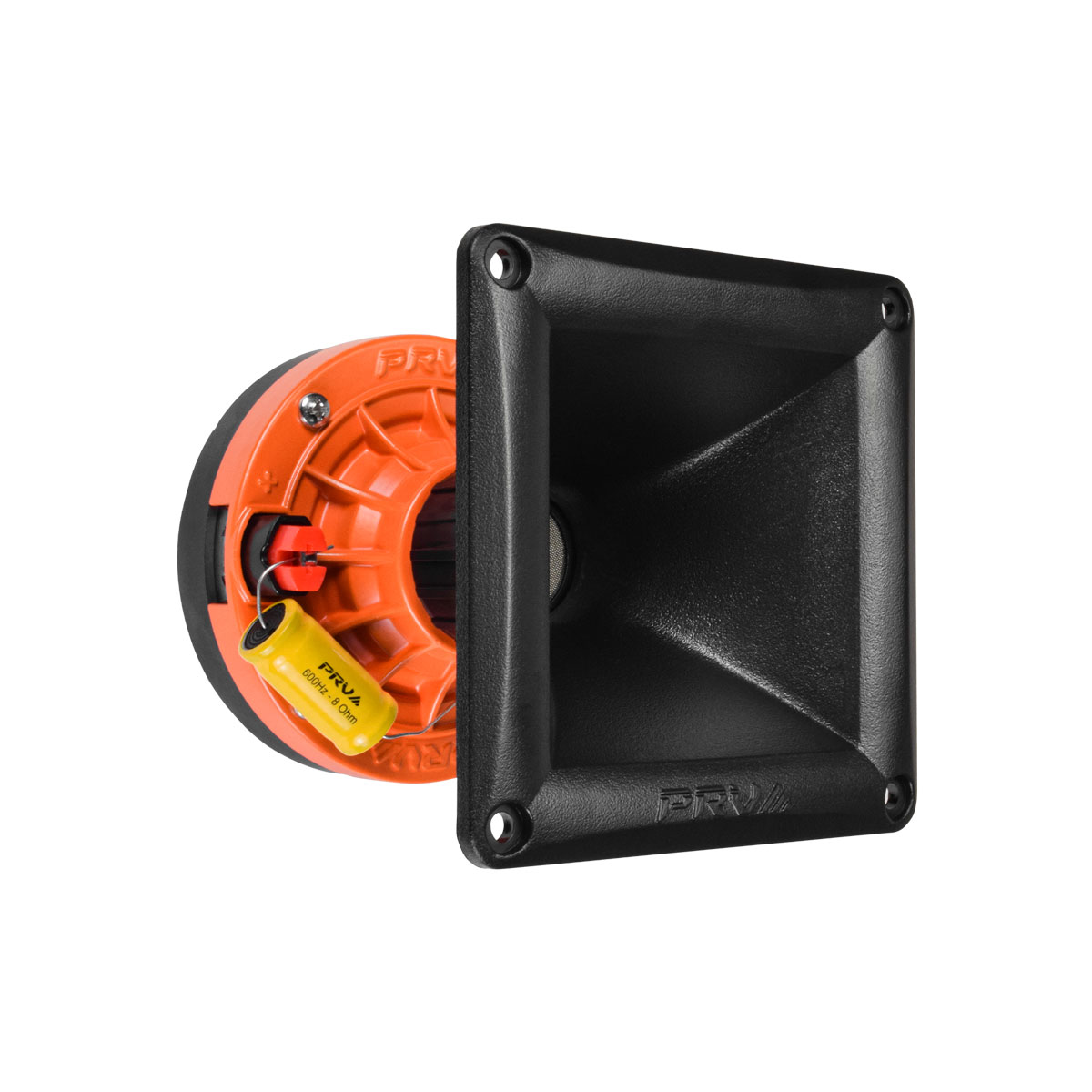

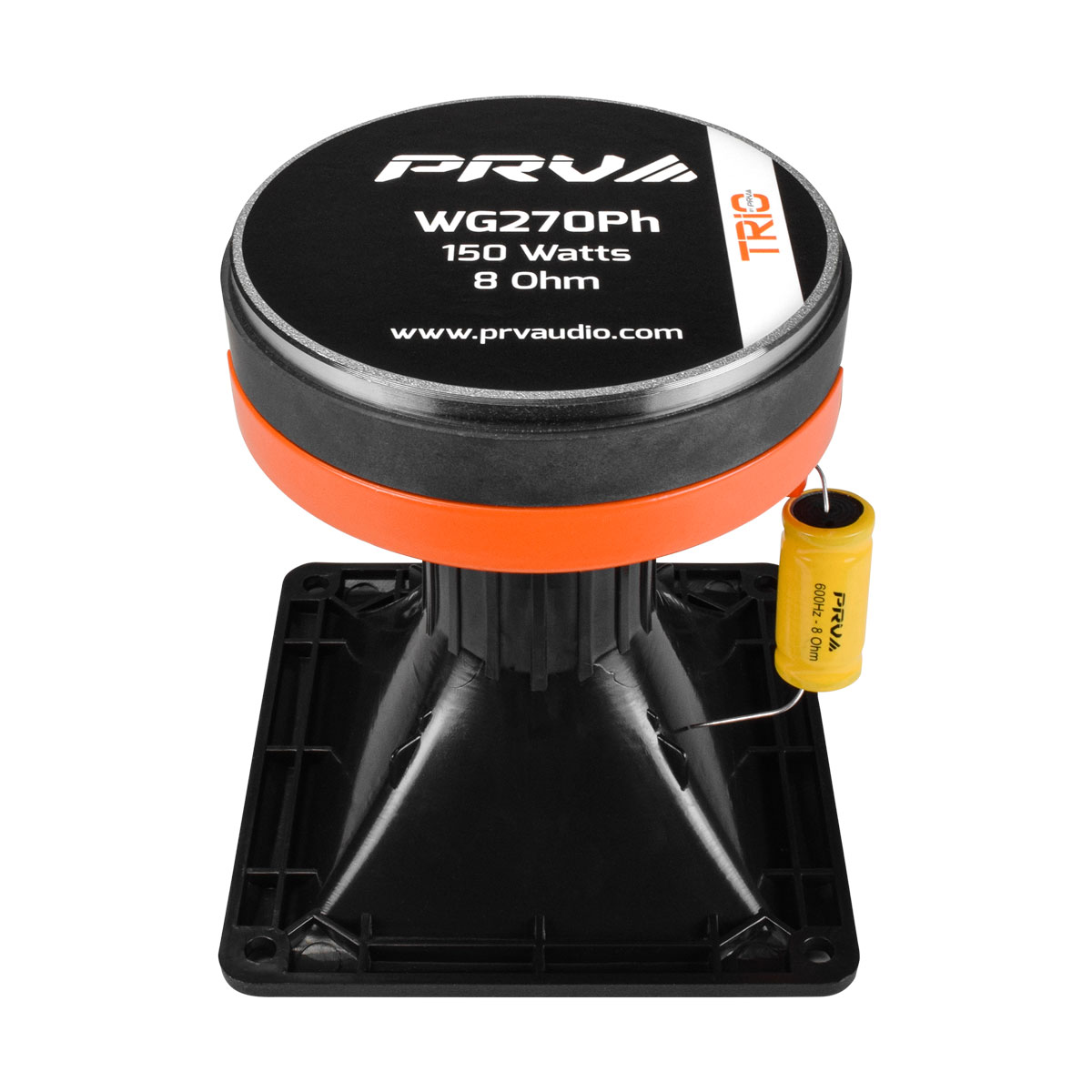

The PRV WG270Ph combines the D270Ph-S phenolic compression driver with the compact WG11-25 60° x 60° exponential horn. The phenolic diaphragm and 2" copper voice coil are aimed at clear midrange and vocals from about 600 Hz, and the small driver allows front mounting without removing it from the horn. Durable enough for outdoor use.
Key Features
- 75 W nominal, 150 W RMS program, 300 W peak
- 106.5 dB sensitivity (2.83V/1m)
- Phenolic diaphragm, 2" copper voice coil
- Includes WG11-25 60° x 60° horn
- Front mountable
- Sold individually
Specifications are manufacturer rated.
02 Tech specs
By the numbers
RMS Power 01
150W
Continuous rating
Peak Power 02
300W
Short-burst rating
Sensitivity 03
106.5dB
Efficiency
Size 04
2in
Nominal
- Impedance
- 8 Ohm
- Nominal Power Handling
- 75 W
- Continuous Program Power (RMS)
- 150 W
- Max Peak Power
- 300 W
- Recommended Hi Pass Crossover
- 500 Hz, 12 dB/octave

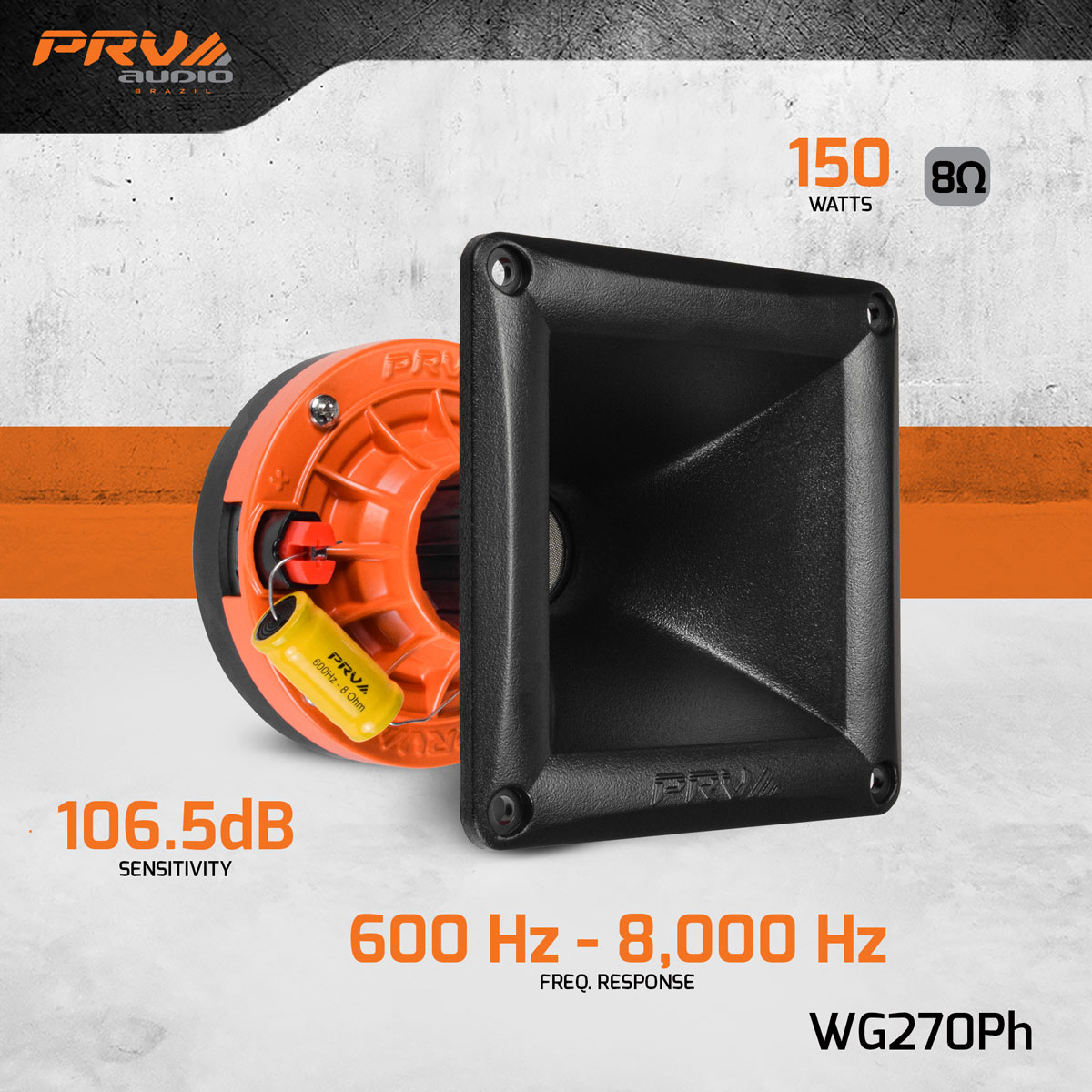

- Sensitivity (2.83V at 1m)
- 106.5 dB
- Frequency Response
- 600 – 8,000 Hz
- Voice Coil Diameter
- 2" (50 mm)
- Magnet
- Ferrite

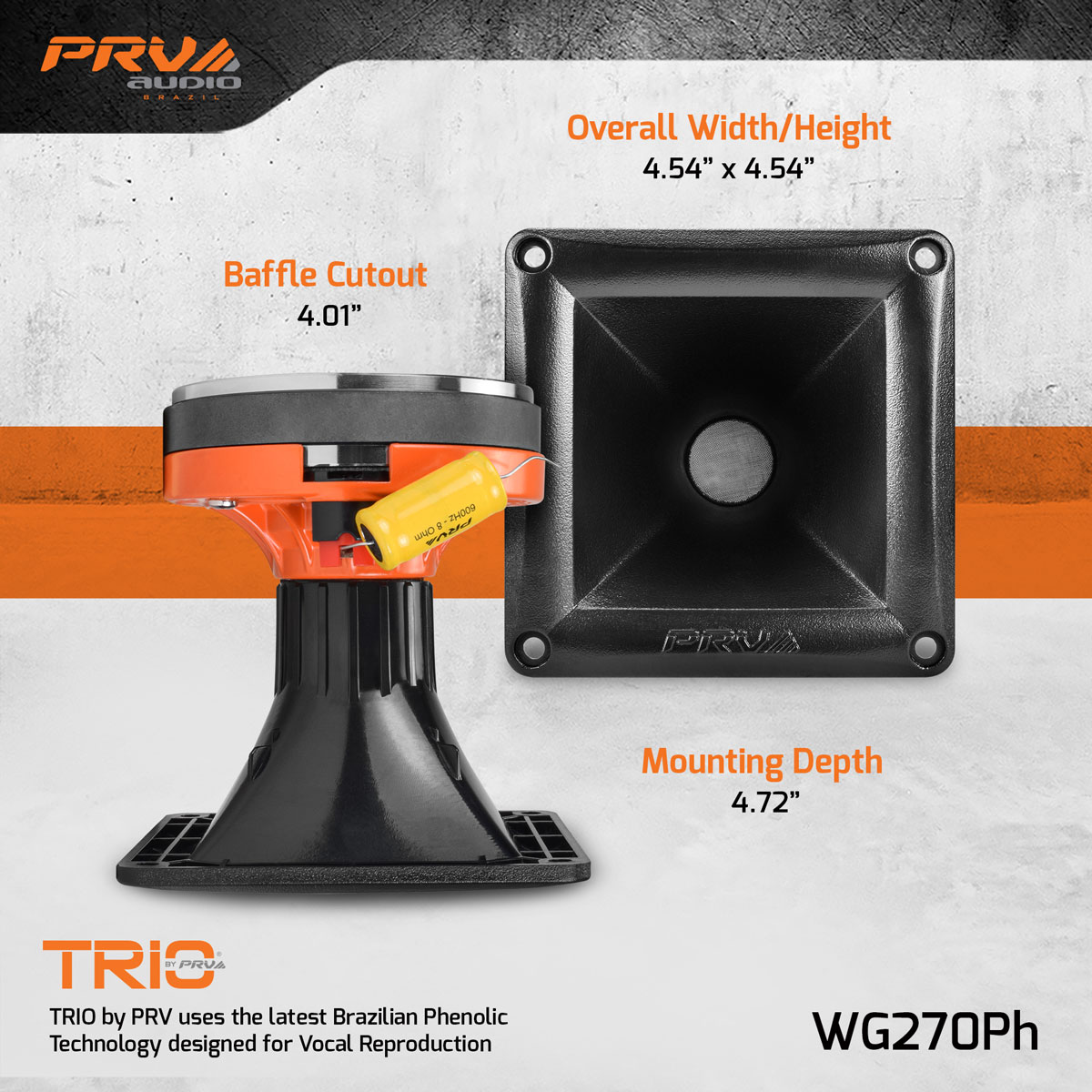

- Mounting Depth
- 4.72" (120 mm)
- Cutout
- 4.01" (102 mm)
- Overall Dimensions
- 4.54" x 4.54" (115.5 mm), 5.00" (127 mm) deep
- Net Weight
- 2.69 lbs (1.22 kg)
- Weight
- 3 lbs
- Dimensions
- 4.75 × 4.75 × 5.5 in
- Exit Throat
- 1" (25.4 mm)
- Diaphragm
- Phenolic
- Horn
- WG11-25, 60° x 60°
