PRV 10 inch 4 Ohm ALTO Series Mid Range Speaker PRV-10MR650A-4
$85.91
10″ 4 Ohm ALTO Series midrange, 650 W RMS and 97.5 dB, only 3.90″ deep.
RMS Power650W
Sensitivity97.5dB
Size2.5in
01 Overview
The details
Product Overview
The PRV 10MR650A-4 is a 10" midrange built for strong vocal output in small enclosures and custom doors. Its composite cone and low-mass moving assembly improve efficiency and smooth the response, a vented pole piece limits heat buildup and power compression, and the redesigned basket brings mounting depth down to 3.90".
Key Features
- 650 W RMS continuous program power
- 97.5 dB sensitivity (2.83V/1m)
- Composite cone, vented pole piece
- 2.5" CCAW voice coil
- Shallow 3.90" mounting depth
- Sold individually
Specifications are manufacturer rated.
02 Tech specs
By the numbers
RMS Power 01
650W
Continuous rating
Sensitivity 02
97.5dB
Efficiency
Size 03
2.5in
Nominal
Weight 04
10.4lb
Per unit
- Impedance
- 4 Ohm
- Continuous Program Power (RMS)
- 650 W
- Recommended Hi Pass Crossover
- 140 Hz, 12 dB/octave
- Sensitivity (2.83V at 1m)
- 97.5 dB
- Frequency Response
- 80 – 6,500 Hz
- Voice Coil Diameter
- 2.5"
- Voice Coil Wire
- CCAW
- Former Material
- Polyimide
- Cone
- Composite
- Magnet
- Ferrite
- Frame Material
- Stamped steel

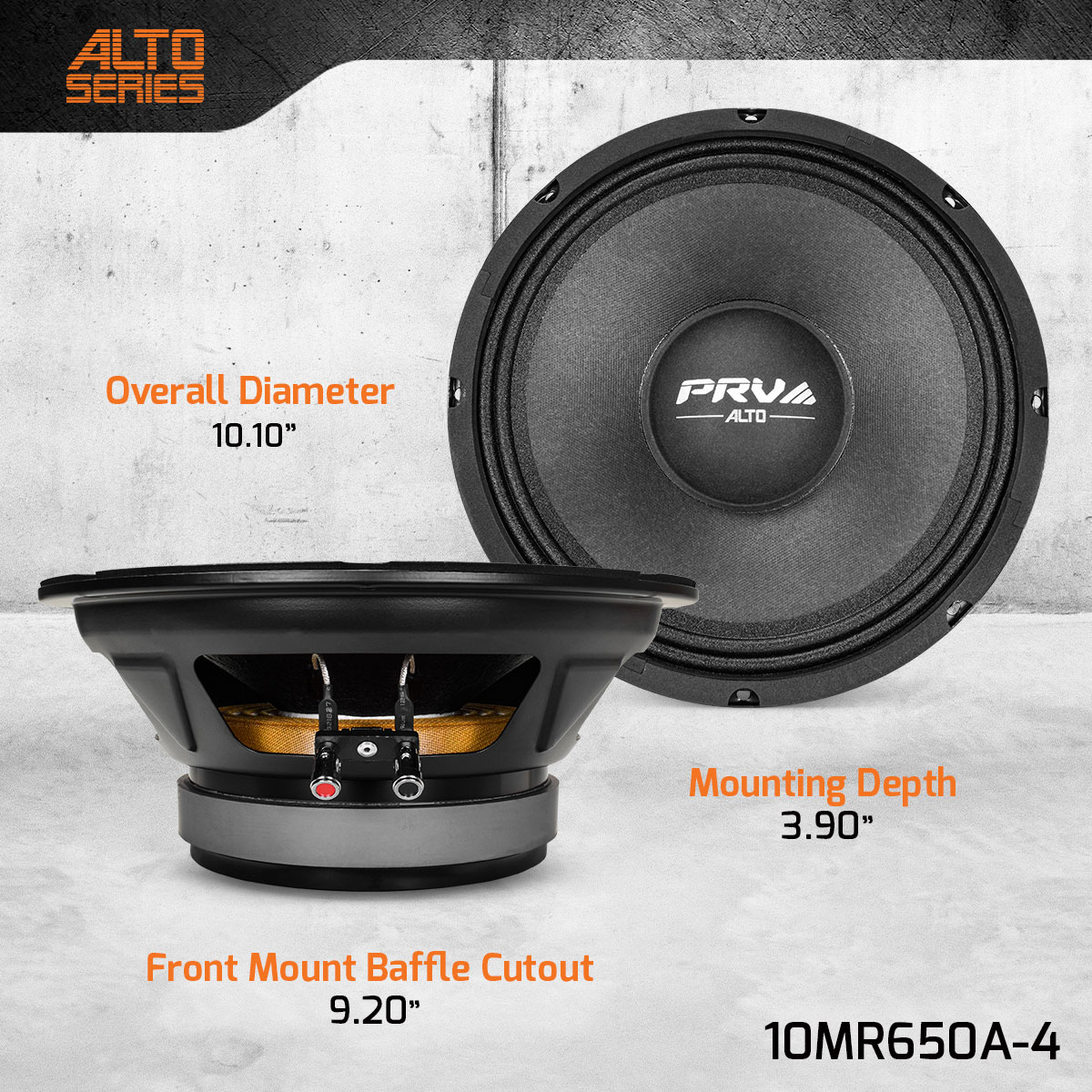

- Mounting Depth
- 3.90" (99 mm)
- Cutout
- 9.20" (233.5 mm)
- Overall Dimensions
- 10.10" (256.5 mm) dia., 4.23" (107.5 mm) deep
- Net Weight
- 10.4 lbs (4.7 kg)
- Weight
- 11.8 lbs
- Dimensions
- 12 × 12 × 5.75 in
