01 Overview
The details
Product Overview

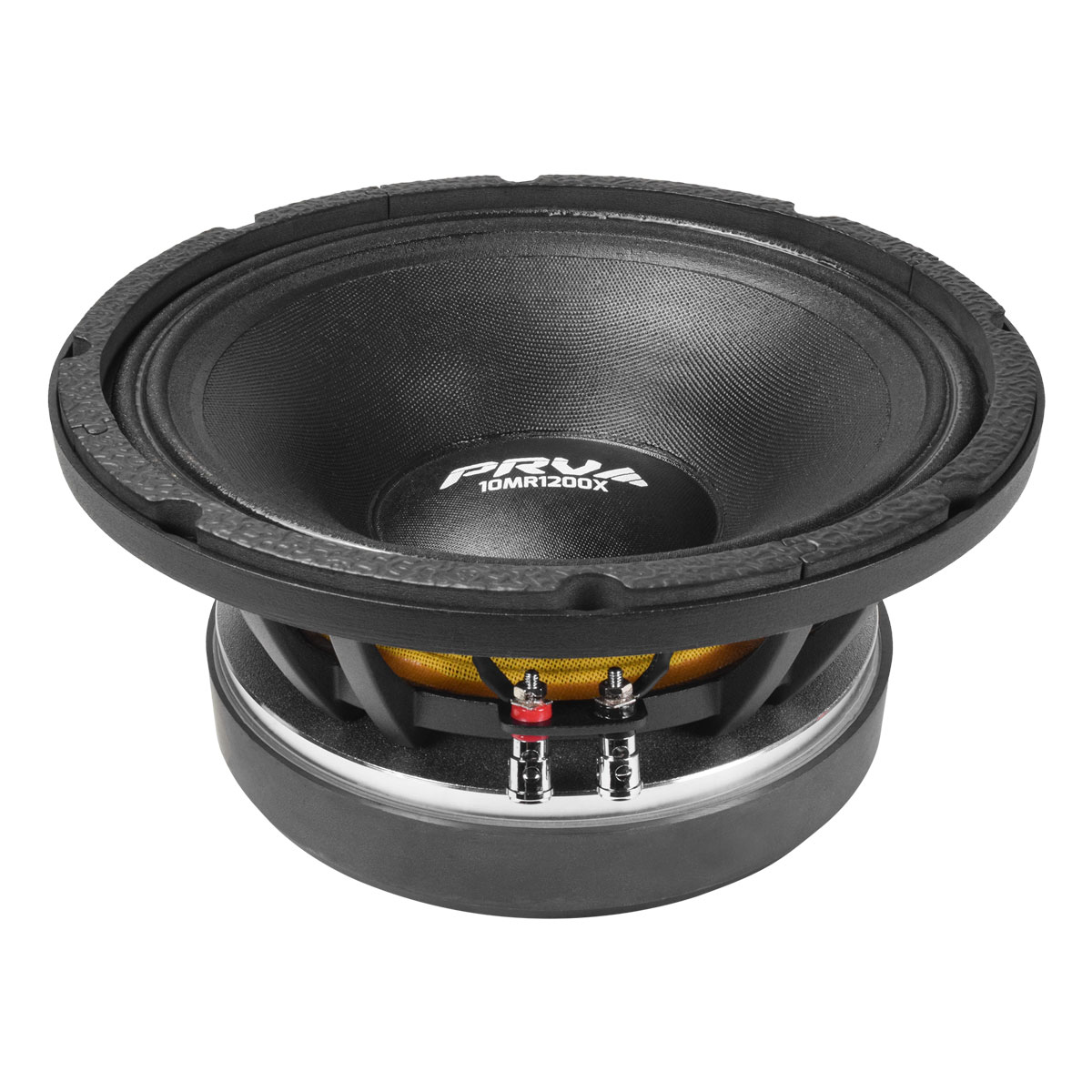

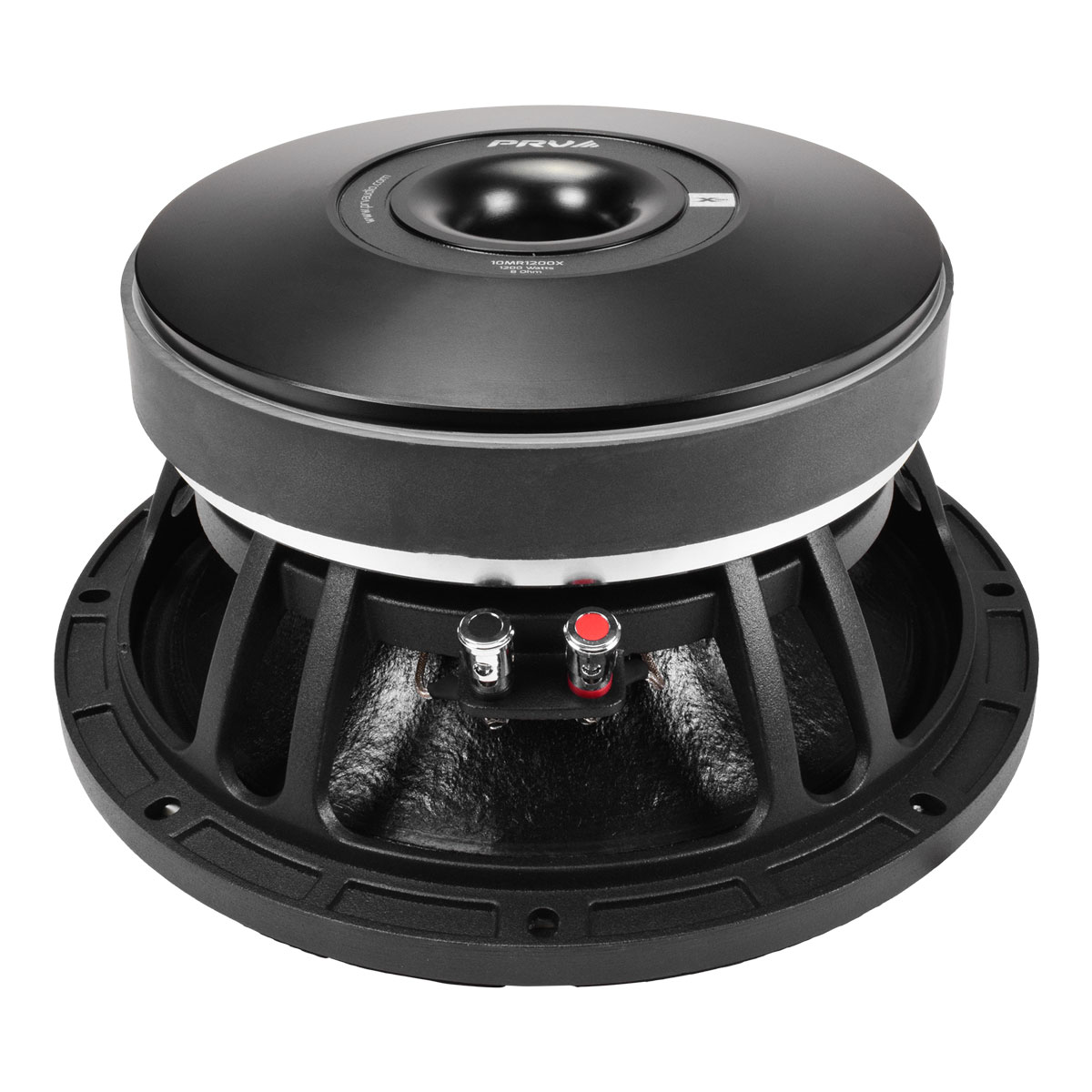

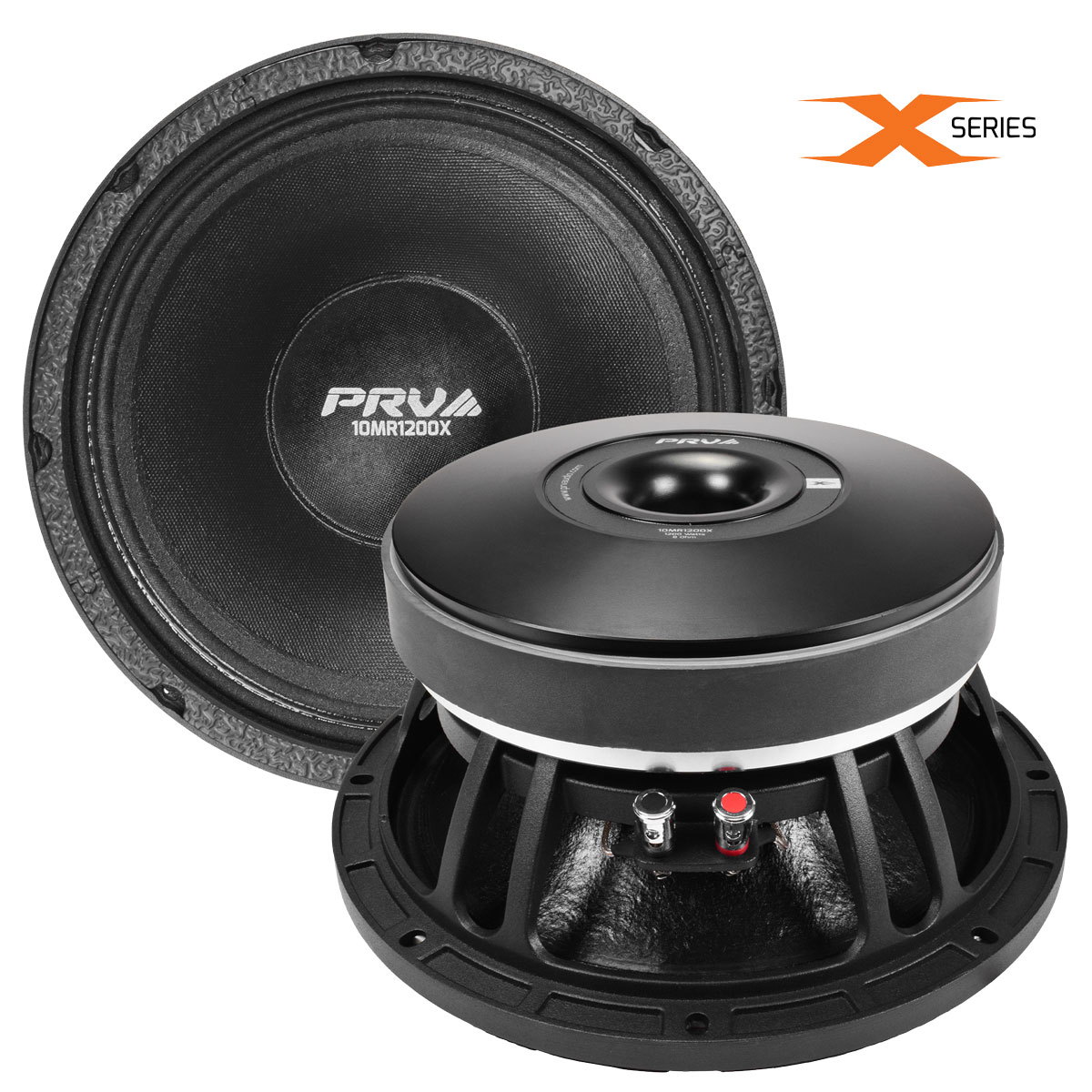

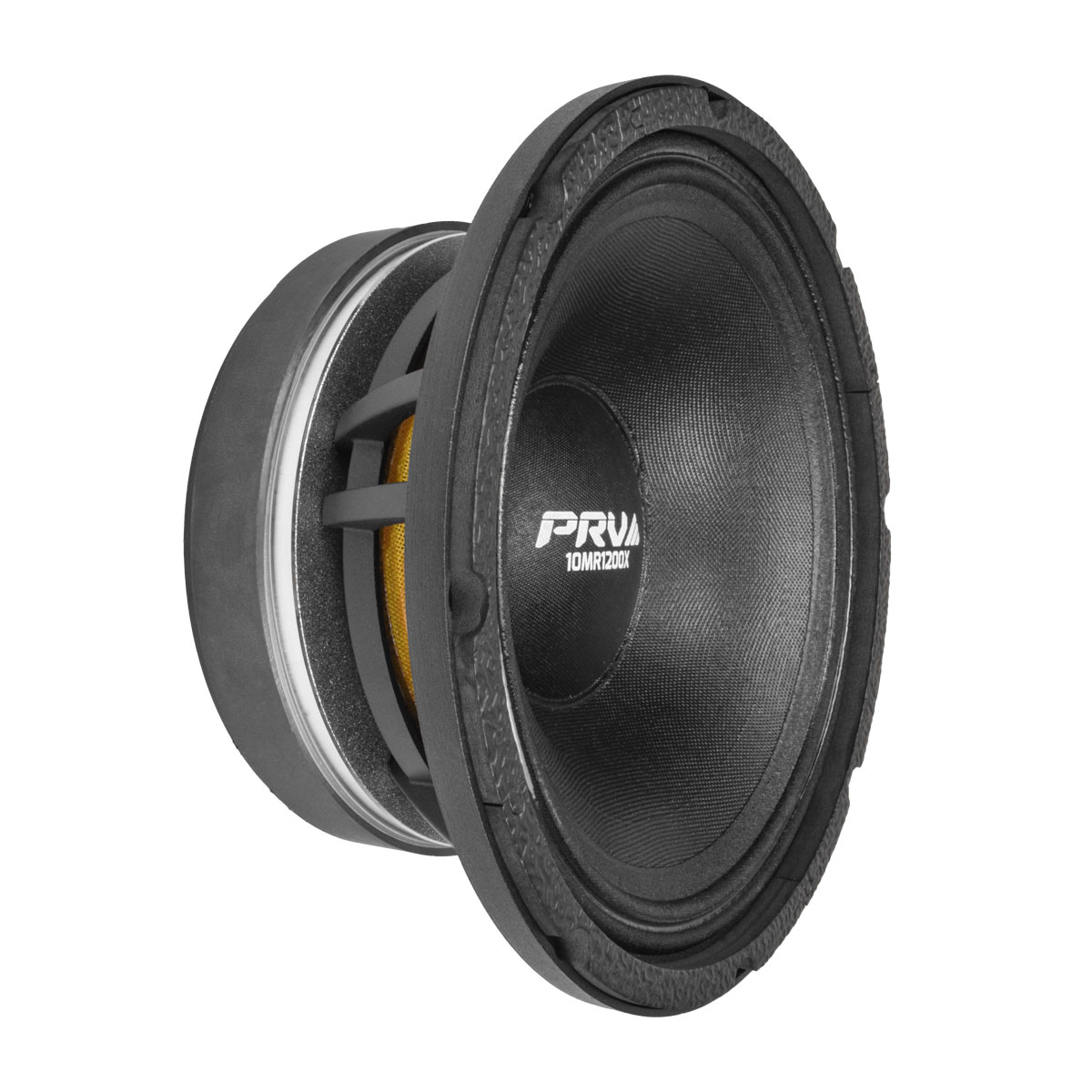

The PRV 10MR1200X is one of PRV's most efficient 10" midranges. With 101 dB sensitivity it gets loud on modest power, and its ventilated gap and 3" voice coil on a glass fiber former handle 1,200 W RMS. The lightweight cone is tuned for vocal and instrument clarity in compact enclosures, custom doors and competition systems.

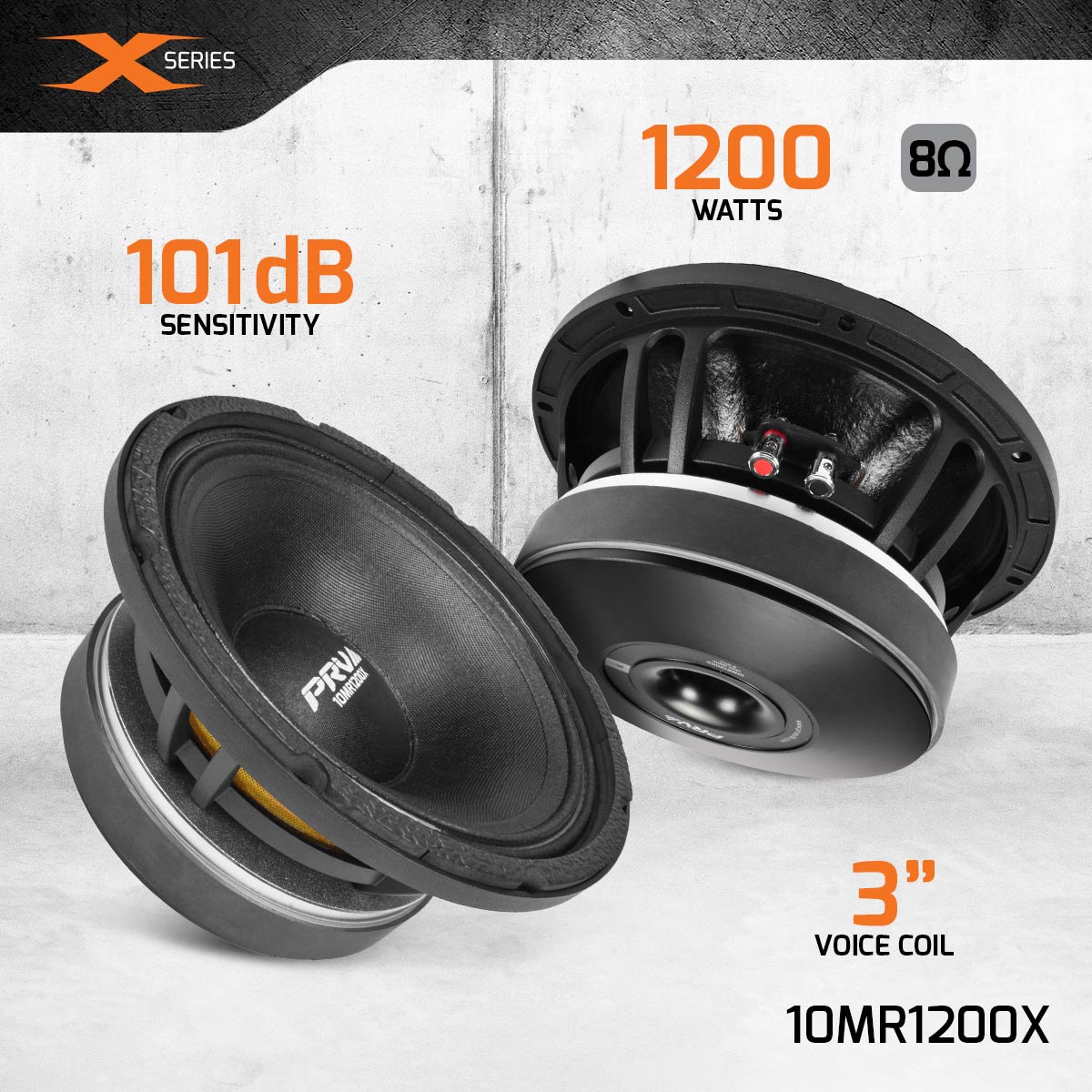

Key Features
- 1,200 W RMS continuous program power
- 101 dB sensitivity (2.83V/1m)
- 3" CCAW voice coil on a glass fiber former
- Ventilated voice coil gap
- Ferrite motor
- Die-cast aluminum frame
Specifications are manufacturer rated.
02 Tech specs
By the numbers
RMS Power 01
1,200W
Continuous rating
Sensitivity 02
101dB
Efficiency
Size 03
3in
Nominal
Weight 04
19.18lb
Per unit
- Impedance
- 8 Ohm
- Continuous Program Power (RMS)
- 1,200 W
- Recommended Hi Pass Crossover
- 150 Hz, 12 dB/octave
- Sensitivity (2.83V at 1m)
- 101 dB
- Frequency Response
- 80 – 7,000 Hz
- Voice Coil Diameter
- 3" (75 mm)
- Voice Coil Wire
- CCAW
- Former Material
- Glass fiber
- Magnet
- Ferrite
- Frame Material
- Die-cast aluminum

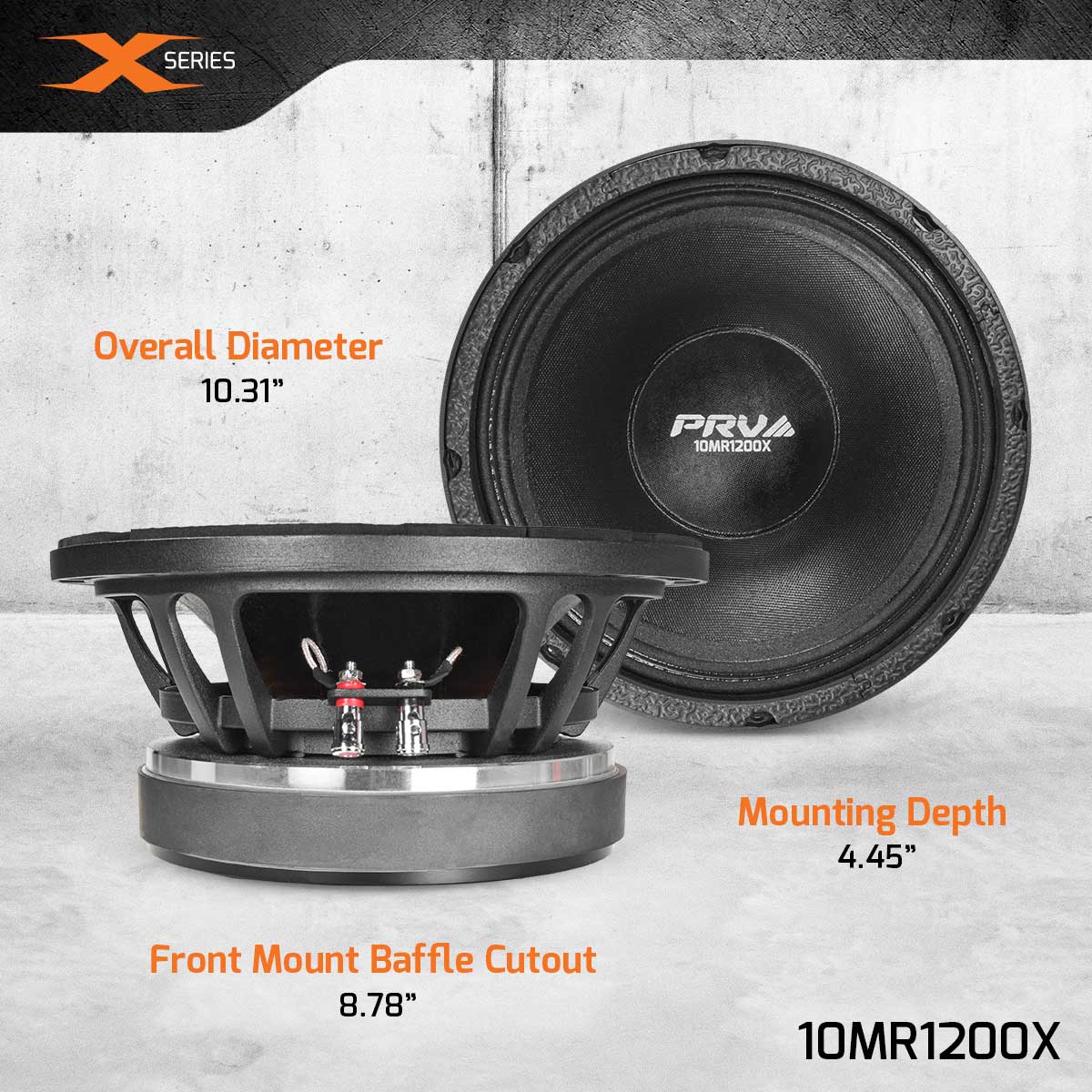

- Mounting Depth
- 4.45" (113 mm)
- Cutout
- 8.78" (223 mm)
- Overall Dimensions
- 10.31" (262 mm) dia., 5.04" (128 mm) deep
- Net Weight
- 19.18 lbs (8.70 kg)
- Weight
- 20.3 lbs
- Dimensions
- 11.5 × 11.5 × 6.5 in
03 Reviews (0)
Reviews (0)
You must be logged in to post a review.
04 Complete the build
Shop all Power it right
Related products
-

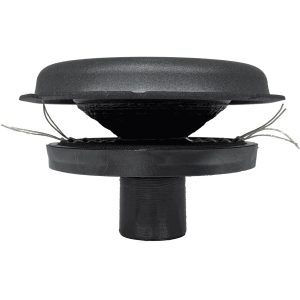

Trinity Audio SolutionsTrinity Audio B Series 10″ Subwoofer Recone Kit RC-TAS-B10
$104.99Select options This product has multiple variants. The options may be chosen on the product page -
Gately AudioGately Audio GM Extra Cab 2 x 10” (1999 To Early 2007) With Seat Lift Enclosure Only GMR210-99-07-EXT
$1,730.00Add to cart -
SoundQubedSoundqubed HDB2 Series Subwoofer Dual 10″ Loaded & Ported Enclosure D4
$479.95Add to cart -

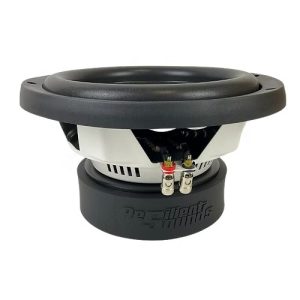

Resilient SoundsResilient Sounds 10 inch V2 500RMS Entry Subwoofer D4
