01 Overview
The details
Product Overview

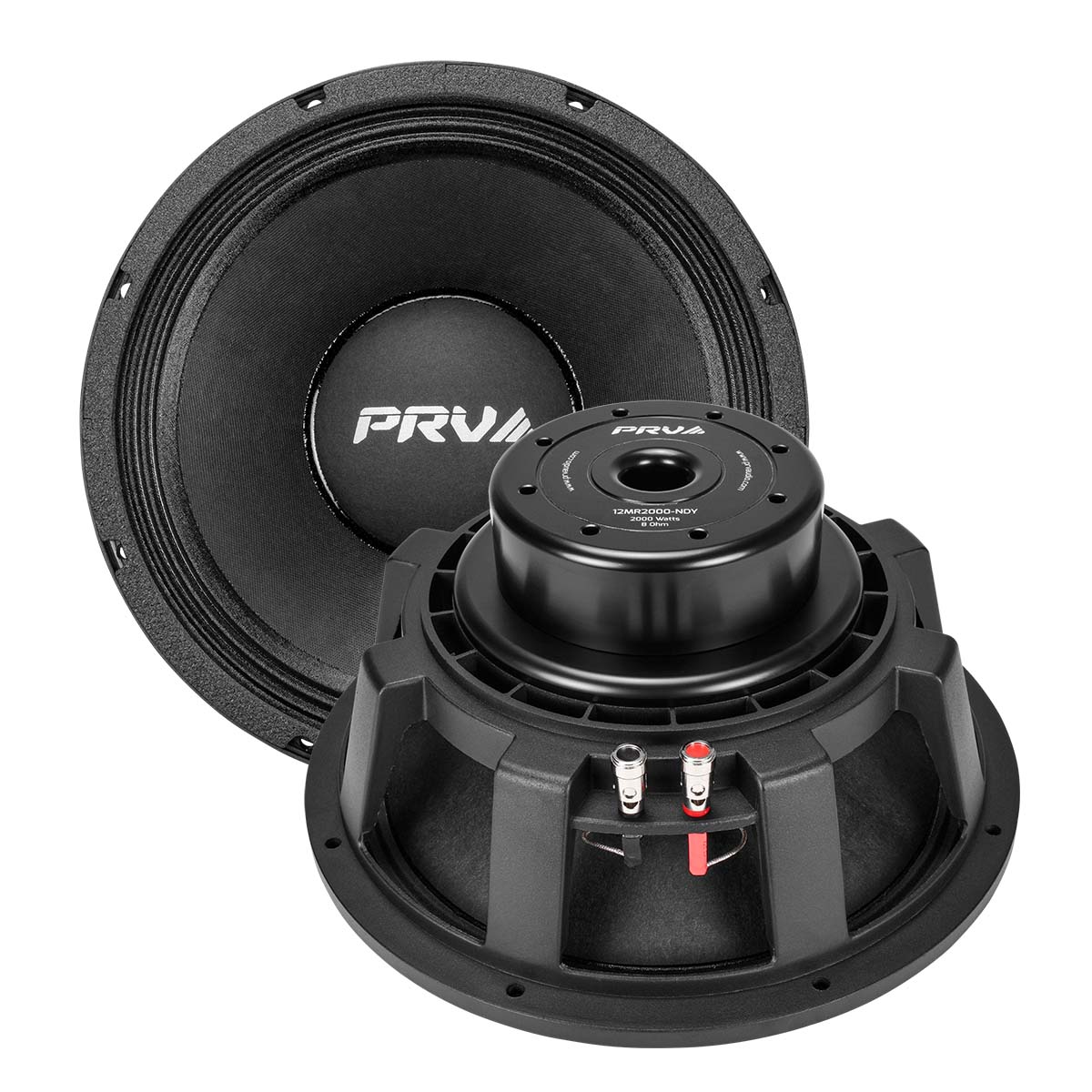

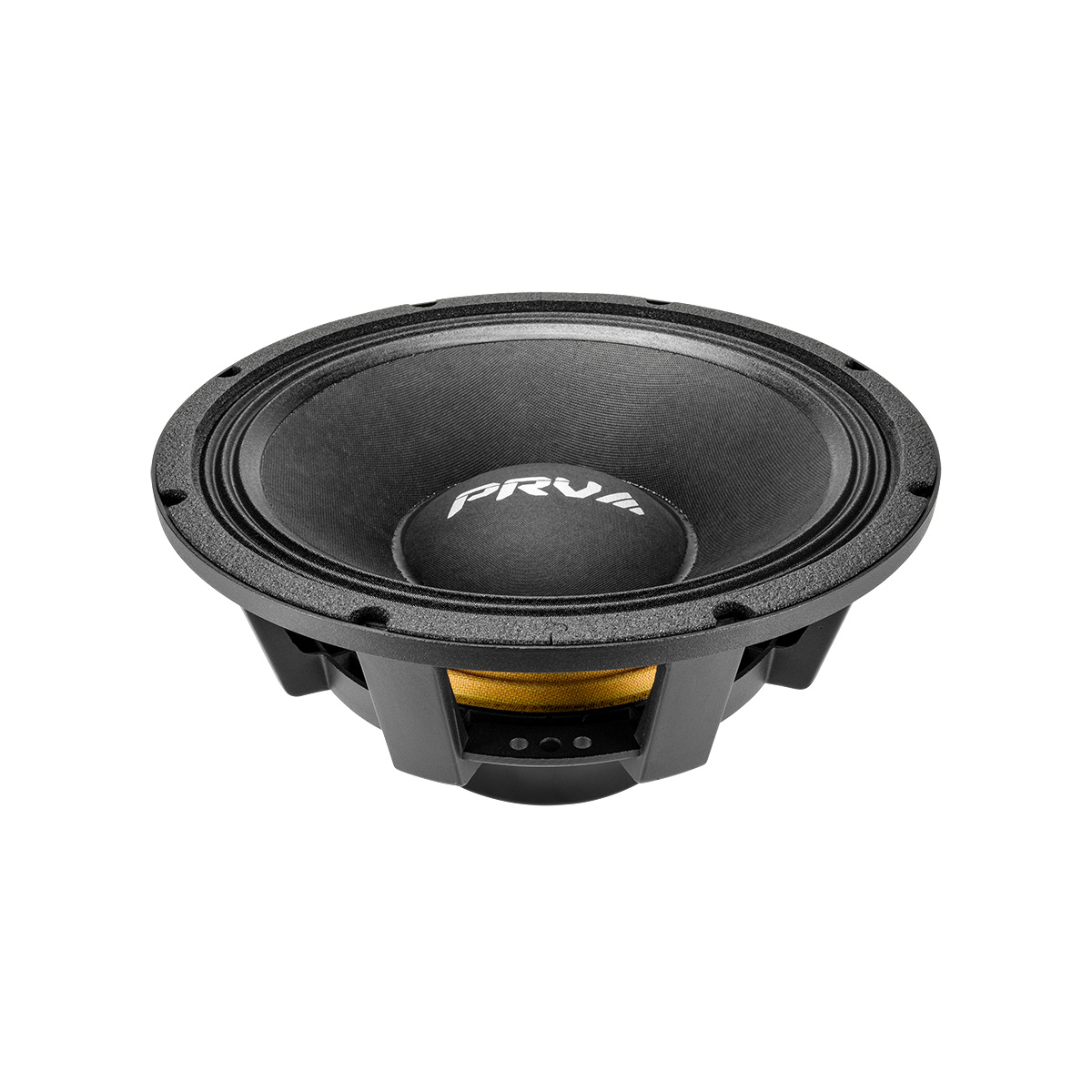

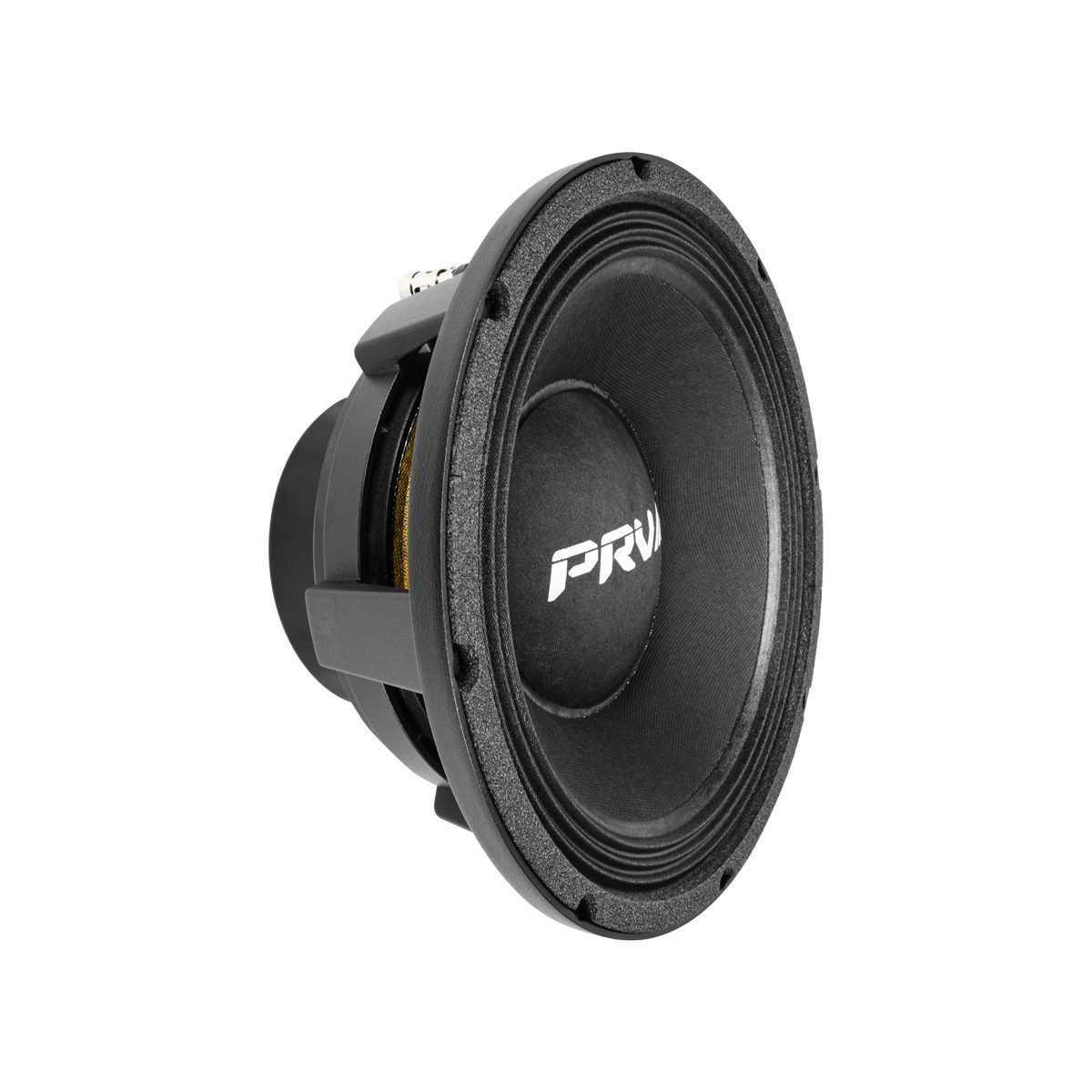

The PRV 12MR2000-NDY brings 2,000 W RMS, 4" voice coil midrange power in a lighter neodymium package for tight installs such as chuchero boxes and door panels. Venting through the motor and cast frame reduces power compression, and the paper cone with accordion surround gives smooth response up to about 4.8 kHz.
Key Features
- 2,000 W RMS continuous program power
- 98 dB sensitivity (2.83V/1m)
- 4" copper voice coil on a glass fiber former

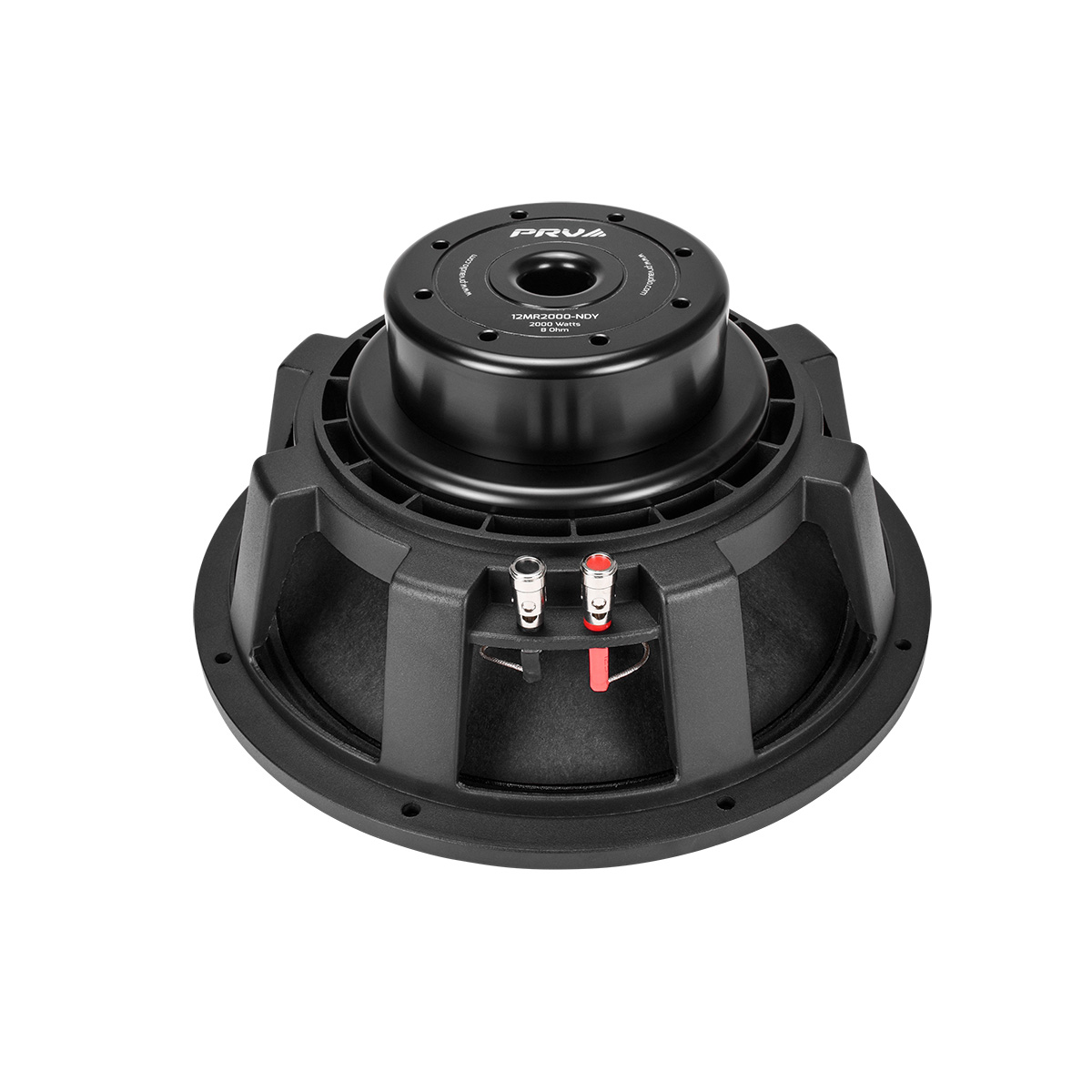

- Vented neodymium motor
- Paper cone with accordion surround
- Die-cast aluminum frame
Specifications are manufacturer rated.
02 Tech specs
By the numbers

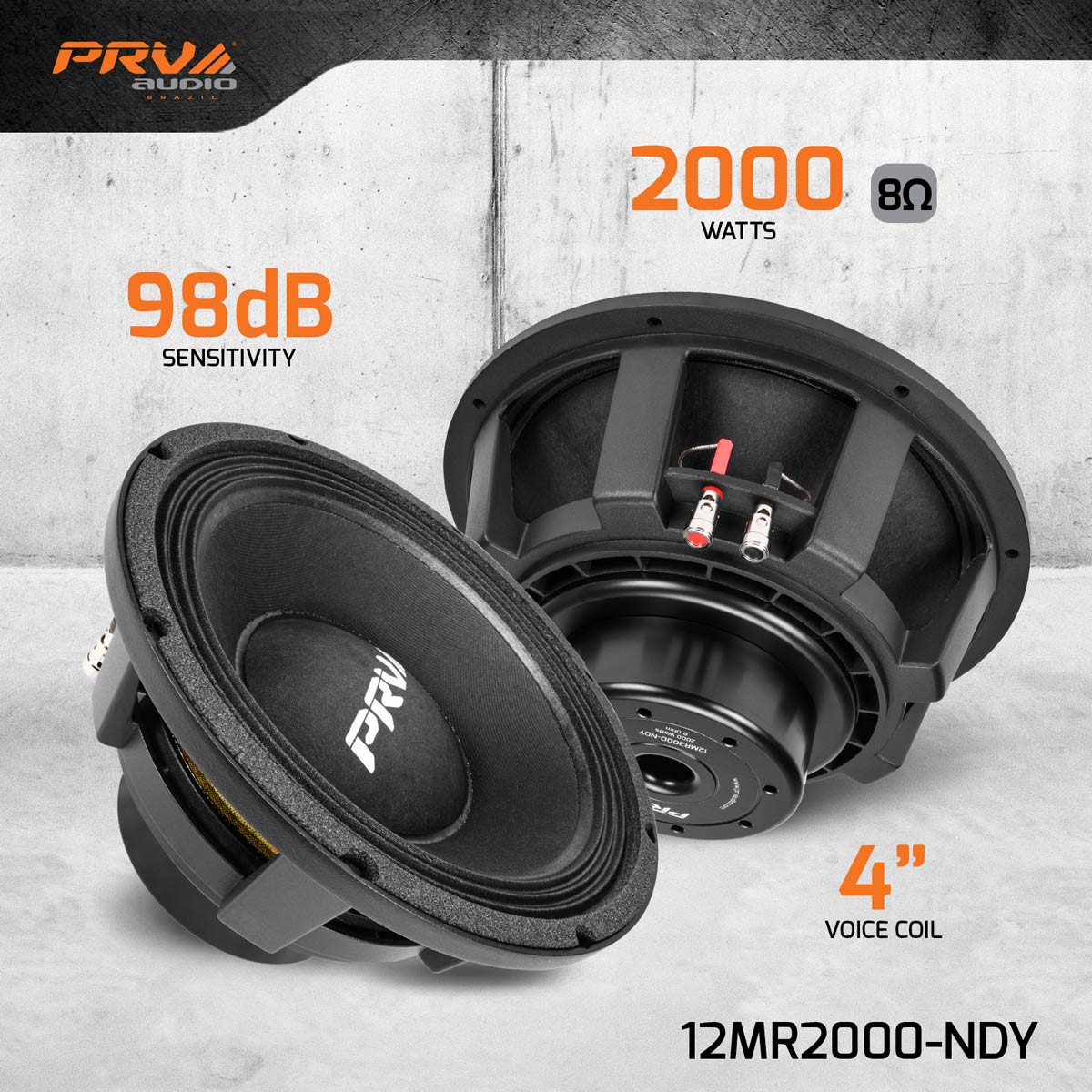

RMS Power 01
2,000W
Continuous rating
Sensitivity 02
98dB
Efficiency
Size 03
4in
Nominal
Weight 04
13.93lb
Per unit
- Impedance
- 8 Ohm
- Continuous Program Power (RMS)
- 2,000 W
- Recommended Hi Pass Crossover
- 145 Hz, 12 dB/octave
- Sensitivity (2.83V at 1m)
- 98 dB
- Frequency Response
- 68 – 4,800 Hz
- Voice Coil Diameter
- 4" (100 mm)
- Voice Coil Wire
- Copper
- Former Material
- Glass fiber
- Cone
- Paper
- Magnet
- Neodymium
- Frame Material
- Die-cast aluminum

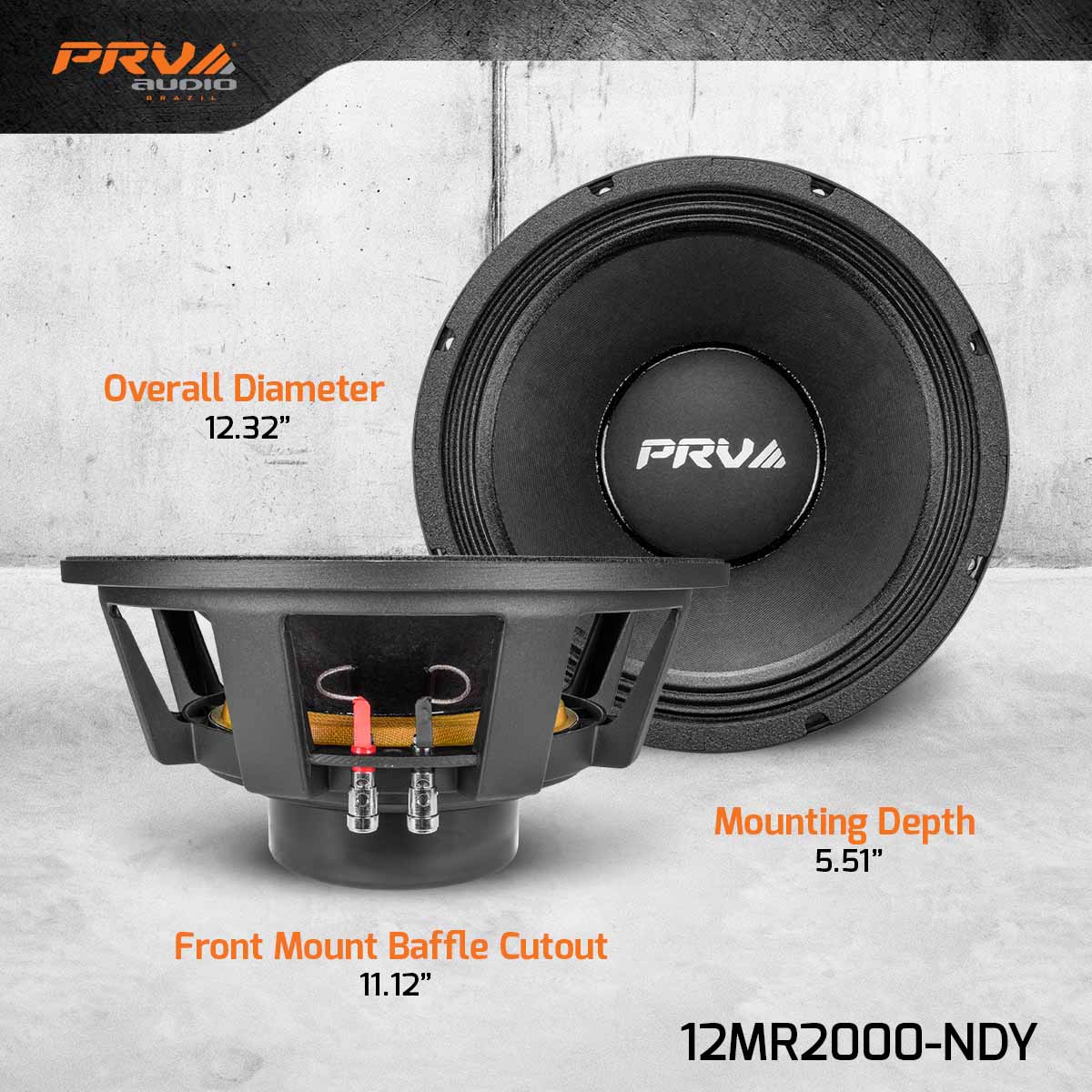

- Mounting Depth
- 5.51" (140 mm)
- Cutout
- 11.12" (282.5 mm)
- Overall Dimensions
- 12.32" (313 mm) dia., 5.94" (151 mm) deep
- Net Weight
- 13.93 lbs (6.32 kg)
- Weight
- 15.4 lbs
- Dimensions
- 14.75 × 14.75 × 8.5 in
