01 Overview
The details
Product Overview

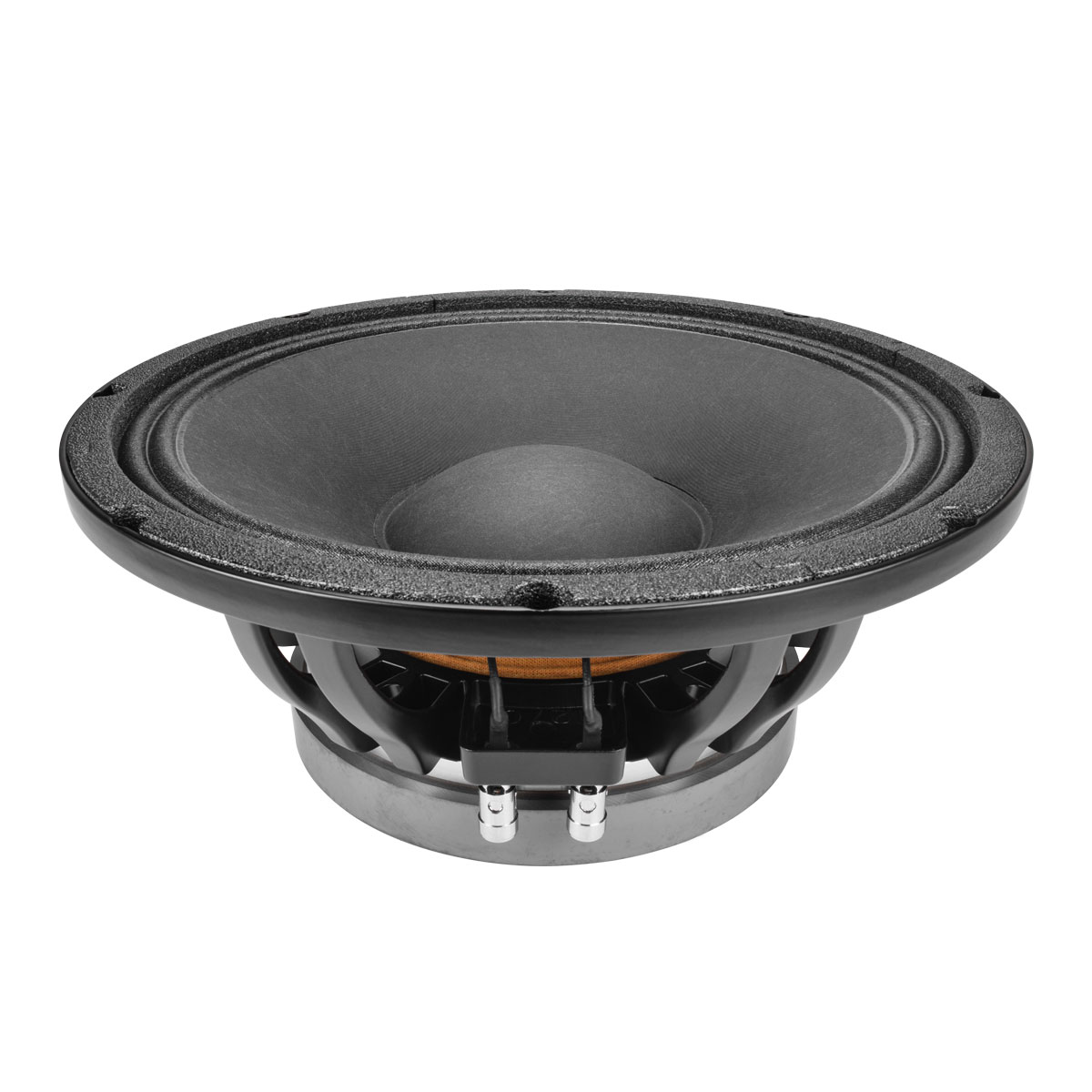

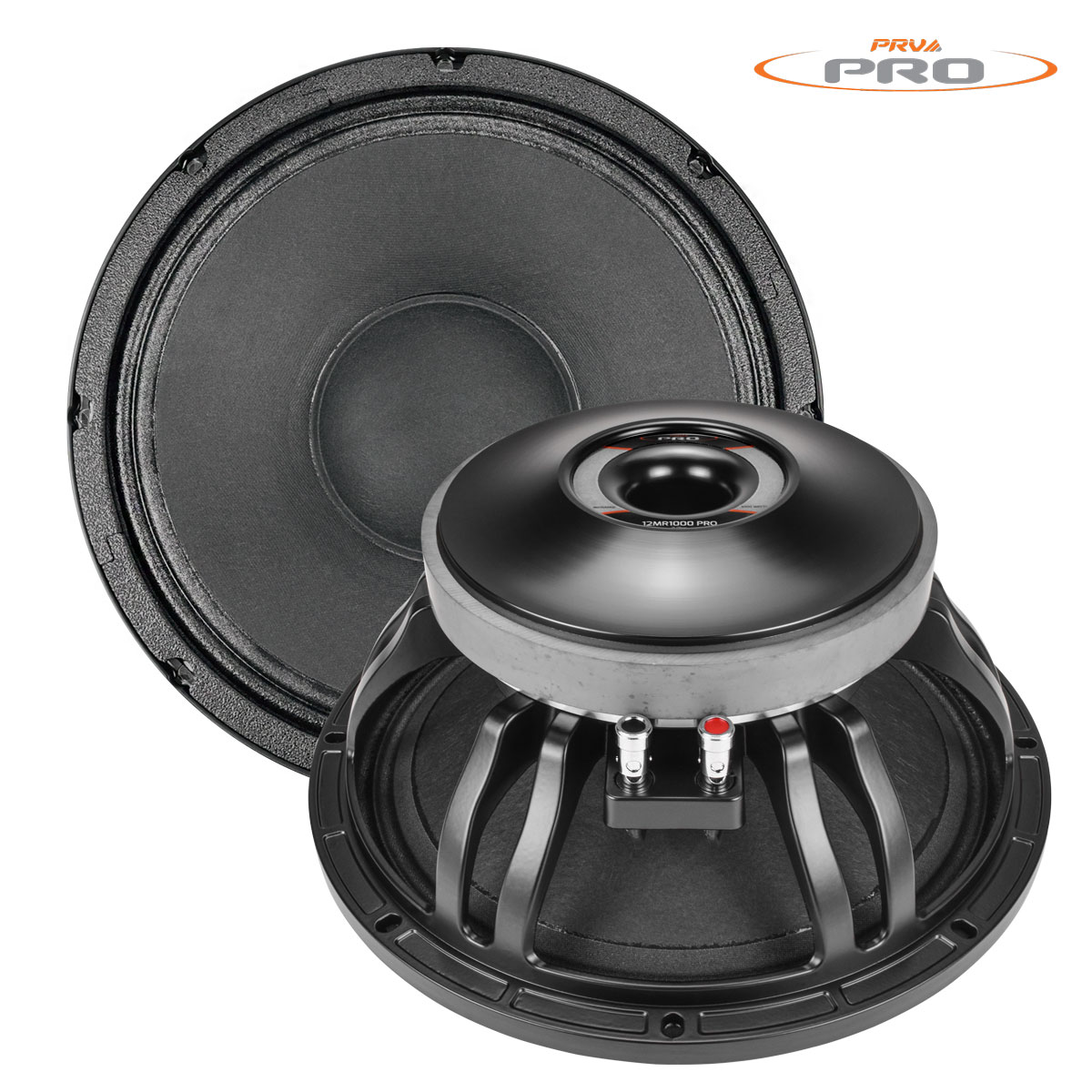

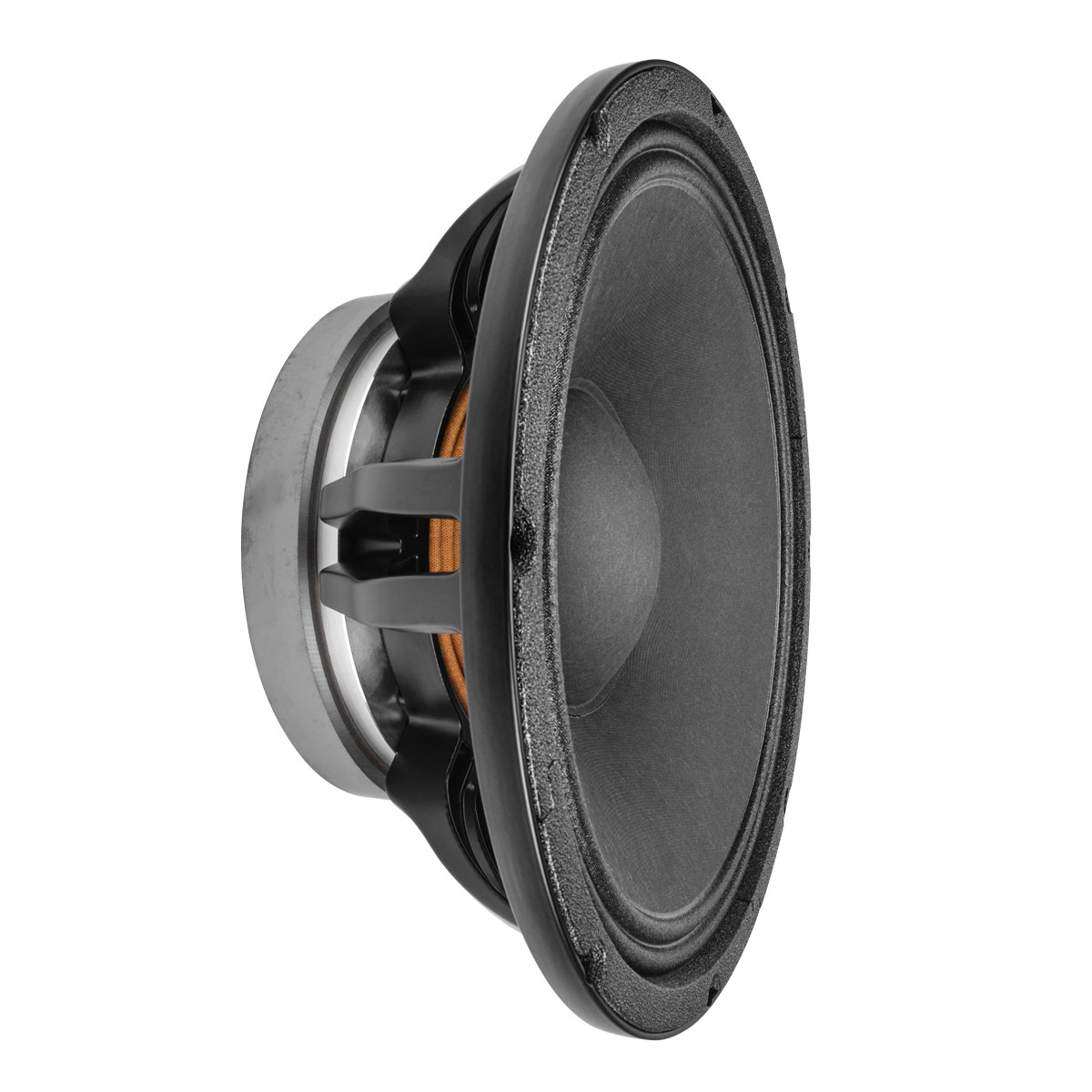

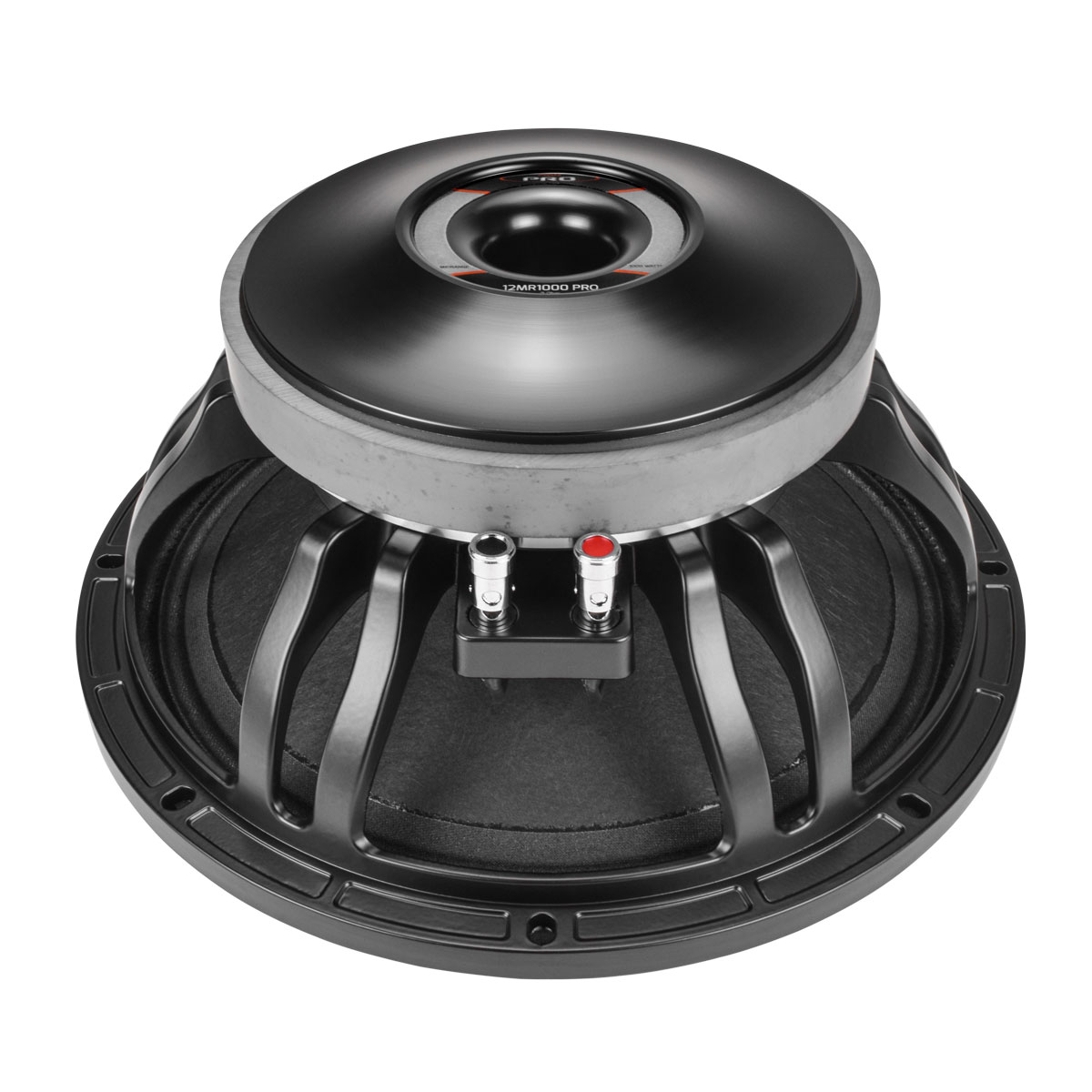

The PRV 12MR1000 PRO is built for small sealed, horn-loaded and vented enclosures in pro sound, home and high-SPL car audio. Its 3" CCAW voice coil on a glass fiber former, with under-spider and rear venting, runs cool through long sessions, and a low Qts gives strong damping in smaller boxes.

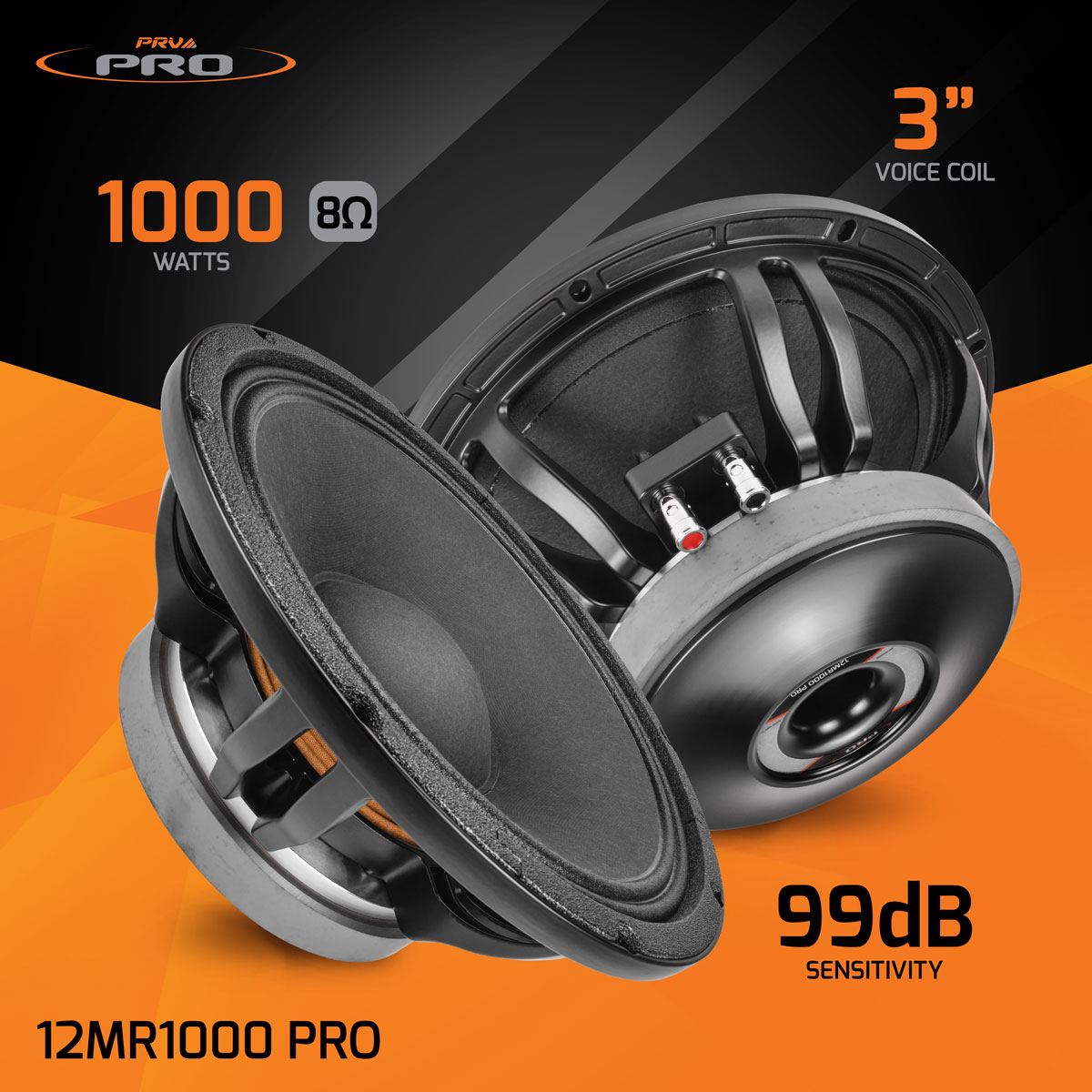

Key Features
- 1,000 W RMS continuous program power
- 99 dB sensitivity (2.83V/1m)
- 3" CCAW voice coil on a glass fiber former
- Under-spider and rear venting
- Cloth surround
- Die-cast aluminum frame
Specifications are manufacturer rated.
02 Tech specs
By the numbers
RMS Power 01
1,000W
Continuous rating
Sensitivity 02
99dB
Efficiency
Size 03
3in
Nominal
Weight 04
16.30lb
Per unit
- Impedance
- 8 Ohm
- Continuous Program Power (RMS)
- 1,000 W
- Recommended Hi Pass Crossover
- 125 Hz, 12 dB/octave
- Sensitivity (2.83V at 1m)
- 99 dB
- Frequency Response
- 70 – 6,500 Hz
- Voice Coil Diameter
- 3" (75 mm)
- Voice Coil Wire
- CCAW
- Former Material
- Glass fiber
- Surround
- Cloth
- Magnet
- Ferrite
- Frame Material
- Die-cast aluminum

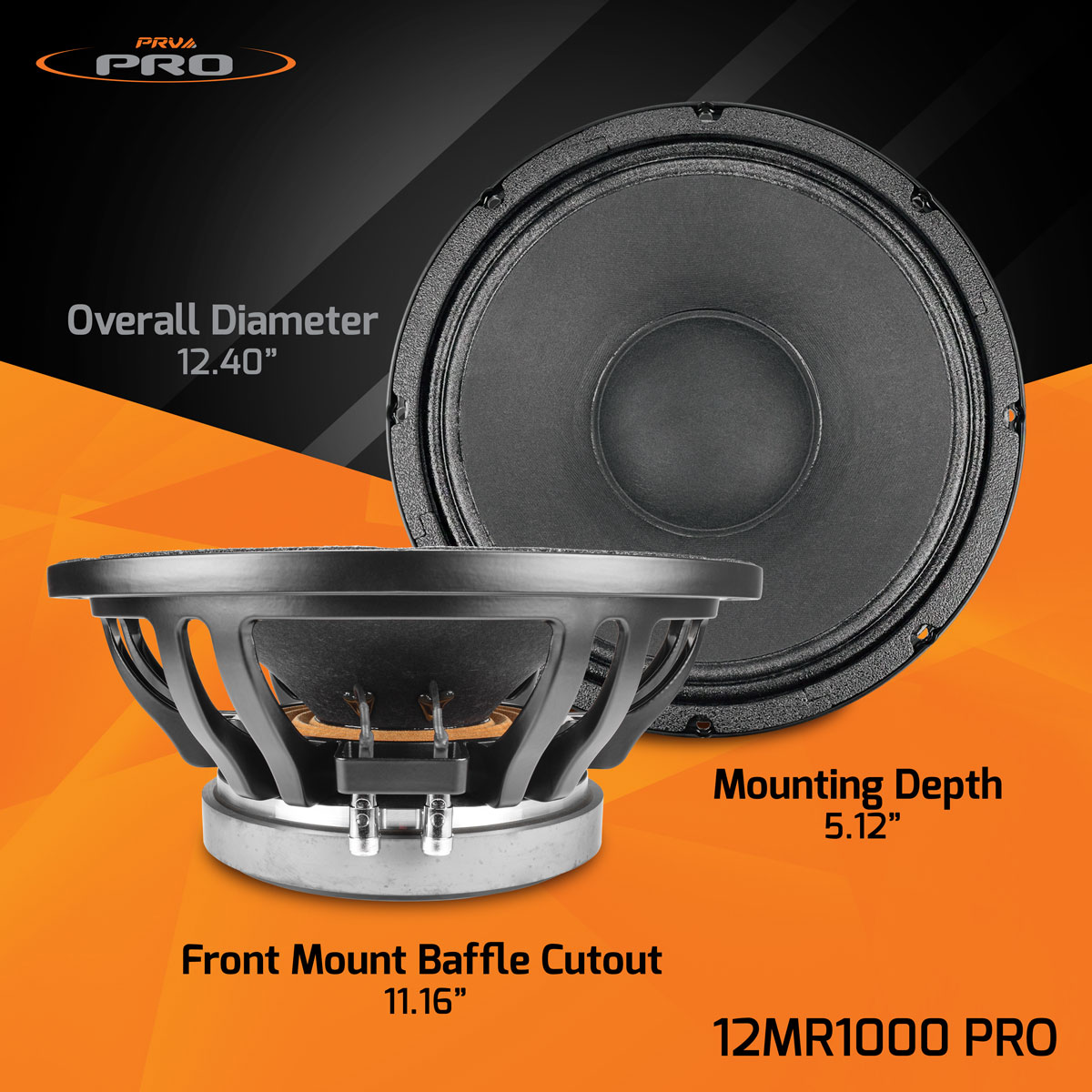

- Mounting Depth
- 5.12" (130 mm)
- Cutout
- 11.16" (283.5 mm)
- Overall Dimensions
- 12.40" (315 mm) dia., 5.61" (142.5 mm) deep
- Net Weight
- 16.30 lbs (7.40 kg)
- Weight
- 18 lbs
- Dimensions
- 13.5 × 13.5 × 7 in
03 Reviews (0)
Reviews (0)
You must be logged in to post a review.
04 Complete the build
Shop all Power it right
Related products
-

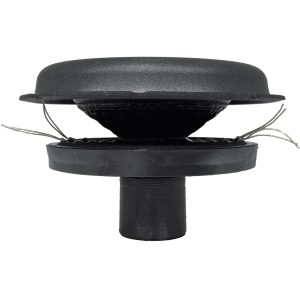

Trinity Audio SolutionsTrinity Audio H Series 12″ Subwoofer Recone Kit RC-TAS-H12
$199.99Select options This product has multiple variants. The options may be chosen on the product page -

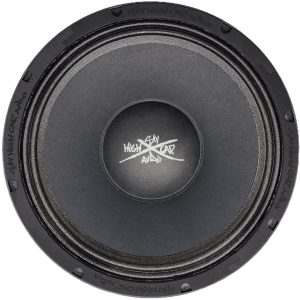

Sky High Car AudioMB12 12 inch Midbass Loudspeaker 1000 Watts 8 ohm (Single)
