01 Overview
The details
Product Overview

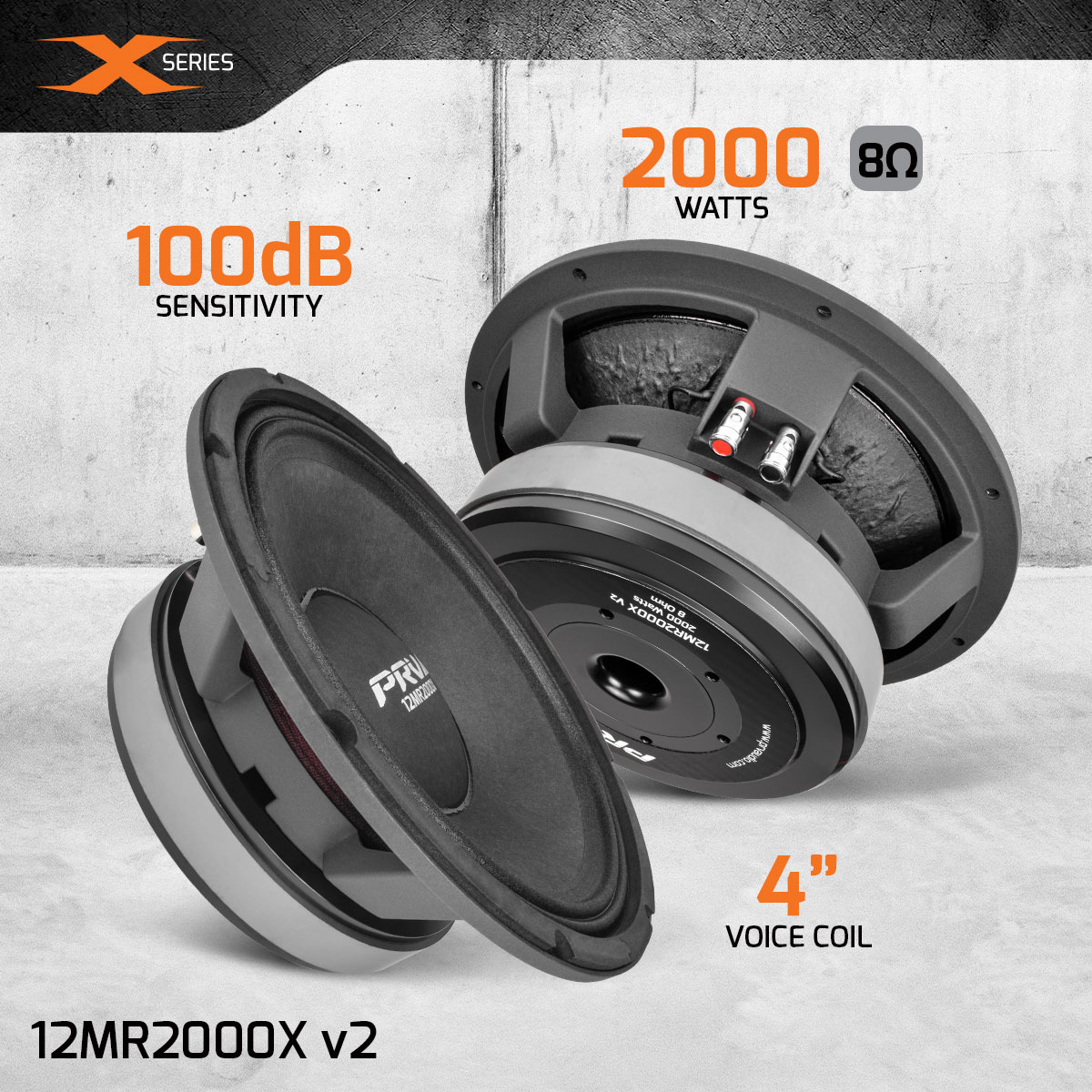

The PRV 12MR2000X v2 pairs high efficiency with serious power: 2,000 W RMS and 100 dB sensitivity. A heavily vented 4" voice coil stays cool at high power, a 6.60 mm Xmax gives controlled, high-impact midbass, and the composite cone delivers detailed, smooth vocals. At 4.48" deep it suits compact enclosures.
Key Features
- 2,000 W RMS continuous program power
- 100 dB sensitivity (2.83V/1m)
- 4" CCAW voice coil on a glass fiber former
- Composite non-pressed paper cone
- Large ferrite motor
- Shallow 4.48" mounting depth
Specifications are manufacturer rated.
02 Tech specs
By the numbers
RMS Power 01
2,000W
Continuous rating
Xmax 02
6.60mm
One-way excursion
Sensitivity 03
100dB
Efficiency
Size 04
4in
Nominal
Excursion
Scale 0 to 8mmXMAX 6.6MM
- Impedance
- 8 Ohm
- Continuous Program Power (RMS)
- 2,000 W
- Recommended Hi Pass Crossover
- 160 Hz, 12 dB/octave
- Sensitivity (2.83V at 1m)
- 100 dB
- Frequency Response
- 100 – 5,300 Hz
- Xmax
- 6.60 mm
- Voice Coil Diameter
- 4" (100 mm)
- Voice Coil Wire
- CCAW
- Former Material
- Glass fiber
- Cone
- Composite, non-pressed paper
- Magnet
- Ferrite
- Frame Material
- Die-cast aluminum
- Mounting Depth
- 4.48" (114 mm)
- Cutout
- 11.14" (283 mm)
- Overall Dimensions
- 12.28" (312 mm) dia., 4.96" (126 mm) deep
- Net Weight
- 26.65 lbs (12.08 kg)
- Weight
- 28.2 lbs
- Dimensions
- 13.25 × 13.5 × 6.75 in
