PRV

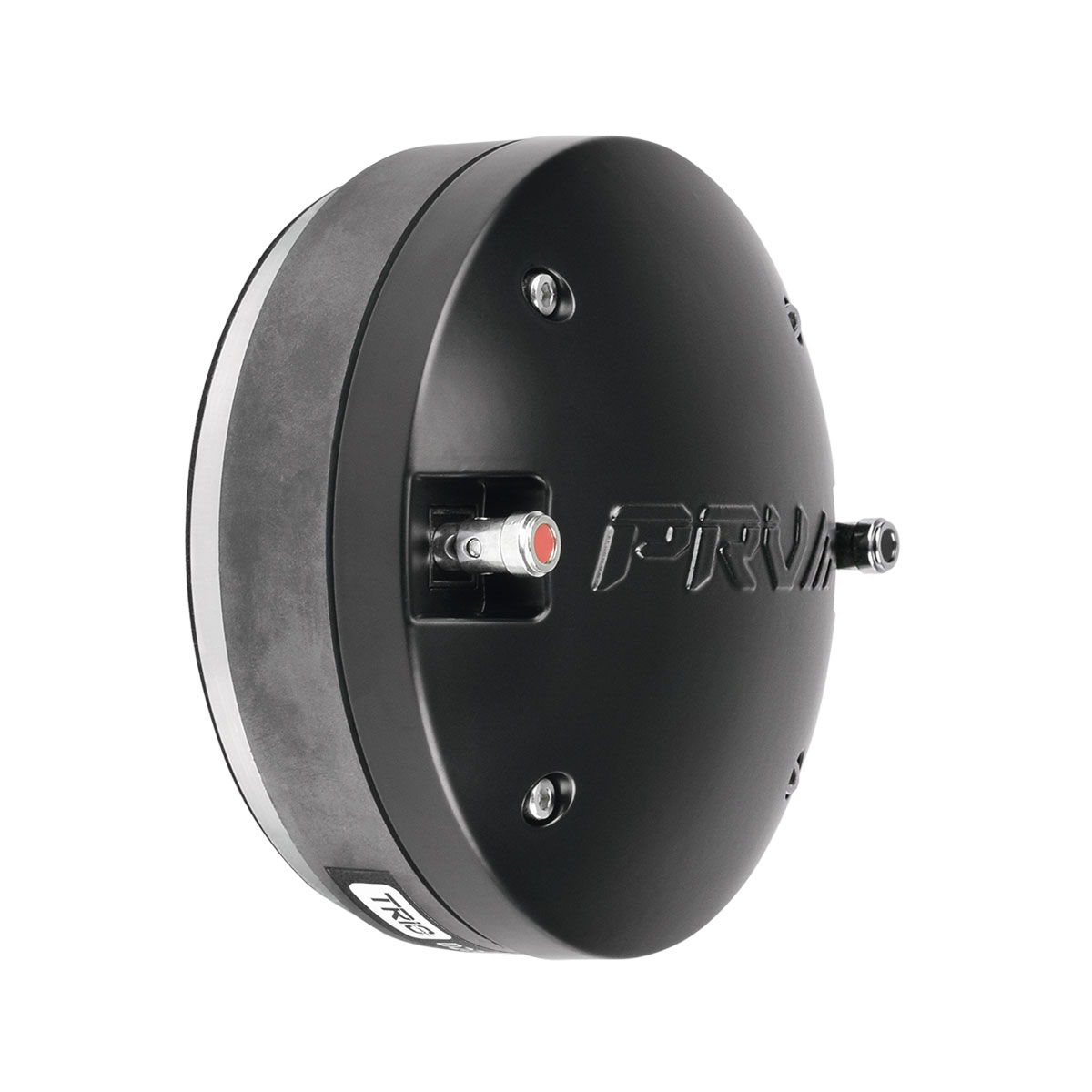

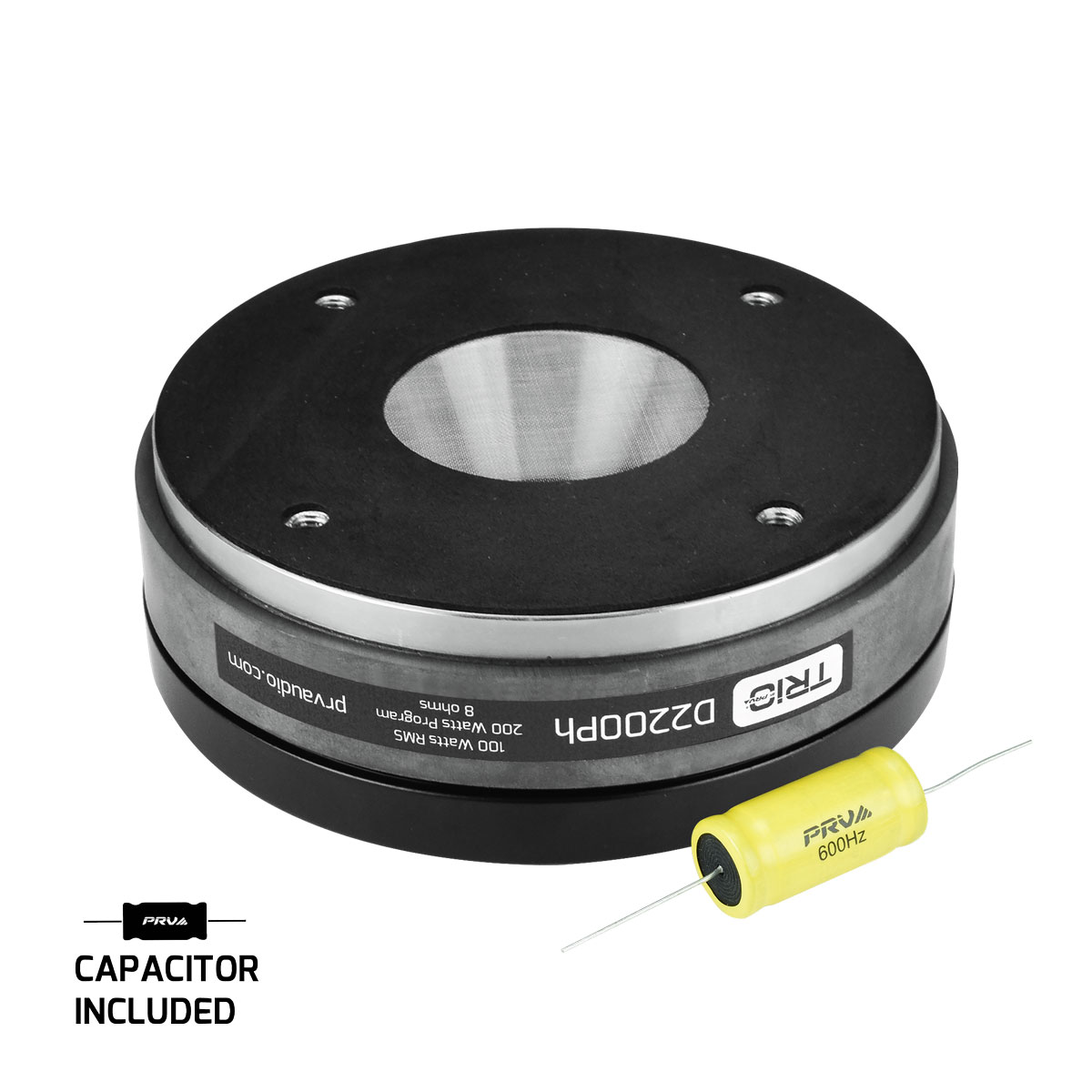

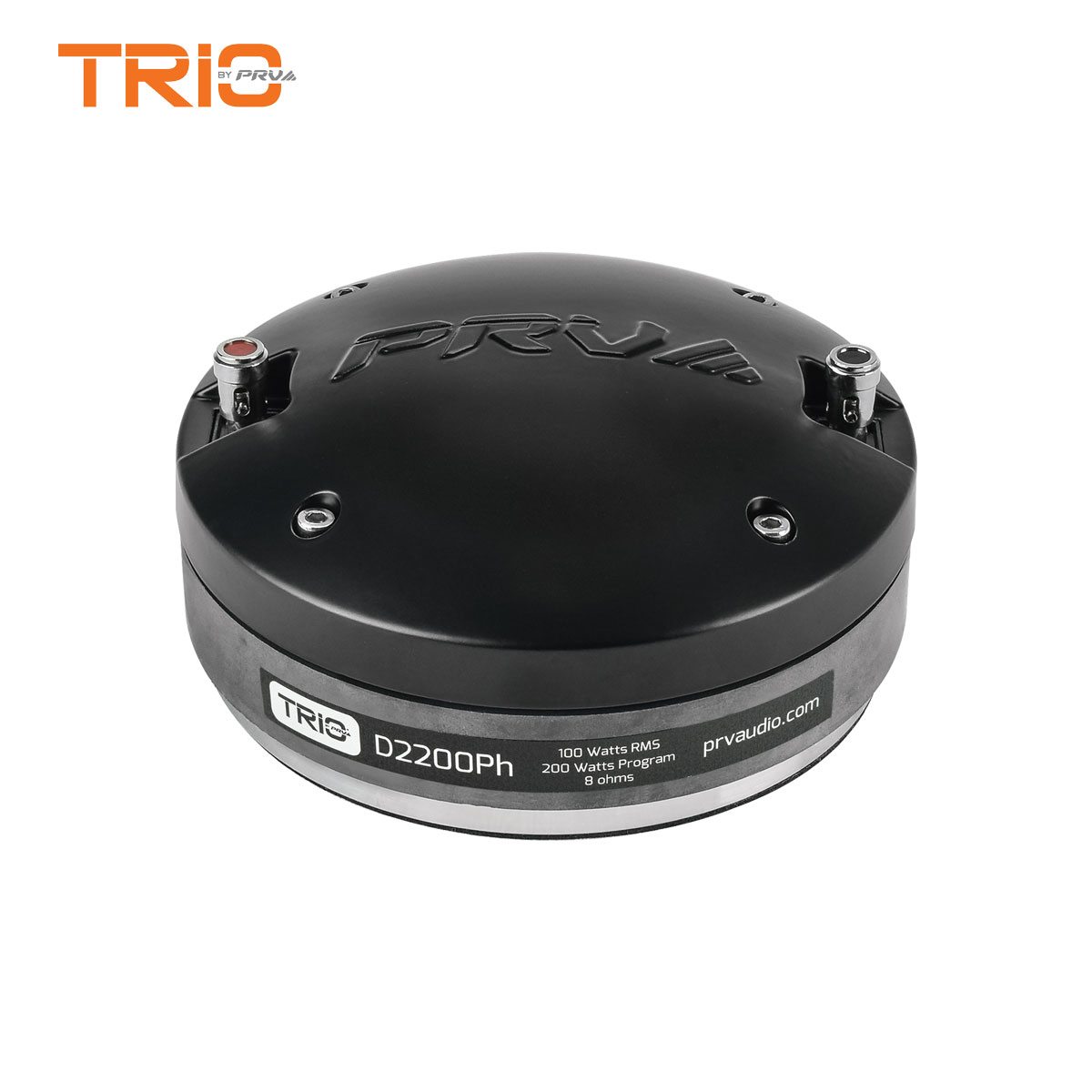

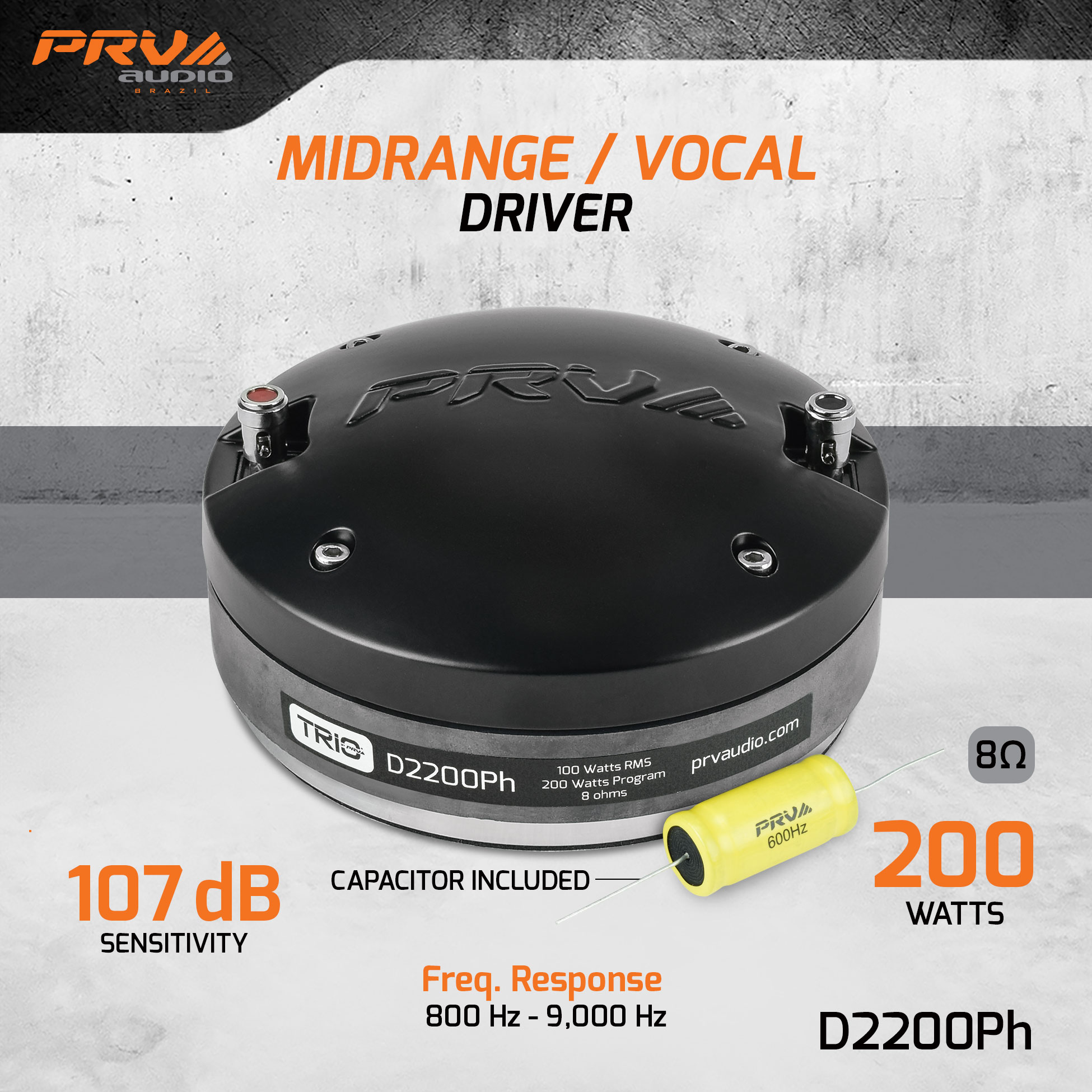

PRV 2 inch Exit Phenolic Mid Range Compression Driver 8 Ohm PRV-D2200Ph
$69.91
2″ exit phenolic midrange driver, 100 W rated / 200 W program power and 107 dB, front mountable.
Sensitivity107dB
Size2in
Weight6.39lb
01 Overview
The details
Product Overview
The PRV D2200Ph is a 2" exit midrange driver for vocal reinforcement in pro, home and car systems. A low-mass 2" voice coil and phenolic diaphragm give a natural midrange from about 800 Hz to 9 kHz, and its small diameter lets it mount from the front of WGP14-50 horns without removing the driver.
Key Features
- 100 W rated, 200 W program power
- 107 dB sensitivity (2.83V/1m)
- Phenolic diaphragm, 2" CCAW voice coil
- Ferrite motor
- Front mounts on WGP14-50 horns
- Sold individually
Specifications are manufacturer rated.
02 Tech specs
By the numbers
Sensitivity 01
107dB
Efficiency
Size 02
2in
Nominal
Weight 03
6.39lb
Per unit
- Impedance
- 8 Ohm
- Nominal Power Handling
- 100 W
- Program Power
- 200 W
- Recommended Hi Pass Crossover
- 800 Hz, 12 dB/octave
- Sensitivity (2.83V at 1m)
- 107 dB
- Frequency Response
- 800 – 9,000 Hz
- Voice Coil Diameter
- 2" (51 mm)
- Magnet
- Ferrite
- Mounting
- Bolt-on, M6 x 4 on a 4" (101.6 mm) bolt circle
- Overall Dimensions
- 5.24" (133 mm) dia., 2.58" (65.5 mm) deep
- Net Weight
- 6.39 lbs (2.9 kg)
- Weight
- 6.39 lbs
- Dimensions
- 5.24 × 5.24 × 2.58 in
- Exit Throat
- 2" (50 mm)
- Diaphragm
- Phenolic
