01 Overview
The details
Product Overview

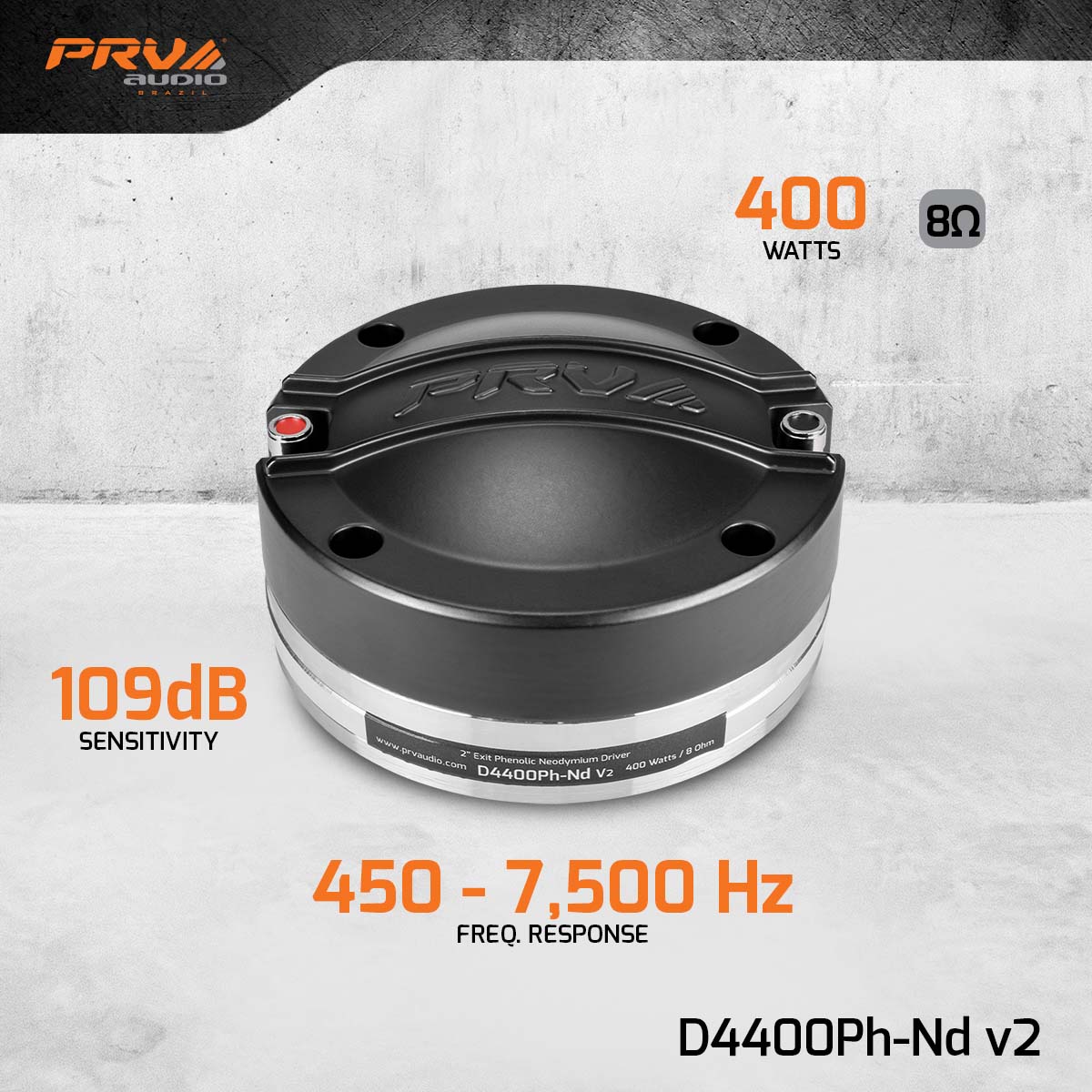

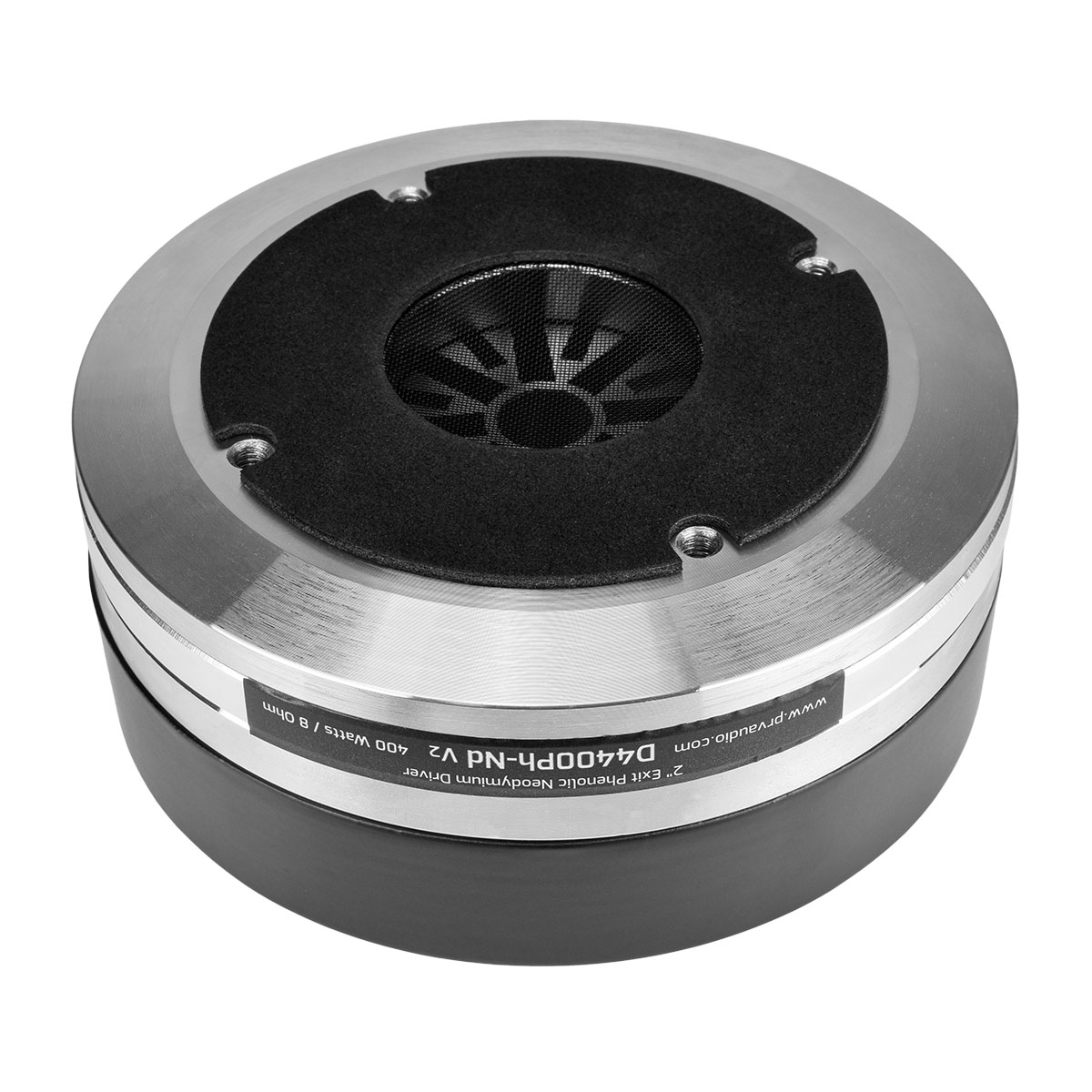

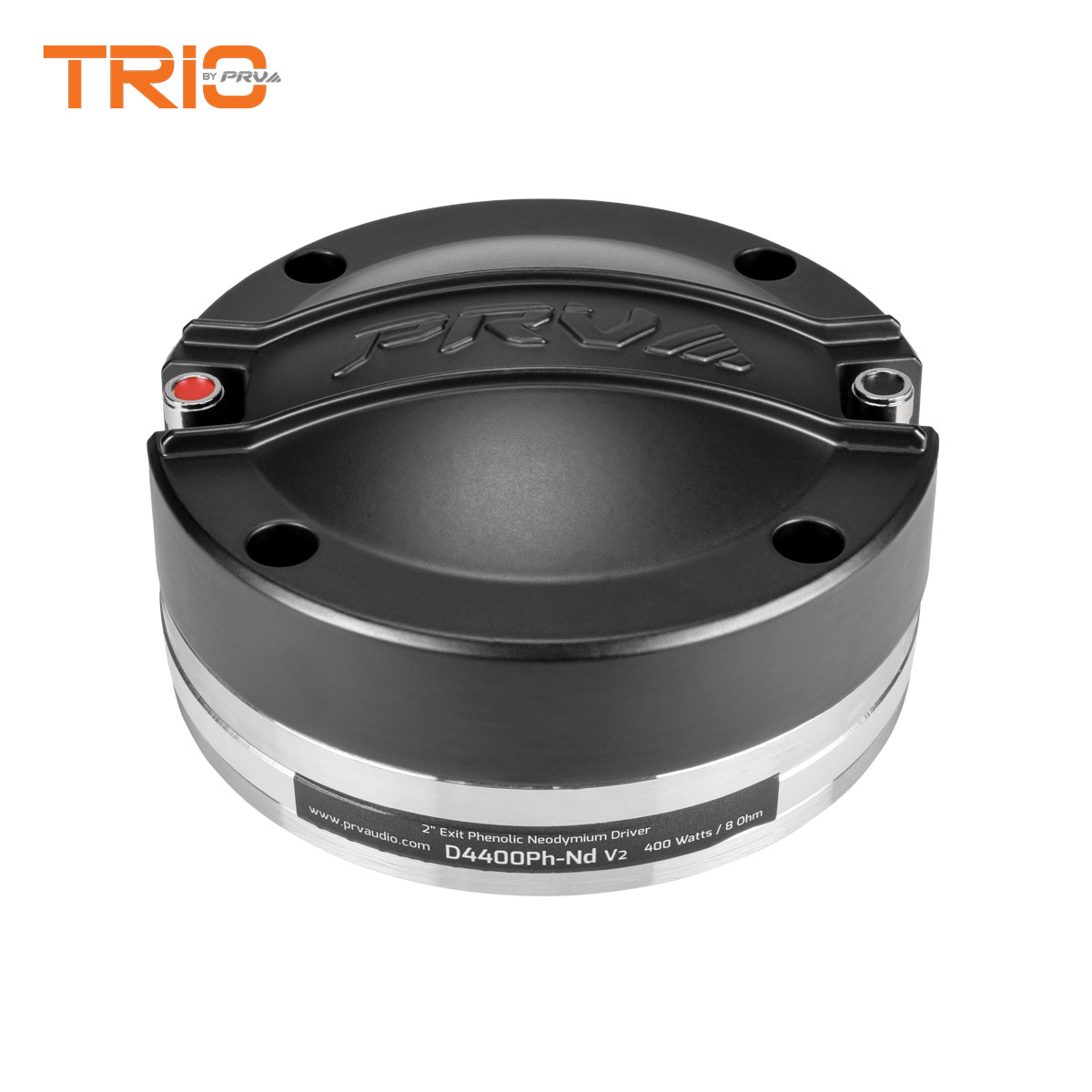

The PRV D4400Ph-Nd v2 is the successor to PRV's well-known neodymium midrange driver, with better efficiency and vocal reproduction aimed at car audio competition. Its phenolic diaphragm covers vocals from about 450 Hz, a larger aluminum phase plug improves voice coil cooling, and the neodymium motor is smaller and lighter than the ferrite D4400Ph.
Key Features
- 200 W nominal, 400 W RMS program, 800 W peak
- 109 dB sensitivity (2.83V/1m)

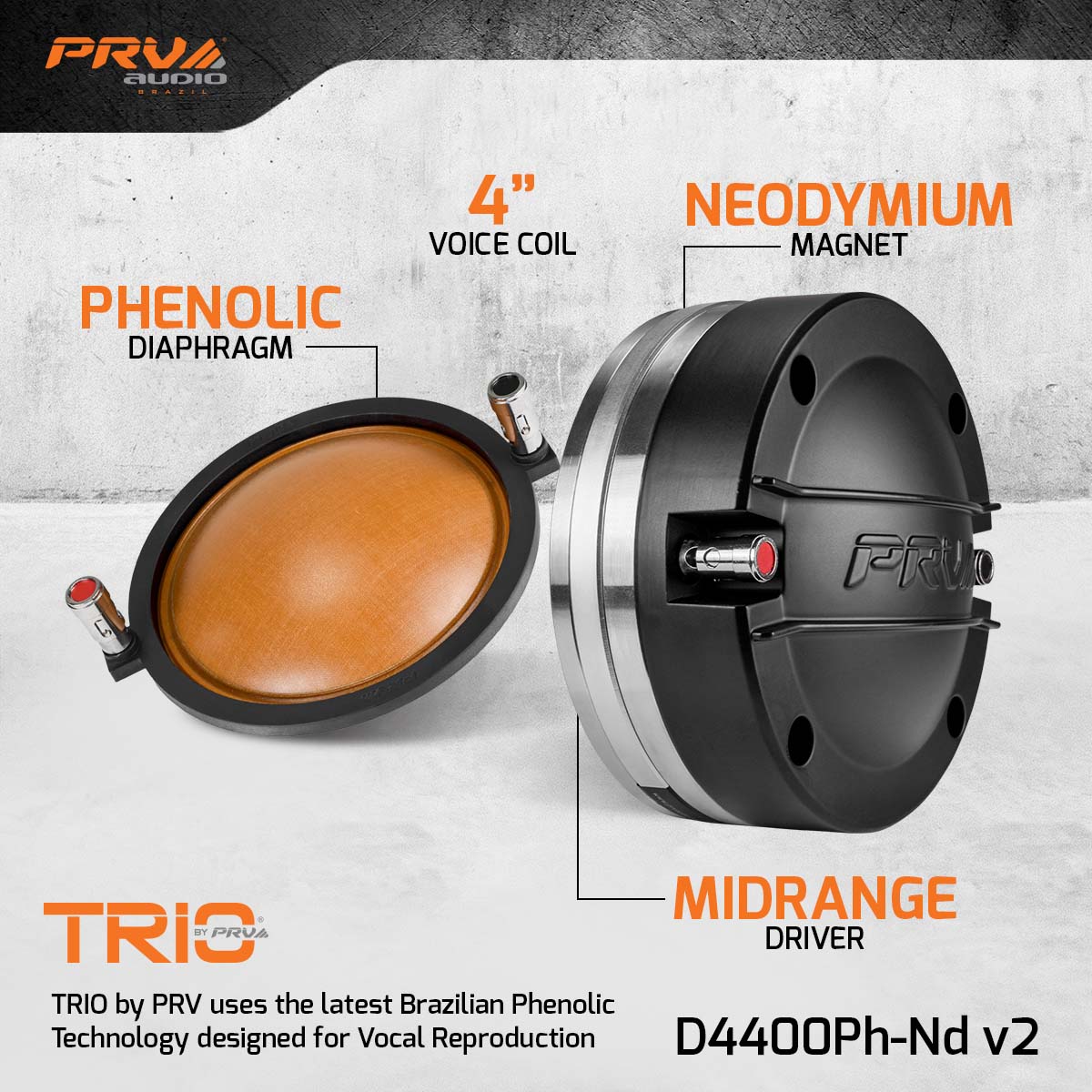

- Phenolic diaphragm, 4" CCAW voice coil
- Larger aluminum phase plug

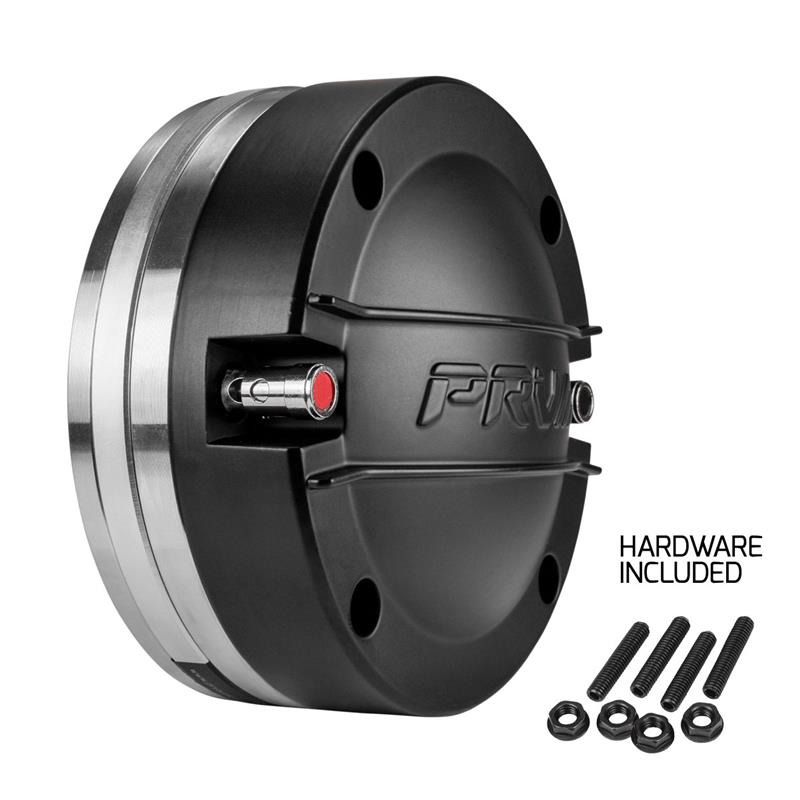

- Neodymium motor, mounting hardware included
- Sold individually
Specifications are manufacturer rated.
02 Tech specs
By the numbers
RMS Power 01
400W
Continuous rating
Peak Power 02
800W
Short-burst rating
Sensitivity 03
109dB
Efficiency
Size 04
4in
Nominal
- Impedance
- 8 Ohm
- Nominal Power Handling
- 200 W
- Continuous Program Power (RMS)
- 400 W
- Max Peak Power
- 800 W
- Recommended Hi Pass Crossover
- 700 Hz, 12 dB/octave
- Sensitivity (2.83V at 1m)
- 109 dB
- Frequency Response
- 450 – 7,500 Hz
- Voice Coil Diameter
- 4" (101.6 mm)
- Magnet
- Neodymium
- Mounting
- Bolt-on, M6 x 4 on a 4" (102 mm) bolt circle
- Overall Dimensions
- 6.10" (155 mm) dia., 3.25" (82.5 mm) deep
- Net Weight
- 8.81 lbs (4.0 kg)
- Weight
- 9.5 lbs
- Dimensions
- 6.5 × 6.5 × 4.75 in
- Exit Throat
- 2" (50 mm)
- Diaphragm
- Phenolic
