PRV
PRV 6.5 inch 4 Ohm Neodymium Mid Range Speaker PRV-6MR500-NDY-4
$129.91
6.5″ 4 Ohm neodymium midrange, 500 W RMS and 96 dB, with a 2″ voice coil and response to 13 kHz.
RMS Power500W
Sensitivity96dB
Size2in
01 Overview
The details
Product Overview
The PRV 6MR500-NDY-4 uses a neodymium slug motor that concentrates magnetic flux and sheds heat well, helping it handle 500 W RMS with less power compression. A 2" dual-layer CCAW voice coil gives clear vocals and fast transients, and response reaches about 13 kHz. The die-cast aluminum frame suits door panels and compact high-power builds.
Key Features
- 500 W RMS continuous program power
- 96 dB sensitivity (2.00V/1m)
- Neodymium motor
- 2" CCAW voice coil on a Kapton former
- Response up to 13 kHz
- Die-cast aluminum frame
Specifications are manufacturer rated.
02 Tech specs
By the numbers
RMS Power 01
500W
Continuous rating
Sensitivity 02
96dB
Efficiency
Size 03
2in
Nominal
Weight 04
3.34lb
Per unit
- Impedance
- 4 Ohm
- Continuous Program Power (RMS)
- 500 W
- Recommended Hi Pass Crossover
- 220 Hz, 12 dB/octave
- Sensitivity (2.00V at 1m)
- 96 dB
- Frequency Response
- 90 – 13,000 Hz
- Voice Coil Diameter
- 2" (50 mm)
- Voice Coil Wire
- CCAW
- Former Material
- Kapton
- Magnet
- Neodymium
- Frame Material
- Die-cast aluminum

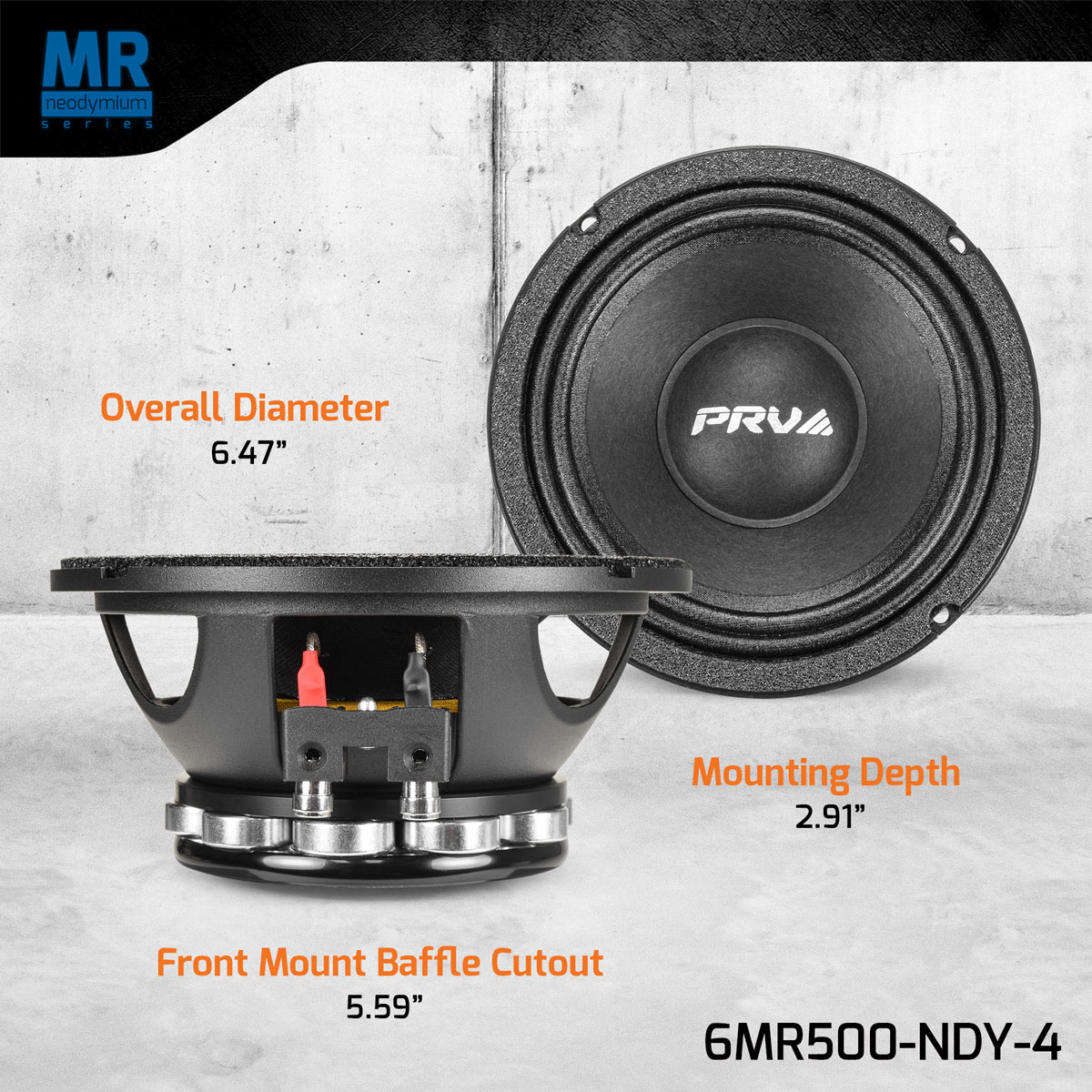

- Mounting Depth
- 2.91" (74 mm)
- Cutout Diameter
- 5.59" (142 mm)
- Overall Diameter
- 6.47" (164.5 mm)
- Net Weight
- 3.34 lbs (1.51 kg)
- Weight
- 3.8 lbs
- Dimensions
- 7.25 × 7.25 × 4 in
