01 Overview
The details
Product Overview

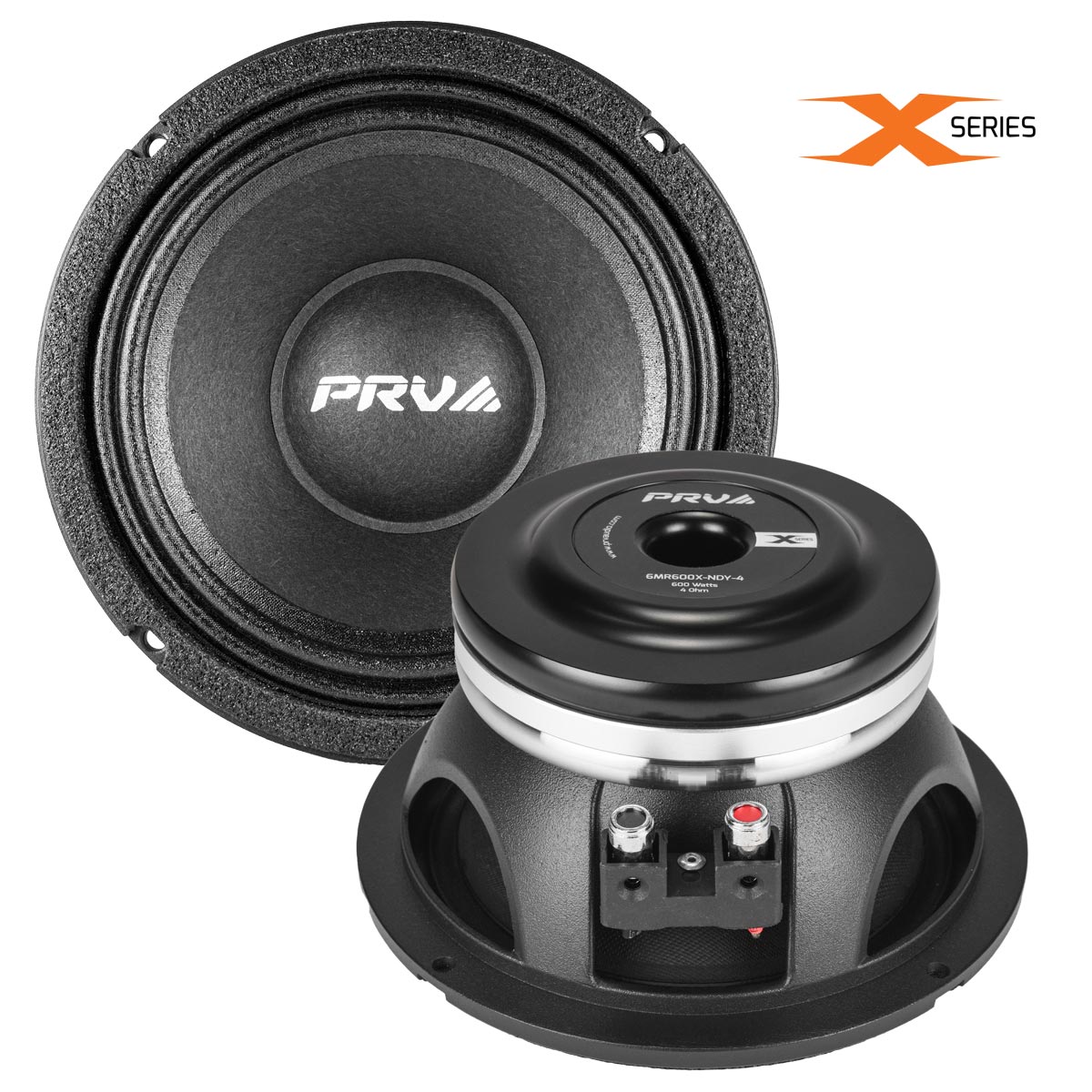

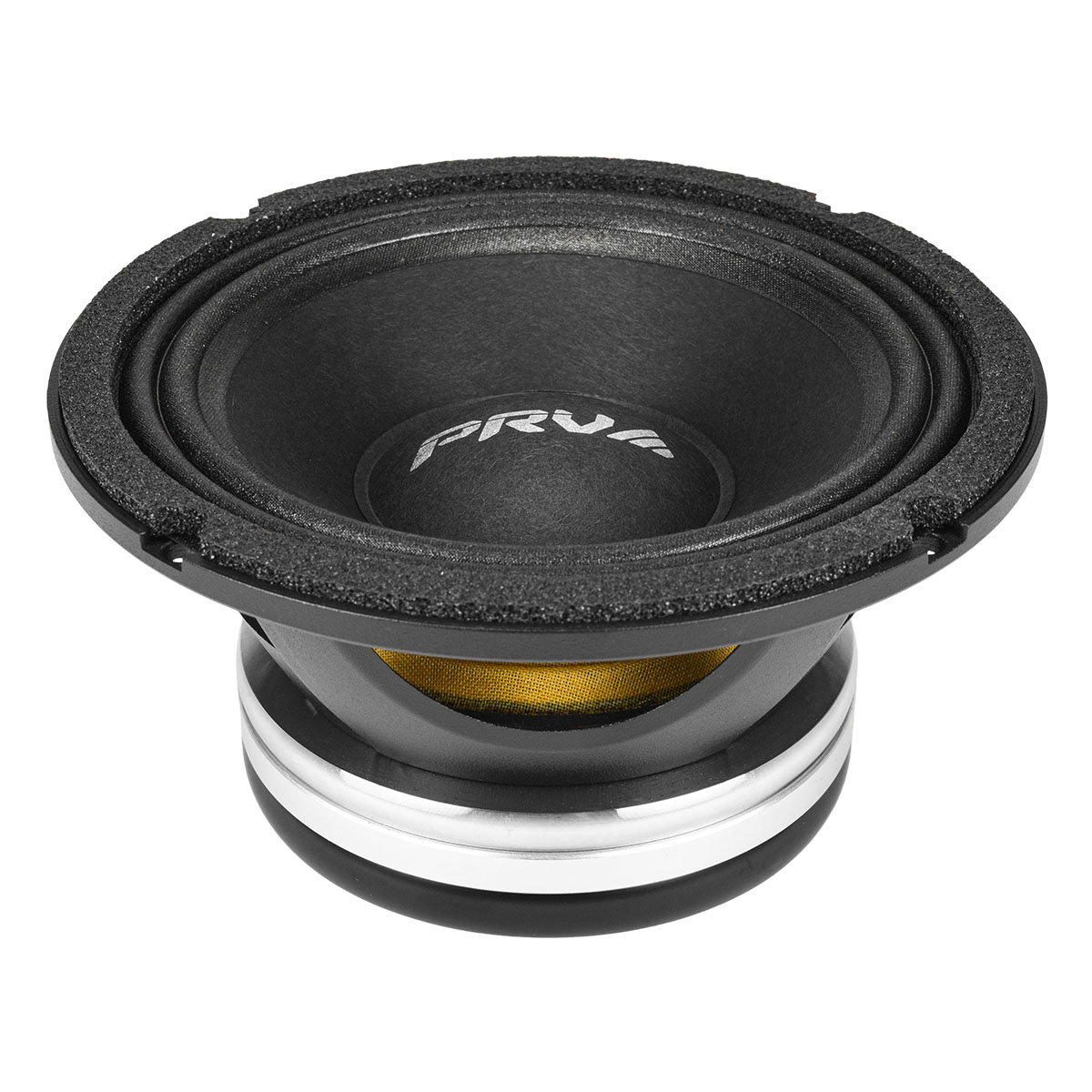

The PRV 6MR600X-NDY-4 is built for maximum output from a 6.5". A halo neodymium motor improves heat dissipation and cuts power compression, and the 2" double-layer CCAW voice coil handles 600 W RMS. With 97.5 dB sensitivity and response to 13 kHz, PRV positions it as a midrange that can take the place of a compression driver in a 2-way build.
Key Features
- 600 W RMS continuous program power
- 97.5 dB sensitivity (2.83V/1m)

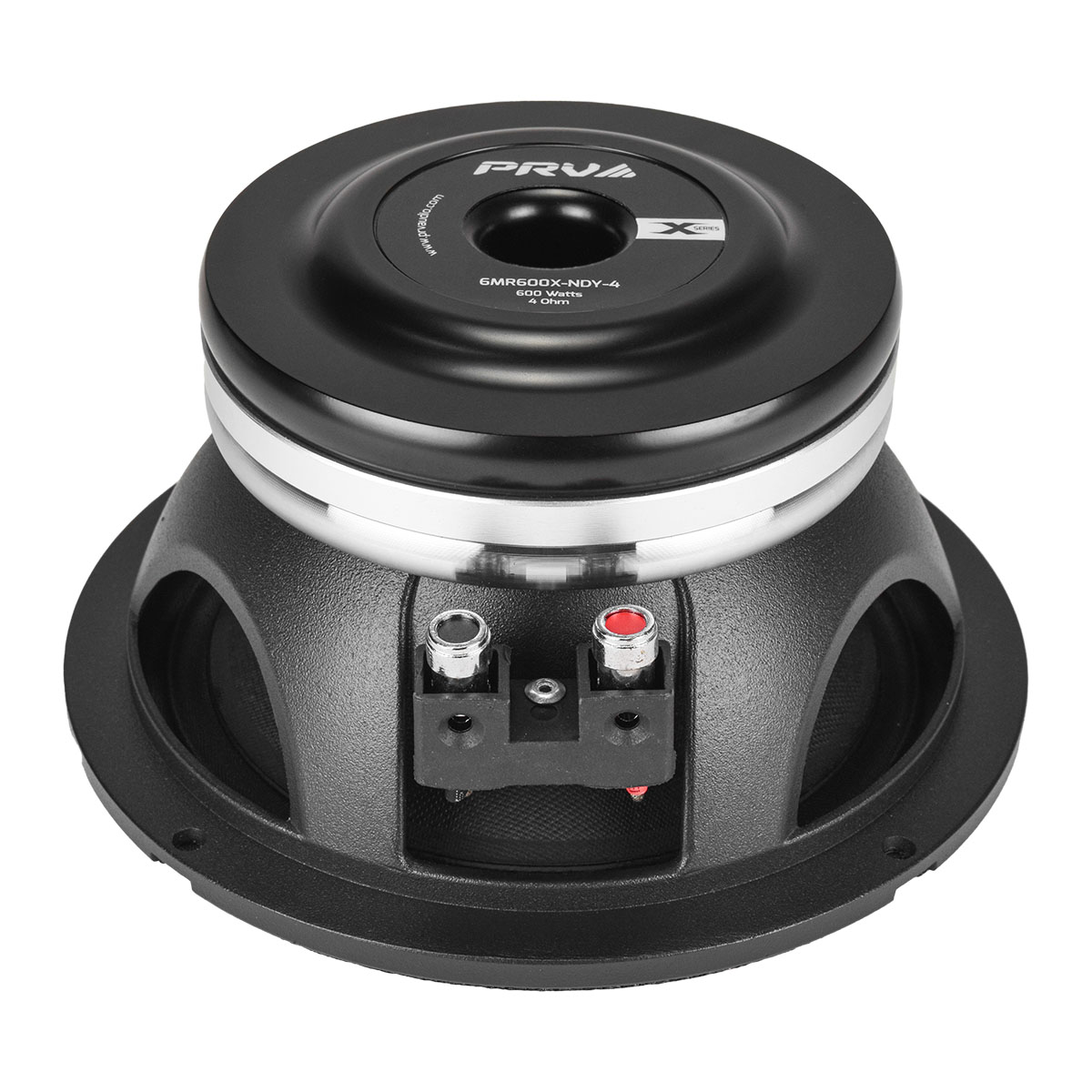

- Halo neodymium motor
- 2" double-layer CCAW voice coil

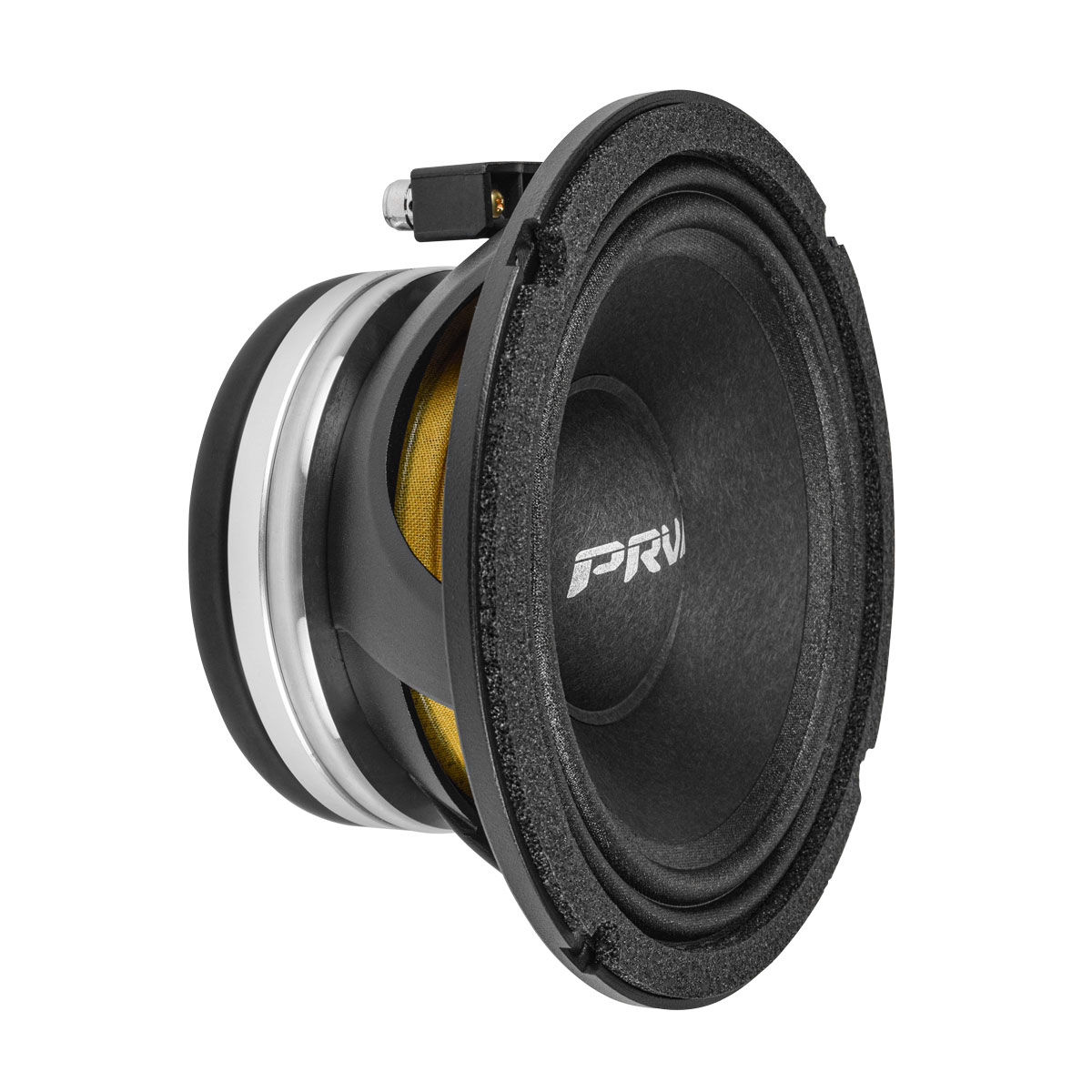

- Naturally damped paper cone
- Die-cast aluminum frame
Specifications are manufacturer rated.
02 Tech specs
By the numbers
RMS Power 01
600W
Continuous rating
Peak Power 02
1,200W
Short-burst rating

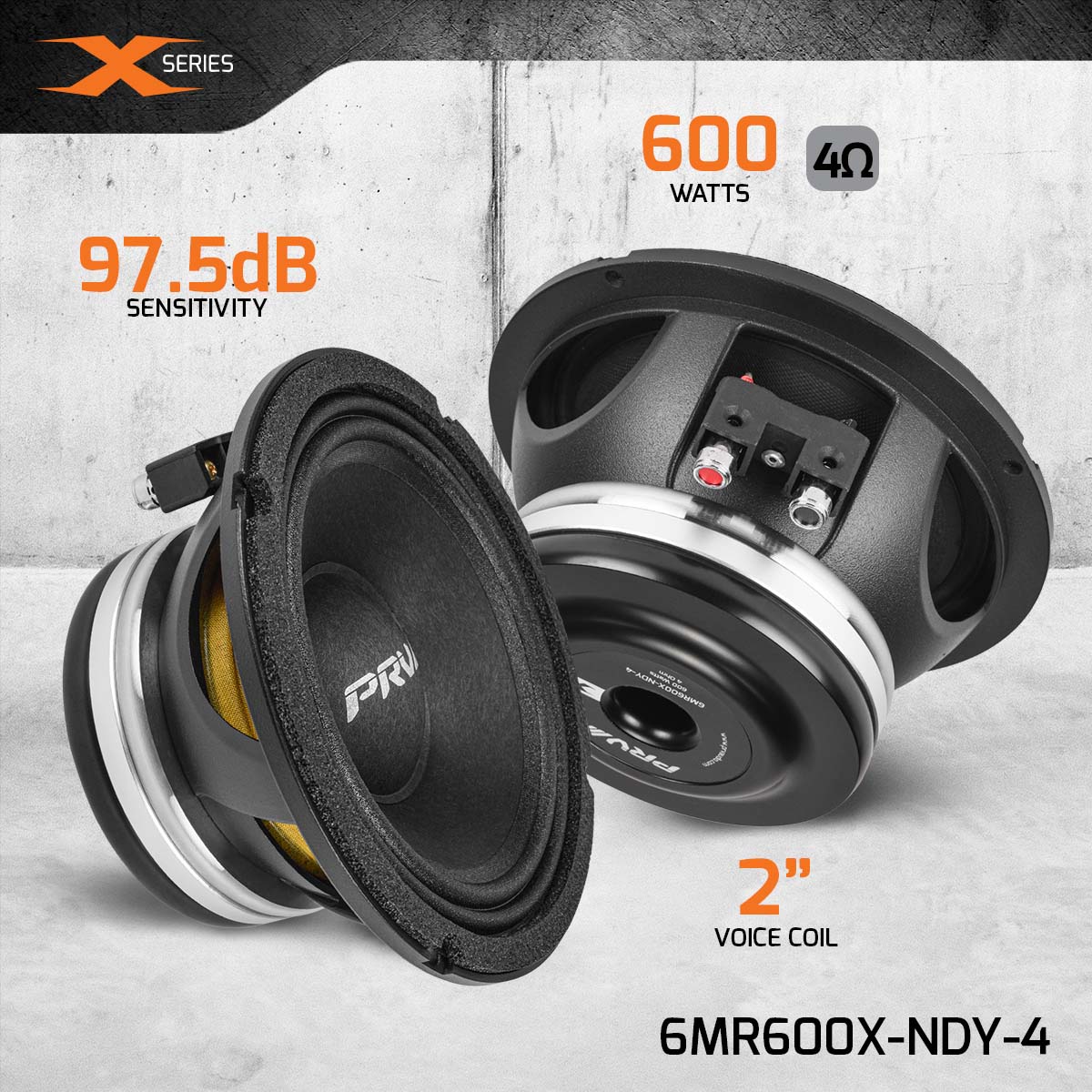

Sensitivity 03
97.5dB
Efficiency
Size 04
2in
Nominal
- Impedance
- 4 Ohm
- Continuous Program Power (RMS)
- 600 W
- Nominal Power Handling
- 300 W
- Max Peak Power
- 1,200 W
- Recommended Hi Pass Crossover
- 160 Hz, 12 dB/octave
- Sensitivity (2.83V at 1m)
- 97.5 dB
- Frequency Response
- 90 – 13,000 Hz
- Voice Coil Diameter
- 2" (50 mm)
- Voice Coil Wire
- CCAW
- Former Material
- Kapton
- Magnet
- Neodymium
- Frame Material
- Die-cast aluminum

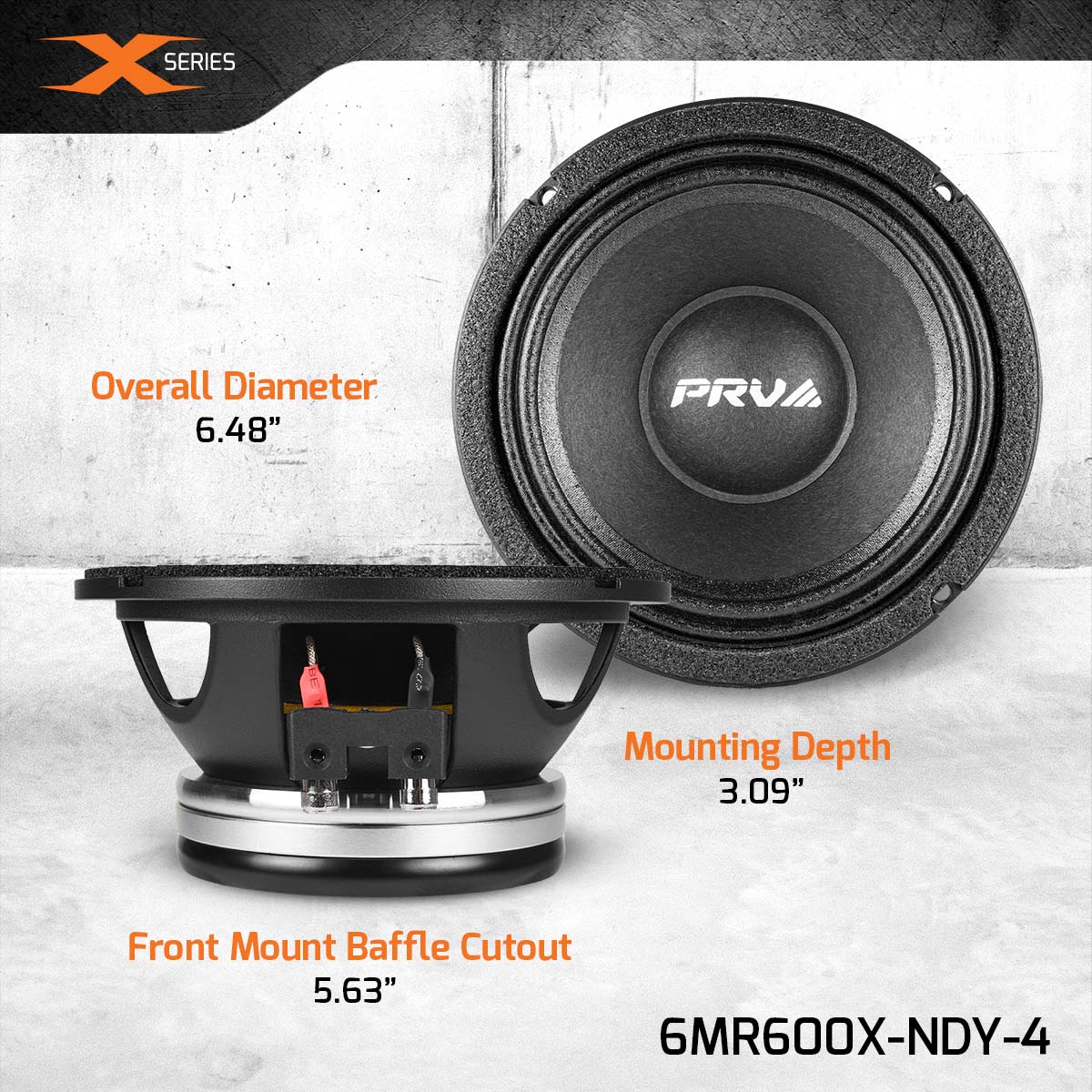

- Mounting Depth
- 3.09" (78.5 mm)
- Cutout Diameter
- 5.63" (143 mm)
- Overall Diameter
- 6.48" (164.5 mm)
- Net Weight
- 4.63 lbs (2.1 kg)
- Weight
- 5 lbs
- Dimensions
- 7 × 7 × 4.25 in
03 Reviews (0)
Reviews (0)
You must be logged in to post a review.
04 Complete the build
Shop all Power it right
Related products
-
SoundQubed6.5 inch HDS Series Coaxial 2-way Speakers (Pair) SQ-HDS-CX65
$69.95Read more -
Sky High Car Audio6.5 inch EL64 Slim Midrange Loudspeaker 4ohm (Single Speaker)
$51.95Add to cart -
SoundQubed6.5 inch HDX Series Pro Audio Bullet Speaker (single) SQ-HDX-PA6B-4
$99.95Add to cart -

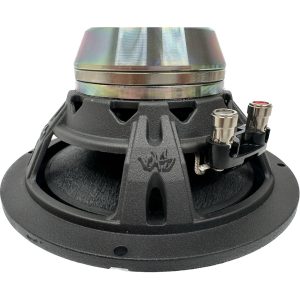

Sky High Car Audio6.5 inch Neo Mid Woofer Pair Sky High Car Audio
