01 Overview
The details
Product Overview

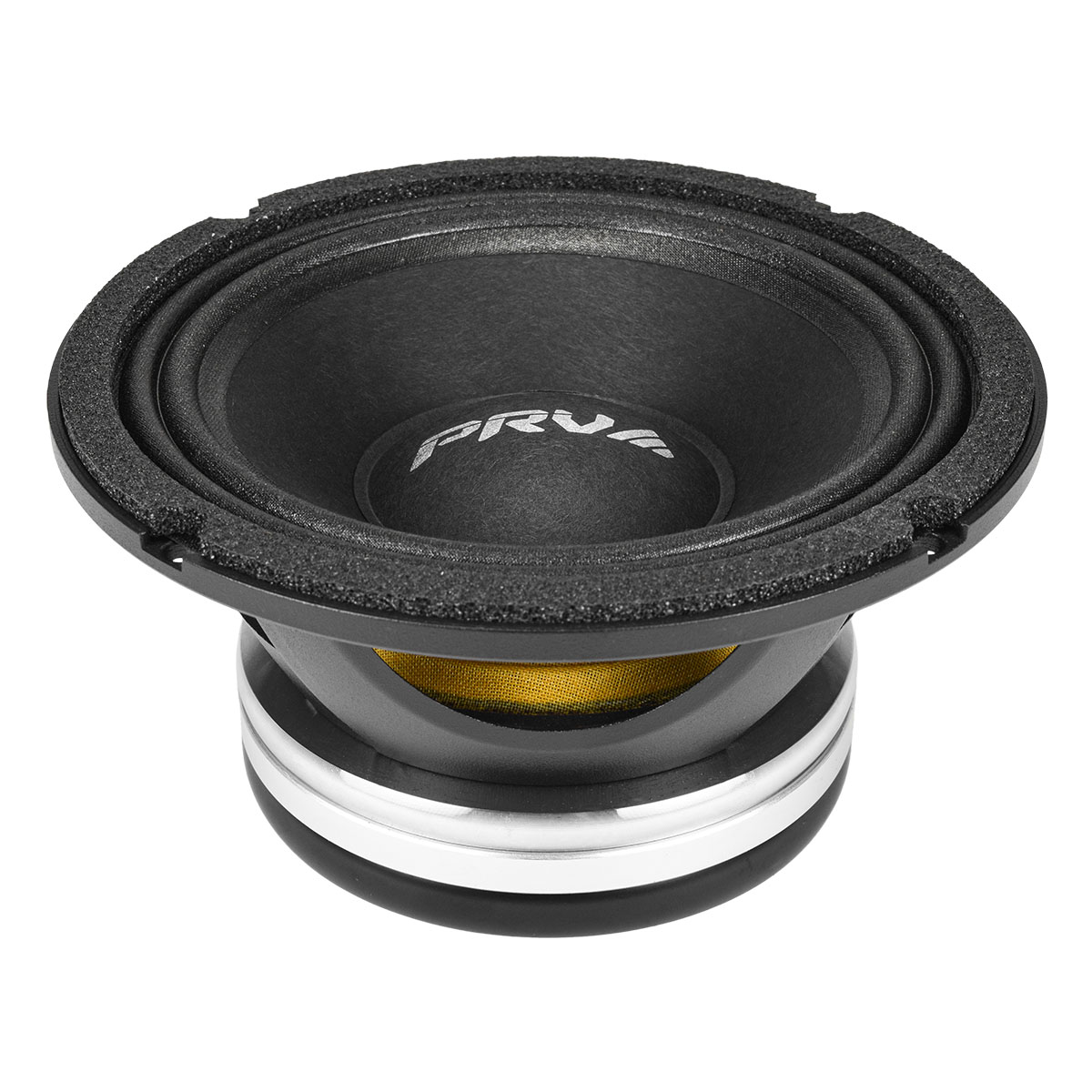

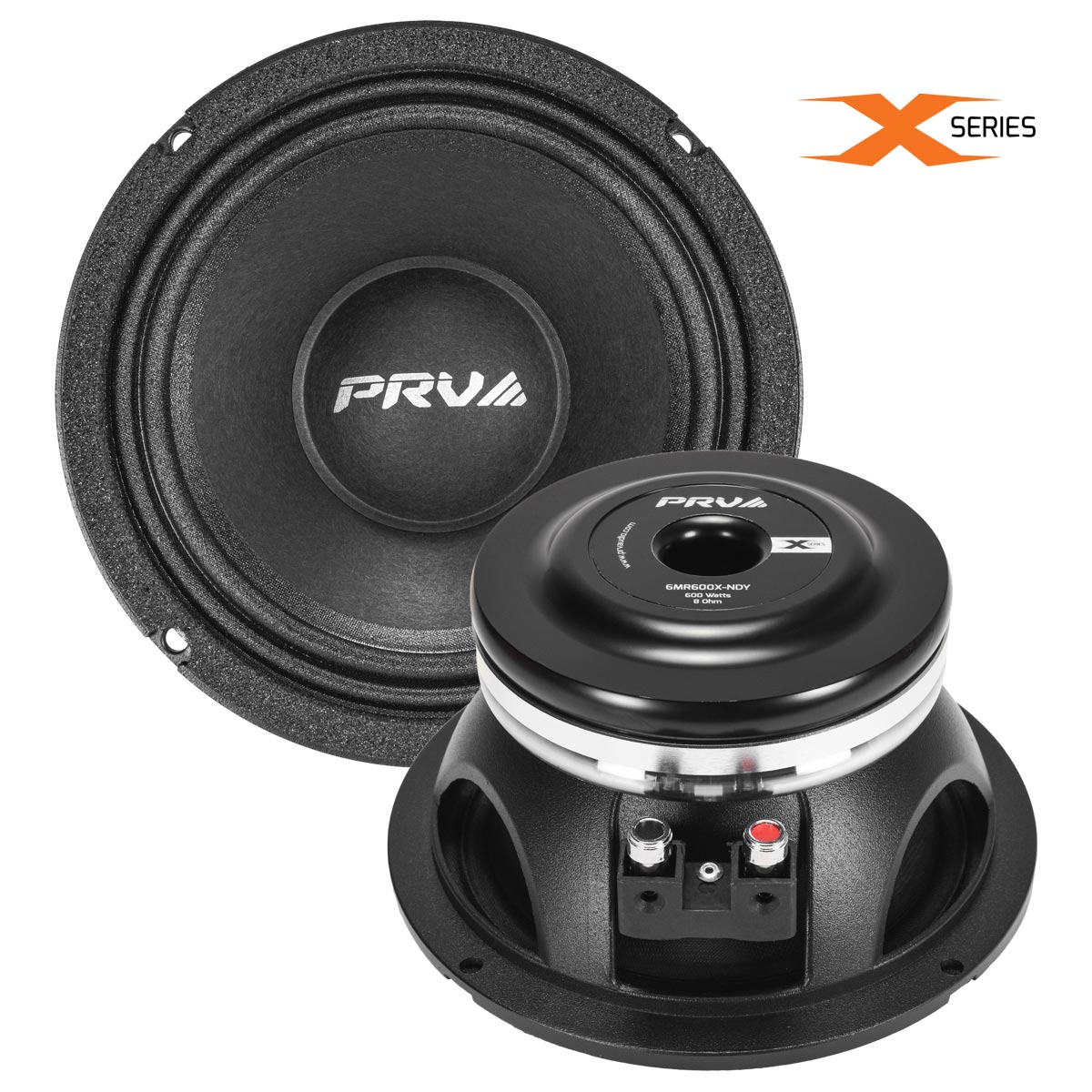

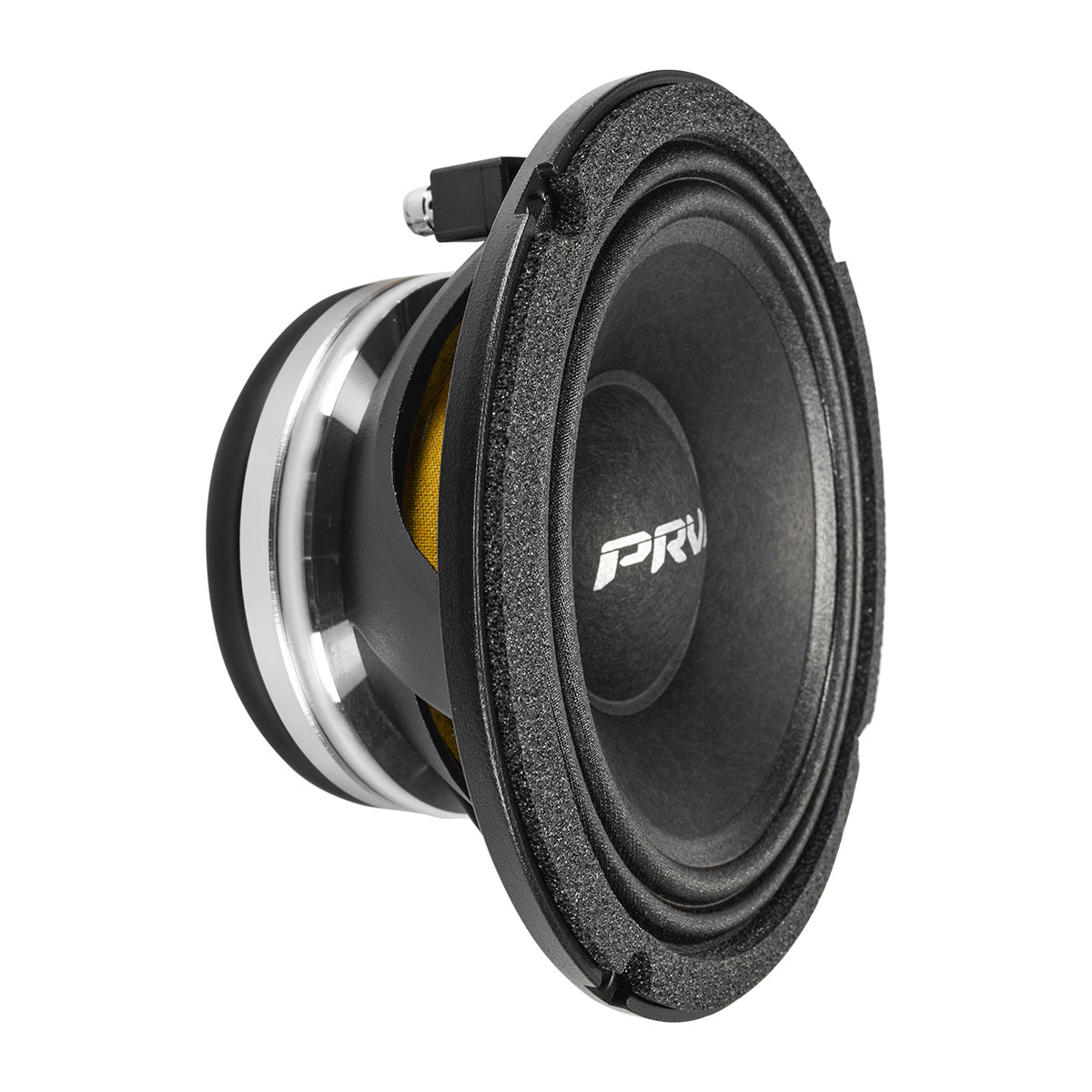

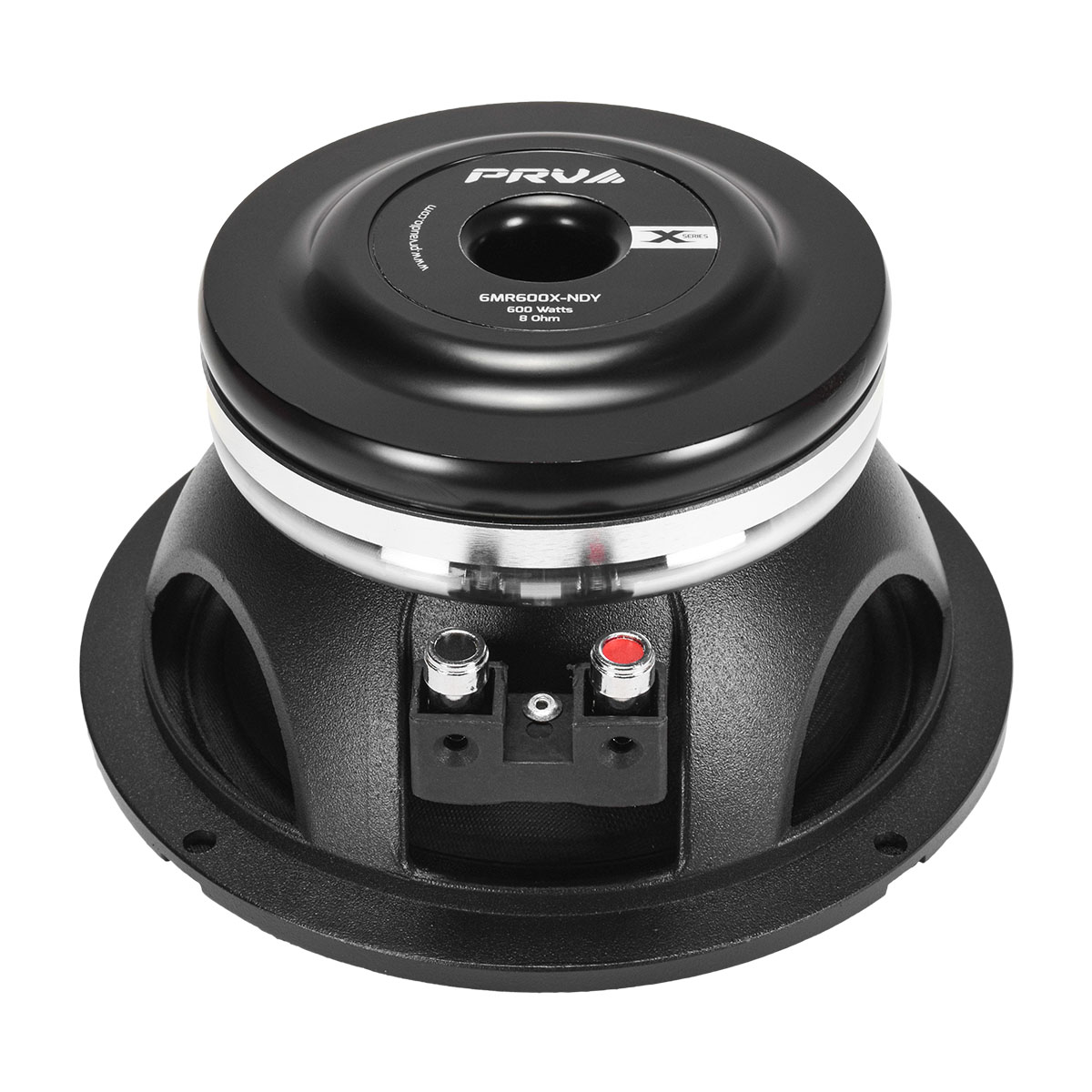

The PRV 6MR600X-NDY is built for maximum output from a 6.5". A halo neodymium motor improves heat dissipation and cuts power compression, and the 2" double-layer CCAW voice coil handles 600 W RMS. With 97.5 dB sensitivity and response to 13 kHz, PRV positions it as a midrange that can take the place of a compression driver in a 2-way build.
Key Features
- 600 W RMS continuous program power
- 97.5 dB sensitivity (2.83V/1m)
- Halo neodymium motor
- 2" double-layer CCAW voice coil
- Naturally damped paper cone
- Die-cast aluminum frame
Specifications are manufacturer rated.
02 Tech specs
By the numbers

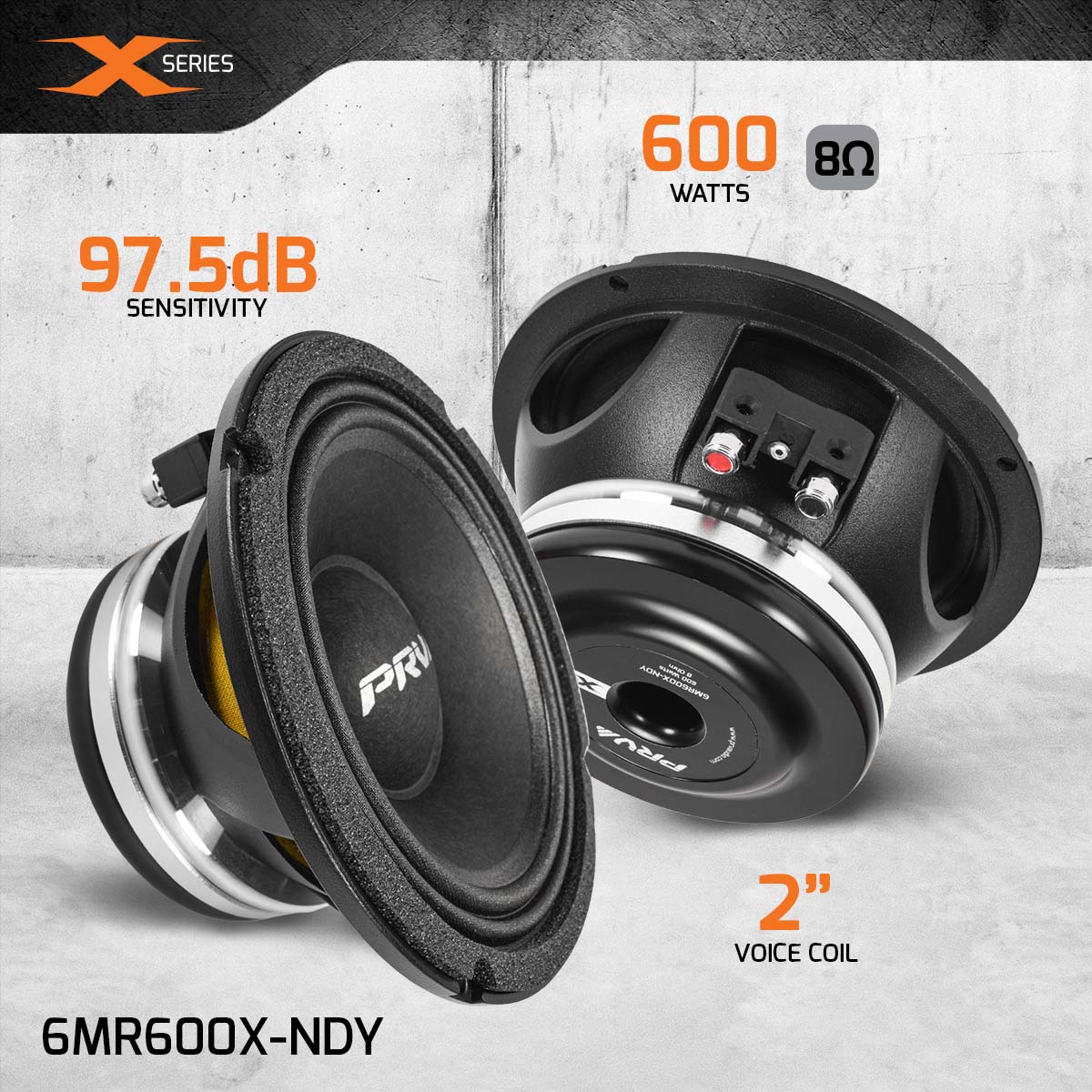

RMS Power 01
600W
Continuous rating
Sensitivity 02
97.5dB
Efficiency
Size 03
2in
Nominal
Weight 04
4.63lb
Per unit
- Impedance
- 8 Ohm
- Continuous Program Power (RMS)
- 600 W
- Recommended Hi Pass Crossover
- 160 Hz, 12 dB/octave
- Sensitivity (2.83V at 1m)
- 97.5 dB
- Frequency Response
- 90 – 13,000 Hz
- Voice Coil Diameter
- 2" (50 mm)
- Voice Coil Wire
- CCAW
- Former Material
- Kapton
- Magnet
- Neodymium
- Frame Material
- Die-cast aluminum

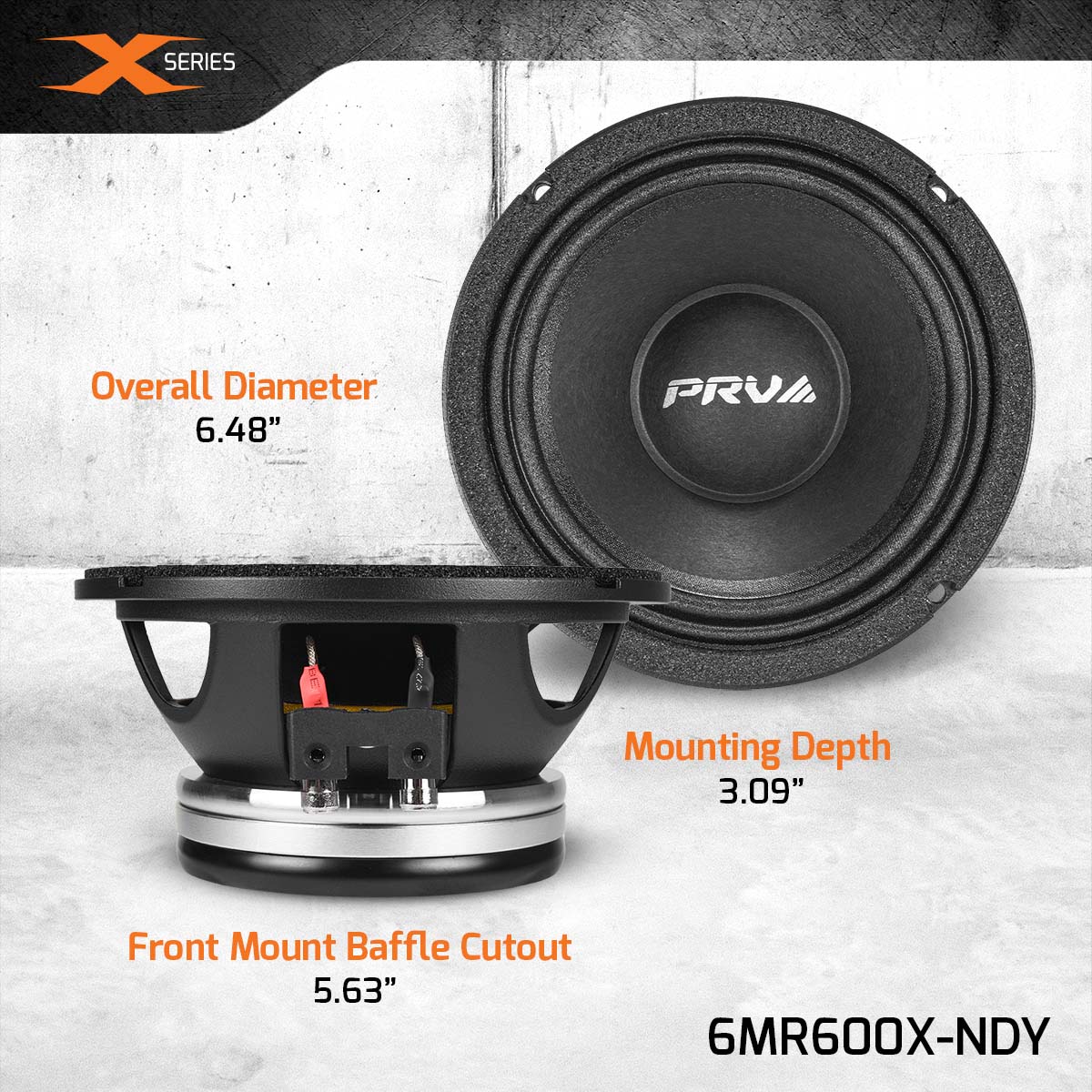

- Mounting Depth
- 3.09" (78.5 mm)
- Cutout Diameter
- 5.63" (143 mm)
- Overall Diameter
- 6.48" (164.5 mm)
- Net Weight
- 4.63 lbs (2.1 kg)
- Weight
- 5 lbs
- Dimensions
- 7 × 7 × 4.25 in
