PRV 6×9 inch 4 Ohm Phase Plug Mid Range Speaker PRV-69MR500-PhP-4
$79.91
6×9″ 4 Ohm midrange with phase plug, 500 W program power and 97 dB, for 3-way systems.
RMS Power250W
Sensitivity97dB
Size1.5in
01 Overview
The details
Product Overview
The PRV 69MR500-PhP-4 is a 6×9 midrange for 3-way systems that need more midrange output. A phase plug smooths the upper response out to about 12 kHz, and the ceramic magnet sits on a reinforced die-cast aluminum frame built for tough installs.
Key Features
- 250 W RMS (AES) power handling, 500 W program power
- 97 dB sensitivity
- Phase plug for smooth upper response
- Ferrite motor in a die-cast aluminum frame
- 1.5" copper voice coil on a Kapton former
- Made for 3-way midrange duty
Specifications are manufacturer rated.
02 Tech specs
By the numbers
RMS Power 01
250W
Continuous rating
Sensitivity 02
97dB
Efficiency
Size 03
1.5in
Nominal
Weight 04
5.35lb
Per unit
- Impedance
- 4 Ohm
- Power Handling (AES, RMS)
- 250 W
- Program Power
- 500 W
- Recommended Hi Pass Crossover
- 500 Hz, 12 dB/octave
- Sensitivity (2.00V at 1m)
- 97 dB
- Frequency Response
- 500 – 12,000 Hz
- Voice Coil Diameter
- 1.5" (38 mm)
- Voice Coil Wire
- Copper
- Former Material
- Kapton
- Magnet
- Ferrite
- Frame Material
- Die-cast aluminum

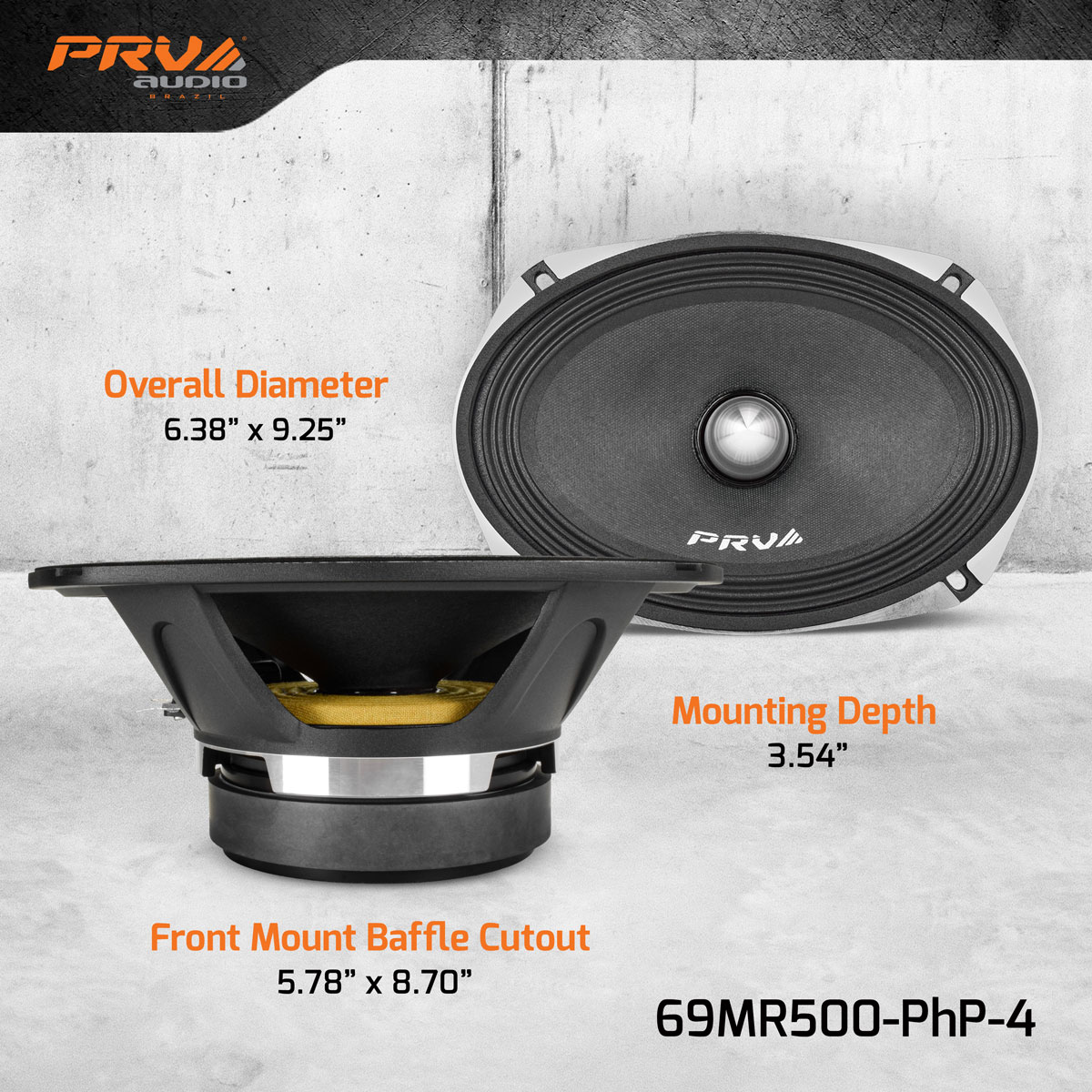

- Mounting Depth
- 3.54" (90 mm)
- Cutout
- 5.78" x 8.70" (147 x 221 mm)
- Overall Dimensions
- 6.38" x 9.25" (162 x 235 mm), 3.86" (98 mm) deep
- Net Weight
- 5.35 lbs (2.45 kg)
- Weight
- 5.75 lbs
- Dimensions
- 10 × 7.25 × 4.5 in
