PRV
PRV 8 inch 4 Ohm Bullet Mid Range Speaker PRV-8MR500-4BULLET
$59.91
8″ 4 Ohm pro audio bullet midrange, 500 W RMS and 95 dB, smooth response to 20 kHz.
RMS Power500W
Sensitivity95dB
Size1.5in
01 Overview
The details
Product Overview
The PRV 8MR500-4 BULLET is a pro audio 8" midrange built for custom door installs. Its aluminum bullet phase plug spreads sound evenly and helps cool the voice coil, while the pressed paper cone and triple-roll cloth surround give smooth response out to 20 kHz.
Key Features
- 500 W RMS continuous program power
- 95 dB sensitivity (2.83V/1m)
- Aluminum bullet phase plug with vented pole piece
- Pressed paper cone with triple-roll cloth surround
- Response to 20 kHz
- Sold individually
Specifications are manufacturer rated.
02 Tech specs
By the numbers
RMS Power 01
500W
Continuous rating
Sensitivity 02
95dB
Efficiency
Size 03
1.5in
Nominal
Weight 04
5.18lb
Per unit
- Impedance
- 4 Ohm
- Continuous Program Power (RMS)
- 500 W
- Recommended Hi Pass Crossover
- 125 Hz, 12 dB/octave
- Sensitivity (2.83V at 1m)
- 95 dB
- Frequency Response
- 95 – 20,000 Hz
- Voice Coil Diameter
- 1.5" (38 mm)
- Voice Coil Wire
- CCAW
- Former Material
- Kapton
- Frame Material
- Stamped steel

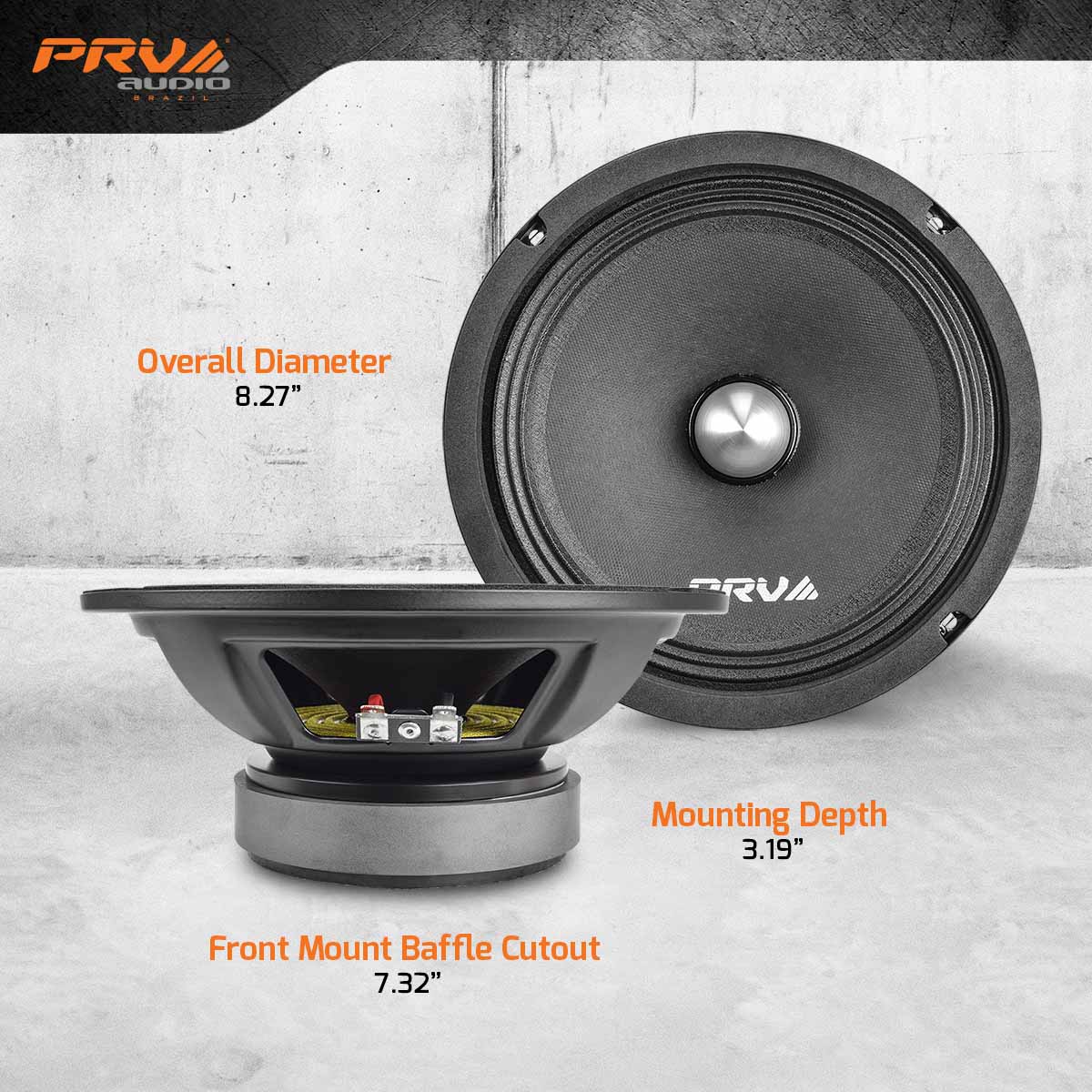

- Mounting Depth
- 3.19" (81 mm)
- Cutout
- 7.32" (186 mm)
- Overall Dimensions
- 8.27" (210 mm) dia., 3.46" (88 mm) deep
- Net Weight
- 5.18 lbs (2.35 kg)
- Weight
- 5.6 lbs
- Dimensions
- 9 × 9 × 4.25 in
