PRV 8 inch 4 Ohm Neodymium Bullet Mid Range Speaker PRV-8MR500-NDY-4BULLET
$79.91

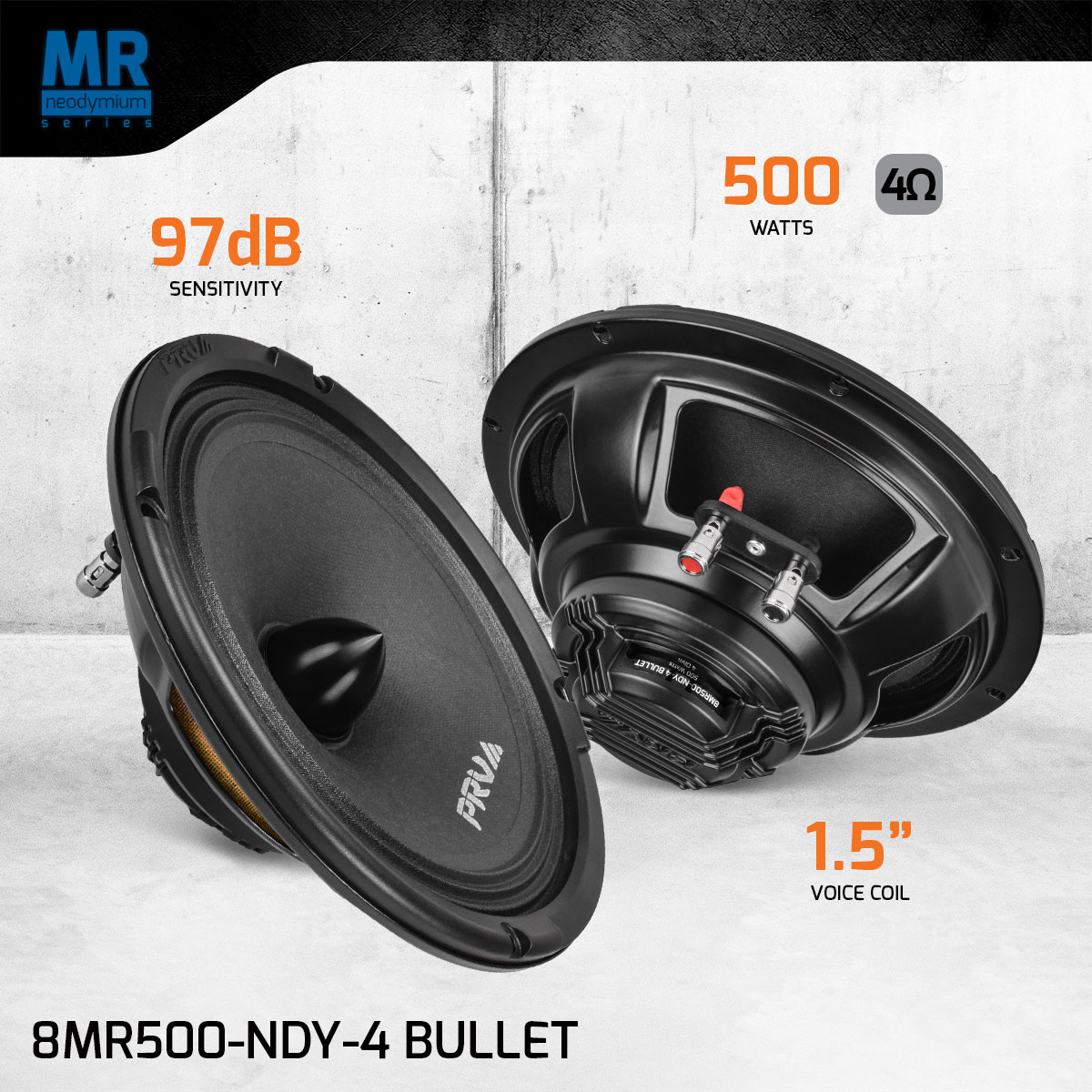

Lightweight 8″ 4 Ohm neodymium bullet midrange, 500 W RMS and 97 dB, only 2.2 lbs.
RMS Power500W
Sensitivity97dB
Size1.5in
01 Overview
The details
Product Overview

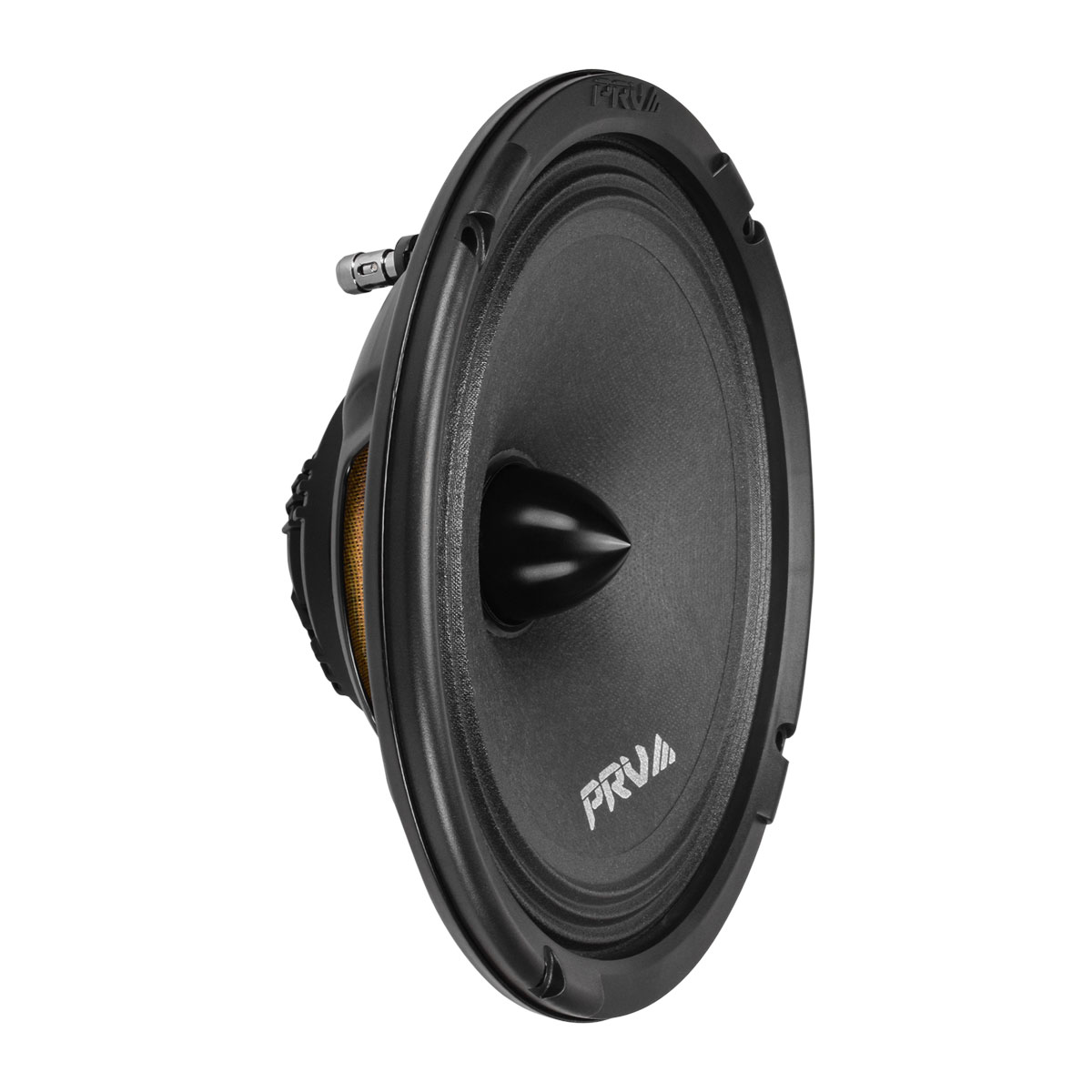

The PRV 8MR500-NDY-4 BULLET pairs a neodymium motor with a black aluminum bullet phase plug in a light 2.2 lb package. With 97 dB sensitivity, 500 W RMS handling and response to 20 kHz, it suits custom doors, motorcycle fairings and other tight spaces at 3.13" deep.
Key Features
- 500 W RMS continuous program power
- 97 dB sensitivity (2.83V/1m)
- Neodymium motor, only 2.2 lbs
- Black aluminum bullet phase plug
- Response to 20 kHz
- Sold individually
Specifications are manufacturer rated.
02 Tech specs
By the numbers
RMS Power 01
500W
Continuous rating
Sensitivity 02
97dB
Efficiency
Size 03
1.5in
Nominal
Weight 04
2.20lb
Per unit
- Impedance
- 4 Ohm
- Continuous Program Power (RMS)
- 500 W
- Recommended Hi Pass Crossover
- 125 Hz, 12 dB/octave
- Sensitivity (2.83V at 1m)
- 97 dB

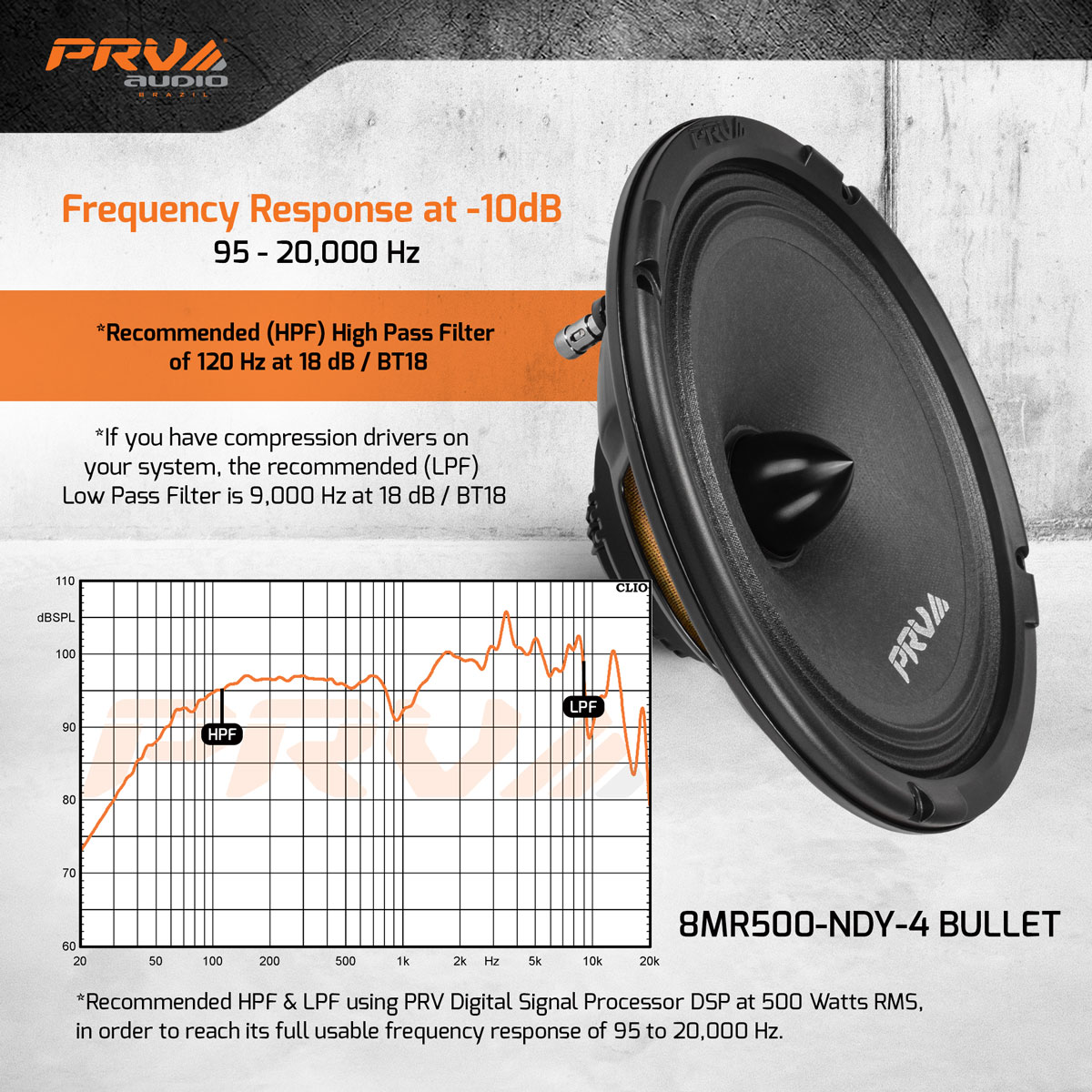

- Frequency Response
- 95 – 20,000 Hz
- Voice Coil Diameter
- 1.5" (38 mm)
- Voice Coil Wire
- CCAW
- Former Material
- Kapton
- Magnet
- Neodymium
- Frame Material
- Stamped steel

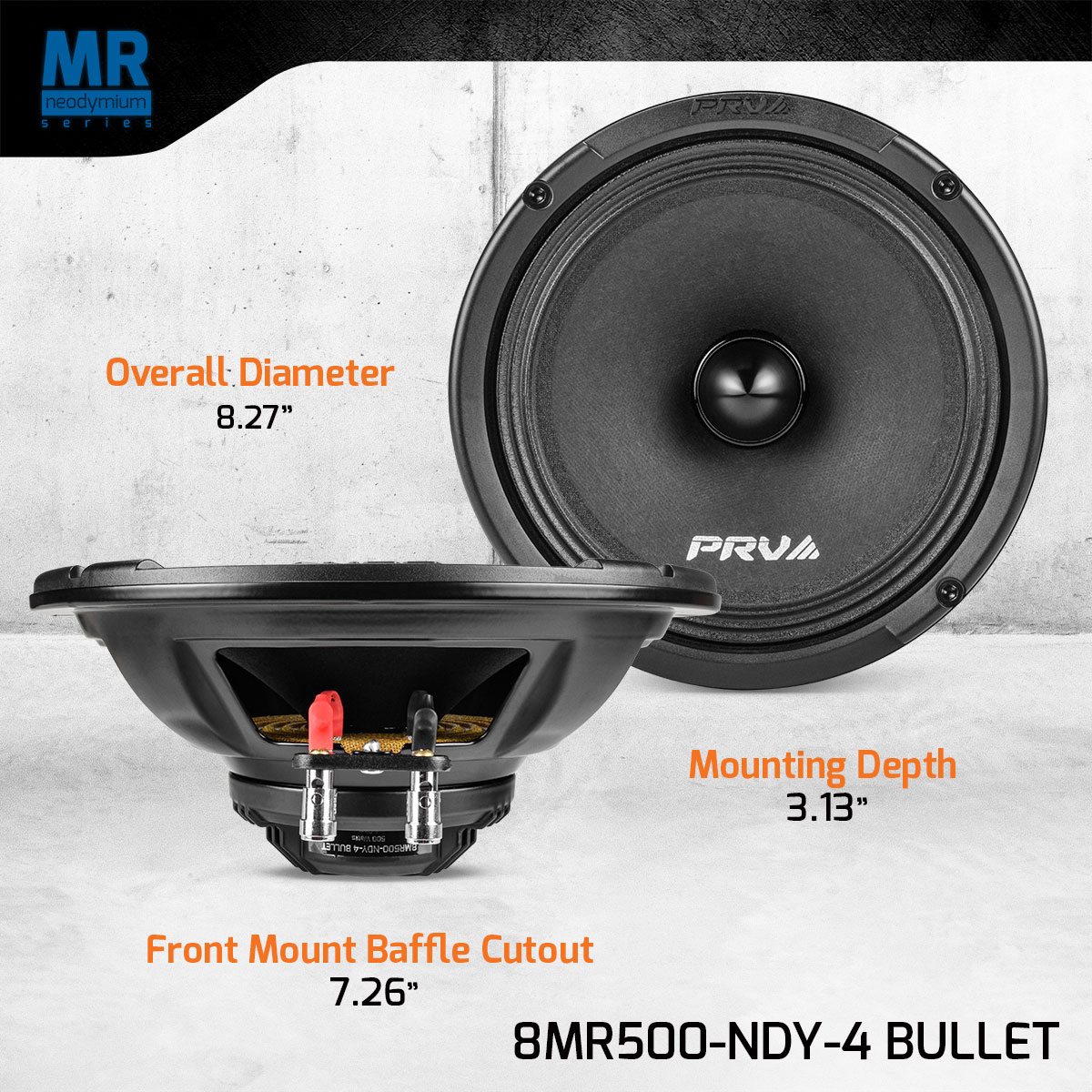

- Mounting Depth
- 3.13" (79.5 mm)
- Cutout
- 7.26" (184.5 mm)
- Overall Dimensions
- 8.27" (210 mm) dia., 3.56" (90.5 mm) deep
- Net Weight
- 2.20 lbs (1.0 kg)
- Weight
- 2.8 lbs
- Dimensions
- 9 × 9 × 4.25 in
